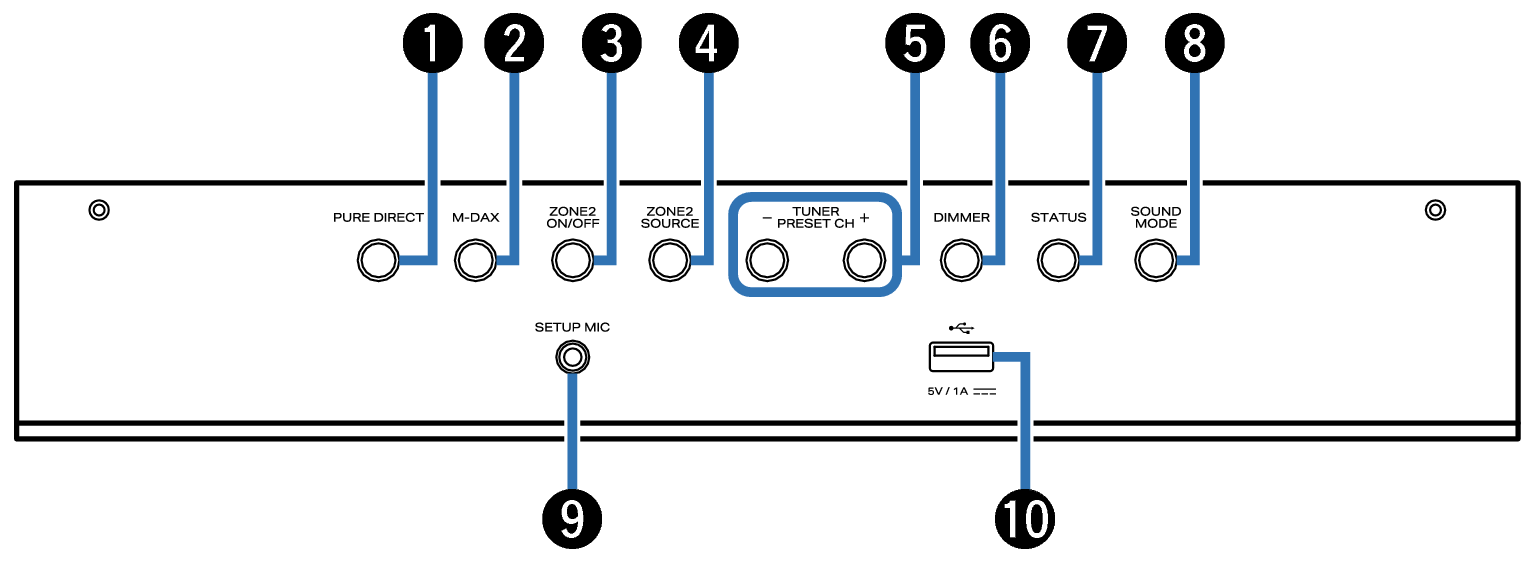

Name Front Small2-1 C50U

PURE DIRECT button

This switches the sound mode between Direct, Pure Direct and Auto surround.

Direct playbacklink

Pure Direct playbacklink

Auto surround playbacklink

M-DAX button

This switches the M-DAX mode. link

ZONE2 ON/OFF button

This turns the power of ZONE2 (another room) on/off. link

ZONE2 SOURCE button

This selects the input source for ZONE2. link

Tuner preset channel buttons
(TUNER PRESET CH +, –)

These select preset broadcast stations. link

DIMMER button

Each press of this switches the brightness of the display. link

STATUS button

Each press of this switches the status information that is shown on the display.

SOUND MODE button

Switching the sound mode. link

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. link

USB port ( Icon USB )

This is used to connect USB storages (such as USB memory devices). link
