Playing songs from your iPhone, iPod touch or iPad

If you update your “iPhone/iPod touch/iPad” to iOS 10.0.2 or later, you can stream music stored in your “iPhone/iPod touch/iPad” directly to this unit.

Connect your iPhone, iPod touch or iPad Wi-Fi to the same network as this unit.

For details, see your device’s manual.

Play the song on your iPhone, iPod touch or iPad.

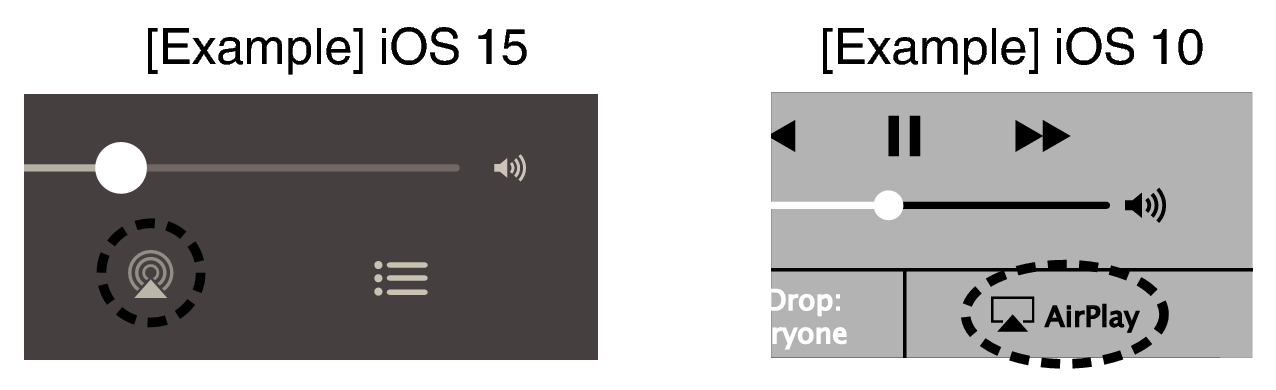

AirPlay icon is displayed on the iPhone, iPod touch or iPad screen.

Tap the AirPlay icon and select this unit.
