Menu map

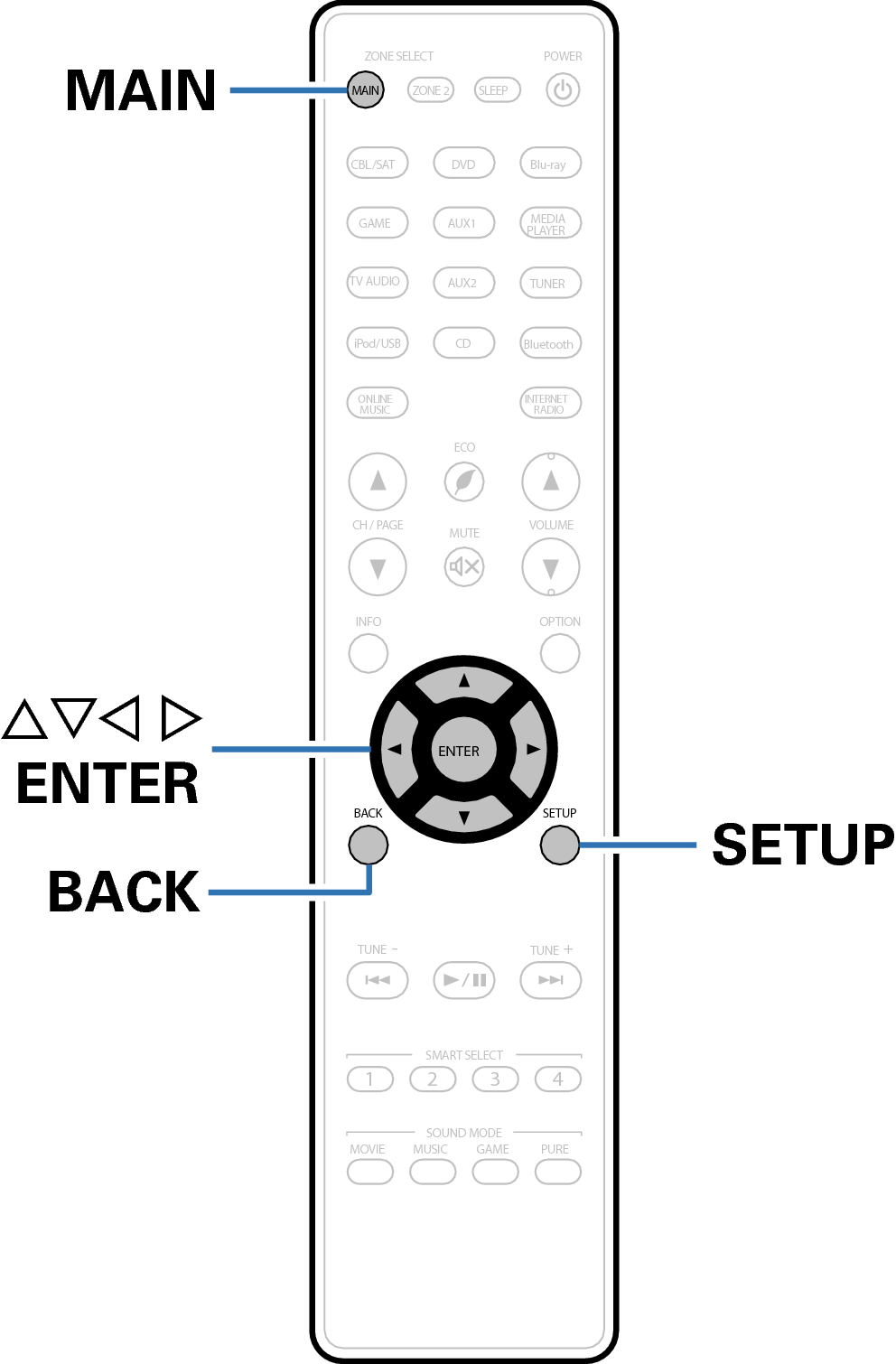

When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.
The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
Audio |
Dialog Level Adjust |
This setting adjusts the output level to clarify the dialogue output from the center channel. |
|
Subwoofer Level Adjust |
This setting adjusts the volume level for the subwoofer. |
||
Surround Parameter |
Adjusts surround sound parameters. |
||
M-DAX |
Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback. |
||
Audio Delay |
Compensates for incorrect timing between video and audio. |
||
Volume |
Sets the MAIN ZONE (room where the unit is located) volume setting. |
||
Audyssey |
Makes Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® settings. |
||
Graphic EQ |
Uses the graphic equalizer to adjust the tone of each speaker. |
||
Video |
Picture Adjust |
Adjusts picture quality. |
|
HDMI Setup |
Makes settings for HDMI video/audio output. |
||
Output Settings |
Makes settings for video output. |
||
On Screen Display |
Configures the on-screen display settings. |
||
TV Format |
Sets the video signal format to be output for the TV you are using. |
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
Inputs |
Input Assign |
Changes input connector assignment. |
|
Source Rename |
Changes the display name for input source. |
||
Hide Sources |
Removes from the display input sources that are not used. |
||
Source Level |
Adjusts the playback level of the audio input. |
||
Input Select |
Sets the audio input mode and decode mode. |
||
Speakers |
Audyssey® Setup |
The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. |
|
Manual Setup |
Sets up the speakers manually or changes the Audyssey® Setup settings. |
||
Network |
Information |
Displays network information. |
|
Connection |
Selects whether to connect the home network to a wireless LAN or a wired LAN. |
||
Settings |
Used for manually setting the IP address or when using a proxy server. |
||
IP Control |
Enables network communication in standby power mode. |
||
Friendly Name |
The “Friendly Name” is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences. |
||
Diagnostics |
Used to check the network connection. |
||
Maintenance Mode |
Used when receiving maintenance from a Marantz service engineer or custom installer. This mode is not designed for use by the end user, and should only be used by a trained service technician or custom installation professional. |
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
General |
Language |
Changes the language of the display on the TV screen. |
|
ECO |
Configures the ECO Mode and Auto Standby energy-saving functions. |
||
ZONE2 Setup |
Sets ZONE2 audio playback settings. |
||
Zone Rename |
Changes the display title of each zone to one you prefer. |
||
Smart Select Names |
Changes the Smart Select Name display title to one you prefer. |
||
Trigger Out |
Select the conditions for activating trigger out function. |
||
Front Display |
Makes settings related to the display on this unit. |
||
Information |
Shows information about this unit settings, input signals, etc. |
||
Usage Data |
Selects whether or not to send anonymous usage data to Marantz. |
||
Firmware |
Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display. |
||
Setup Lock |
Protects settings from inadvertent changes. |
||
Setup Assistant |
Begin Setup... |
Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen. |
Page 8 of the separate manual “Quick Start Guide” |
Language Select |
Sets individual setting items according to the guidance displayed on the TV screen. |
||
Speaker Setup |
|||
Speaker Calibration |
|||
Network Setup |
|||
Input Setup |
