Connections
Connecting speakers
Connecting a TV
Connecting a playback device
Connecting an iPod or USB memory device to the USB port
Connecting an FM/AM antenna
Connecting to a home network (LAN)
Connecting an external control device
Connecting the power cord
NOTE
Do not plug in the power cord until all connections have been completed. However, when the “Setup Assistant” is running, follow the instructions in the “Setup Assistant” (page 8 in the separate “Quick Start Guide”) screen for making connections. (During “Setup Assistant” operation, the input/output connectors do not conduct current.)
Do not bundle power cords together with connection cables. Doing so can result in noise.
Cables used for connections
Provide necessary cables according to the devices you want to connect.
|

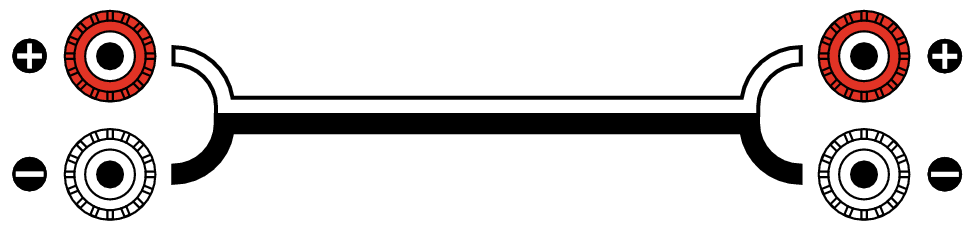

Speaker cable |
 |
|
Subwoofer cable |
 |
|
HDMI cable |
 |
|

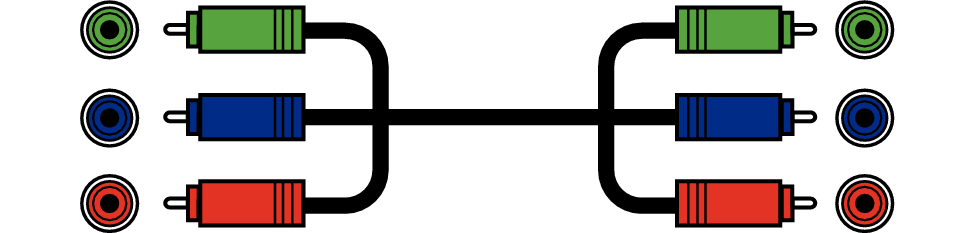

Component video cable |
 |
|
Video cable |
 |
|
Coaxial digital cable |
 |
|
Optical cable |
 |
|

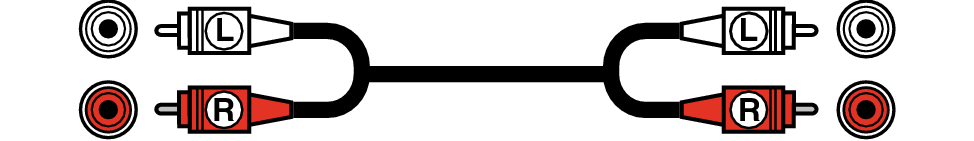

Audio cable |
 |
|
LAN cable |
 |
