Input Assign
By making connections as indicated by the input sources printed on the audio/video input connectors of this unit, you can just press one of the input source select buttons to easily play back audio or video from a connected device.
Please change the assignment of the HDMI input connector, digital audio input connector, analog audio input connector, component video input connector and video input connector when connecting an input source that differs from that printed to the audio/video input connectors of this unit.

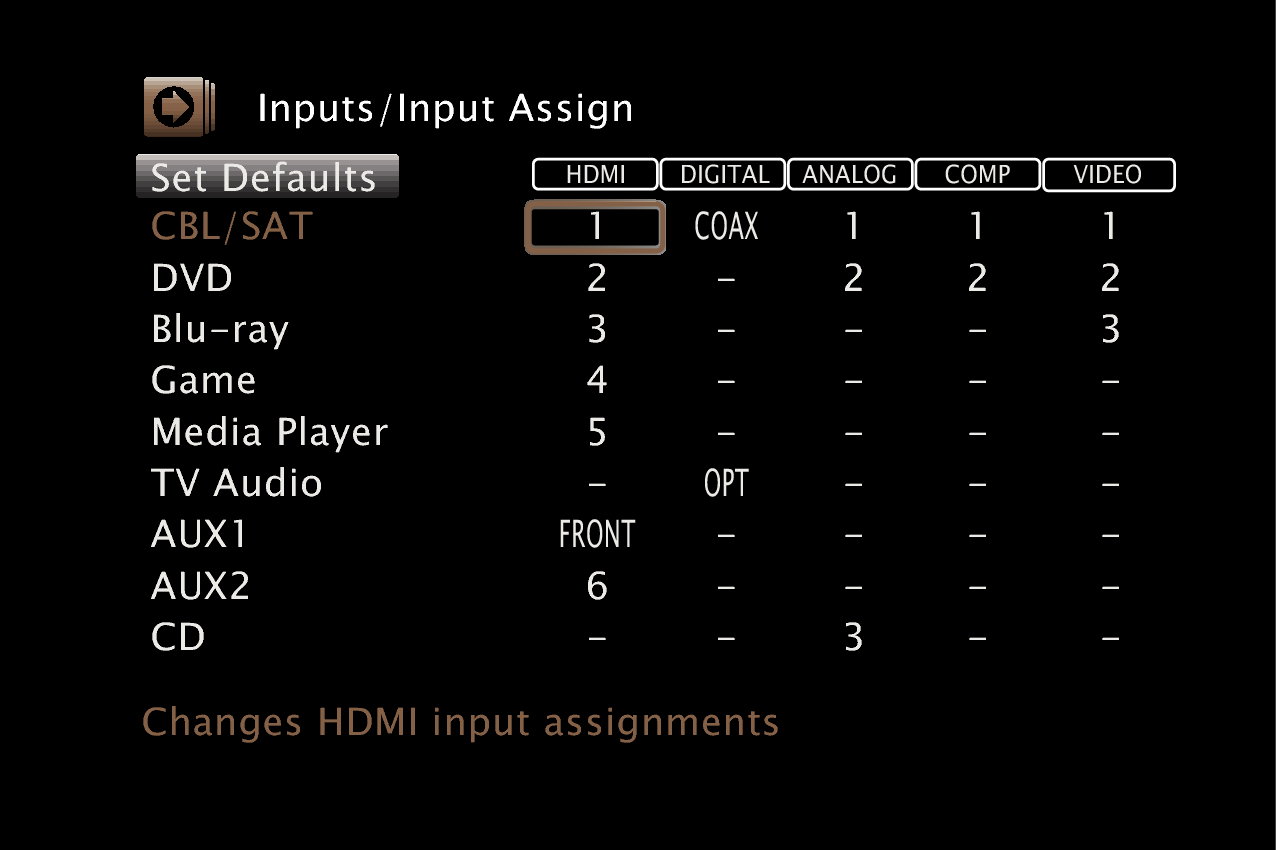

By default, each item is set as follows.
|
Input source |
Input connector |
||||
|---|---|---|---|---|---|
|
HDMI |
DIGITAL |
ANALOG |
COMP |
VIDEO |
|
|
CBL/SAT |
1 |
COAX |
1 |
1 |
1 |
|
DVD |
2 |
– |
2 |
2 |
2 |
|
Blu-ray |
3 |
– |
– |
– |
3 |
|
Game |
4 |
– |
– |
– |
– |
|
Media Player |
5 |
– |
– |
– |
– |
|
TV Audio |
– |
OPT |
– |
– |
– |
|
AUX1 |
Front |
– |
– |
– |
– |
|
AUX2 |
6 |
– |
– |
– |
– |
|
CD |
– |
– |
3 |
– |
– |
TV set top box/satellite users please note
When using the digital audio output on a TV/satellite box:
To play the video signal assigned to “HDMI” combined with the audio signal assigned at “Input Assign” - “DIGITAL”, you will also need to select “Digital” in the “Input Mode”. link
HDMI
Set this to change the HDMI input connectors assigned to the input sources.
|
1 / 2 / 3 / 4 / 5 / 6 / |
Assign an HDMI input connector to the selected input source. |
|
– : |
Do not assign an HDMI input connector to the selected input source. |
When “HDMI Control” is set to “On” in the menu, “HDMI” cannot be assigned to “TV Audio”. link
DIGITAL
Set this to change the digital audio input connectors assigned to the input sources.
|
COAX (Coaxial) / OPT (Optical): |
Assign a digital audio input connector to the selected input source. |
|
– : |
Do not assign a digital audio input connector to the selected input source. |
ANALOG
Set this to change the analog audio input connectors assigned to the input sources.
|
1 / 2 / 3: |
Assign a analog audio input connector to the selected input source. |
|
– : |
Do not assign a analog audio input connector to the selected input source. |
COMP (Component video)
Set this to change the component video input connectors assigned to the input sources.
|
1 / 2: |
Assign the component video input connector to the selected input source. |
|
– : |
Do not assign a component video input connector to the selected input source. |
VIDEO
Set this to change the composite video input connectors assigned to the input sources.
|
1 / 2 / 3: |
Assign the video input connector to the selected input source. |
|
– : |
Do not assign a video input connector to the selected input source. |
Set Defaults
The “Input Assign” settings are returned to the default settings.
