Types of input signals, and corresponding sound modes

Kuromaru-Large This indicates the default sound mode.

Circle-Large This indicates the selectable sound mode.

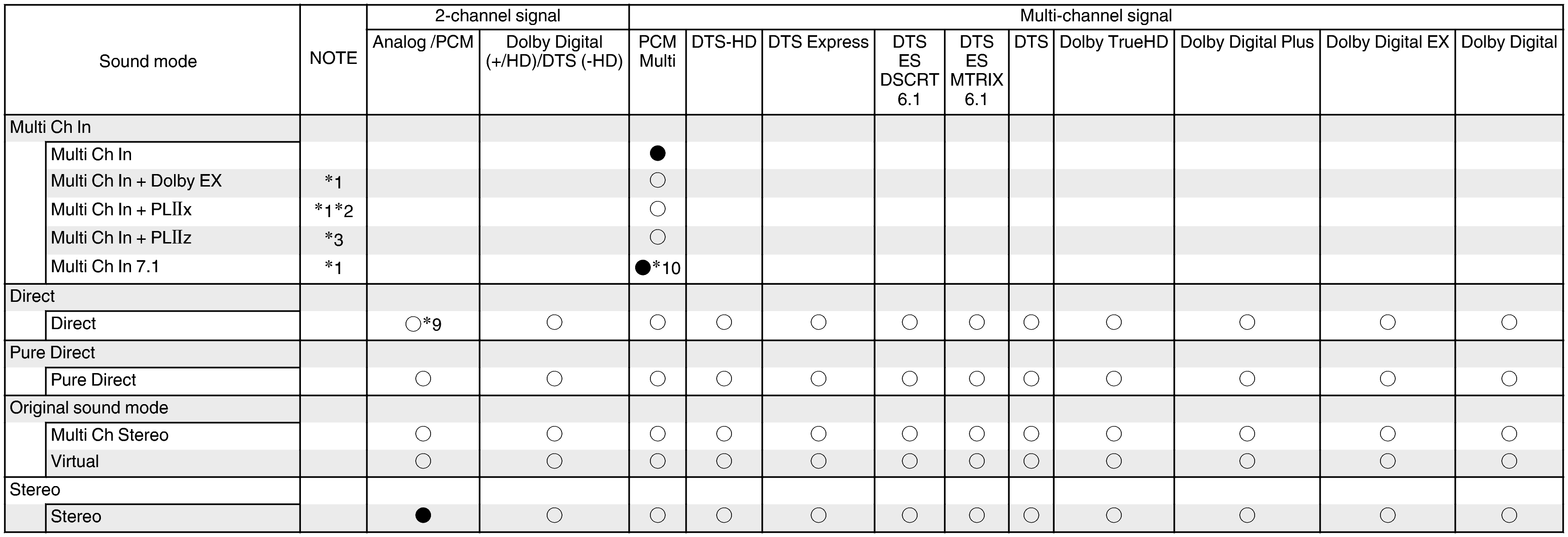

T of input signals & C sound modes-1 (non-page)_NR1605U

∗1 – ∗8 : Types of input signals, and corresponding sound modeslink

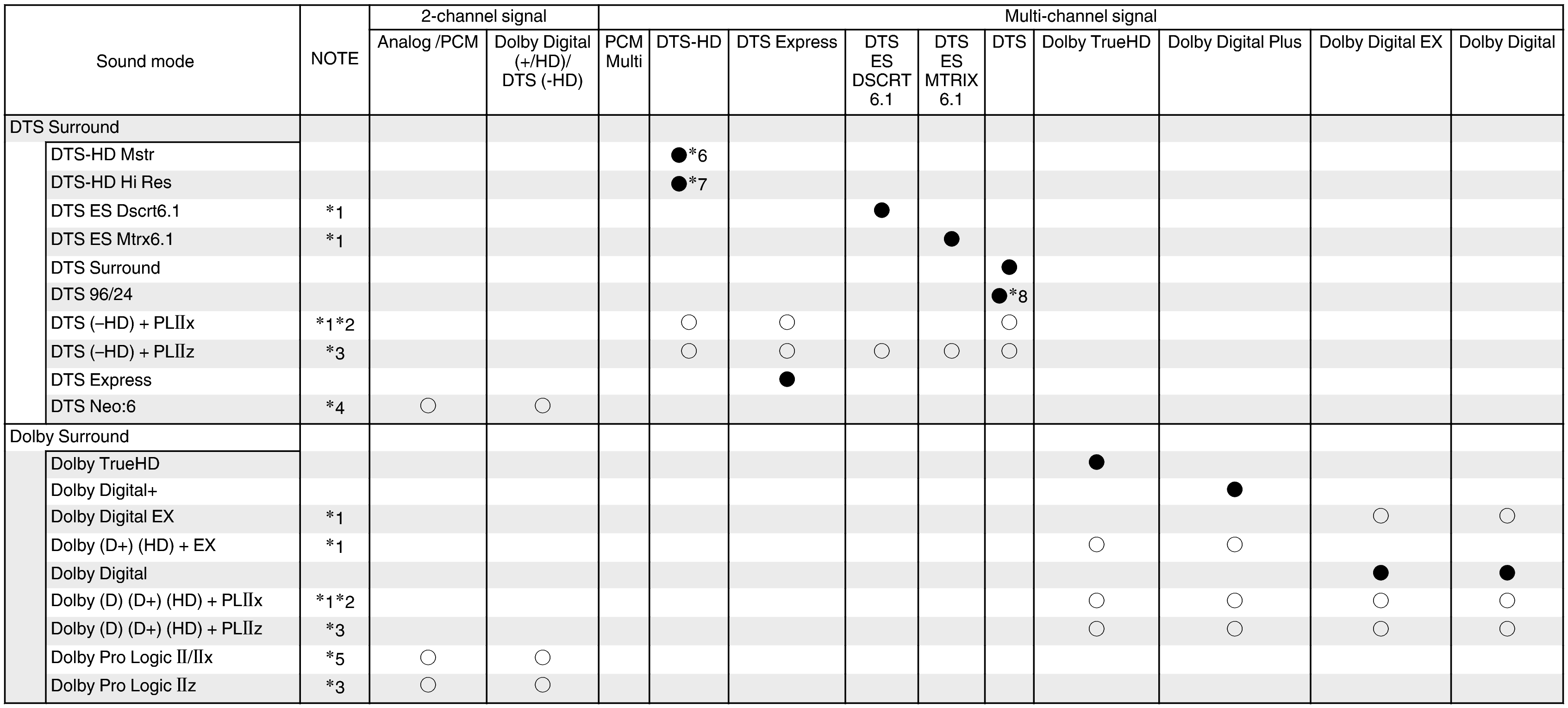

T of input signals & C sound modes-2 (non-page)_NR1605U

∗1 – ∗3, ∗9, ∗10 : Types of input signals, and corresponding sound modeslink

This item can be selected when surround back speakers are used.

The “Cinema” mode or “Music” mode can be selected. When using a single surround back speaker, the “Music” mode is used.

This item can be selected when front height speakers are used.

The “Cinema” mode or “Music” mode can be selected.

The “Cinema” mode, “Music” mode or “Game” mode can be selected.

This item can be selected when the input signal is DTS-HD Master Audio.

This item can be selected when the input signal is DTS-HD Hi Resolution.

This item can be selected when the input signal is DTS 96/24.

The default sound mode for the AirPlay playback is “Direct”.

This item can be selected when the input signals contain surround back signals.
