Information
Show information about this unit settings, input signals, etc.
Audio
Show the audio information for MAIN ZONE.
|
Sound Mode: |
The currently set sound mode. |
|
Input Signal: |
The input signal type. |
|
Format: |
The number of input signal channels (presence of front, surround, LFE). |
|
Sample Rate: |
The input signal’s sampling frequency. |
|
Offset: |
The dialogue normalization correction value. |
|
Flag: |
This is displayed when inputting signals including a surround back channel. “MATRIX” is displayed with Dolby Digital EX and DTS-ES Matrix signals, “DISCRETE” with DTS-ES Discrete signals. |
Video
Show the HDMI input/output signals and HDMI monitor information for MAIN ZONE.
HDMI Signal Info.
|
Resolution / Color Space / Pixel Depth |
HDMI Monitor
|
Interface / Resolutions |
ZONE
Show information about current settings.
|
MAIN ZONE: |
This item shows information about settings for MAIN ZONE. The information displayed differs according to the input source. |
|
ZONE2: |
This item shows information about settings for ZONE2. |
Firmware
|
Version: |
Displays information for the current firmware. |
Notifications
Displays and sets notifications.
Also, sets whether or not to display the notification when the power is turned on.
Notification Alerts
|
On |
Notification messages are displayed. |
|
Off: |
Notification messages are not displayed. |

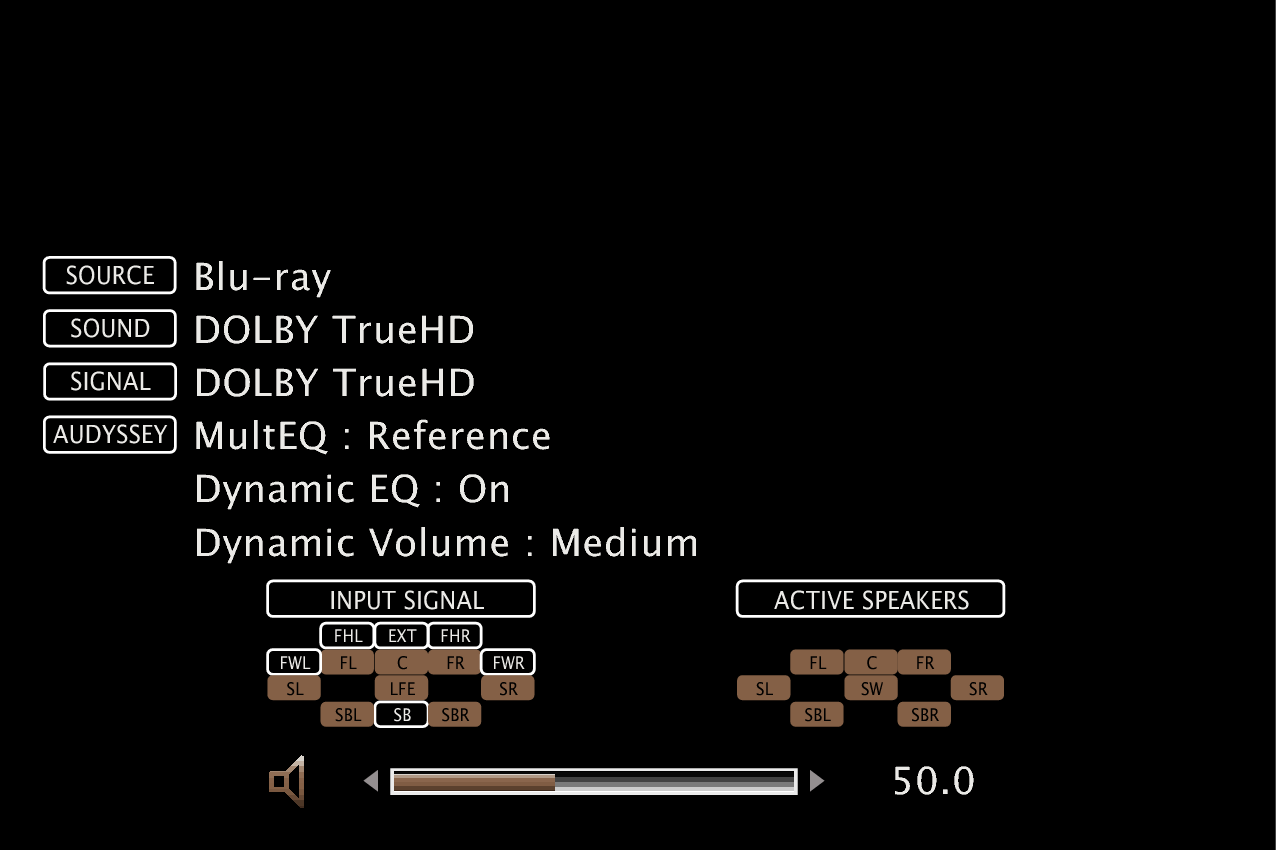

Press INFO on the remote control unit to display current source name, volume, sound mode name, and other information at the bottom of the screen.
