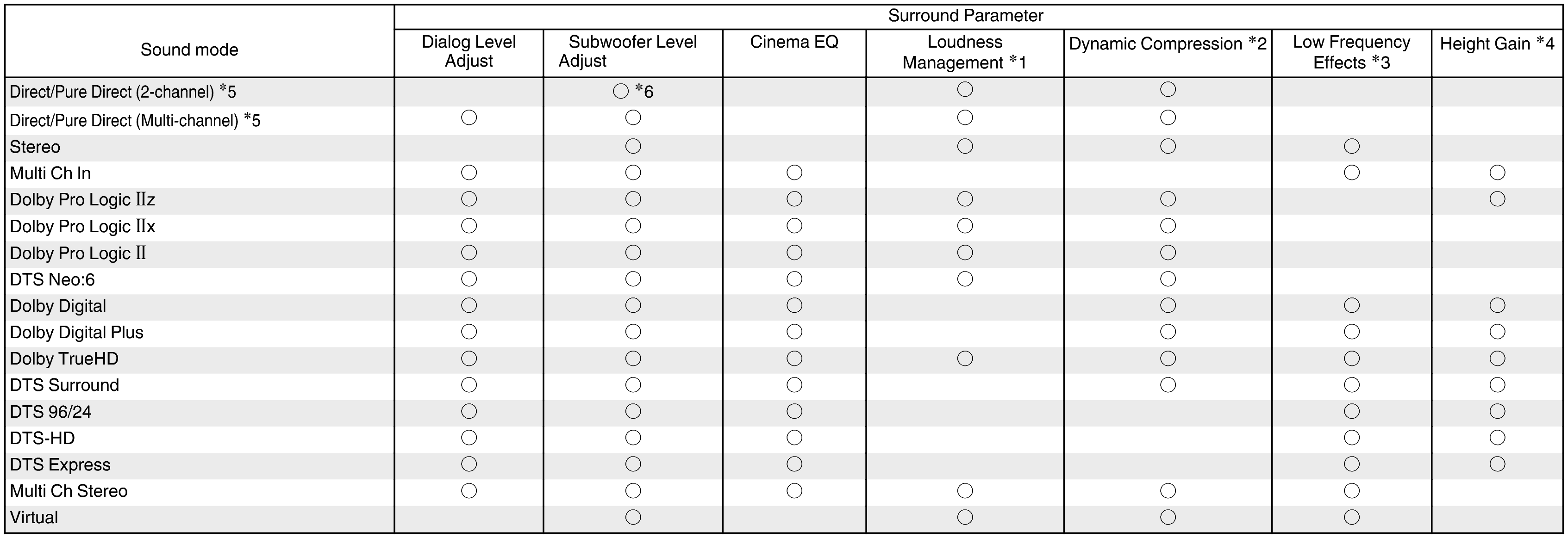

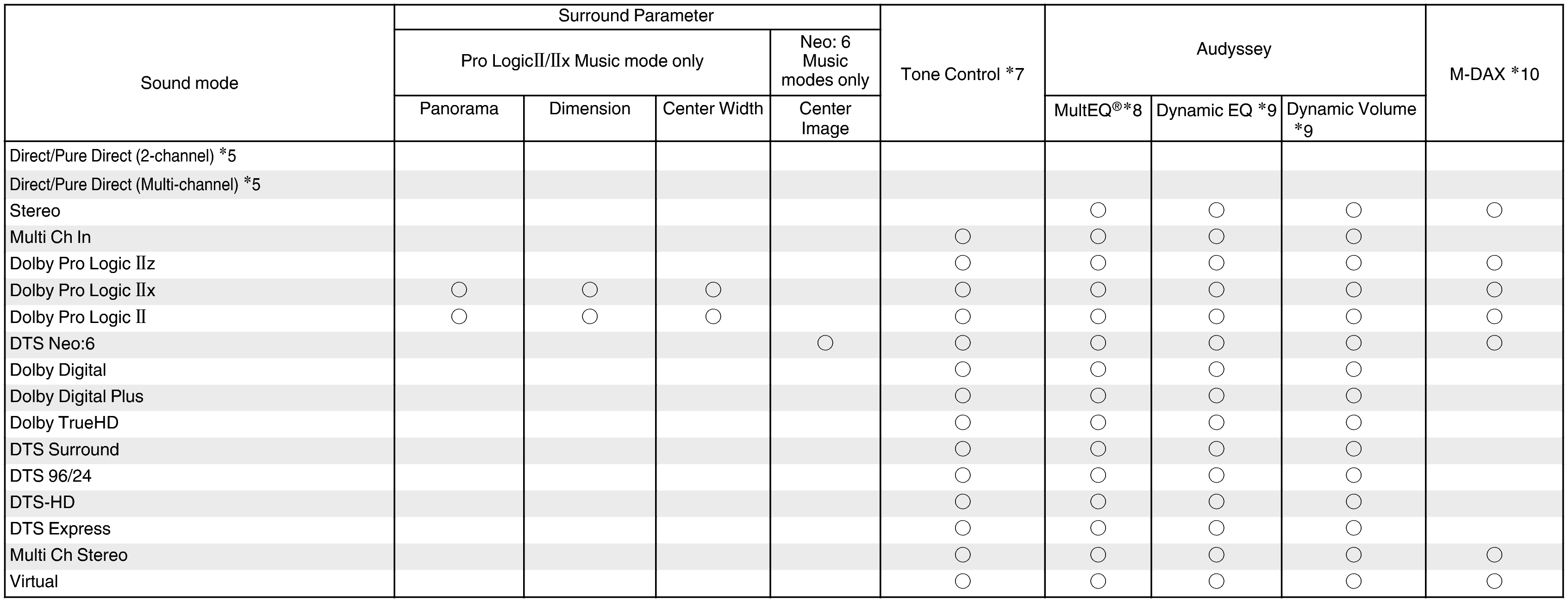

Sound modes and surround parameters
∗1 - ∗6 : Sound modes and surround parameterslink
∗5, ∗7 - ∗10 : Sound modes and surround parameterslink
This item can be selected when a Dolby TrueHD signal is played.
This item can be selected when Dolby TrueHD, Dolby Digital or DTS signal is played.
This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.
This setting is available when the set sound mode name contains “+PL z”.
During playback in Pure Direct mode, the surround parameters are the same as in Direct mode.
This setting is available when “Subwoofer Mode” in the menu is set to “LFE+Main”. link
This item cannot be set when “Dynamic EQ” is set to “On”. link
This item cannot be set when Audyssey® Setup (Speaker Calibration) has not been performed.
This item cannot be set when “MultEQ®” is set to “Off”. link
This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.
