With the door open

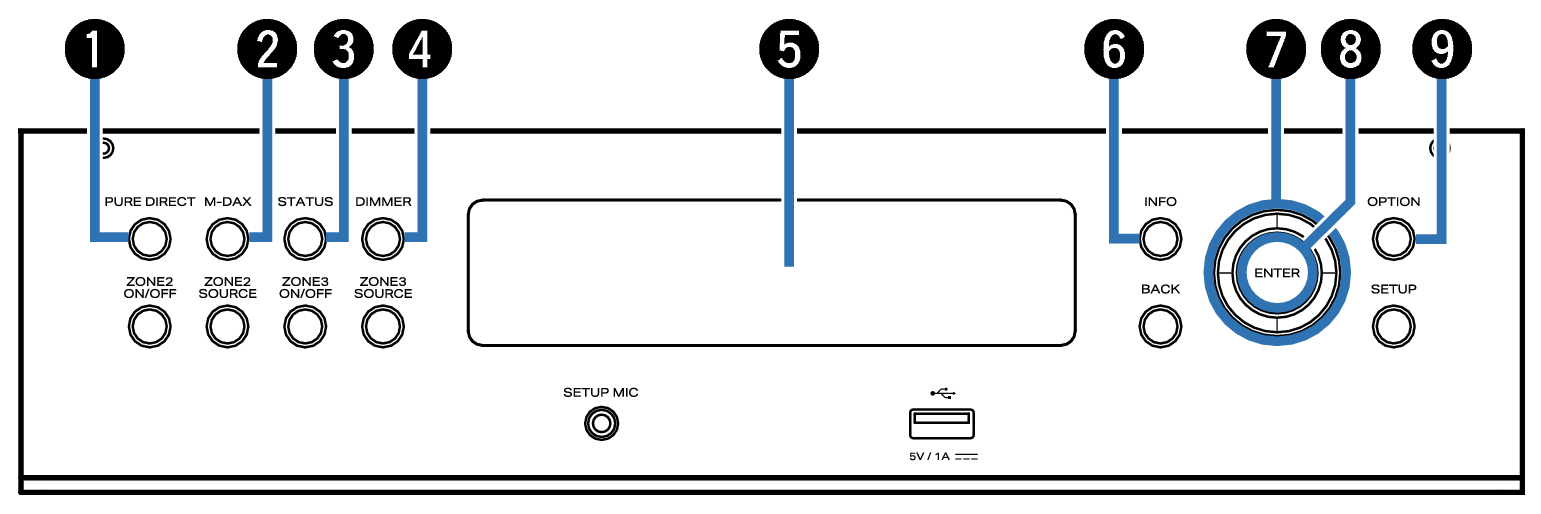

Name Front Small2-1 AV10

PURE DIRECT button

This switches the sound mode between Direct, Pure Direct and Auto. link – link)

M-DAX button

This enables the M-DAX mode. link

STATUS button

Each press of this switches the status information that is shown on the display.

DIMMER button

Each press of this switches the brightness of the display. link

Sub display

This displays various pieces of information. link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons

These select items.

ENTER button

This determines the selection.

OPTION button

This displays the option menu on the TV screen.

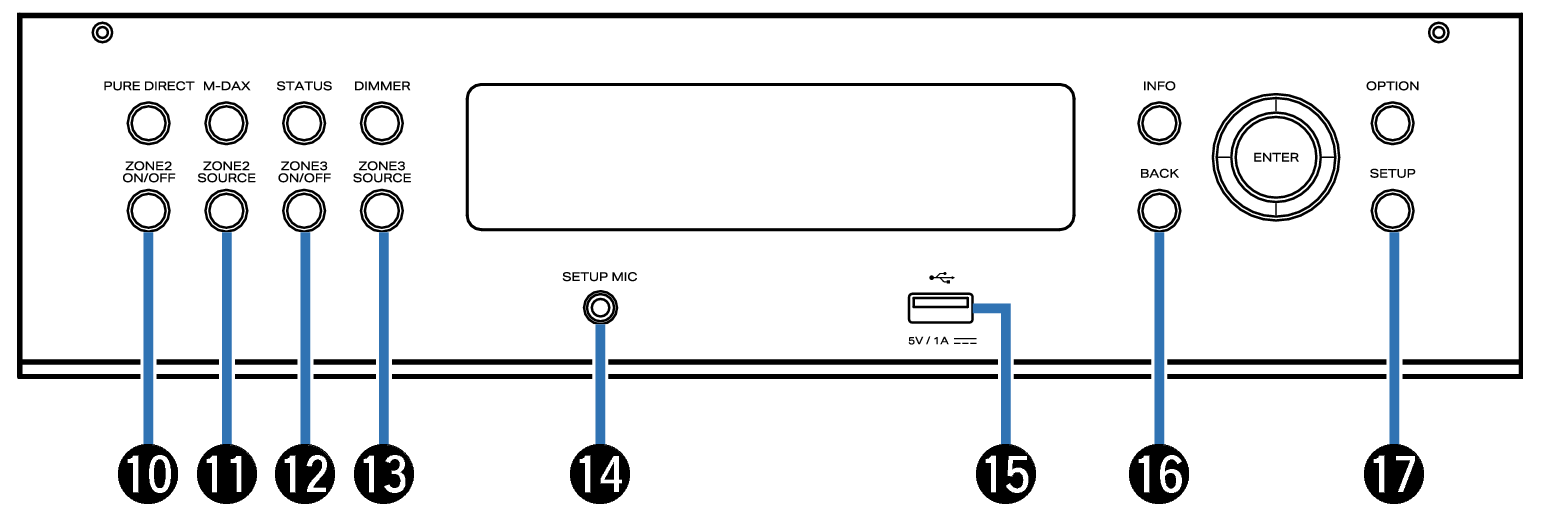

Name Front Small2-2 AV10

ZONE2 ON/OFF button

This turns the power of ZONE2 (another room) on/off. link

ZONE2 SOURCE button

This selects the input source for ZONE2. link

ZONE3 ON/OFF button

This turns the power of ZONE3 (another room) on/off. link

ZONE3 SOURCE button

This selects the input source for ZONE3. link

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. link

USB port ( Icon USB )

This is used to connect USB storages (such as USB memory devices). link

BACK button

This returns to the previous screen.

SETUP button

This displays the menu on the TV screen. link
