Resetting network settings

If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings.link

If the operations are not improved by restarting the unit, follow the steps below.

Network settings are reset to the factory default values. Make settings again.

However, the menu “Speaker Layout” and “Video” settings are not reset.

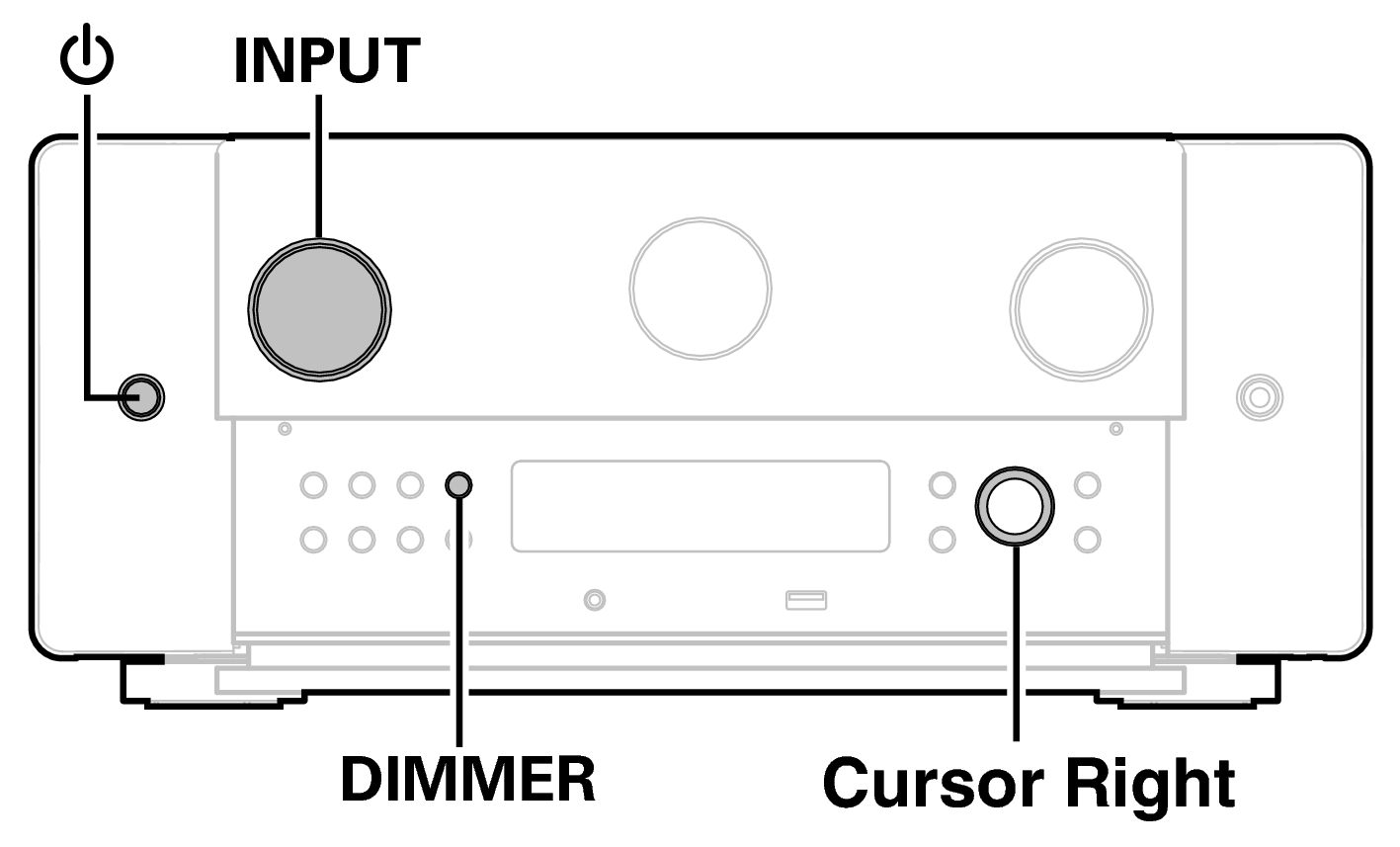

Ope Resetting2 AV10
Press Power Button to turn on power to the unit.
Turn INPUT selector to select “HEOS Music”.
Press and hold the main unit's DIMMER and cursor Right at the same time for at least 3 seconds.
Remove your fingers from the two buttons when “Network Reset...” appears on the display.
“Completed” is shown in the display when reset is complete.

Before returning the settings to the default settings, use the “Save & Load” function from the menu to save and restore the details of various settings configured on the unit.link

You can also reset the network settings to the factory defaults using “Reset” - “Network Settings” in the menu.link

NOTE

Do not turn the power off until reset is complete.
