Playback

Remote control unit

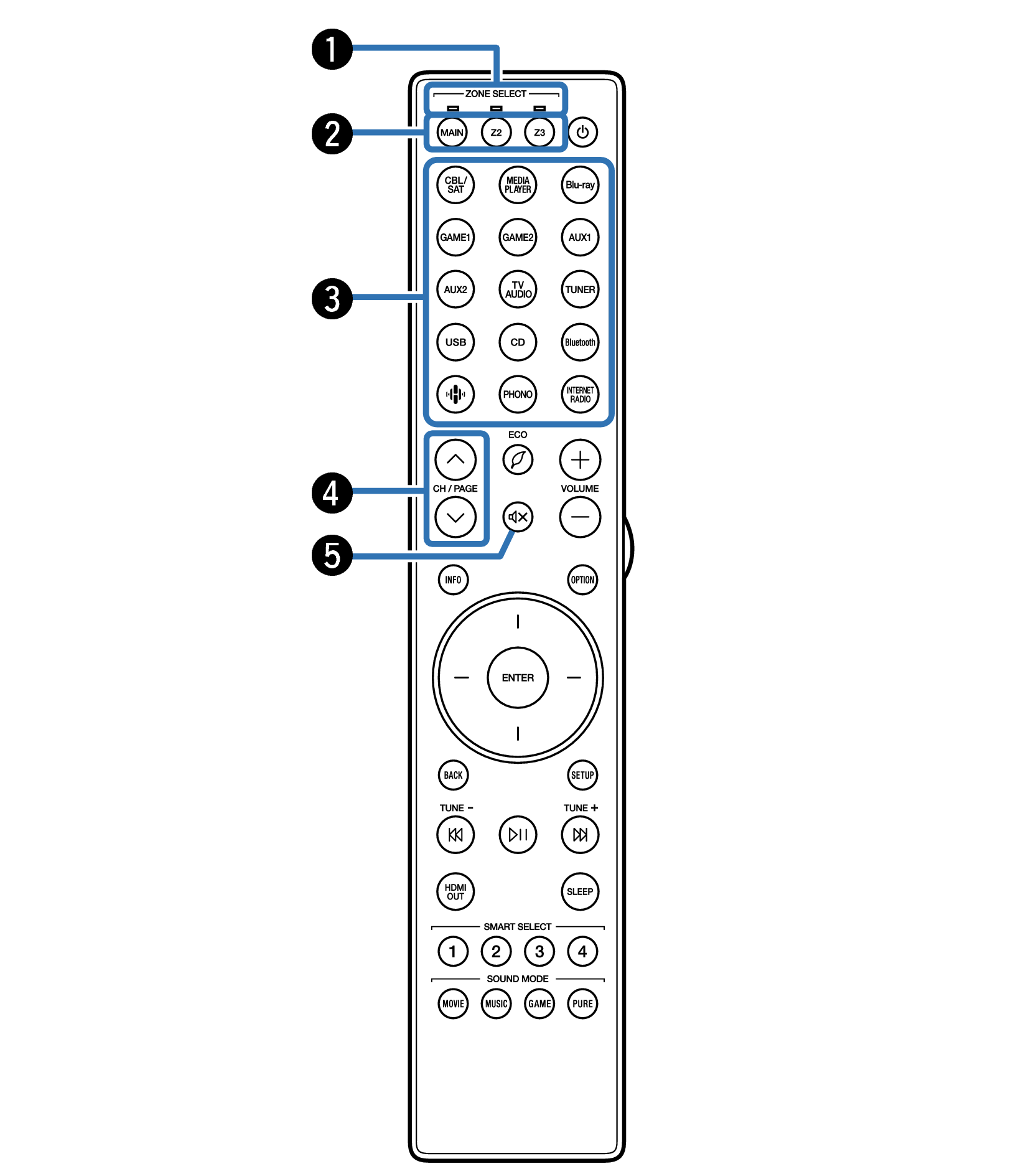

Name RC048SR

Zone mode indicators

The indicator of the zone that you are operating lights up.

ZONE SELECT buttons (MAIN, Z2, Z3)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.

Input source select buttons

These selects the input source.

Channel/page search buttons (CH/PAGE  kurosankaku2 Sankaku-Reverse2 )

These select radio stations registered to presets or switch pages. link

MUTE button ( Silent )

This mutes the output audio.

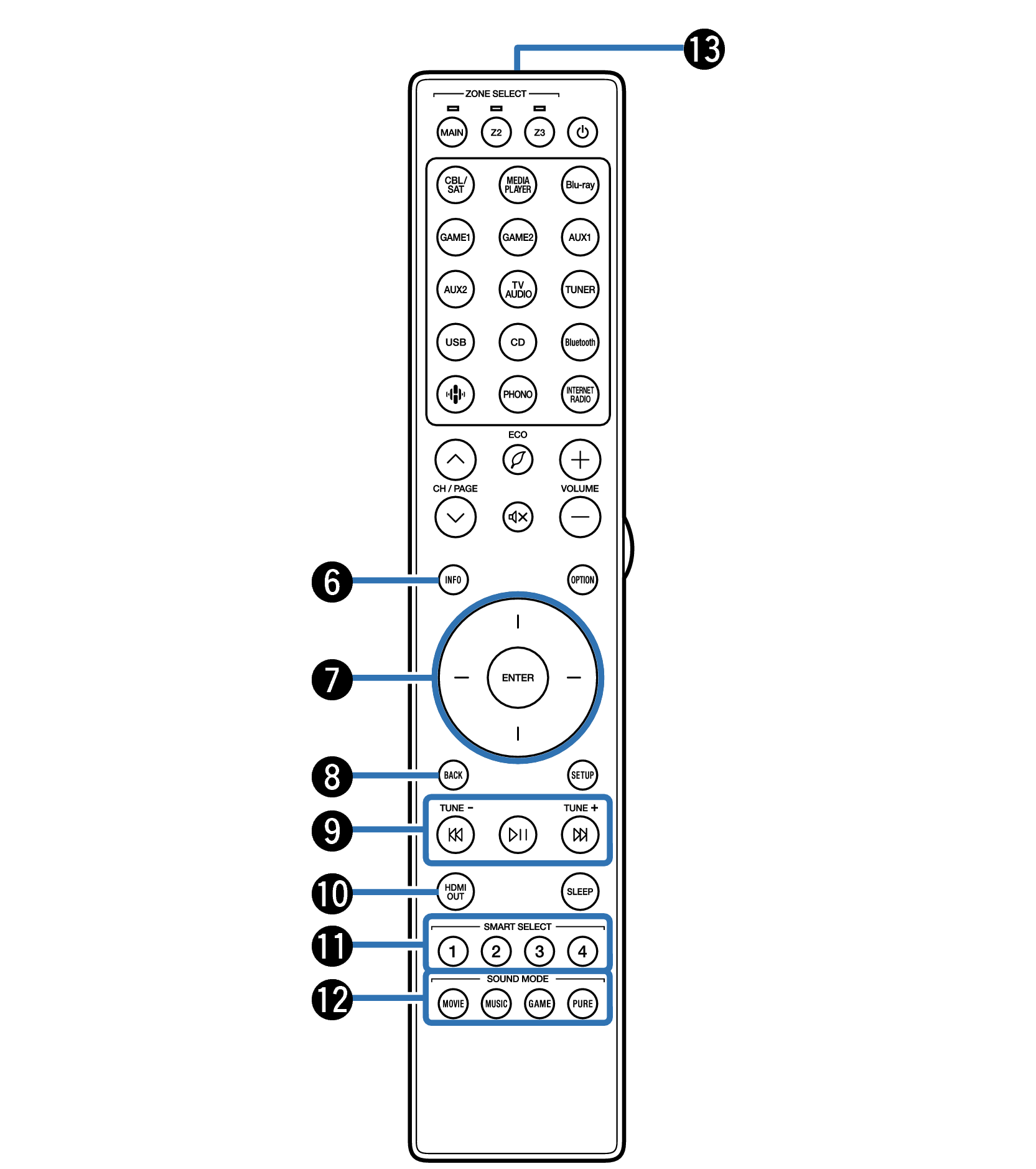

Name RC048SRa

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons

These select items.

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

HDMI OUT button

This sets the HDMI monitor output. link

SMART SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

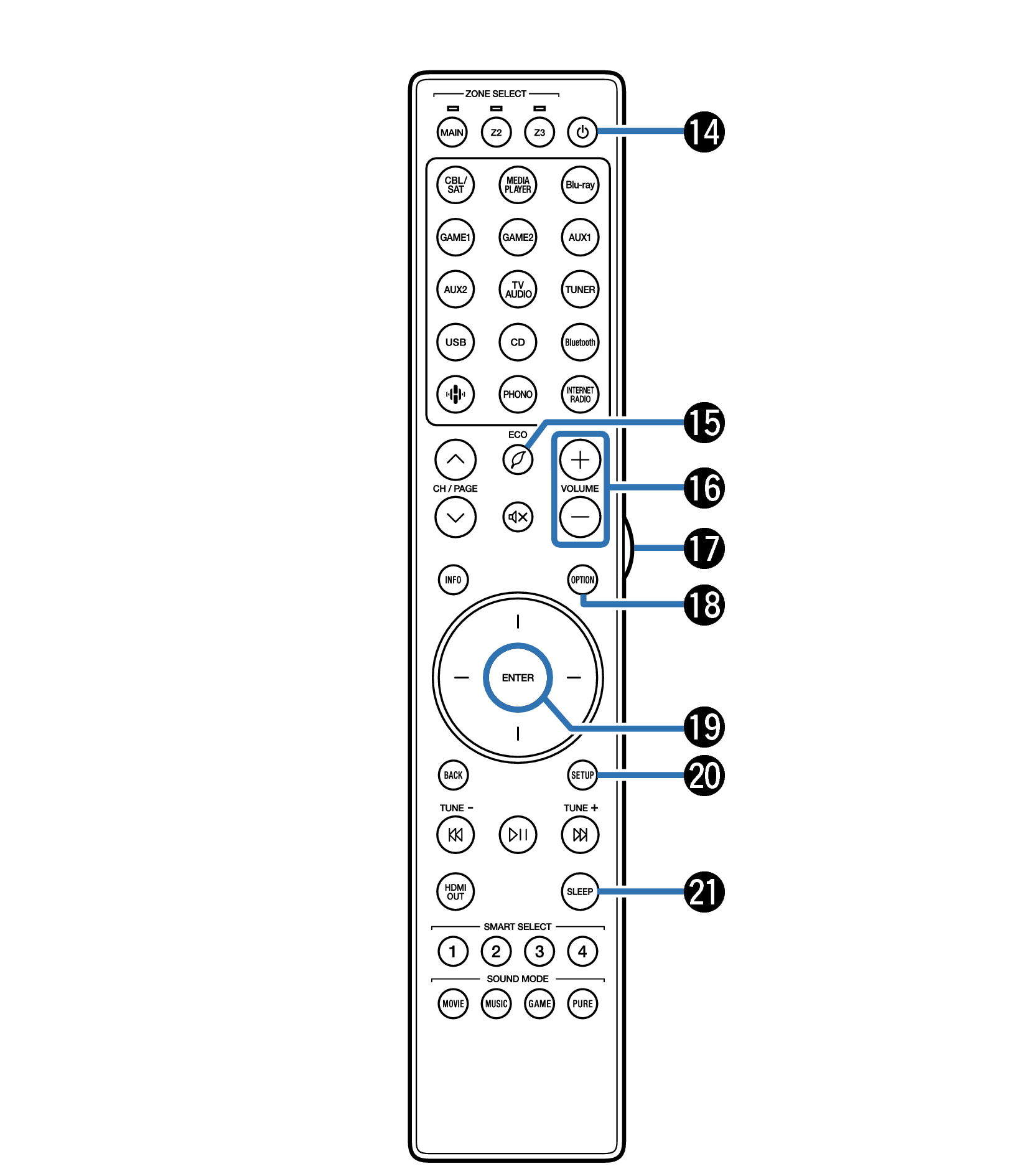

Name RC048SRb

POWER button ( Power Button )

This turns the power on/off.

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

VOLUME buttons ( Volup Voldown )

These adjusts the volume level.

Light button

This turns on the backlight for approx. 5 seconds. link

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link

SLEEP button

This sets the sleep timer. link
