Connecting 11.1-channel speakers

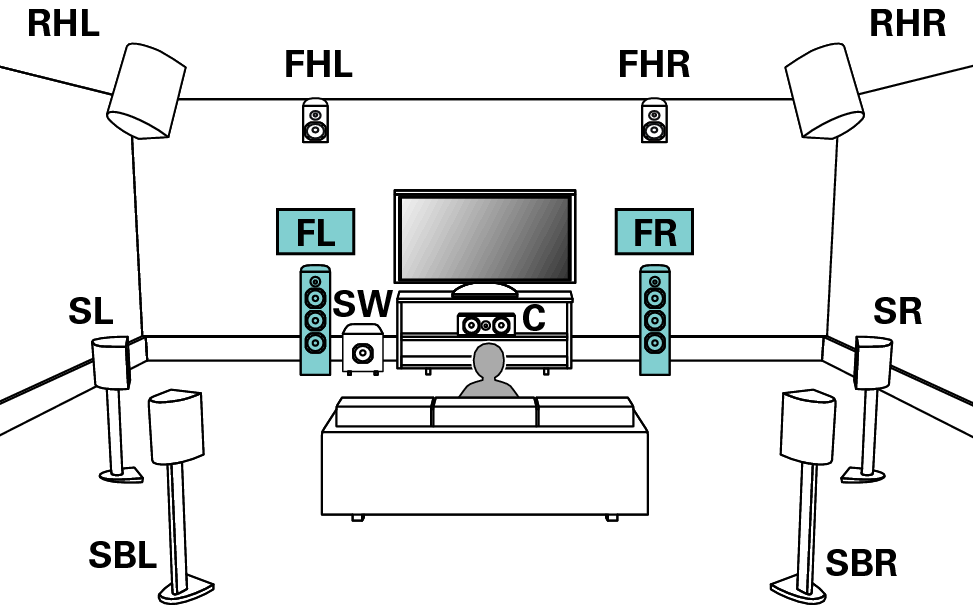

Example layout when using surround back and two sets of height speakers

Pict SP Layout 11.1 RH FH2

For each speaker connection, refer to the following.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 4 spkrs
Front Layout: Front Height Flower Mark
Rear Layout: Rear Height Flower Mark
Subwoofers: 1 spkr

The front height speakers and rear height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

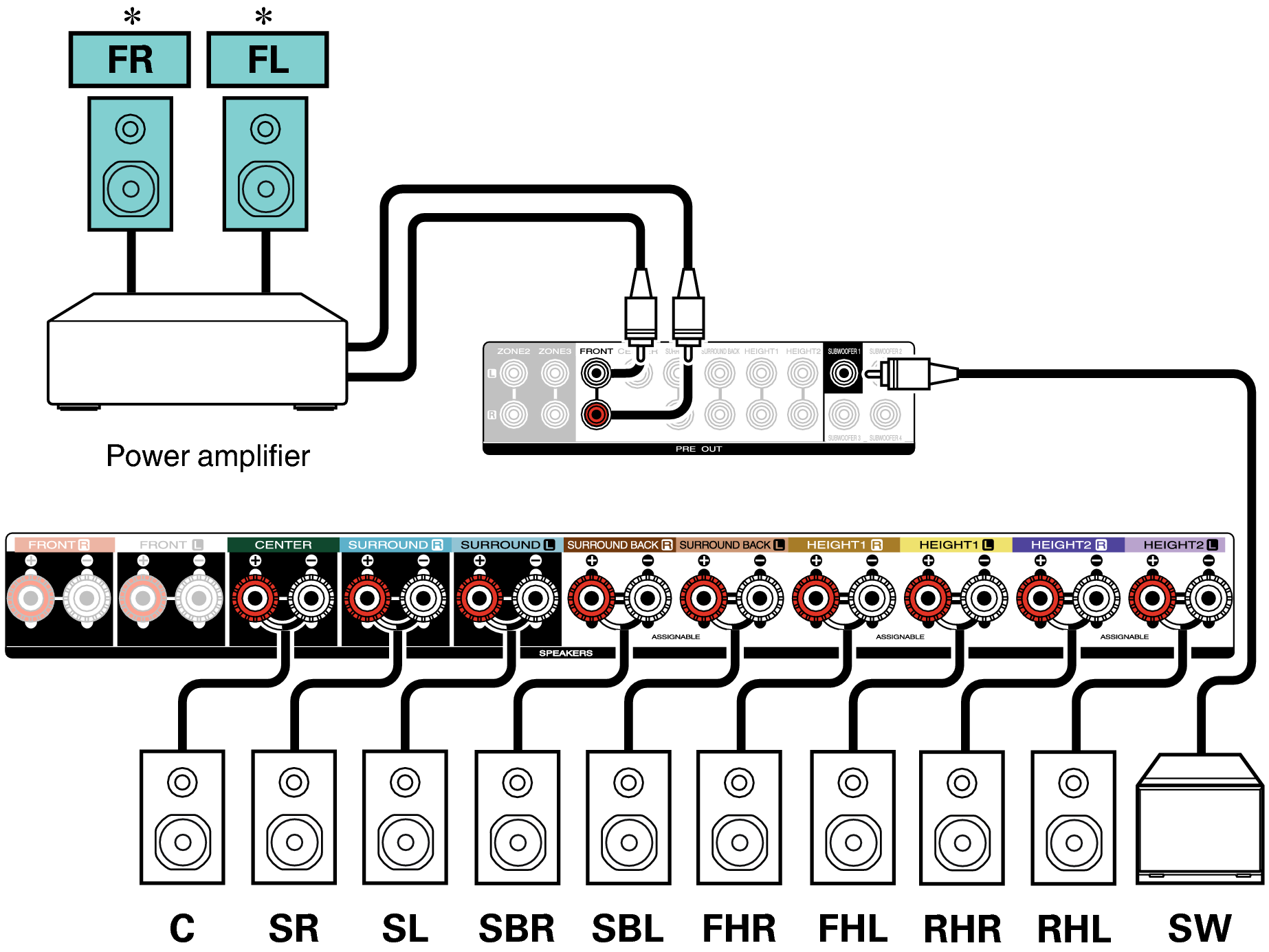

Conne SP 11.1 FH RH C40U

When connecting 11.1 channel speakers, an external amplifier needs to be connected to the Front channel, Rear Height channel or Surround Back channel at minimum. Set “Connection” to “Pre-out Only” for your preferred channel. link

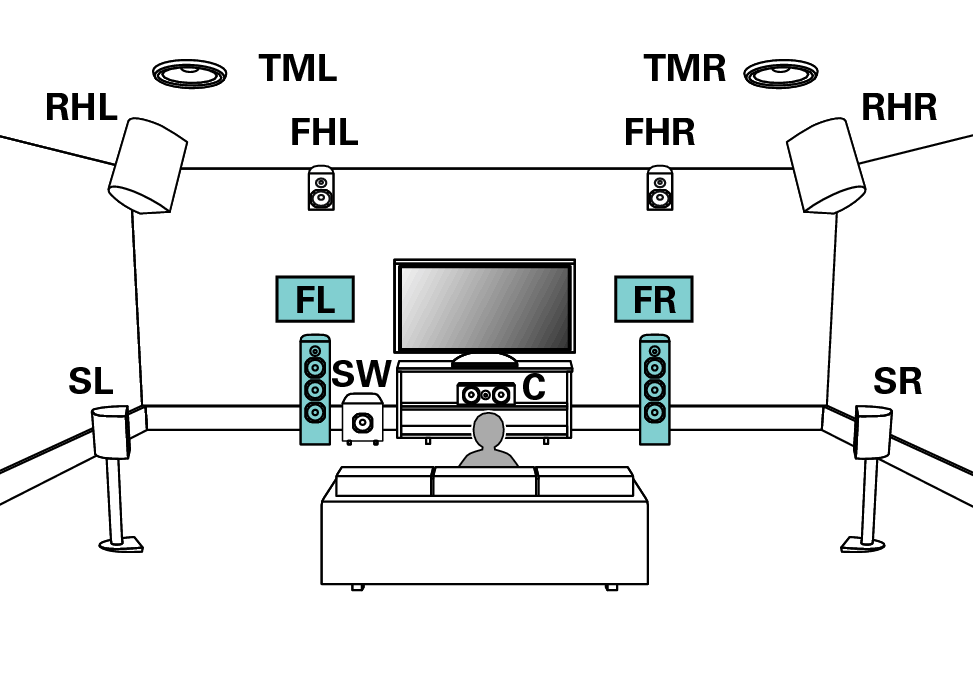

Example layout when using three sets of height speakers

Pict SP Layout 11.1 FH RH TM2

For each speaker connection, refer to the following.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height Speakers: 6 spkrs
Front Layout: Front Height Flower Mark
Middle Layout: Top Middle Flower Mark
Rear Layout: Rear Height Flower Mark
Subwoofers: 1 spkr

The front height speakers, top middle speakers and rear height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

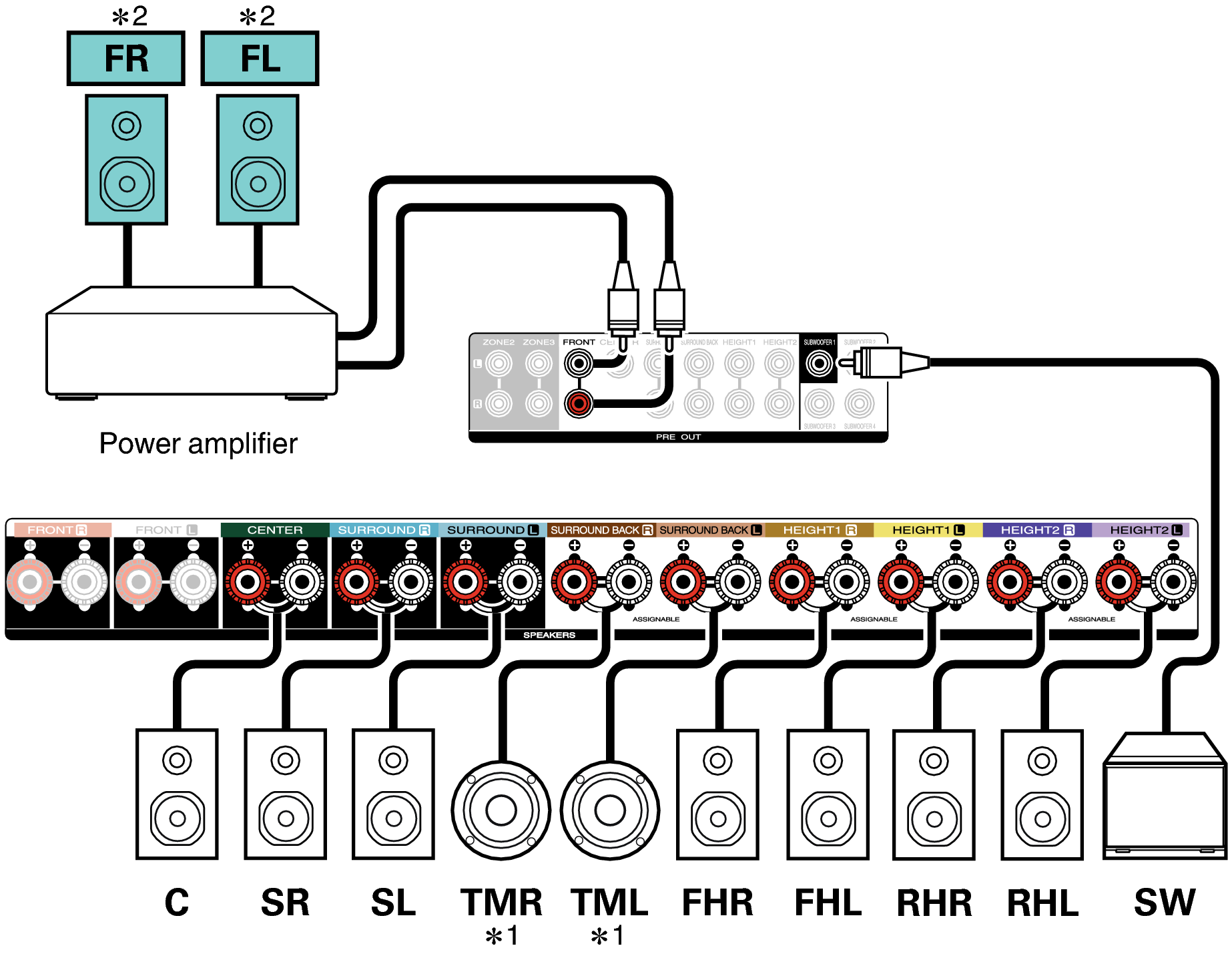

Conne SP 11.1 TM RH C40U

The Top Middle Speaker can be connected to the Surround Back terminal instead of the Surround Back Speaker.

When connecting 11.1 channel speakers, an external amplifier needs to be connected to the Front channel, Rear Height channel or Top Middle channel at minimum. Set “Connection” to “Pre-out Only” for your preferred channel. link

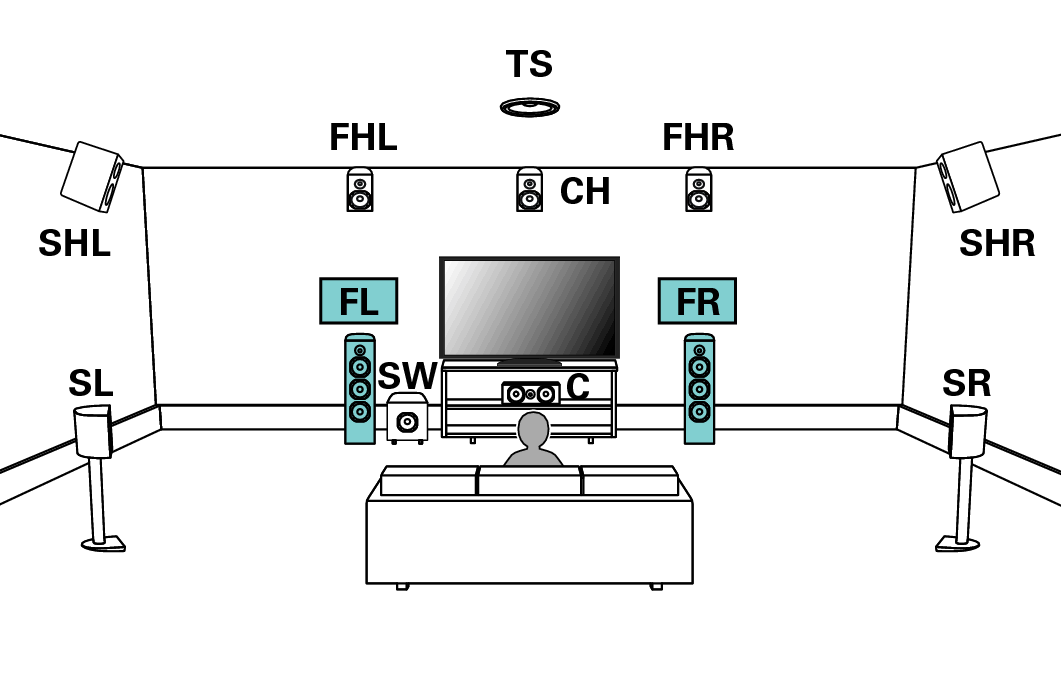

Example layout for Auro-3D 11.1 channel system

This speaker configuration is optimized for Auro-3D playback.

Pict SP Layout 11.1 Auro3

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Surround Height
Rear Layout: No
TS/CH: TS/CH
Subwoofers: 1 spkr
Conne SP 11.1 Auro C40U

The Top Surround and Center Height Speaker can be connected to the Surround Back terminal instead of the Surround Back Speaker.

When connecting 11.1 channel speakers, an external amplifier needs to be connected to the Front channel, Surround Height channel or Top Surround/Center Height channel at minimum. Set “Connection” to “Pre-out Only” for your preferred channel. link
