AirPlay function

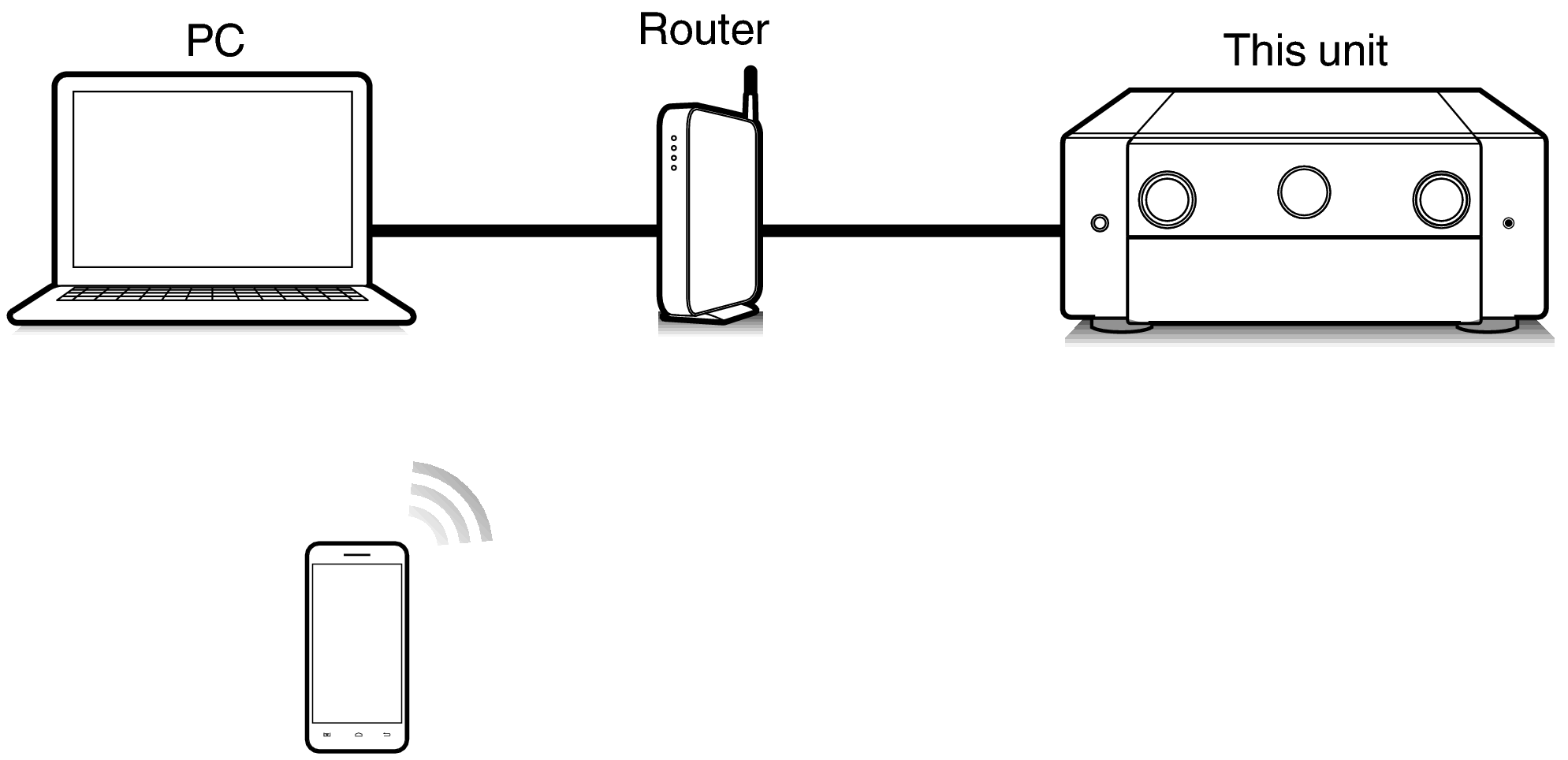

Music files stored on your iPhone, iPod touch, iPad or iTunes can be played on this unit via the network.

Source input will be switched to “HEOS Music” when AirPlay playback is started.

You can stop AirPlay playback by choosing other input source.

To see song and artist names together, press STATUS on the main unit.

For information about how to use iTunes, also see the Help for iTunes.

The screen may differ depending on the OS and software versions.

This unit supports AirPlay 2.

Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback.

This unit supports AirPlay 2 and requires iOS 11.4 or later.

Playing songs from your iPhone, iPod touch or iPad

Playing iTunes music with this unit

Play a song from your iPhone, iPod touch or iPad on multiple synced devices (AirPlay 2)
