Connecting to network

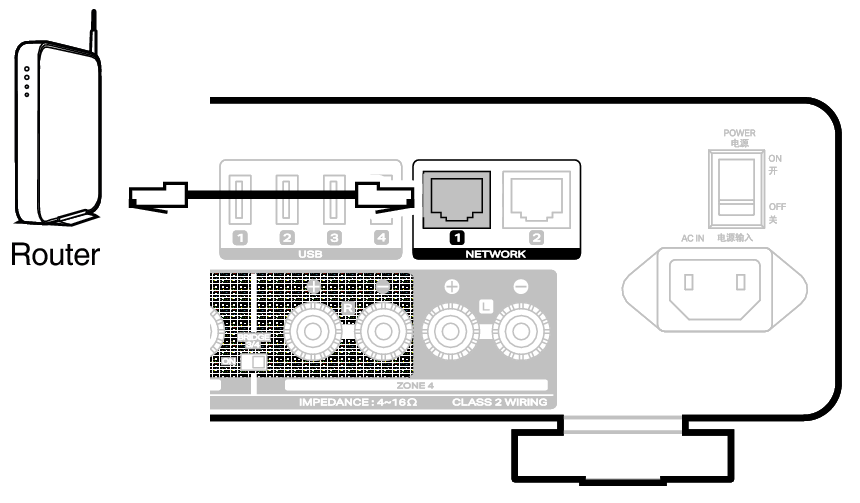

Conne NET M4

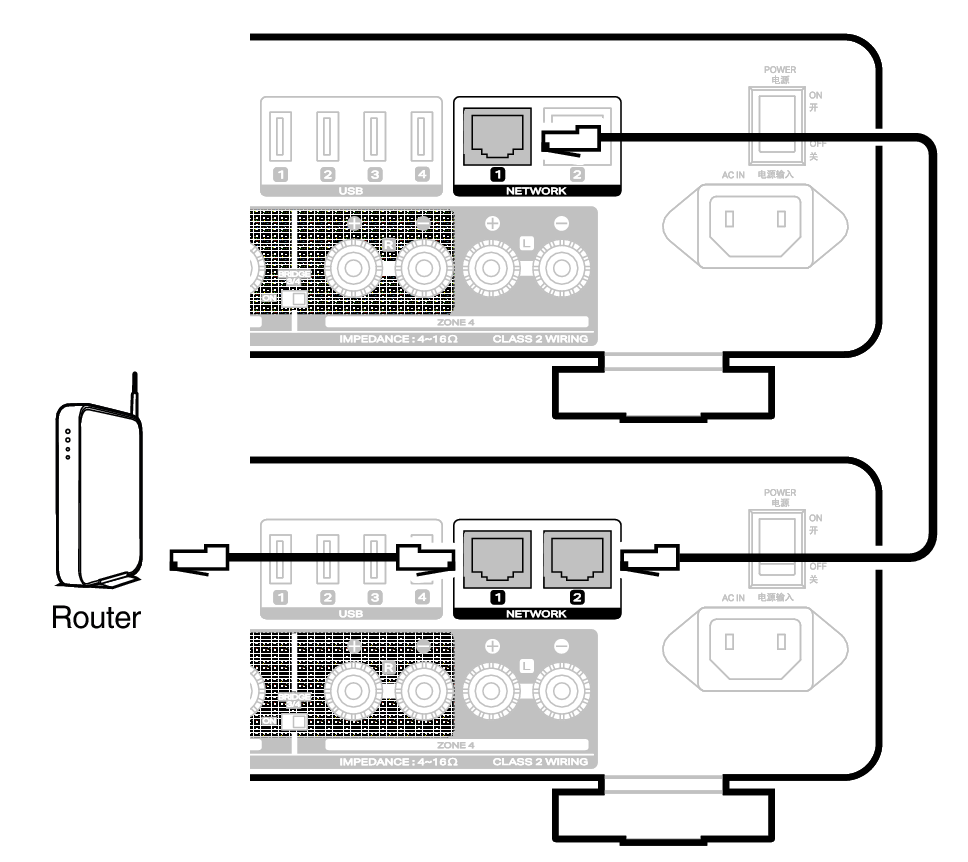

Daisy chain

You can use the second Ethernet connection to connect another MODEL M4 to your network.

Conne NET chain M4

NOTE

Each MODEL M4 contains four HEOS modules and therefore always counts as four devices towards the maximum number of 32 HEOS built-in devices supported on any one network. Up to 8 MODEL M4 units are supported on a single network.
