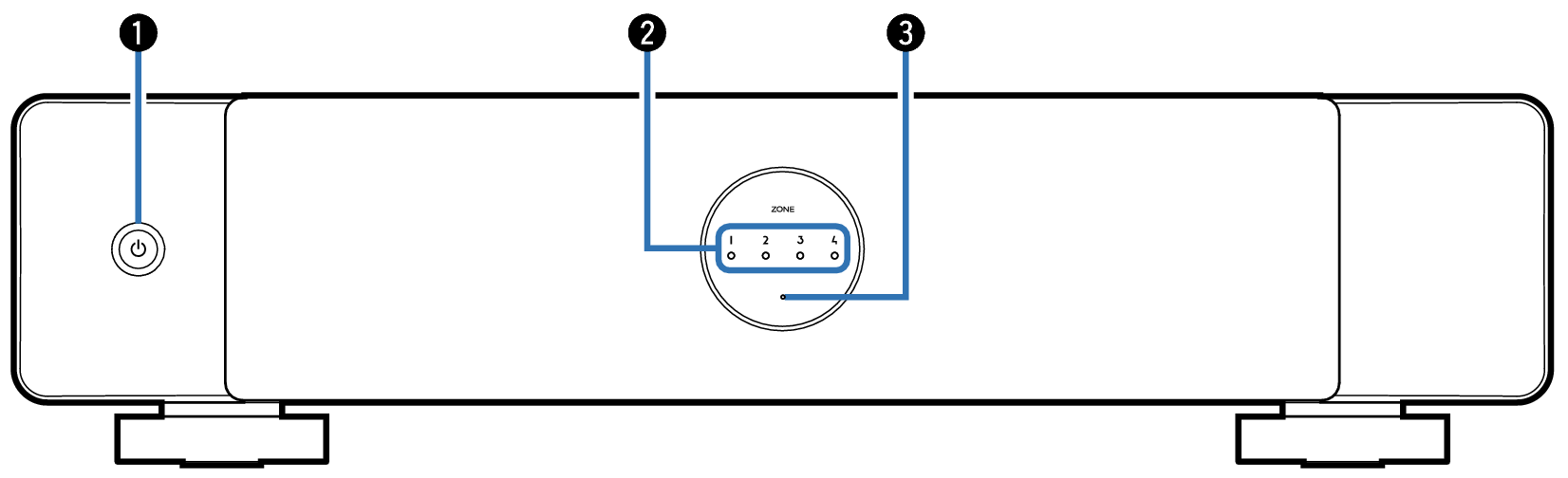

Front panel

Name Front M4

Power operation button ( )

Used to enter Deep Standby and return from them.

Zone indicators

Please refer to the Status LED tablelink

Protection indicator

This blinks when the protection circuit has operated. link
