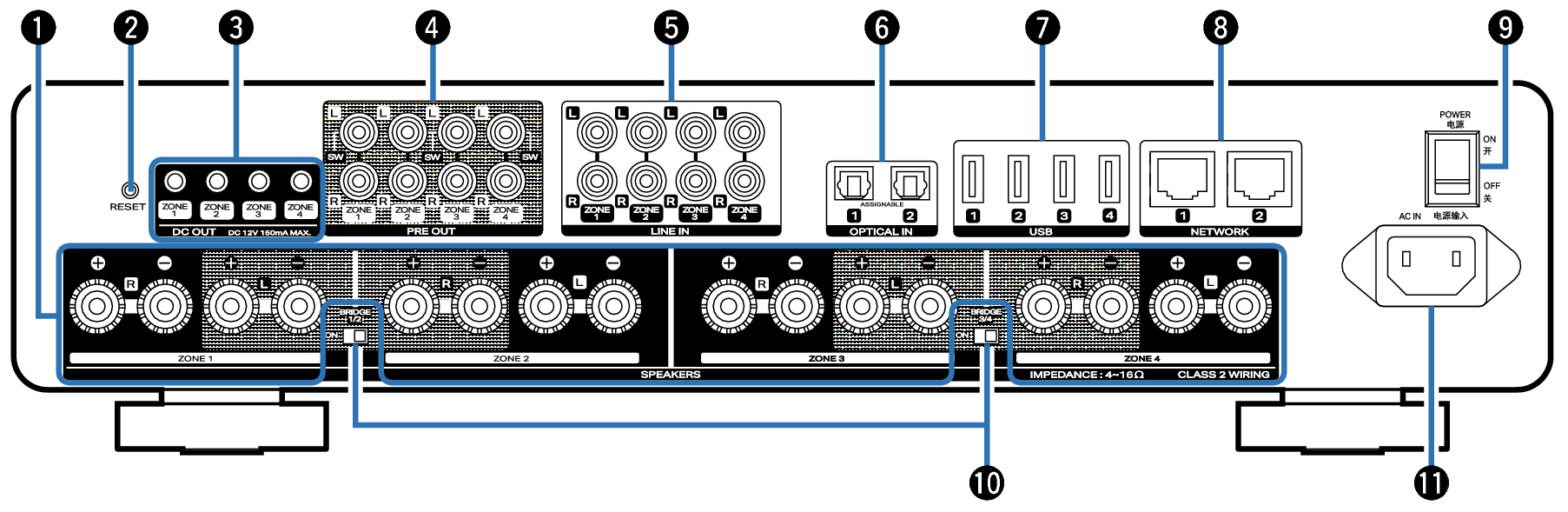

Rear panel
Speaker terminals (SPEAKERS)
Used to connect speakers. link
RESET button
Various settings are reset to the factory default values. link
Trigger out jacks (DC OUT)
Used to connect devices equipped with a trigger function. link
Analog output connectors (PRE OUT)
Used to connect external amplifiers. link
Analog input connectors (LINE IN)
Used to connect devices equipped with analog audio outputs. link
Used to connect the pre-amplifier when using the unit as a power amplifier. link
Digital input connectors (OPTICAL IN)
Used to connect devices equipped with digital audio outputs. link
USB ports
Used to connect USB storage devices. (such as USB flash drives) link
NETWORK connectors
Used to connect this unit to a wired Ethernet network. link
Power switch (POWER)
Bridge mode switchs (BRIDGE)
Used to enable the amplifier bridge setting. link
AC inlet
Used to connect the power cord. link
