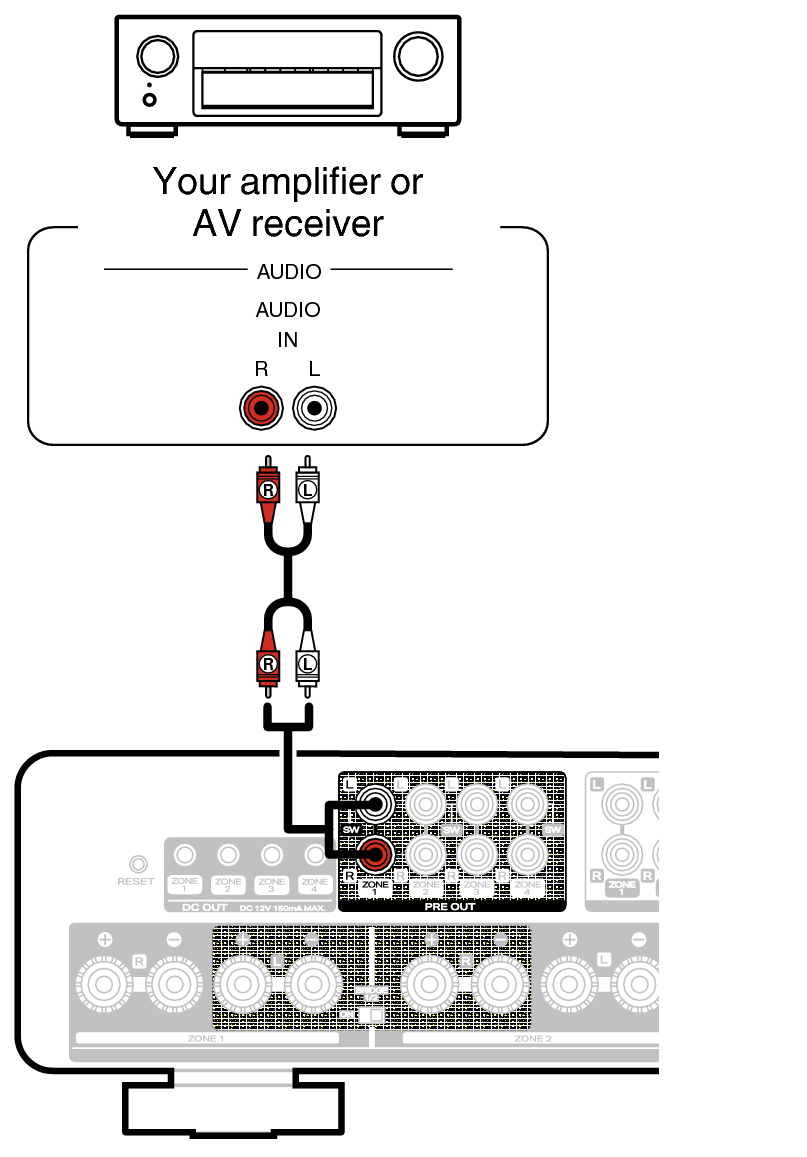

Connecting to an external amplifier or AV receiver

Connect the PRE OUT output to an available input on your amplifier or AV receiver using the appropriate cables.

NOTE

When connecting to the PRE OUT terminal of the unit, configure the following settings in “My Devices” in the HEOS app

Set Sub Out (L) to disable.

Set Preamp Out to enable.

Conne AMP M4
