Mounting in a rack

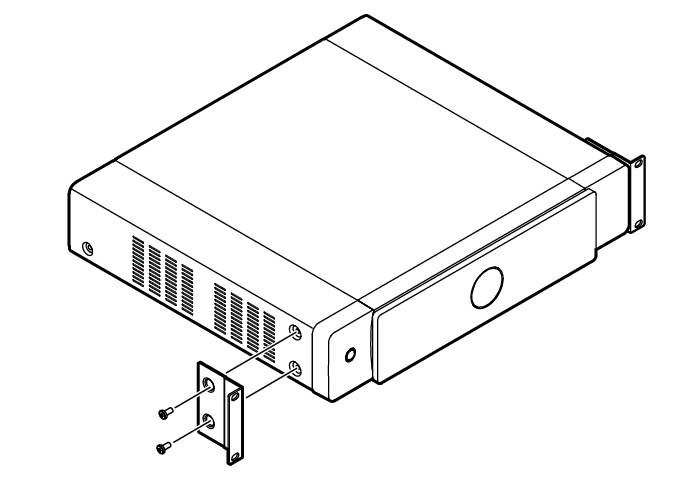

Attach the included rack mount brackets to the sides of this unit if you want to mount this unit in a standard EIA equipment rack.
Remove the two screws on each side of this unit .
Align the brackets with the screw holes and reattach the screws making sure they are secure.

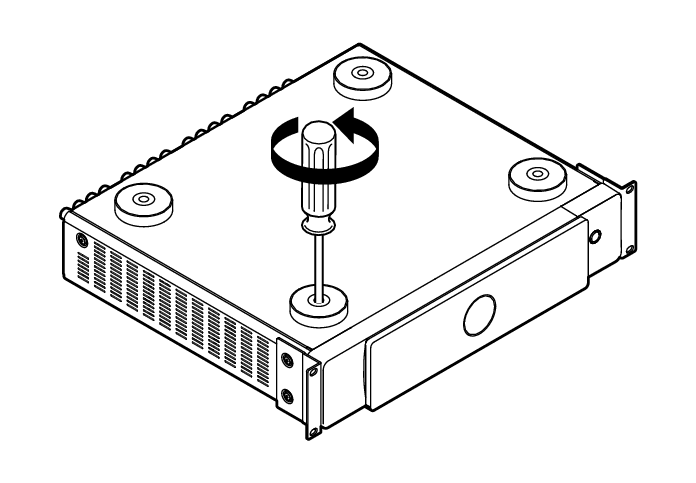

Remove the bottom foot of this unit using a screwdriver (not included).

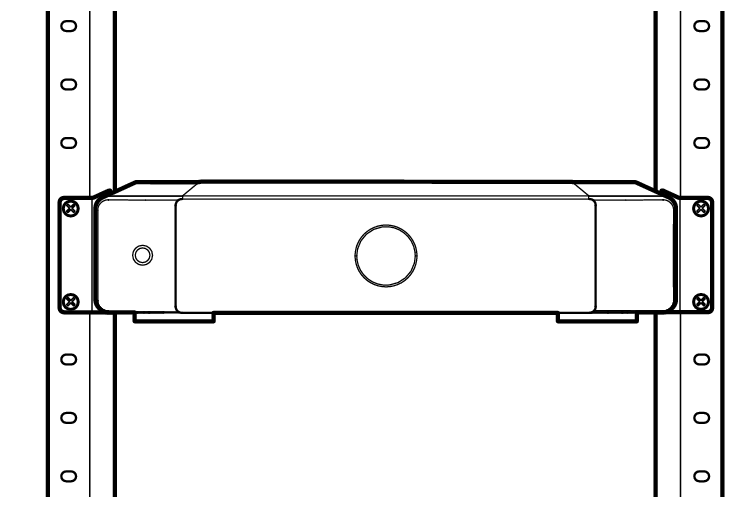

Attach this unit to the rack using the rack mount brackets.
NOTE
Do not cover the side of this unit. Remember, heat is dispersed from this unit's side surface.
Set up the installation environment carefully. For example, take care to protect this unit from heat from other devices. If necessary, use forced ventilation. The surrounding conditions must meet the specifications described in Specificationslink.
If this unit is not to be mounted in a rack, remove the rack mount brackets.
