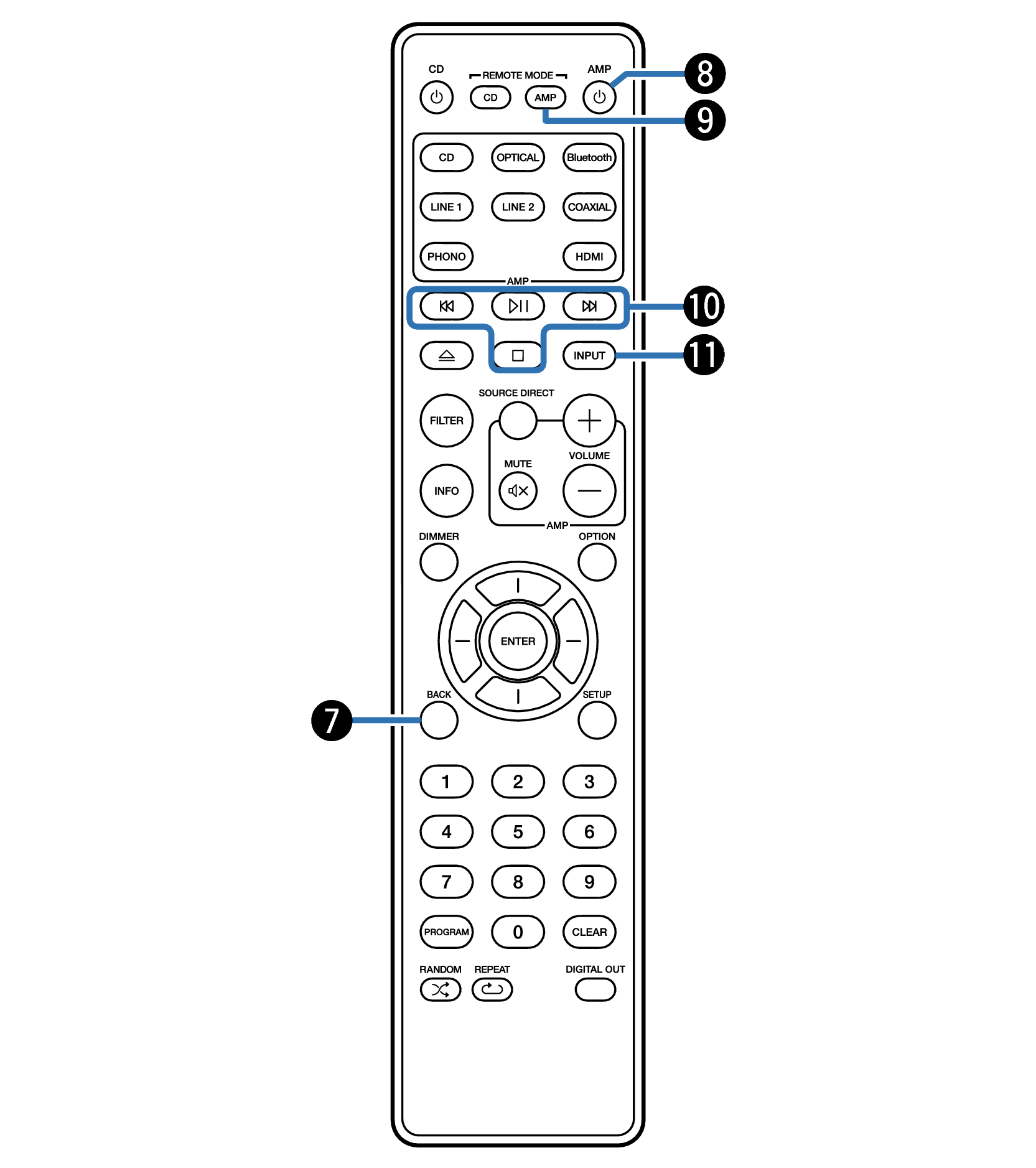

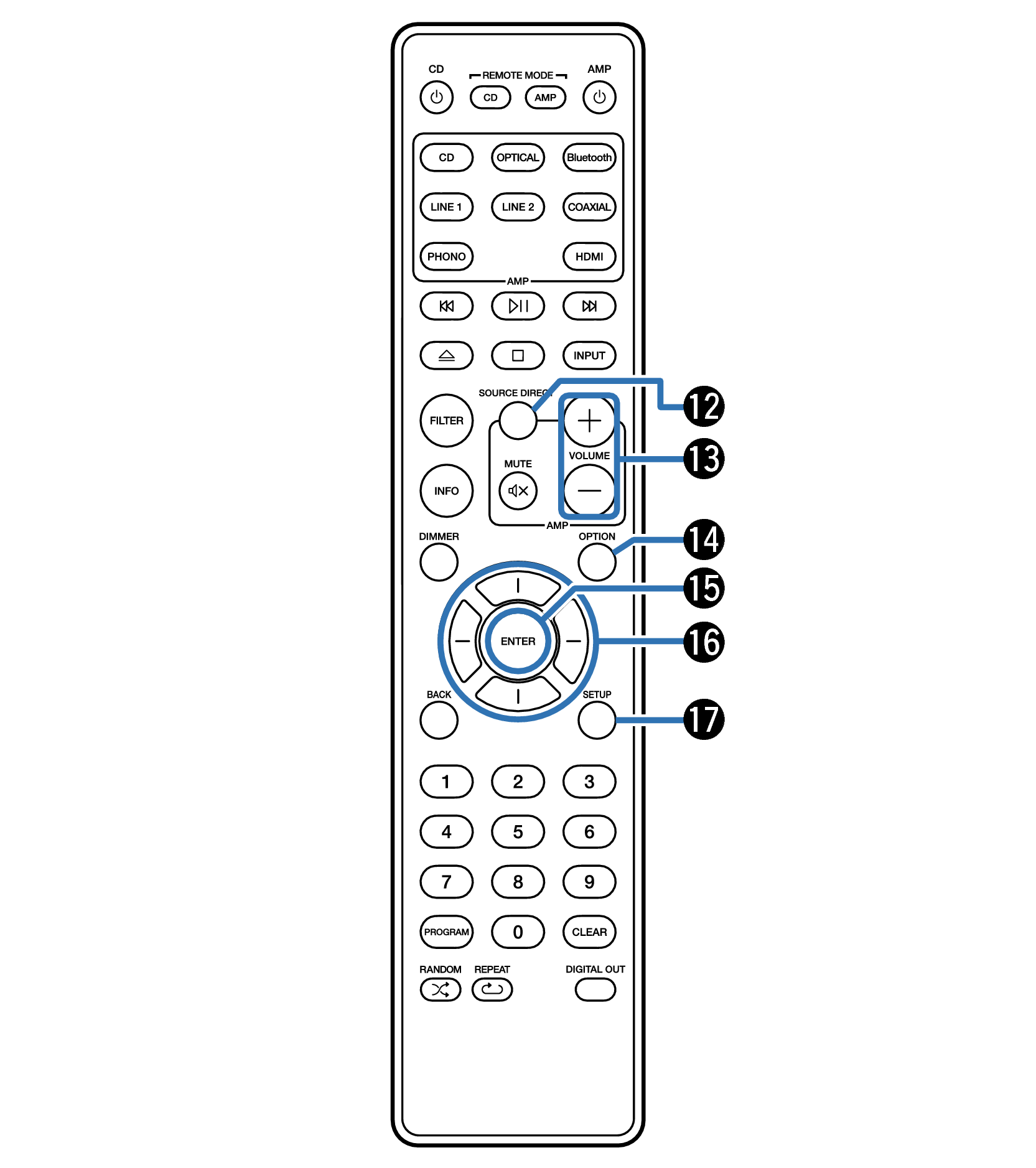

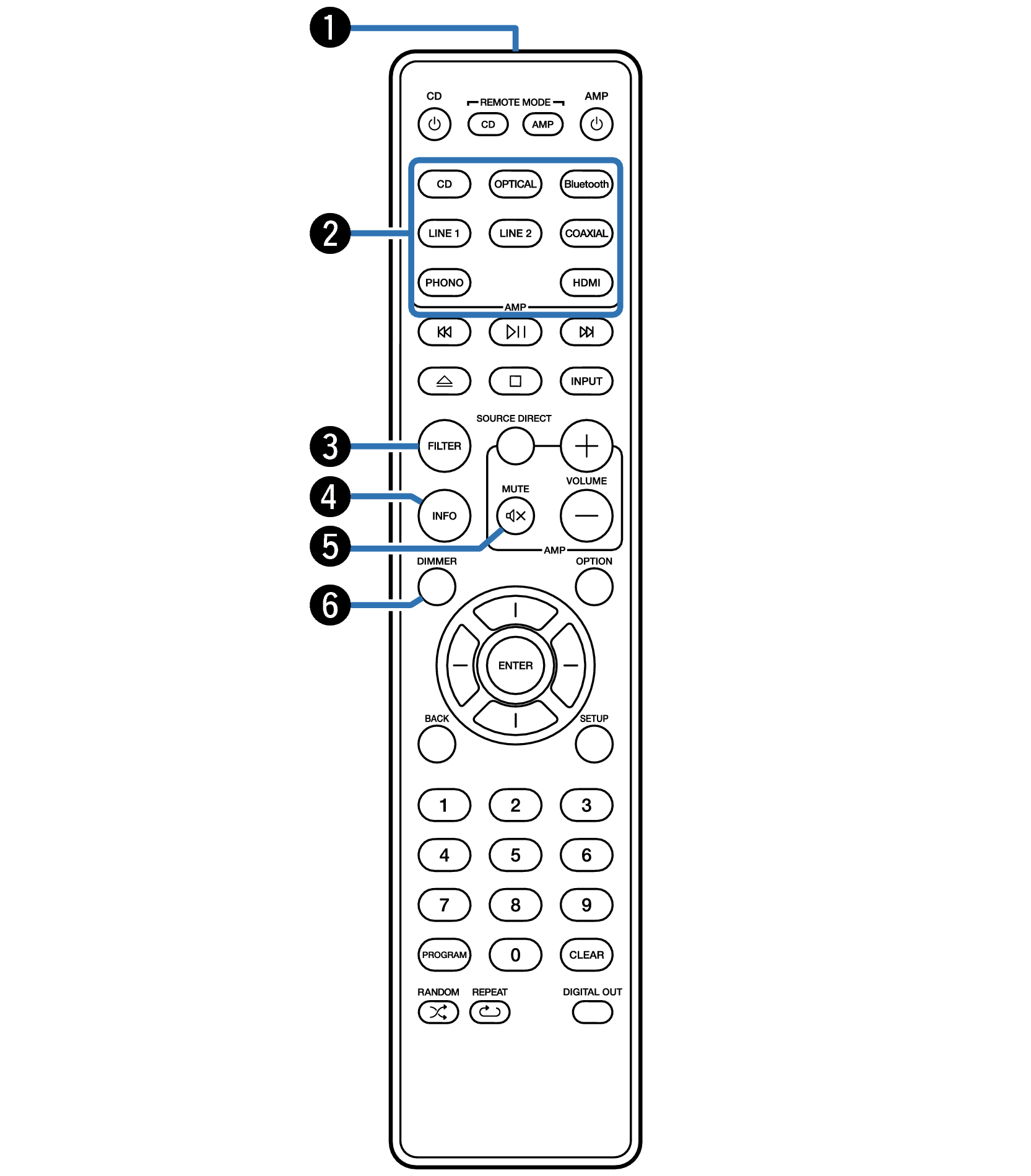

Remote control unit
The remote control provided with this unit can control a Marantz CD player.
Operating this unit
To operate this unit, press REMOTE MODE AMP button to switch the remote control operating mode to this unit.
Remote control signal transmitter
This transmits signals from the remote control unit. link
Input source select buttons
These select the input source. link
FILTER button
Switches the filter characteristics when digital audio is input or during Bluetooth playback. link
Information button (INFO)
This switches the information shown in the display during playback.
MUTE button (
)
This mutes the output audio. link
DIMMER button
Adjust the display brightness of this unit. link
BACK button
Returns to the previous item.
Power (AMP
) button
This turns the power on/off (standby). link
Remote mode select button (REMOTE MODE AMP)
Switches the remote control operating mode to this unit.
System buttons
These perform Bluetooth playback related operations.
Play/pause button (
)
Press this button to pause during playback. If pressed while paused or stopped, resumes playback from the last track played.
Forward-skip button (
)
Press this button during playback to play the next track.
Reverse-skip button (
)
Press this button during playback to restart the current track or play the previous track.
Stop button (
)
Press this button to stop during playback.
INPUT button
This selects the input source. link
SOURCE DIRECT button
This turns source direct mode on/off. link
VOLUME buttons (
)
These adjust the volume level. link
OPTION button
The option menu will appear on the display when using Bluetooth headphones.
ENTER button
This determines the selection.
Cursor buttons
These select items.
SETUP button
The setting menu is displayed on the display. link

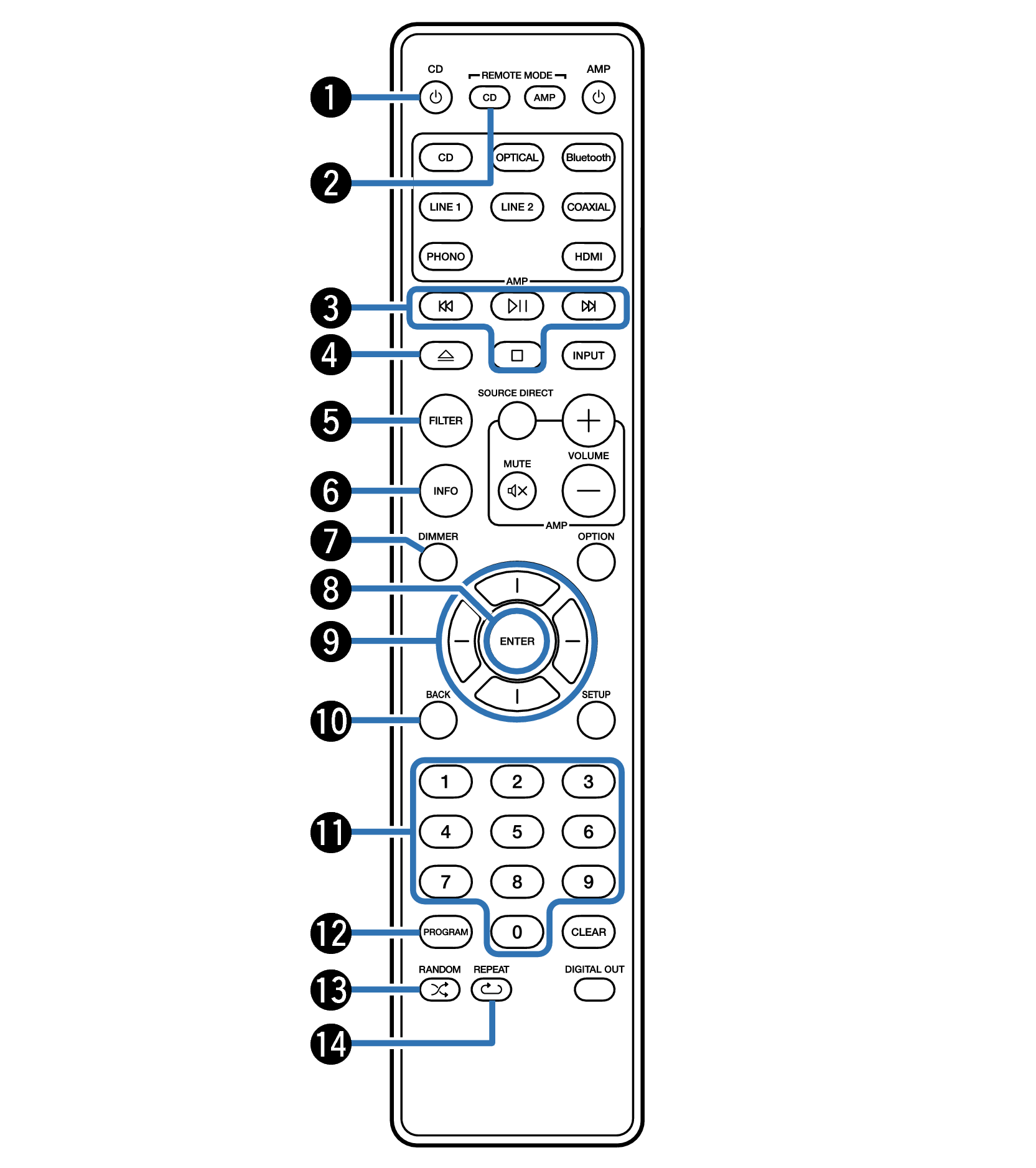

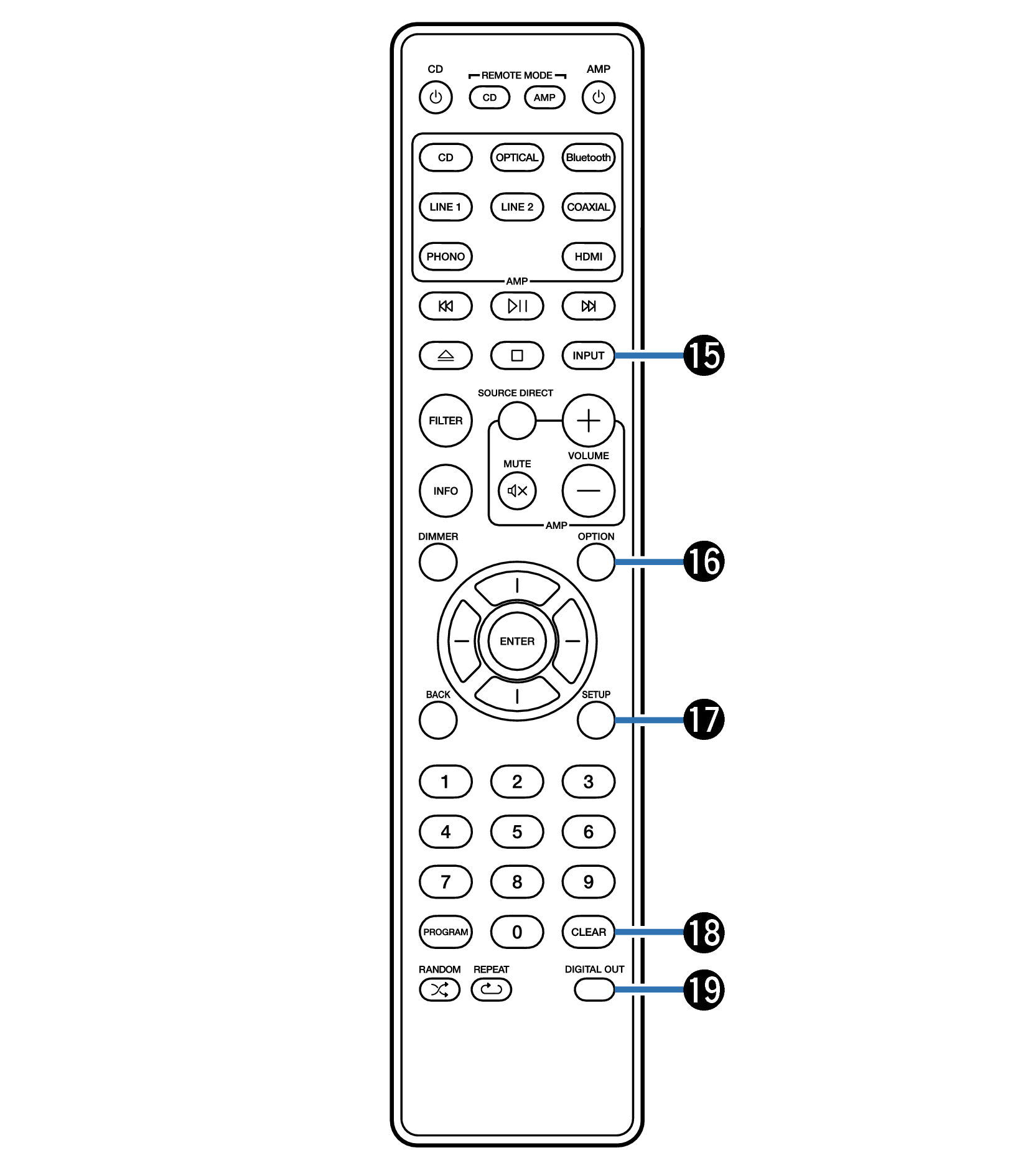

CD player operations
A Marantz CD player can be operated.
To operate CD player, press REMOTE MODE CD button to switch the remote control to the CD player operation mode.
Power (CD ) button
Remote mode select button (REMOTE MODE CD)
System buttons
Disc tray open/close button (
)
FILTER button
Information button (INFO)
DIMMER button
ENTER button
Cursor buttons
BACK button
Number buttons (0 – 9)
PROGRAM button
RANDOM button (
)
REPEAT button (
)
INPUT button
OPTION button
SETUP button
CLEAR button
DIGITAL OUT button
The remote control may not operate some products.
