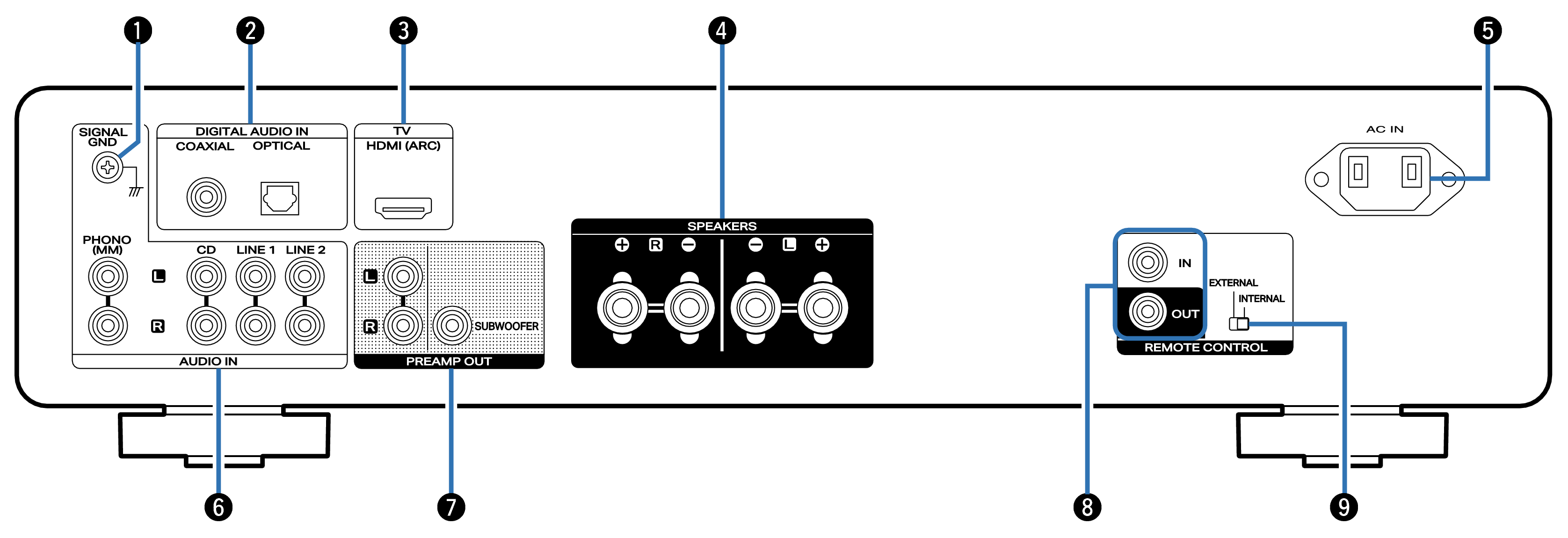

Rear panel
SIGNAL GND terminal
Used to connect the ground wire of a turntable. link
Digital audio input connectors (DIGITAL AUDIO IN)
Used to connect devices equipped with digital audio output connectors. link
HDMI connector (TV)
Used to connect an ARC function-compatible TV. link
Speaker terminals (SPEAKERS)
Used to connect speakers. link
AC inlet (AC IN)
Used to connect the power cord. link
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output connectors. link
PREAMP OUT connectors
Use this to add such equipment as a power amplifier or subwoofer.
When connecting a subwoofer, also consult the subwoofer instruction manual.
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the remote control function. link
EXTERNAL/INTERNAL switch
Turn this switch to “INTERNAL” to operate the unit by pointing the remote control at this unit connected to a Marantz audio device using the remote control connection. link
