Front panel

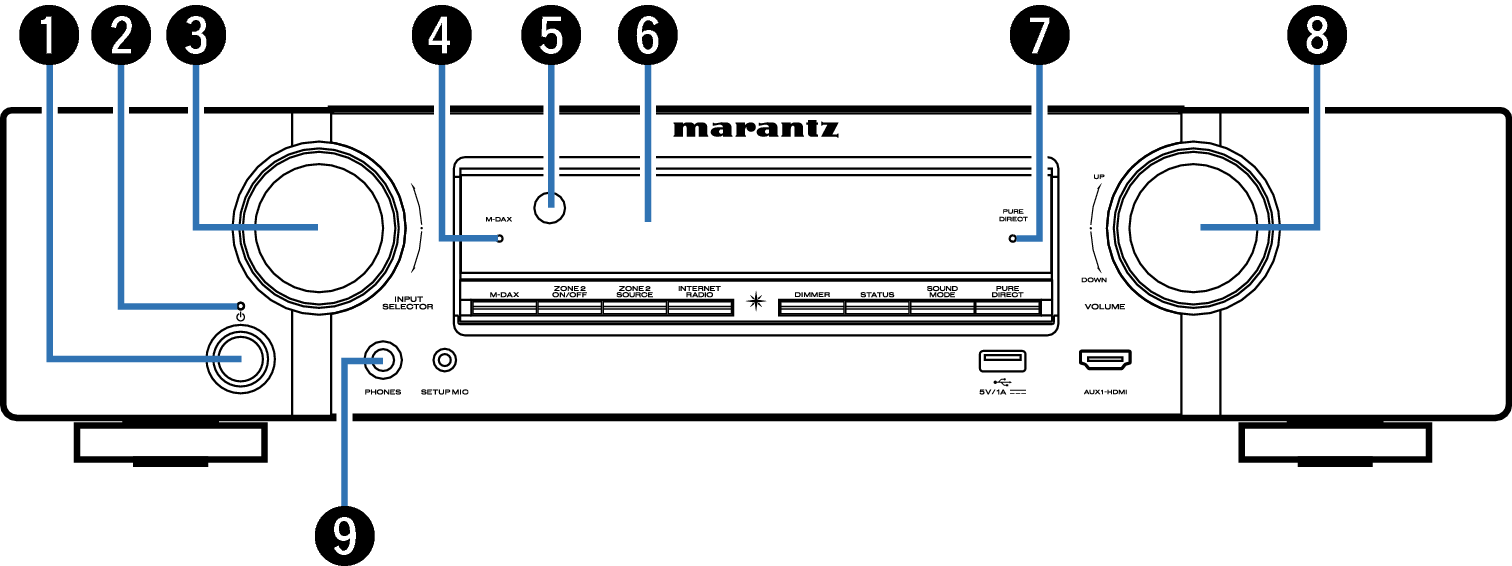

Name Front Small1 NR1605

Power operation button ( Power Button )

Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). link

Power indicator

This is lit as follows according to the power status:

Off: Power on

Red: Normal standby

Orange:

When “HDMI Pass Through” is set to “On”link

When “HDMI Control” is set to “On”link

When “IP Control” is set to “Always On”link

INPUT SELECTOR knob

This selects the input source. link

M-DAX indicator

This lights when the M-DAX mode is selected. link

Remote control sensor

This receives signals from the remote control unit. link

Display

This displays various pieces of information. link

PURE DIRECT indicator

This lights when the “Pure Direct” mode is selected as the sound mode. link

VOLUME knob

This adjusts the volume level. link

Headphones jack (PHONES)

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

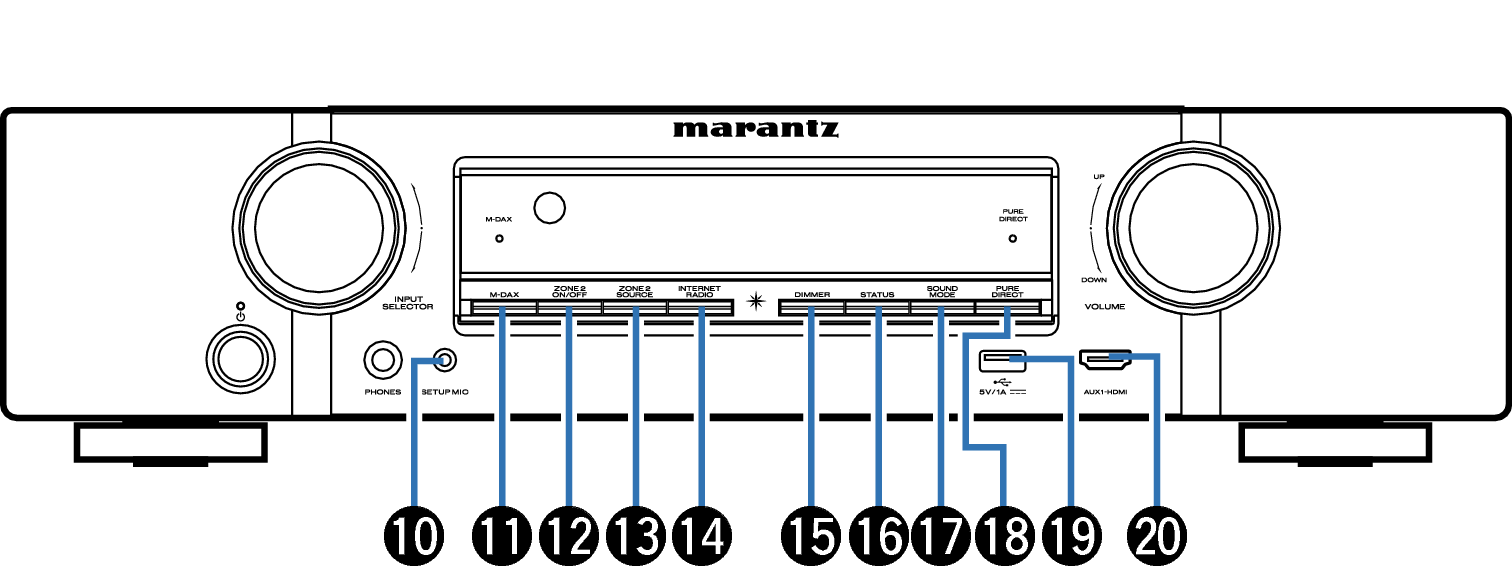

Name Front Small2 NR1605

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. link

M-DAX button

This switches the M-DAX mode. link

ZONE2 ON/OFF button

This turns the power of ZONE2 (separate room) on/off. link

ZONE2 SOURCE button

This selects the input source for ZONE2. link

INTERNET RADIO button

This switches the input source to “Online Music” – “Internet Radio”. link

DIMMER button

Each press of this switches the brightness of the display. link

STATUS button

Each press of this switches the status information that is shown on the display. link

SOUND MODE button

Switching the sound mode. link

PURE DIRECT button

This switches the sound mode between Direct, Pure Direct and Auto surround. link, link

USB port

This is used to connect USB storages (such as USB memory devices) and the USB cable supplied with iPod. link

AUX1-HDMI connector

This is used to connect HDMI output compatible devices such as video camcorders and game consoles. link
