Playback in ZONE2

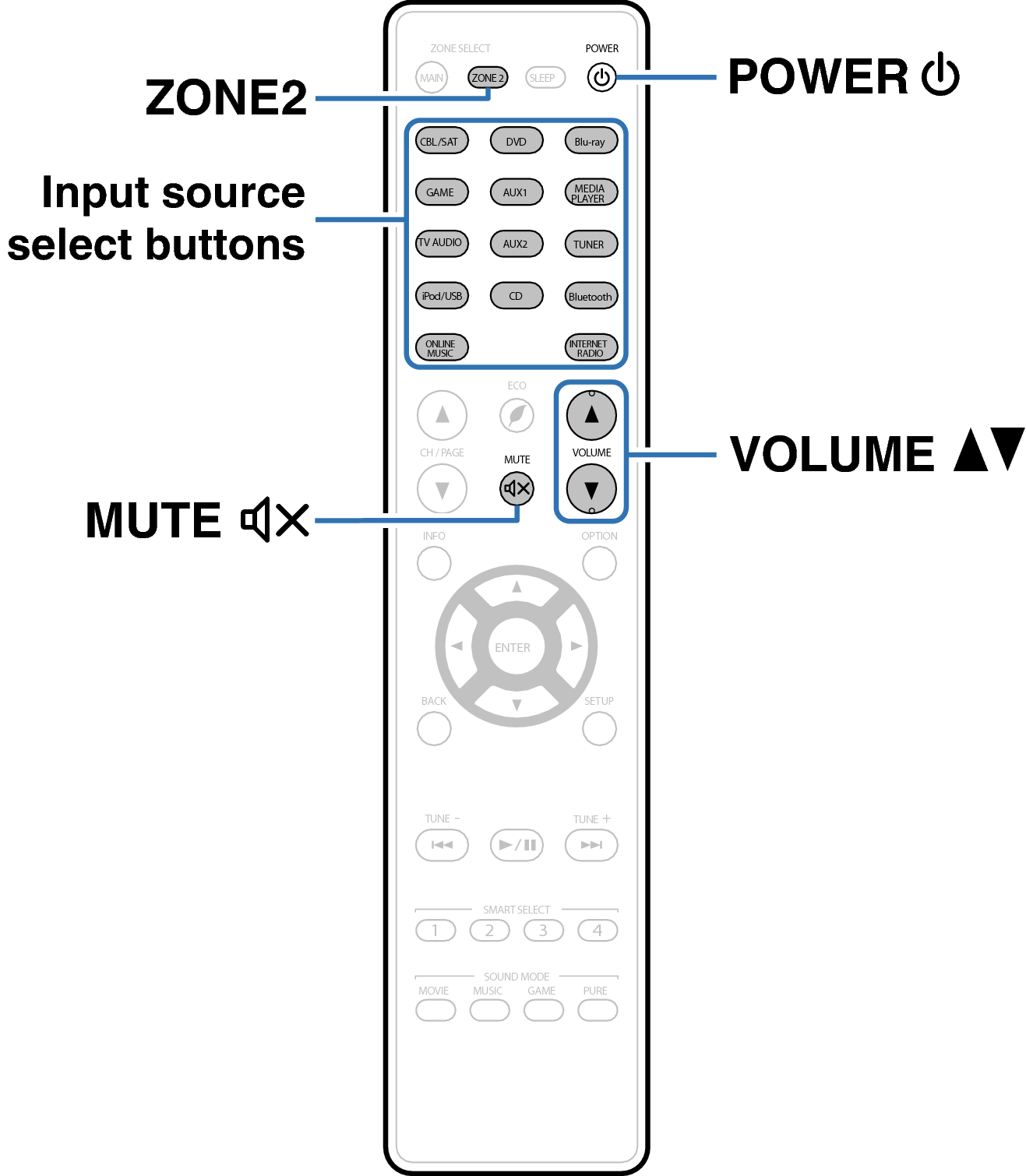

Ope ZONE2 RC024SR
Press ZONE2 to set the operating zone to ZONE2 with the remote control.

The ZONE2 button lights.

Press POWER  Power Button to turn on the ZONE2 power.

The Z2-kurowaku indicator on the display lights.

Power in ZONE2 can be turned on or off by pressing ZONE2 ON/OFF on the main unit.

Press the input source select button to select the input source to be played.

The audio signal of the selected source is output to ZONE2.

To perform an operation with the main unit, press ZONE2 SOURCE. Each time you press ZONE2 SOURCE, the input source changes.

Adjusting the volume

Use VOLUME  kurosankaku Sankaku-Reverse to adjust the volume.

At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. link

Turn VOLUME after pressing ZONE2 SOURCE on the main unit to adjust the sound volume.

Turning off the sound temporarily (Muting)

Press MUTE  Silent .

The sound is reduced to the level set at “Mute Level” in the menu. link

To cancel mute, either adjust the sound volume or press MUTE  Silent again.
