Rear panel

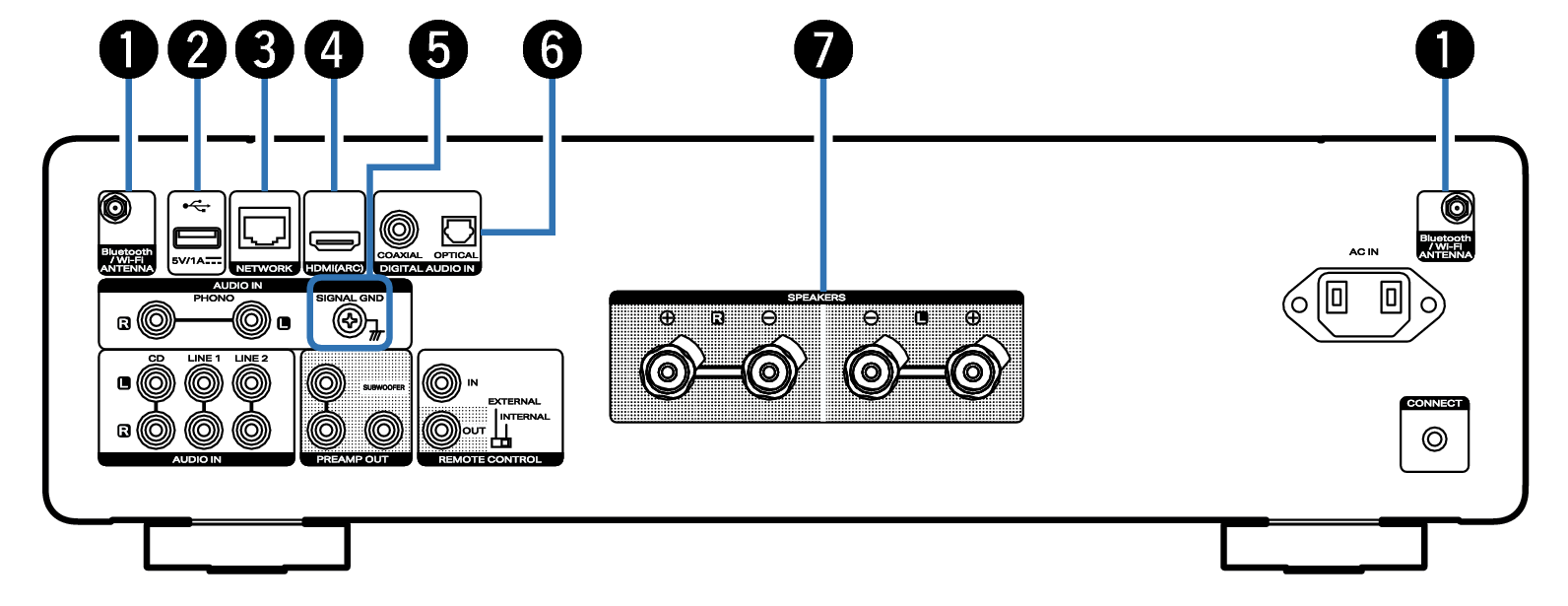

Name Rear small MODEL60n 1

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

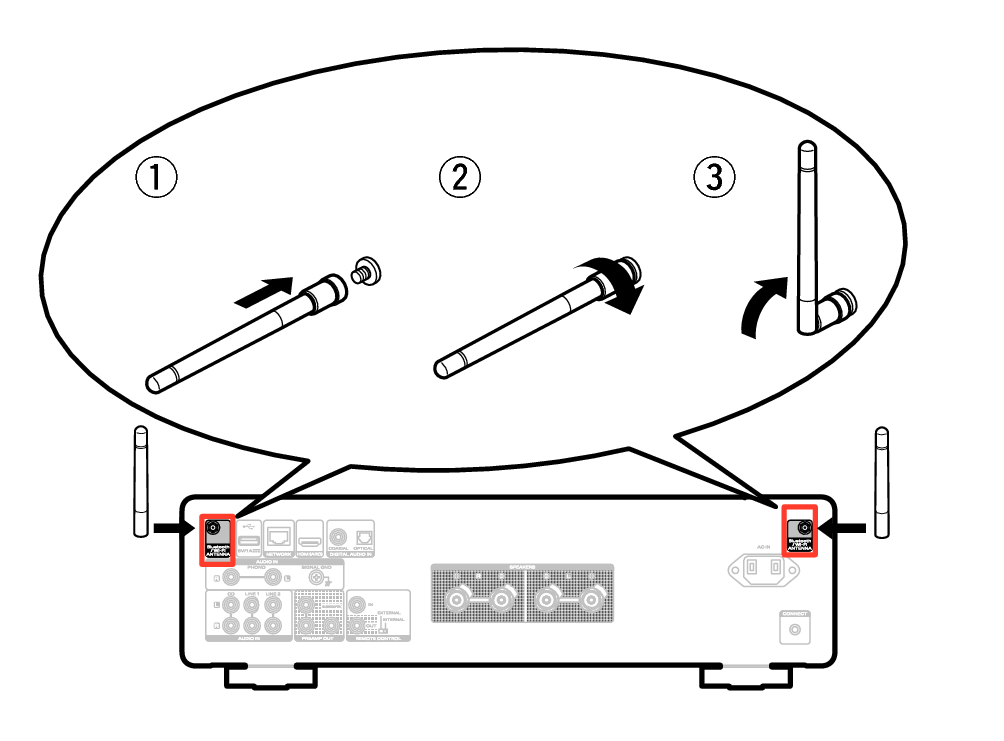

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle MODEL60n

USB port ( Icon USB )

This is used to connect USB storages (such as USB flash drives).
link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

HDMI connector (HDMI (ARC))

Used to connect an ARC function-compatible TV. link

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

DIGITAL AUDIO IN connectors

Used to connect devices equipped with digital audio output connectors. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

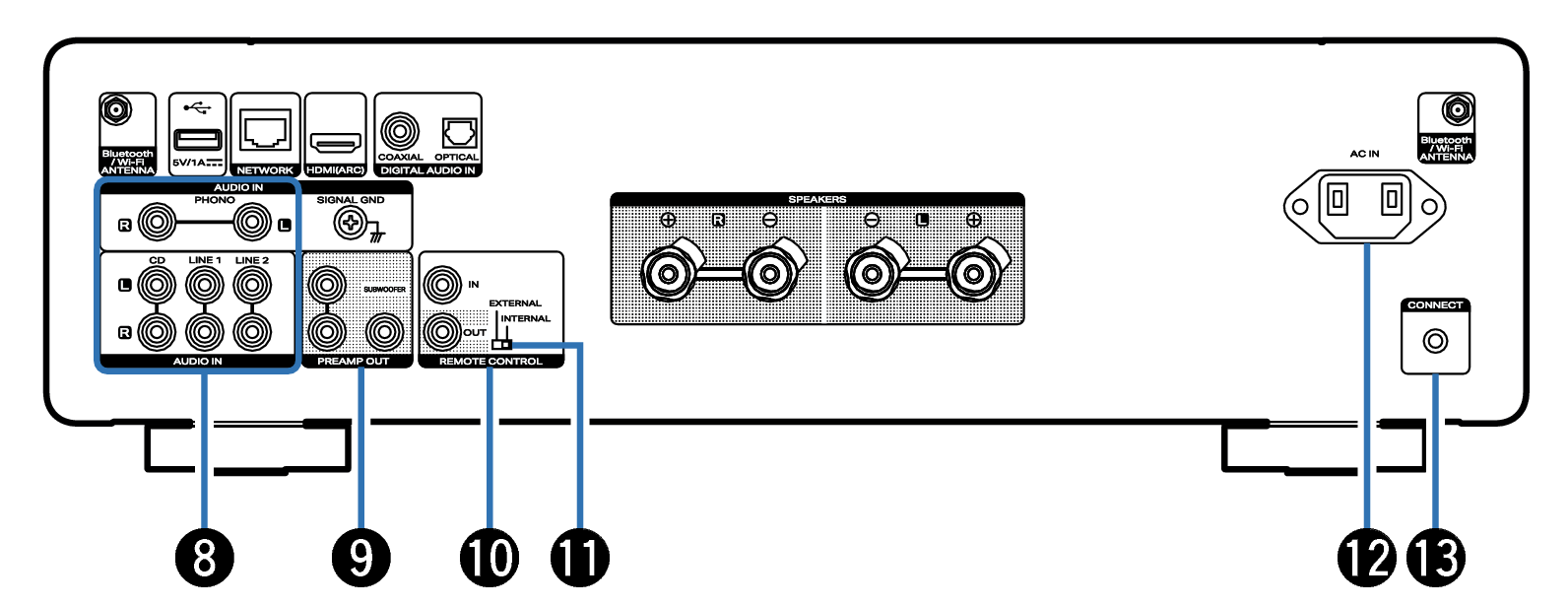

Name Rear small MODEL60n 2

AUDIO IN connectors

Used to connect devices equipped with analog audio output connectors.

Connecting a playback devicelink

PREAMP OUT connector

Used to connect a subwoofer with a built-in amplifier. link

Used to connect a power amplifier when this unit is used as a pre-amplifier. link

REMOTE CONTROL connectors

Used to connect to a Marantz audio device that is compatible with the remote control function. link

EXTERNAL/INTERNAL switch

Turn this switch to “INTERNAL” to operate the unit by pointing the remote control at this unit connected to a Marantz audio device using the remote control connection. link

AC inlet (AC IN)

Used to connect the power cord. link

CONNECT button

Used for Wi-Fi setup. link
