Playback

Connecting 7.1-channel speakers

System for 7.1-channel surround playback.

Example connections when using surround back speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

Pict SurrBack SP Layout X2200

Set “Assign Mode” to “Surround Back” in the menu. link

Conne SP 7.1 SB S55U

When using a single surround back speaker, connect it to the SURROUND BACK L terminal.

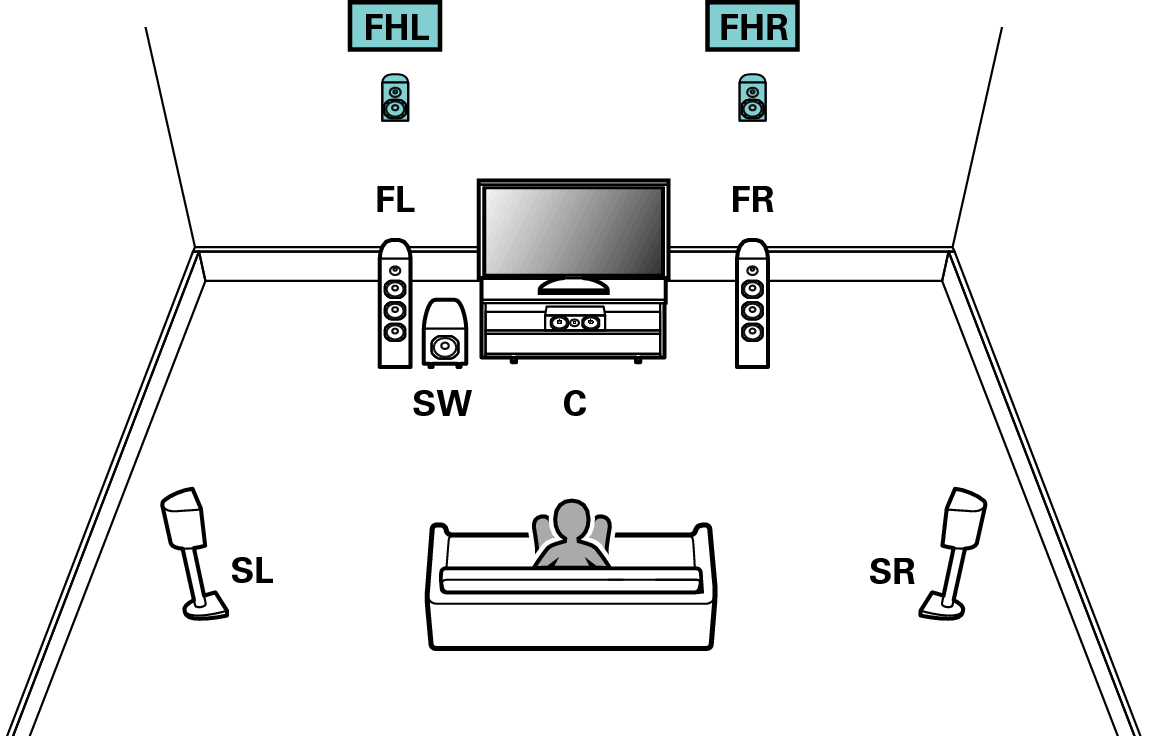

Example connections when using front height speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

Pict FrontHeight SP Layout X2200

Set “Assign Mode” to “Front Height” in the menu. link

Conne SP 7.1 FH S55U

Example connections when using top front speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top front speakers.

Pict TopFront SP Layout X2200

Set “Assign Mode” to “Top Front” in the menu. link

Conne SP 7.1 TF S55U

Example connections when using top middle speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top middle speakers.

Pict TopMiddle SP Layout X2200

Set “Assign Mode” to “Top Middle” in the menu. link

Conne SP 7.1 TM S55U

Example connections when using front Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby Atmos Enabled speakers.

Pict FrontDolby SP Layout X2200

Set “Assign Mode” to “Front Dolby” in the menu. link

Conne SP 7.1 FD S55U

Example connections when using surround Dolby Atmos Enabled speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround Dolby Atmos Enabled speakers.

Pict SurrDolby SP Layout X2200

Set “Assign Mode” to “Surround Dolby” in the menu. link

Conne SP 7.1 SD S55U
