Front panel

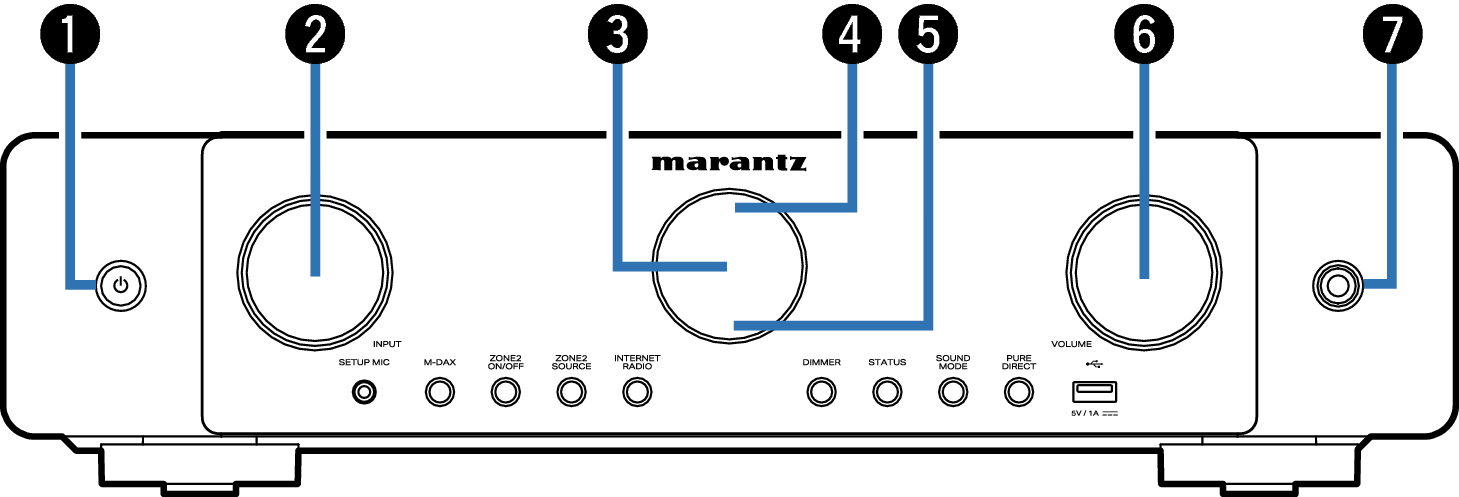

Name Front Small1 C70s

Power operation button ( Power Button )

Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). link

INPUT selector knob

This selects the input source. link

Display

This displays various pieces of information. link

Remote control sensor

This receives signals from the remote control unit. link

Protection circuit indicator

This blinks when the protection circuit has operated. link

VOLUME knob

This adjusts the volume level. link

Headphones jack

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

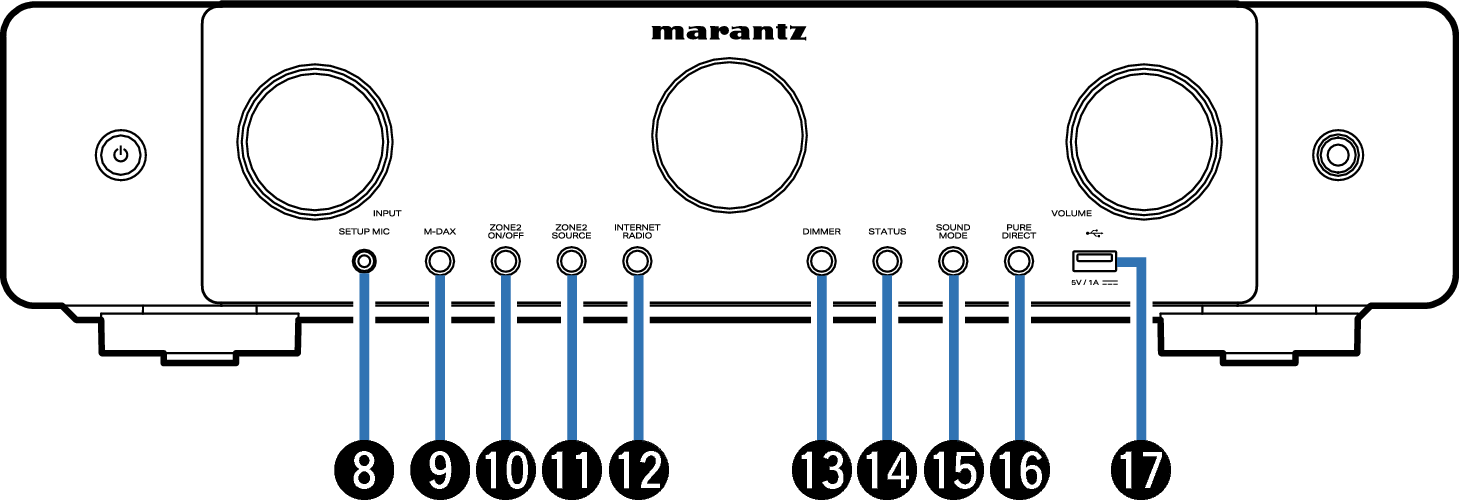

Name Front Small2 C70s

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. link

M-DAX button

This switches the M-DAX mode. link

ZONE2 ON/OFF button

This turns the power of ZONE2 (another room) on/off. Playback the source in ZONE2link

ZONE2 SOURCE button

This selects the input source for ZONE2. Playback the source in ZONE2link

INTERNET RADIO button

This switches the input source to “HEOS Music” – “TuneIn Internet Radio”. link

DIMMER button

Each press of this switches the brightness of the display. link

STATUS button

Each press of this switches the status information that is shown on the display.

SOUND MODE button

Switching the sound mode. link

PURE DIRECT button

This switches the sound mode between Direct, Pure Direct and Auto surround.

Direct playbacklink

Pure Direct playbacklink

Auto surround playbacklink

USB port ( Icon USB )

This is used to connect USB storages (such as USB memory devices). link
