Rear panel

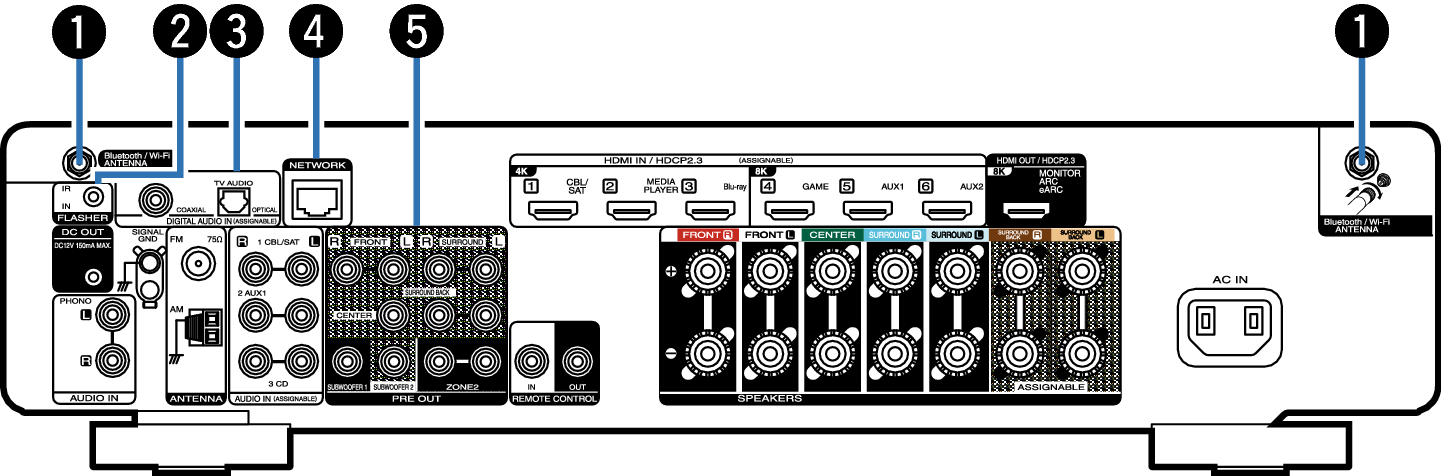

Name Rear Small1 C70sU

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

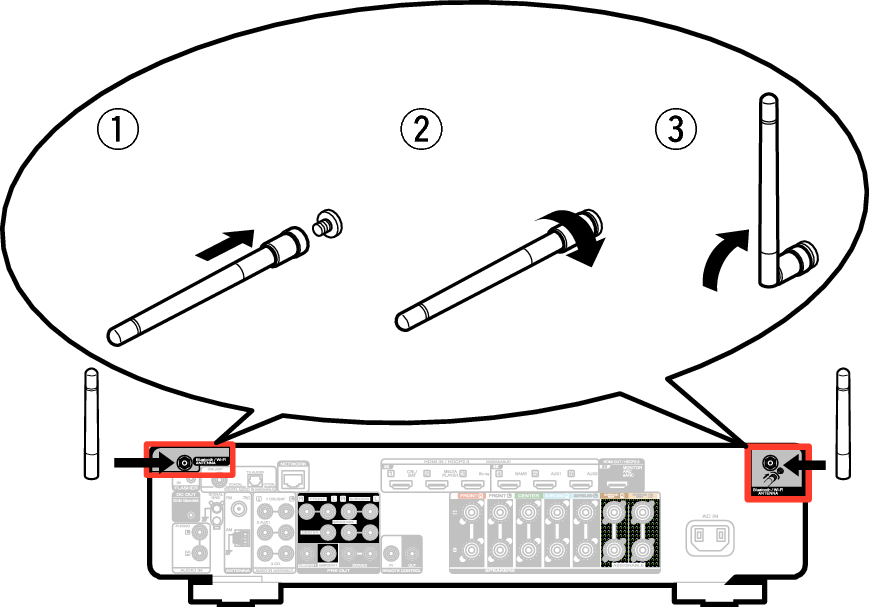

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle C70s

FLASHER IN jack

Used when using a control BOX or other such control devices to control this unit.

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARClink

Connecting a set-top box (Satellite tuner/cable TV)link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or a power amplifier for ZONE2.

Connecting the subwooferlink

Connecting an external power amplifierlink

Connecting ZONE2link

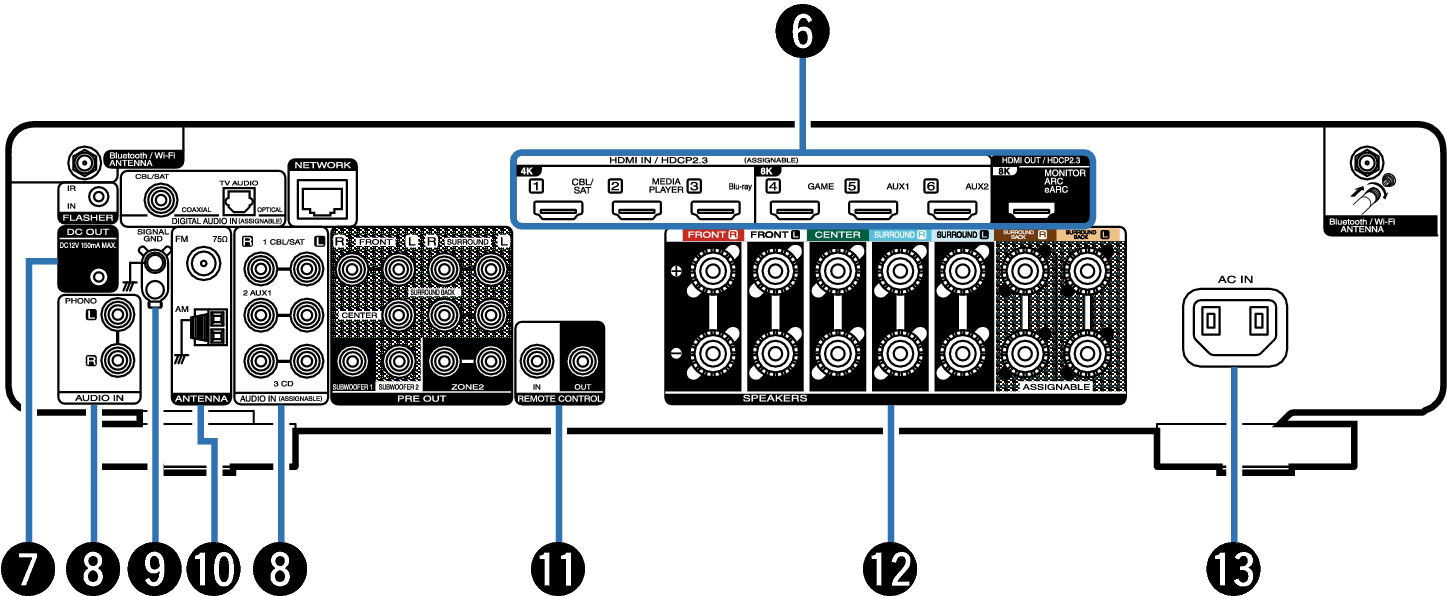

Name Rear Small2 C70sU

HDMI connectors

Used to connect devices equipped with HDMI connectors.

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARClink

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARClink

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

Connecting a Blu-ray Disc player or DVD playerlink

Connecting a game console or player device compatible with 8Klink

DC OUT jack

Used to connect devices equipped with the trigger function. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a turntablelink

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

AC inlet (AC IN)

Used to connect the power cord. link

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
