Connecting ZONE2

Connection 1: Connecting using a speaker output terminal

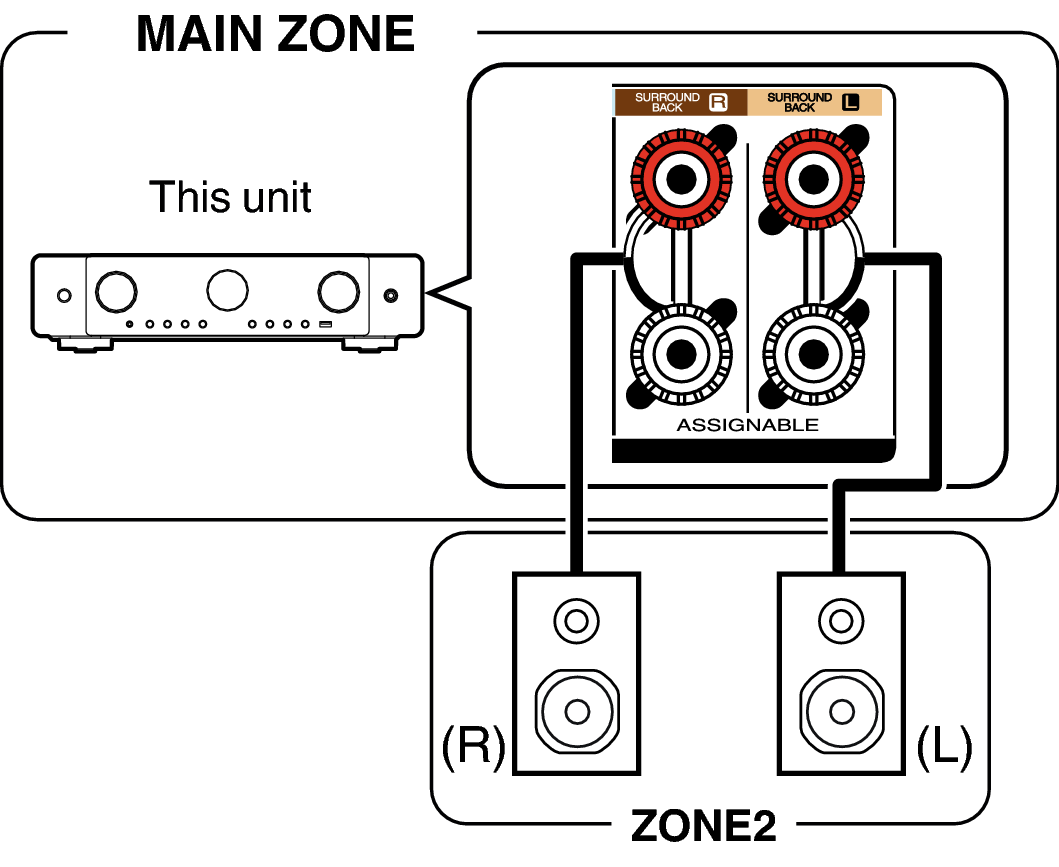

When “Amp Assign” is set to “5.1ch + ZONE2” in the menu, ZONE2 audio is output from the SURROUND BACK speaker terminal. link

Pict ZONE Audio1 C70sU

Connection 2 : Connection using an external amplifier (ZONE2)

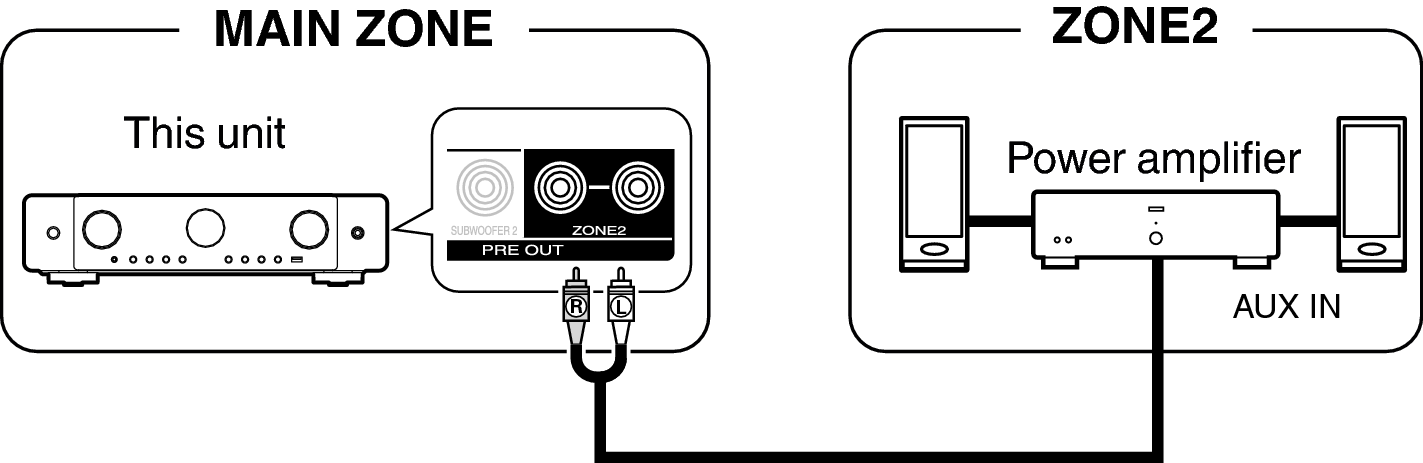

The audio signals of this unit’s ZONE2 audio output connectors are output to the ZONE2 amplifiers and played on these amplifiers.

Pict ZONE Audio2 C70sU
