Connecting an external power amplifier

You can use this unit as a preamplifier by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.

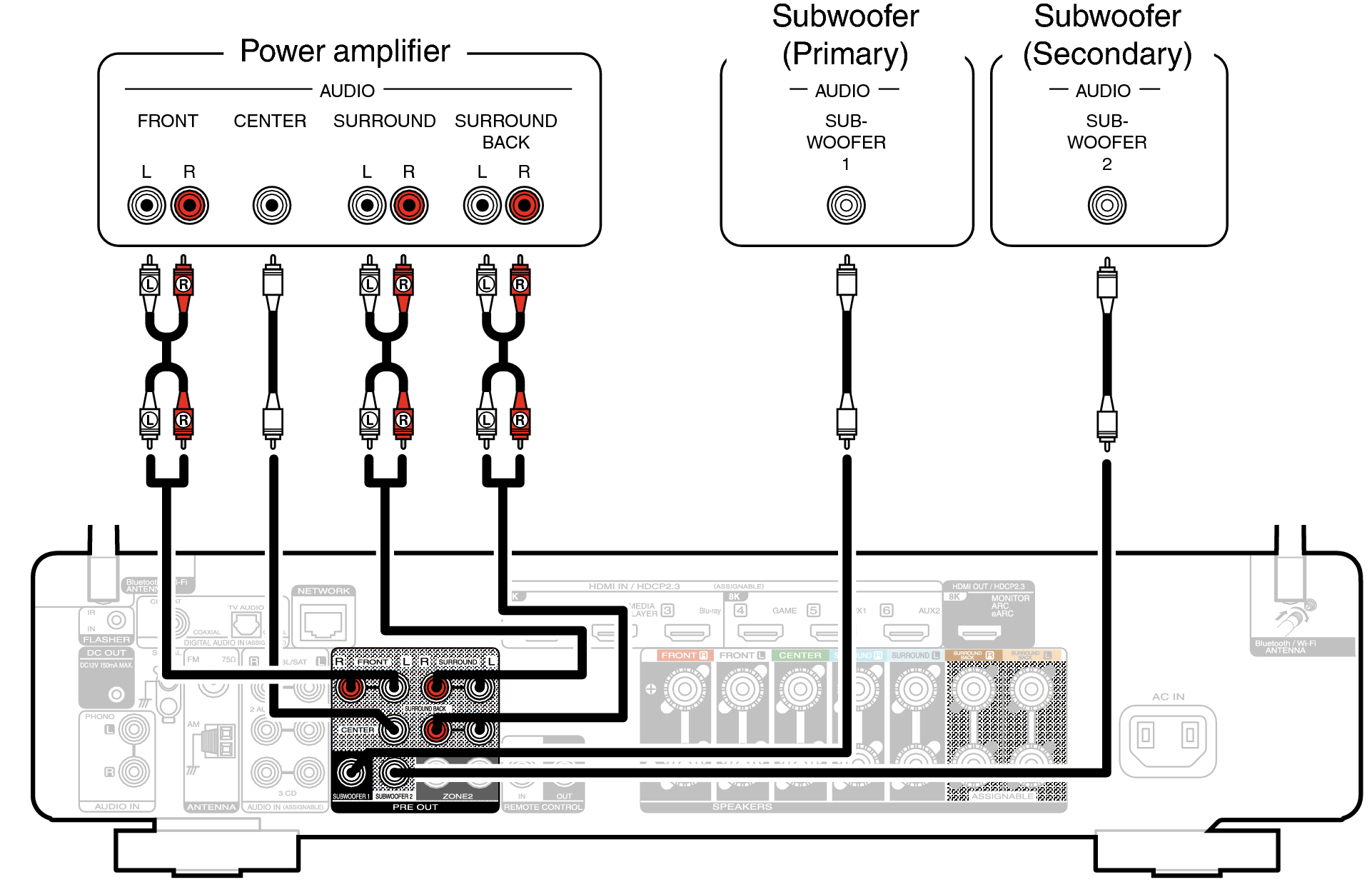

Select the terminal to use and connect the device.

Conne PRE OUT C70sU

When using just one surround back speaker, connect it to the left channel (L) terminal.
