Connecting ZONE

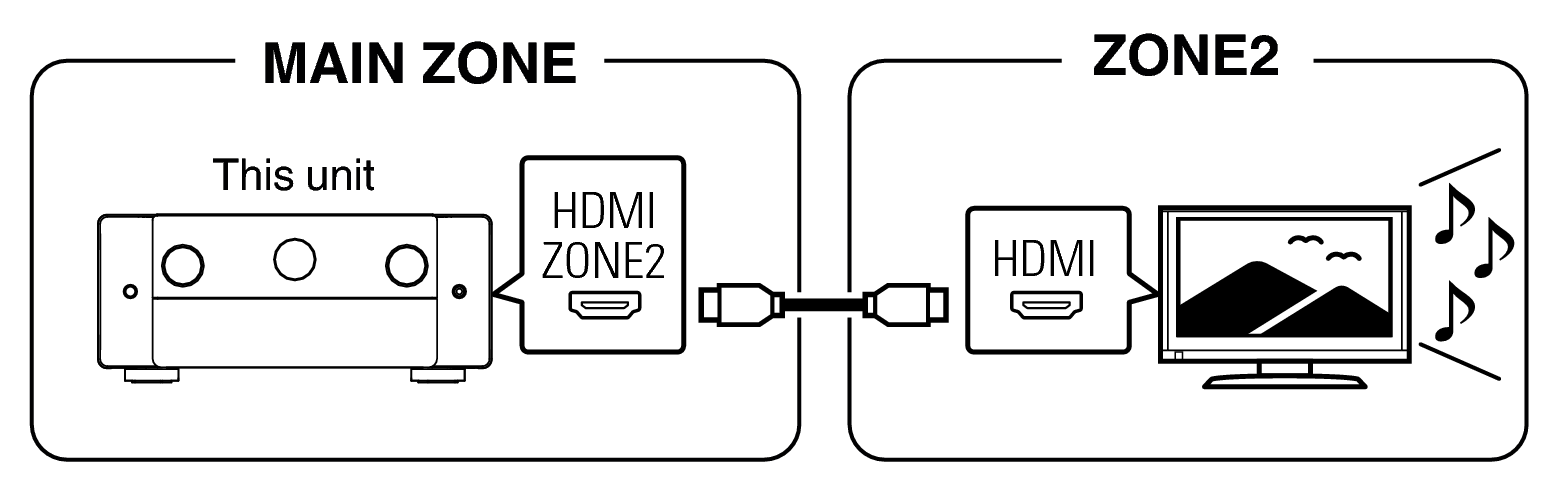

Connection 1 : Connection through the HDMI ZONE2 connector

When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the device connected to the HDMI 1 – 7 IN connector in ZONE2 (HDMI ZONE2 function).

Pict ZONE Audio1 AV10

When a TV is connected to the HDMI ZONE2 OUT connector, and the MAIN ZONE and ZONE2 are set to the same input source, the MAIN ZONE audio may be mixed down to 2-channel audio.

Connection 2 : Connection using a speaker output terminal

When “Amp Assign” in the menu is set to any of the following audio is output from speakers in ZONE2 or ZONE3. link

The connectors for connecting the ZONE2 and ZONE3 speakers depends on your MAIN ZONE Speaker Layout. Check the connectors under ZONE2 and ZONE3 in Speaker Layout.

Amp Assign: 9.1ch + ZONE2

Pict ZONE Audio2 C30

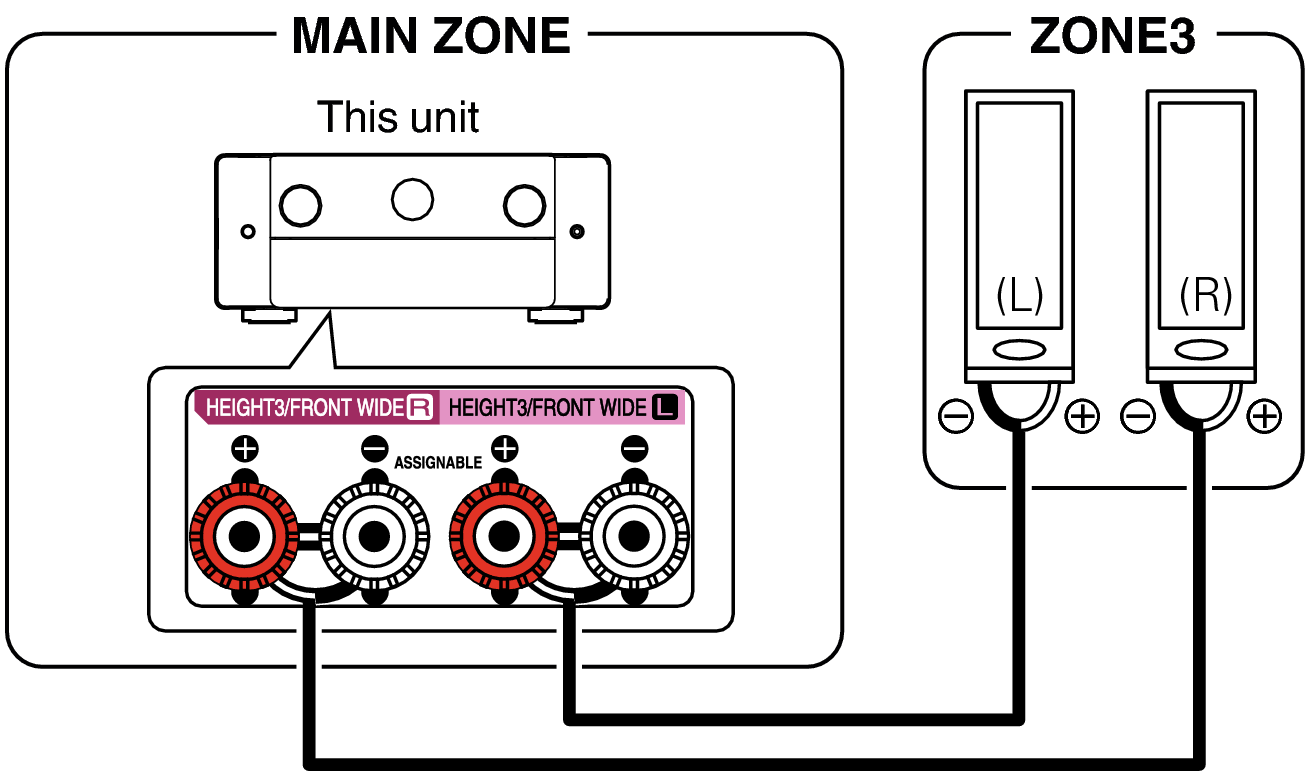

Amp Assign: 9.1ch + ZONE3

Pict ZONE Audio3 C30

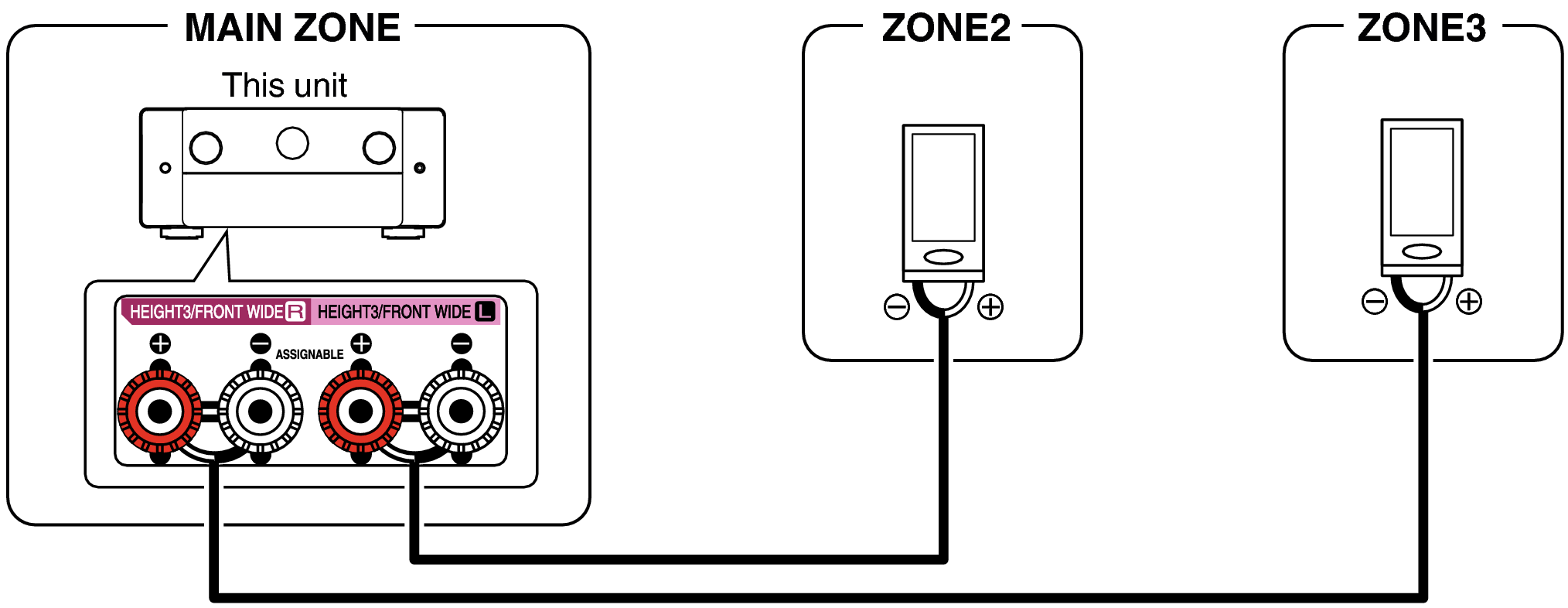

Amp Assign: 9.1ch + ZONE2/3-MONO

Pict ZONE Audio4 C30

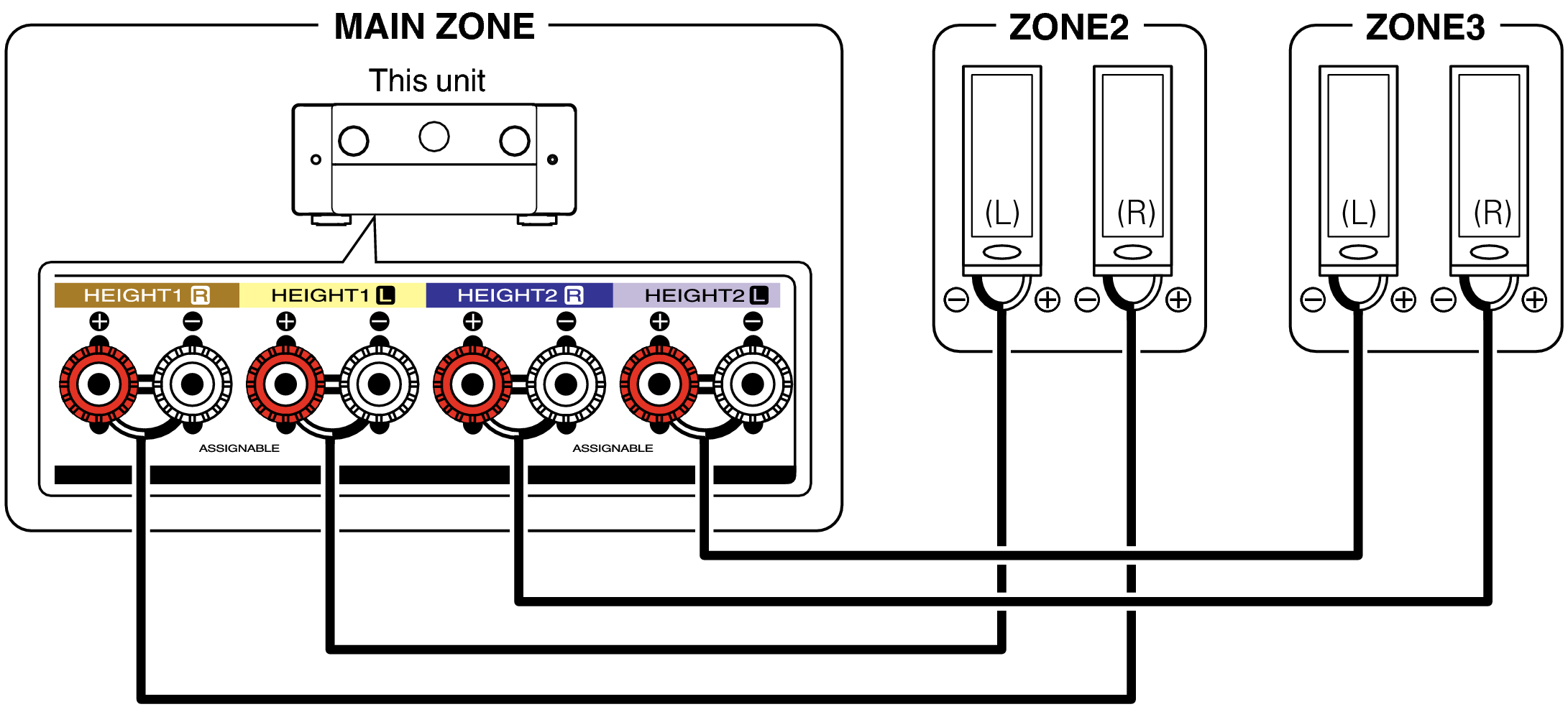

Amp Assign: 7.1ch + ZONE2/3

Pict ZONE Audio5 C30

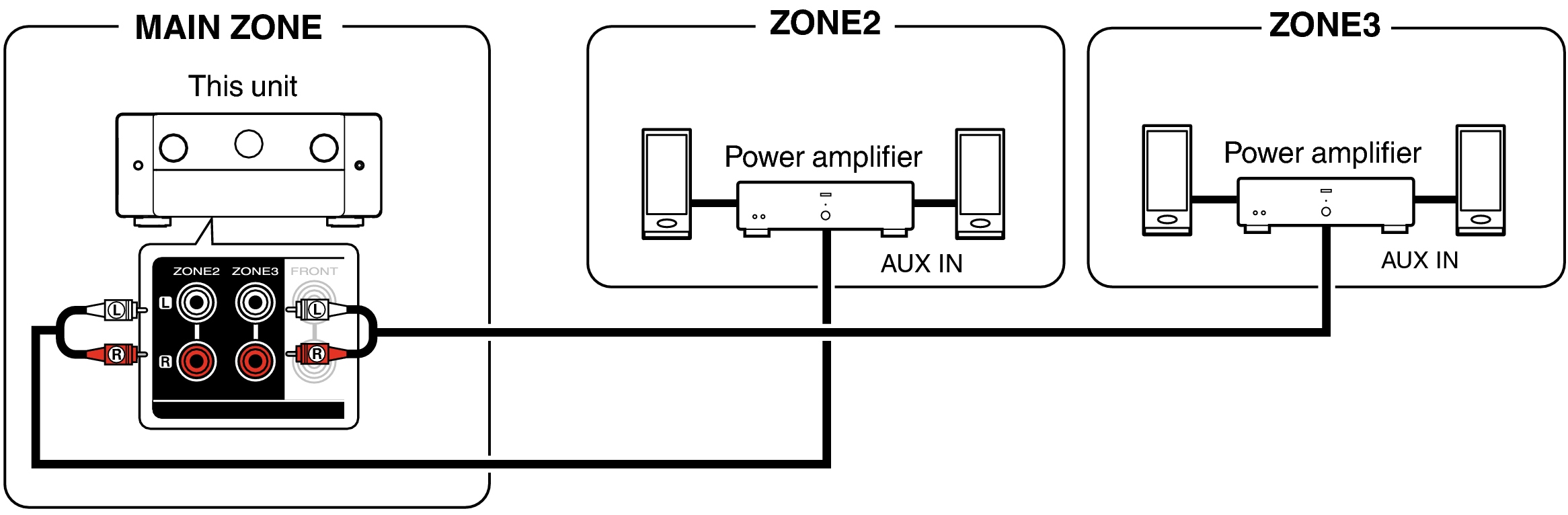

Connection 3 : Connection through the external power amplifiers

The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers.

Pict ZONE Audio6 C40
