Remote control unit

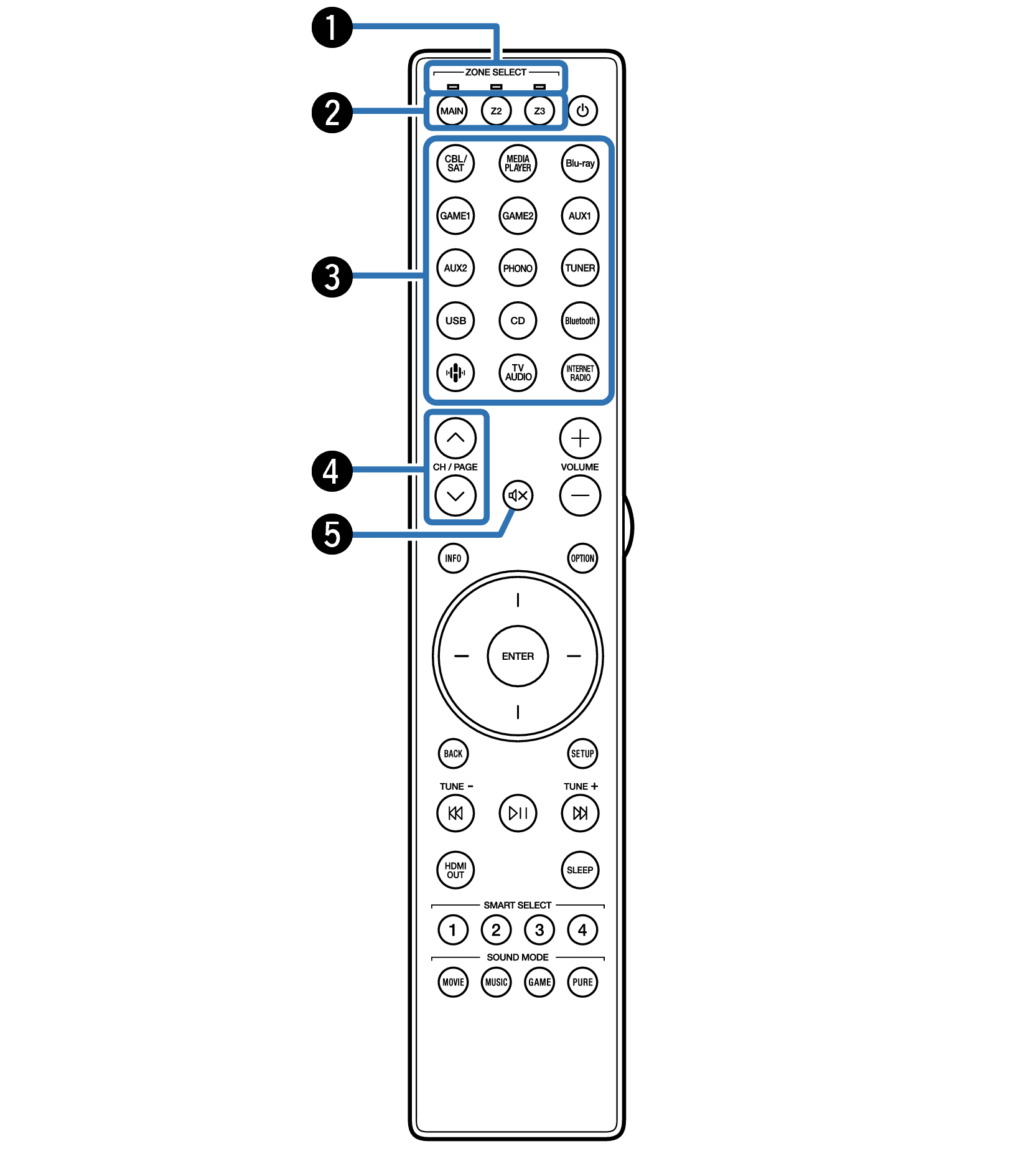

Name RC051SR

Zone mode indicators

The indicator of the zone that you are operating lights up.

ZONE SELECT buttons (MAIN, Z2, Z3)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.

Playing different sources in MAIN ZONE, ZONE2 and ZONE3link

Menu operationslink

Specifying the zone used with the remote control unitlink

Input source select buttons

These selects the input source.

Selecting the input sourcelink

Playing different sources in MAIN ZONE, ZONE2 and ZONE3link

Channel/page search buttons (CH/PAGE  kurosankaku2 Sankaku-Reverse2 )

These switch pages. link

MUTE button ( Silent )

This mutes the output audio.

Turning off the sound temporarily (Muting)link

Turning off the sound temporarily (Muting)link

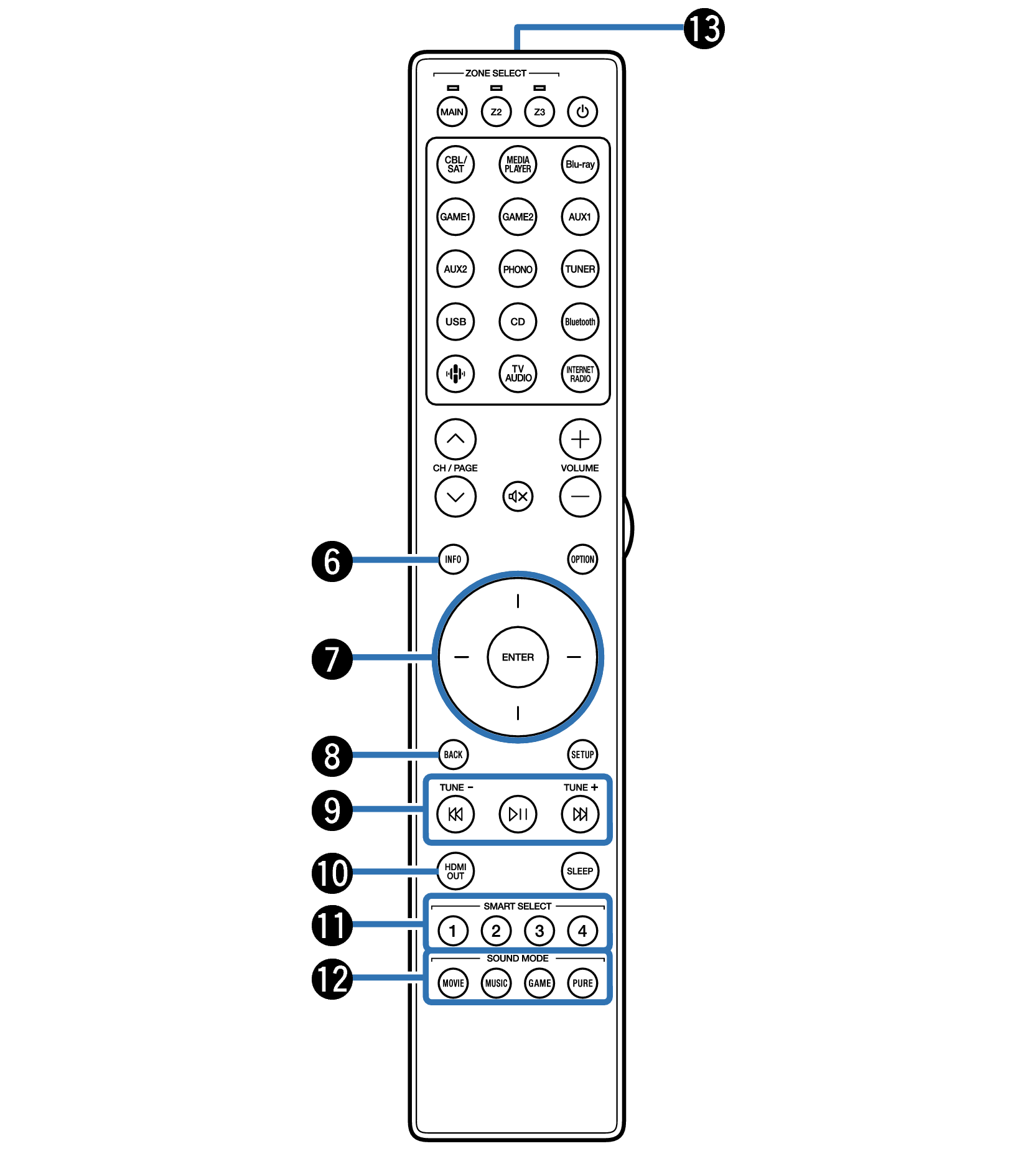

Name RC051SRa

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons

These select items.

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

HDMI OUT button

This sets the HDMI monitor output. link

SMART SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

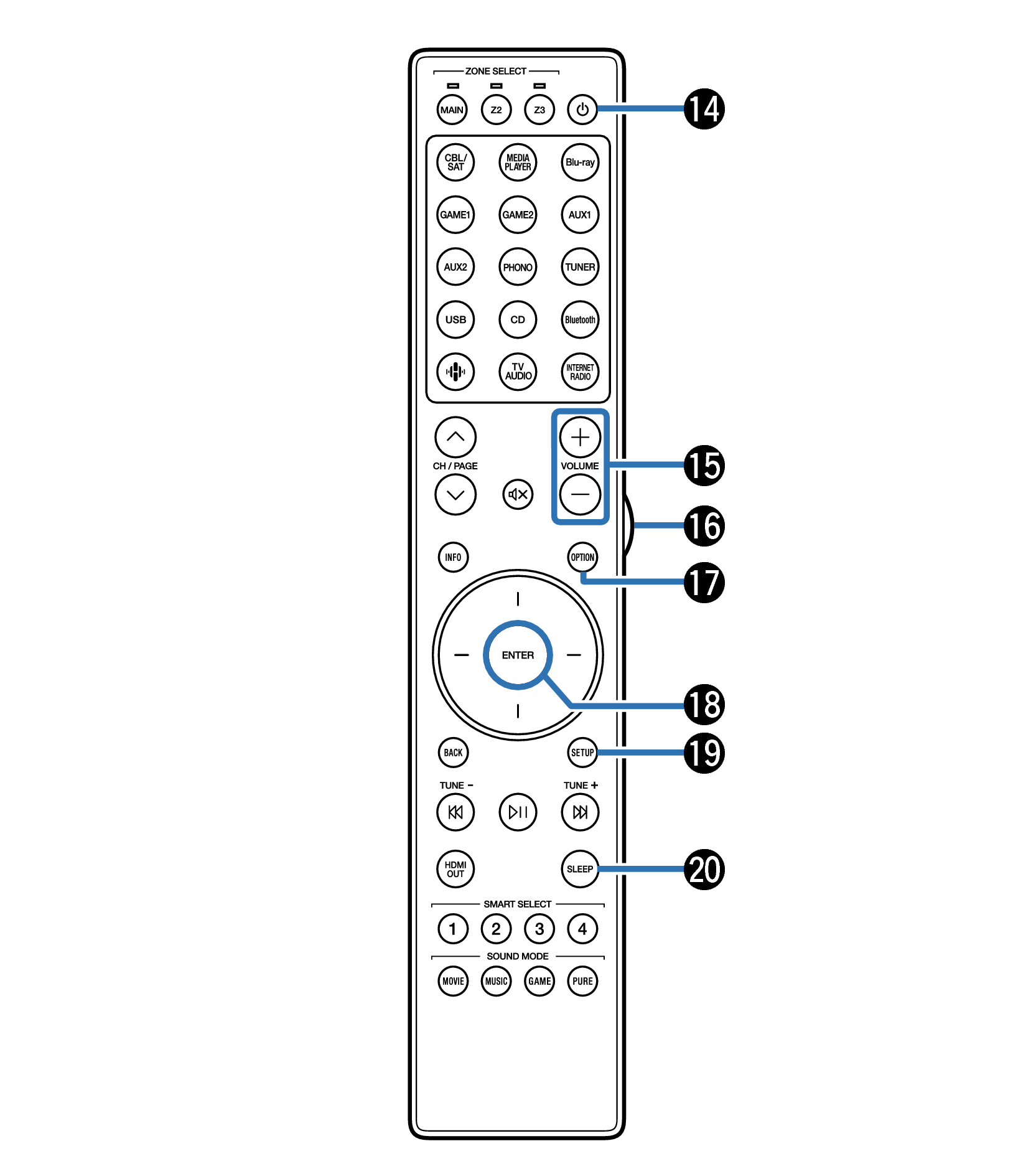

Name RC051SRb

POWER button ( Power Button )

This turns the power on/off.

Turning the power onlink

Playback in ZONE2/ZONE3 (Another room)link

VOLUME buttons ( Volup Voldown )

These adjusts the volume level.

Adjusting the volumelink

Adjusting the Volume in ZONE2/ZONE3link

Light button

This turns on the backlight for approx. 5 seconds. link

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link

SLEEP button

This sets the sleep timer. link
