Connecting speakers to the speaker terminals

You can connect 13.4 channel speakers to this unit.

The speaker terminals can perform simultaneous playback for up to 11 channels. Use in combination with pre-out terminals if you wish to perform simultaneous playback for 13 channels. Refer to “Speaker Layout” for details. link

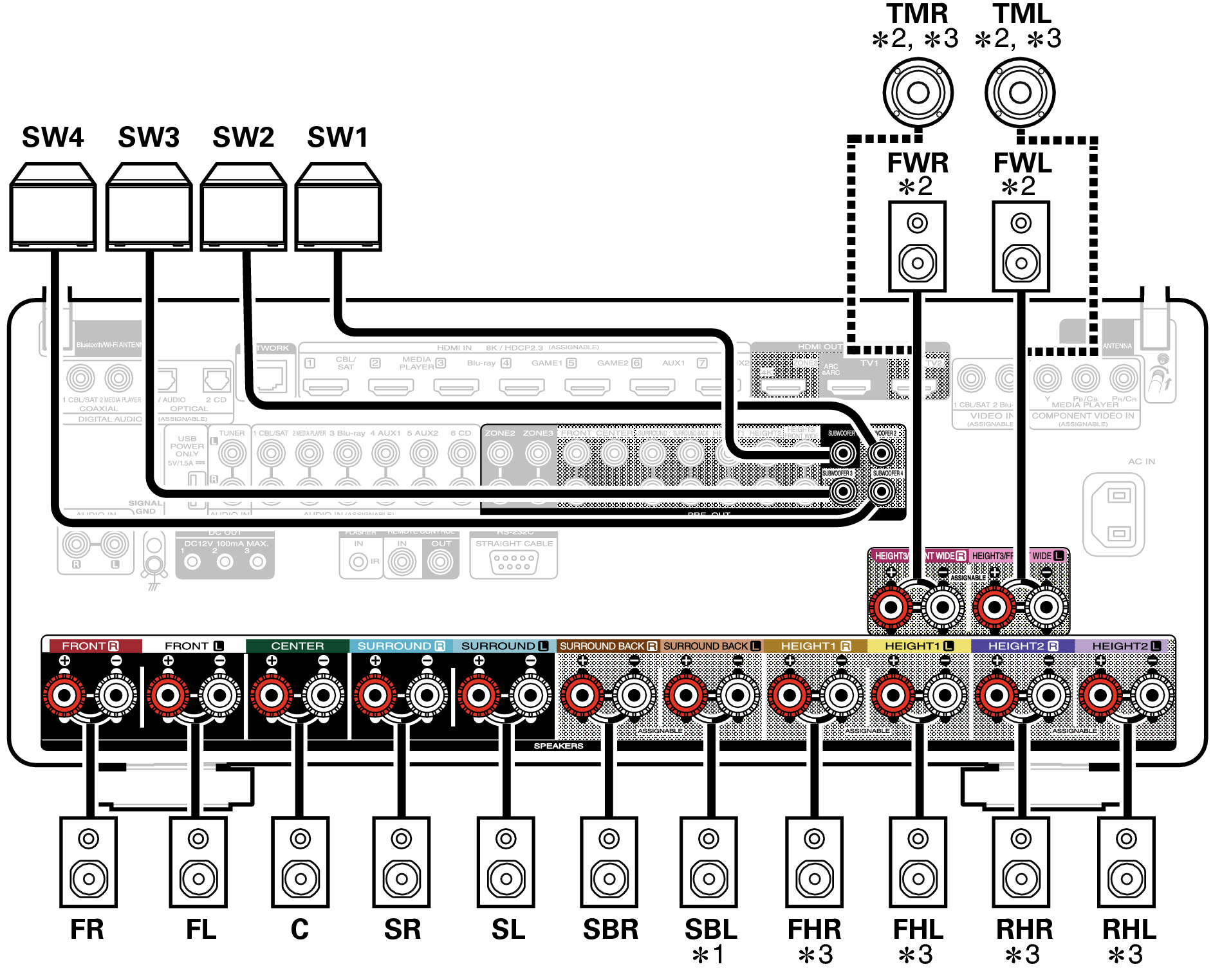

Connect each speaker according to the speakers you are using.

Conne SP C30N

When using a single surround back speaker, connect it to the SURROUND BACK L terminal.

The 3rd set of height speakers can be connected to the HEIGHT3/FRONT WIDE speaker connectors instead of the Front Wide channel.

The output terminals for Height/Ceiling/Dolby Atmos Enabled speakers vary according to the speaker combination that you use. For the speaker terminal that connects each Height/Ceiling/Dolby Atmos Enabled speaker, refer to “Speaker Layout” - “Layout”link.
