Connecting 13.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 13.1-channels at the same time.

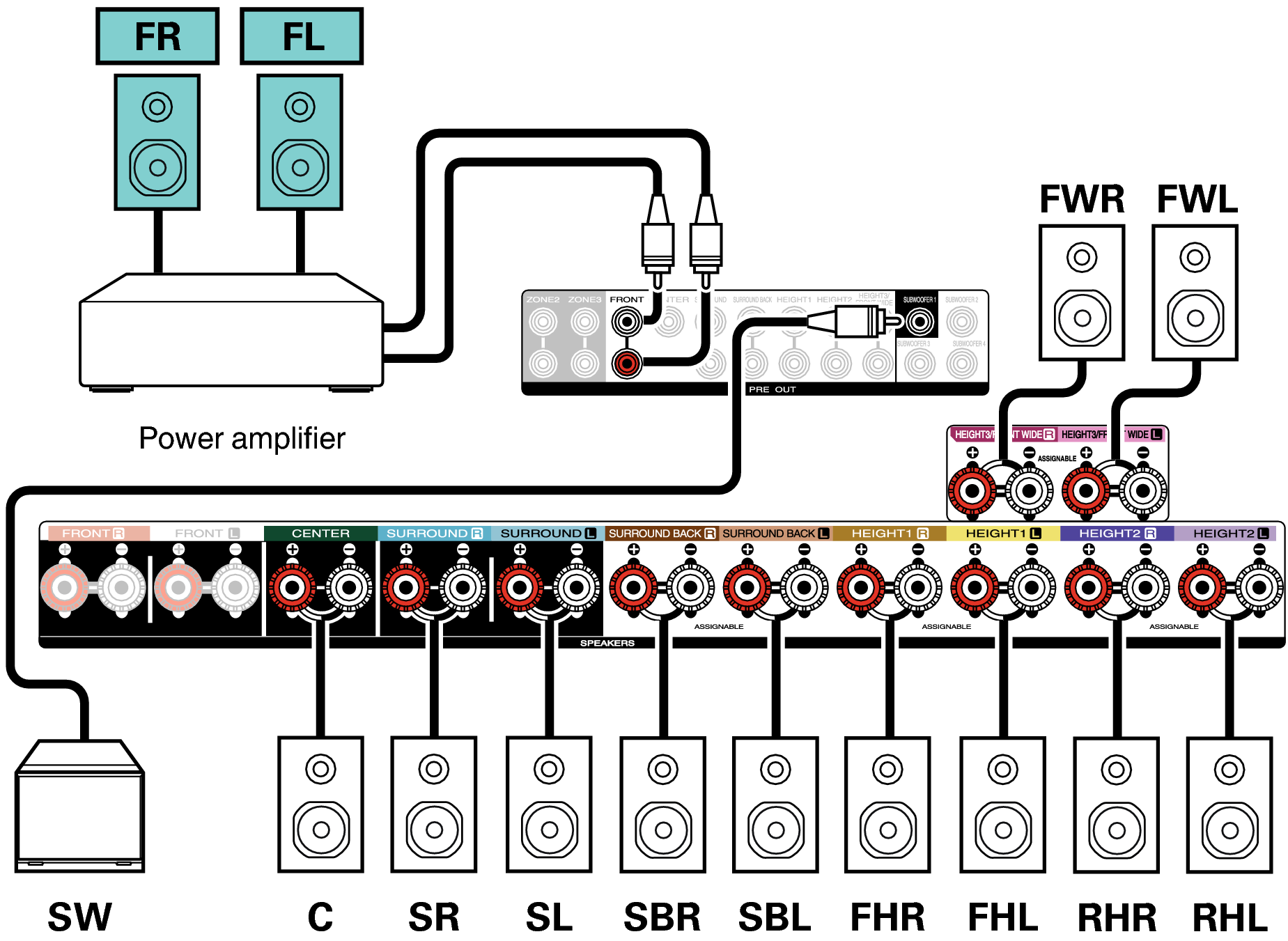

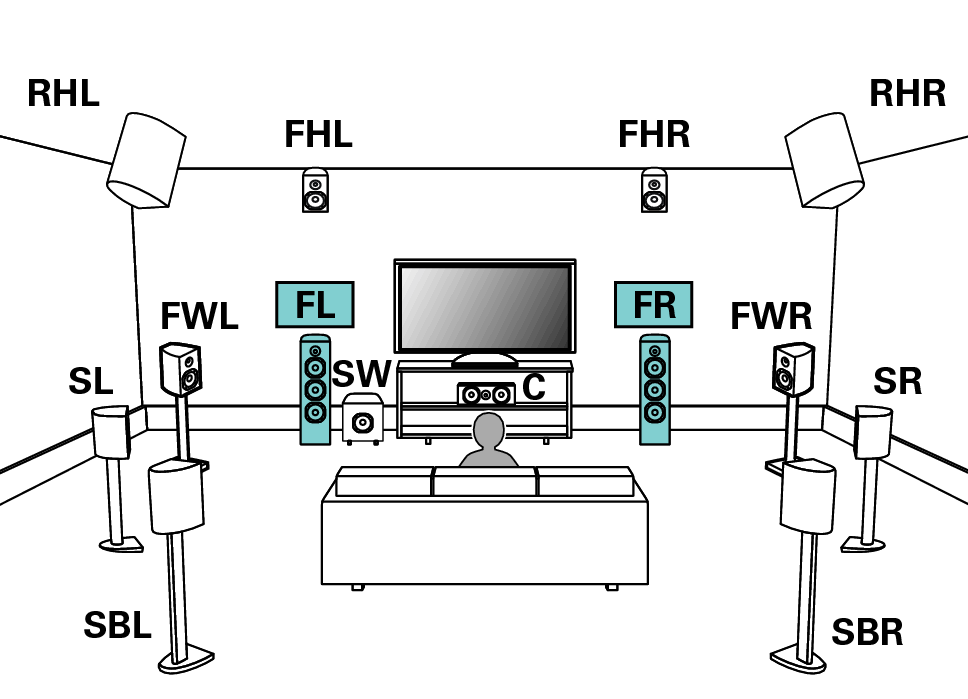

Example layout when using surround back, Front Wide and two set of height speakers
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Front Wide: Yes
Height Speakers: 4 spkrs
Front Layout: Front Height
Rear Layout: Rear Height
Subwoofers: 1 spkr
When connecting 13.1 channel speakers, an external amplifier needs to be connected to the Front channel or the Front Wide channel at minimum. Set “Connection” to “Pre-out Only” for your preferred channel. link

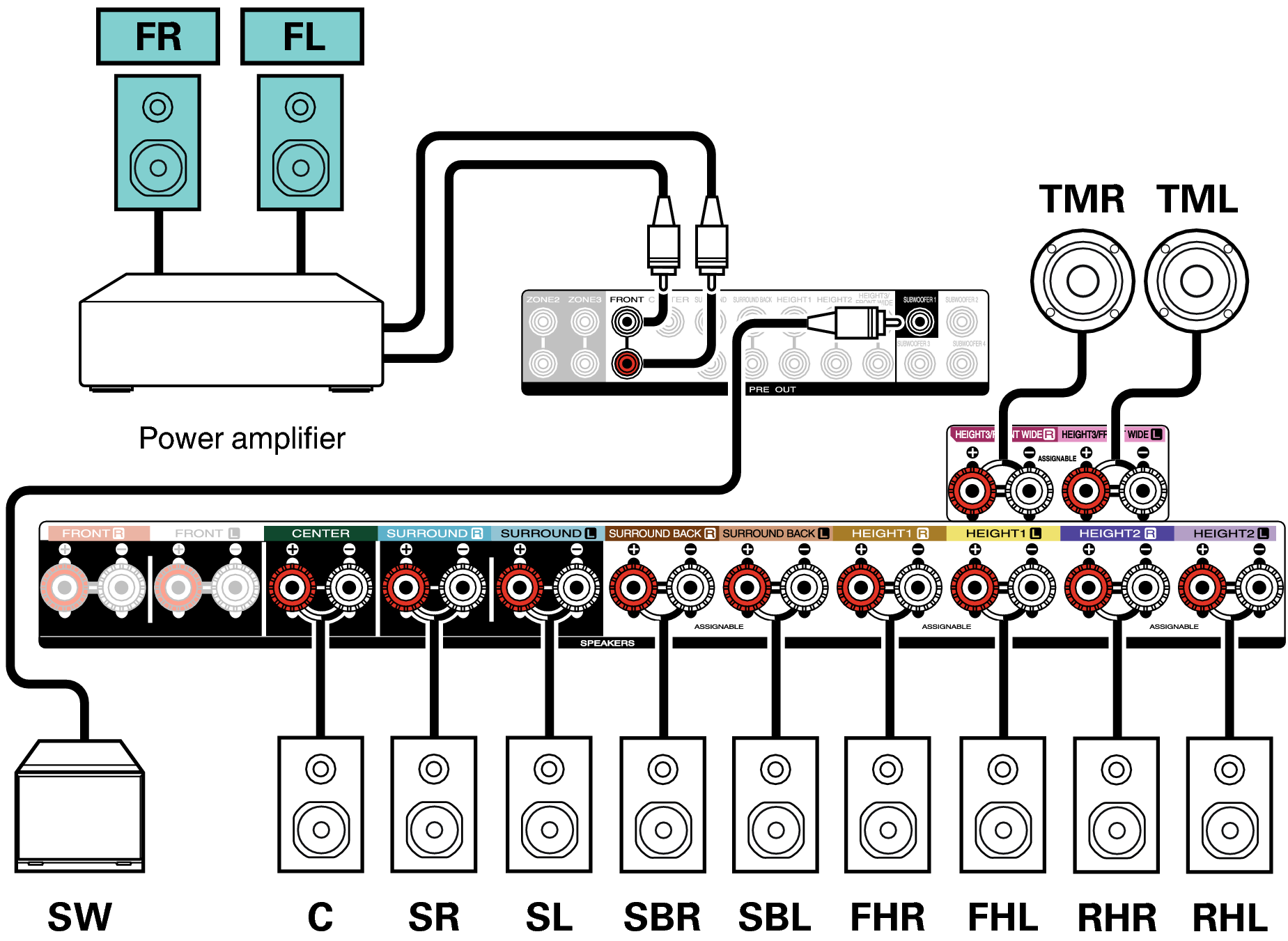

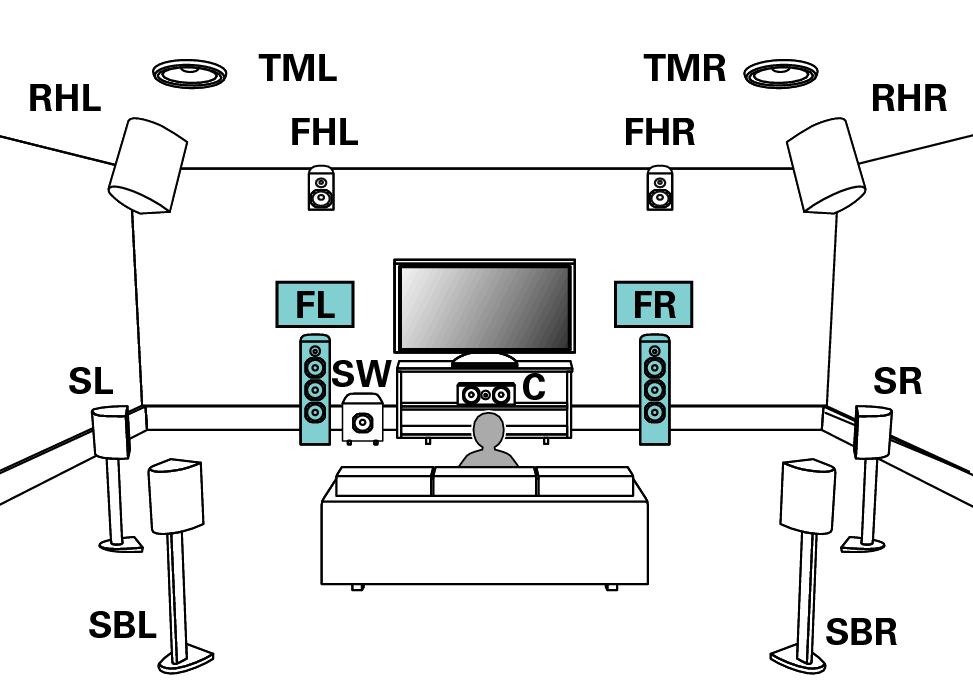

Example layout when using surround back and three sets of height speakers
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Top Middle
Rear Layout: Rear Height
Subwoofers: 1 spkr
When connecting 13.1 channel speakers, an external amplifier needs to be connected to the Front channel or the Front Wide channel at minimum. Set “Connection” to “Pre-out Only” for your preferred channel. link

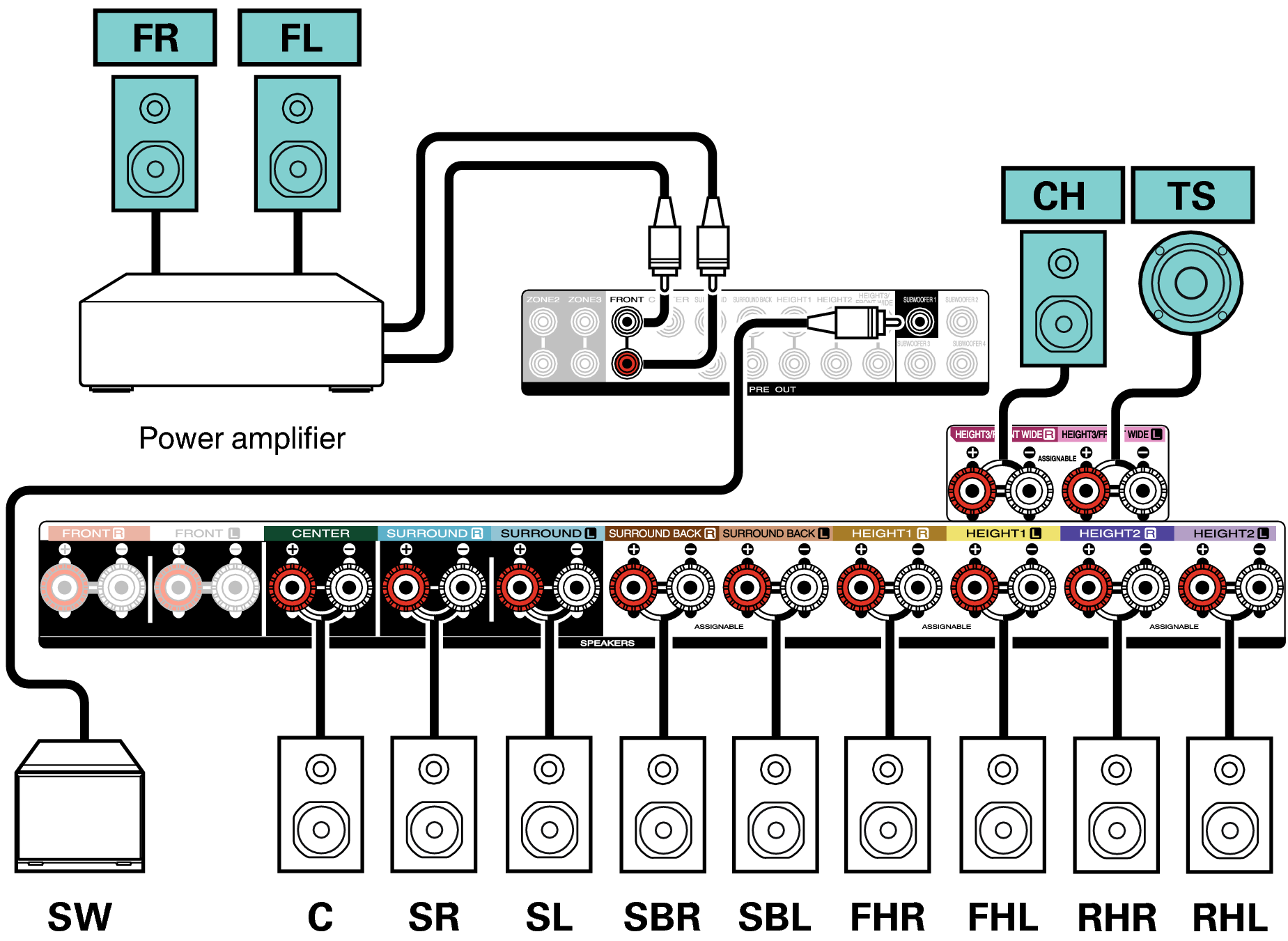

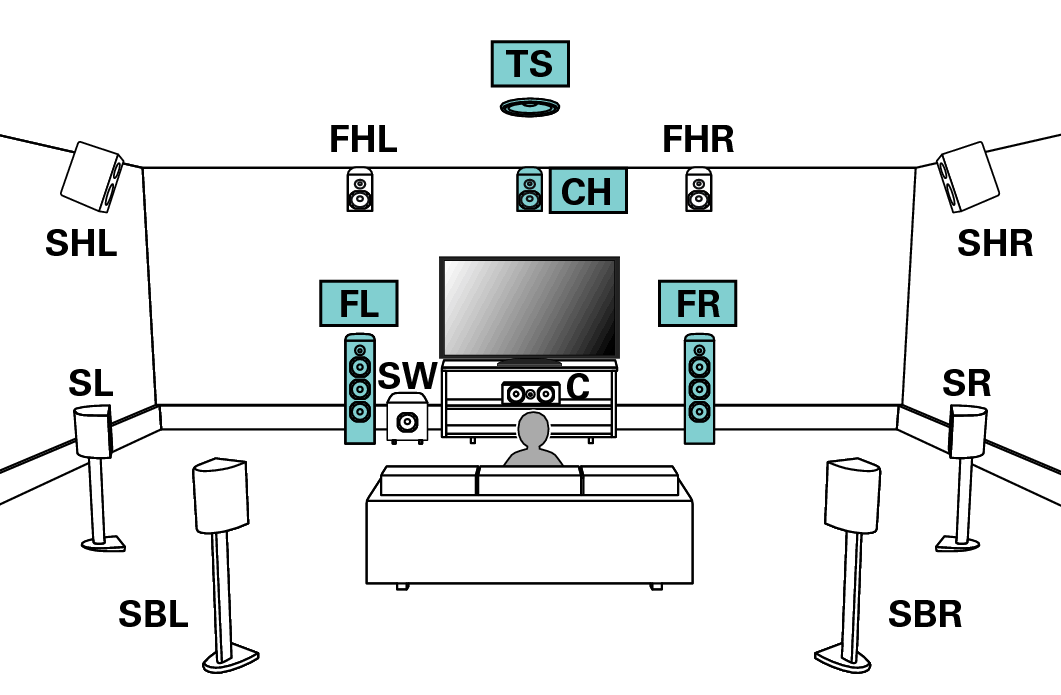

Example layout for AURO-3D 13.1 channel system
This speaker configuration is optimized for AURO-3D playback.
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Surround Height
Rear Layout: No
TS/CH: TS/CH
Subwoofers: 1 spkr
When connecting 13.1 channel speakers, an external amplifier needs to be connected to the Front channel or the Front Wide channel at minimum. Set “Connection” to “Pre-out Only” for your preferred channel. link
