Remote control unit

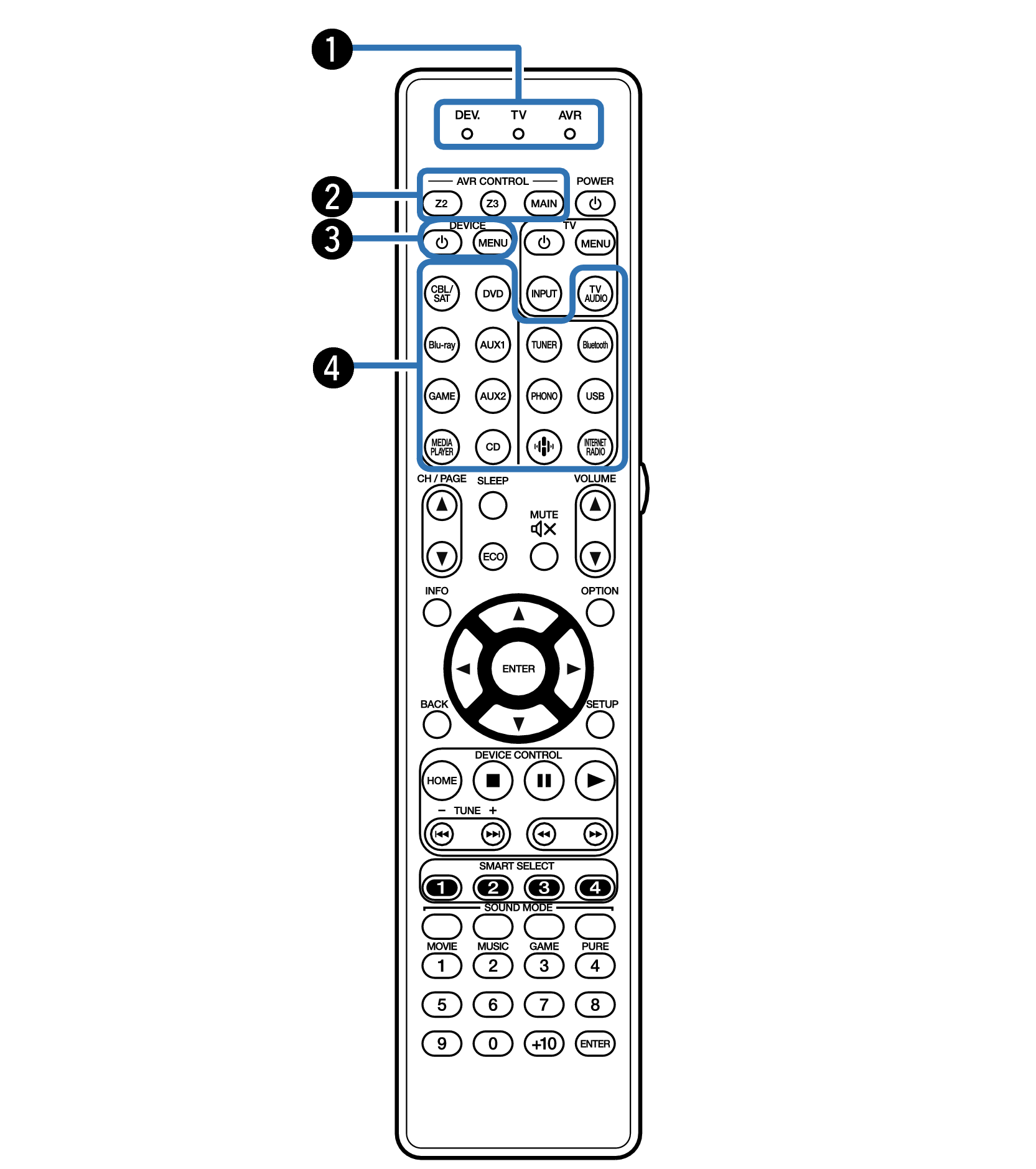

Name RC036-1

Operation mode indicators

The “AVR” operation mode indicator lights when the unit is being operated.
The “DEV.” indicator lights when an external device is being operated.
The “TV” indicator lights when the TV is being operated.

AVR operation buttons (AVR CONTROL MAIN, Z2, Z3)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.

Device operation buttons (DEVICE  Power Button  / DEVICE MENU)

These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link

Input source select buttons

These select the input source.

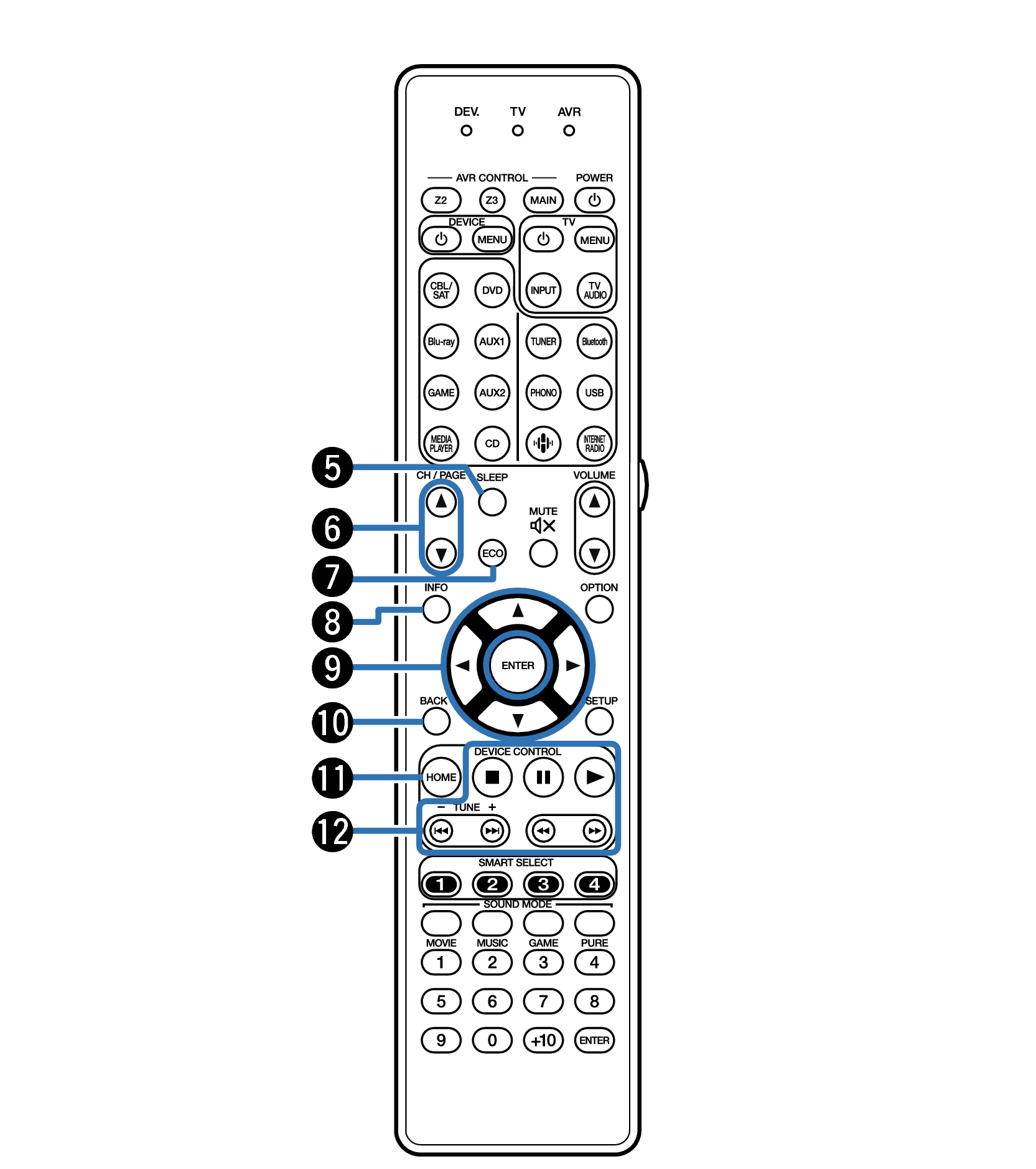

Name RC036-2

SLEEP button

This sets the sleep timer. link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link

ECO Mode button

This switches to ECO Mode. link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items.

BACK button

This returns to the previous screen.

HOME button

This takes you to the Home screen (Top screen) when the input source is “HEOS Music”. link

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

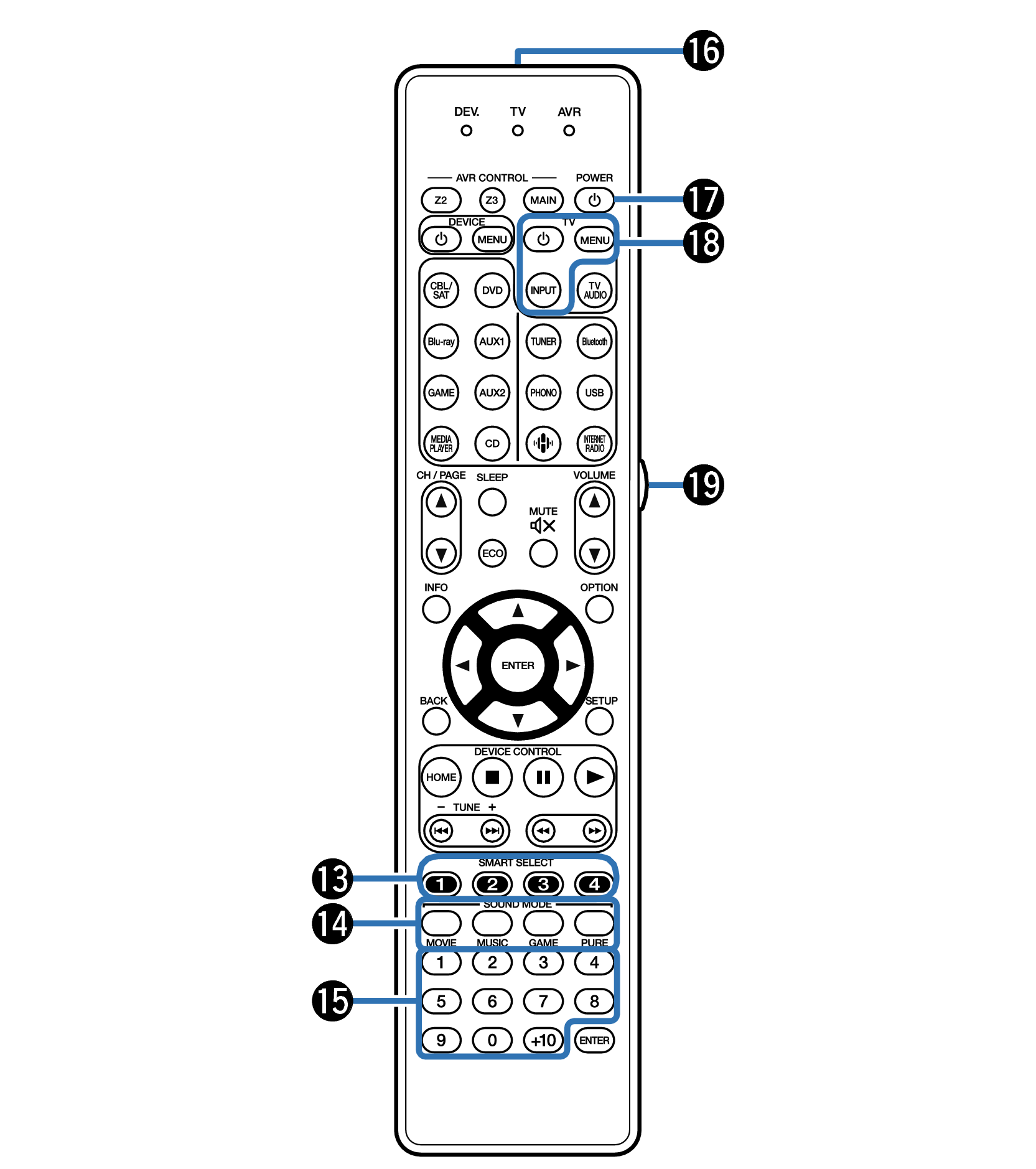

Name RC036-3

SMART SELECT buttons (1 - 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Number buttons

These enter numbers into the unit. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

POWER button ( Power Button )

This turns the power on/off.

TV operation buttons (TV  Power Button  / TV MENU / TV INPUT)

These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link

Light button

This turns on the backlight for approx. 2 seconds. link

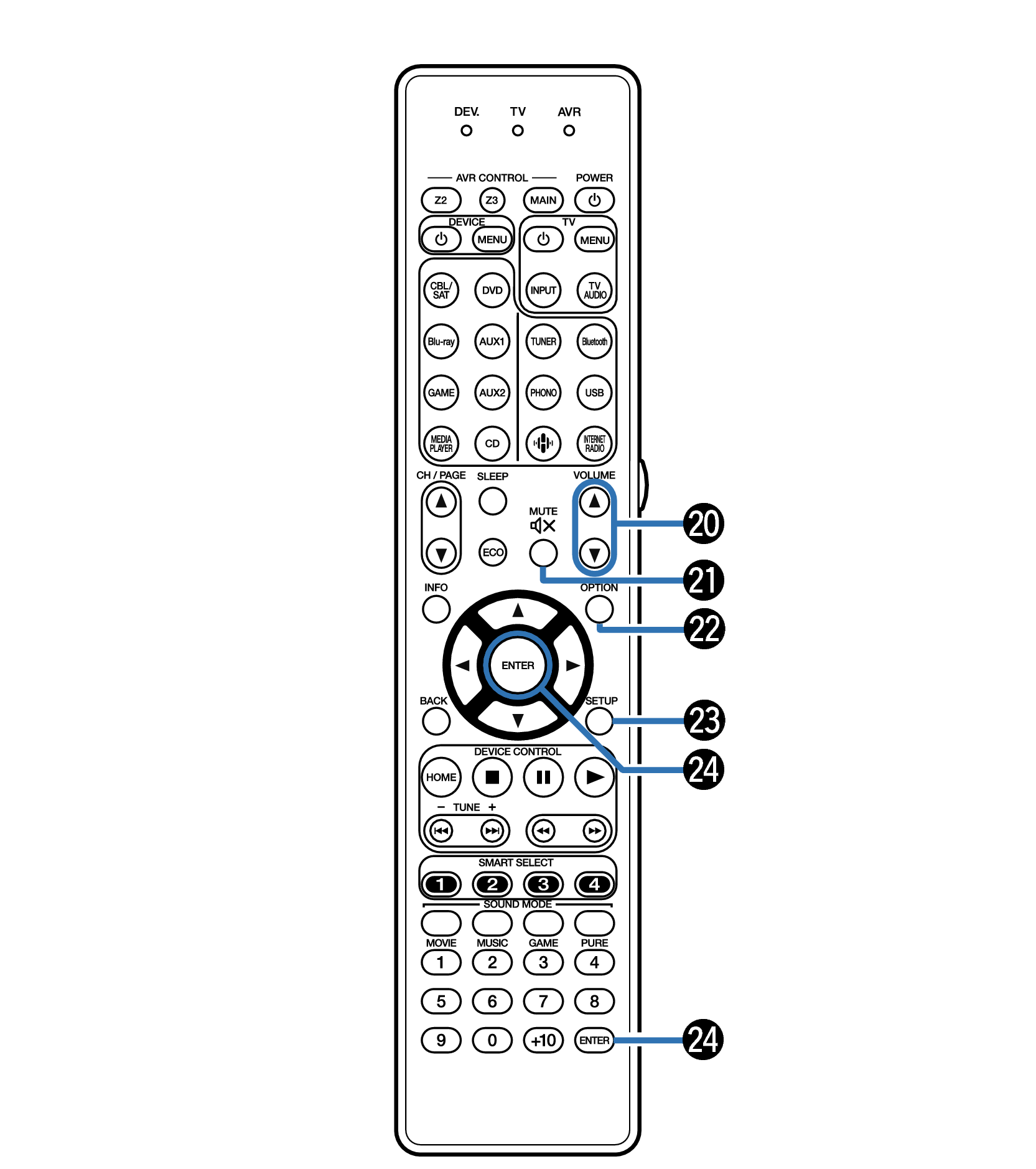

Name RC036-4

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level.

MUTE button ( Silent )

This mutes the output audio.

OPTION button

This displays the option menu on the TV screen.

SETUP button

This displays the menu on the TV screen. link

ENTER button

This determines the selection.
