With the door open

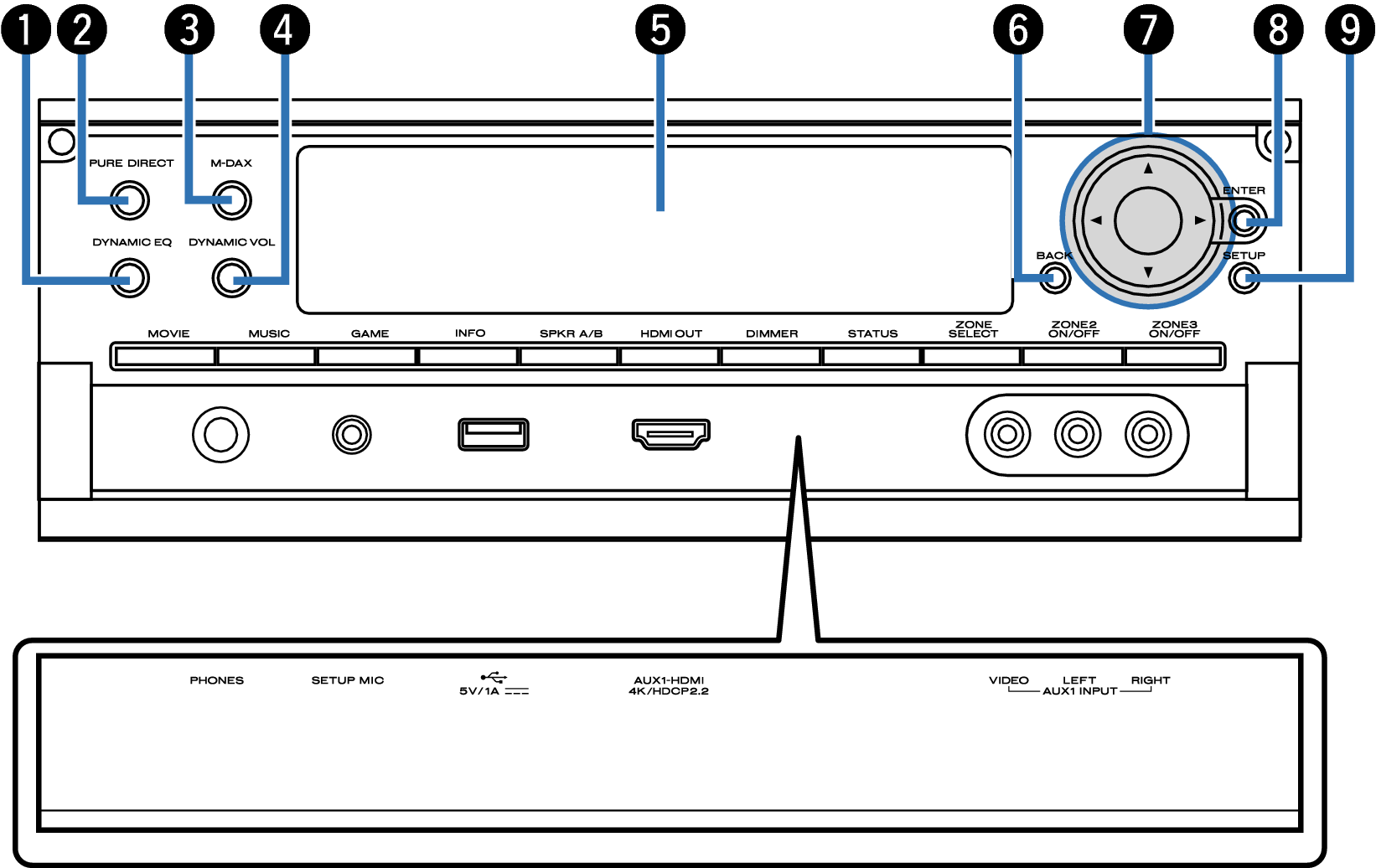

DYNAMIC EQ button
This switches the Dynamic EQ settings. link
PURE DIRECT button/indicator
This switches the sound mode between Direct, Pure Direct and Auto. link – link)
This lights when the Pure Direct mode is selected as the sound mode.
This enables the M-DAX mode. link
This lights when the M-DAX mode is selected.
Dynamic Volume button (DYNAMIC VOL)
This switches the Dynamic Volume settings. link
This displays various pieces of information. link
This returns to the previous screen.
Cursor buttons ( )
These select items.
This determines the selection.
This displays the menu on the TV screen. link

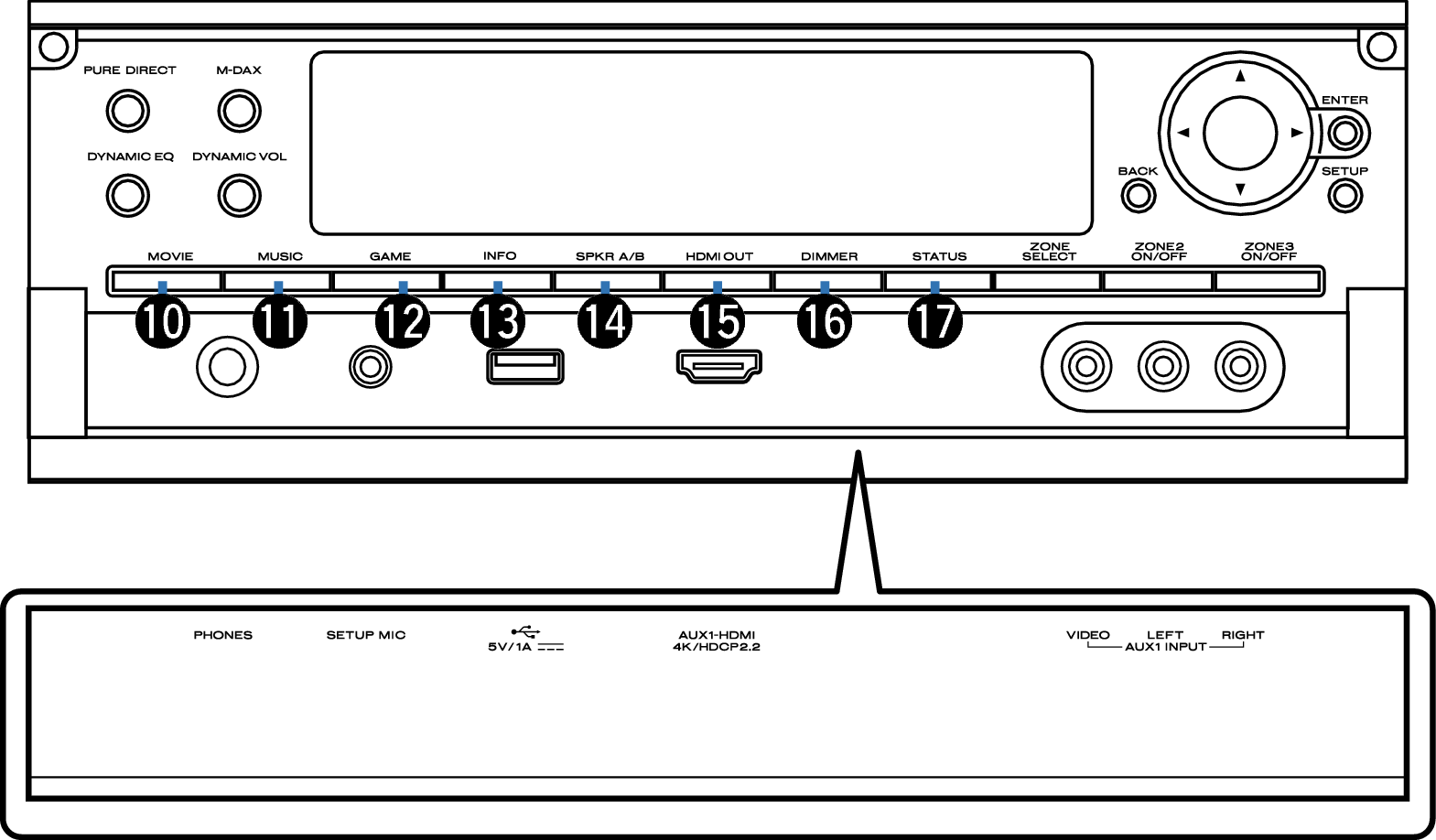

This switches the sound mode to “Movie”. link
This switches the sound mode to “Music”. link
This switches the sound mode to “Game”. link
Information button (INFO)
This displays the status information on the TV screen. link
Speaker A/B switching button (SPKR A/B)
This sets the front speakers to use. link
HDMI OUT button
This sets the HDMI monitor output. link
Each press of this switches the brightness of the display. link
Each press of this switches the status information that is shown on the display.

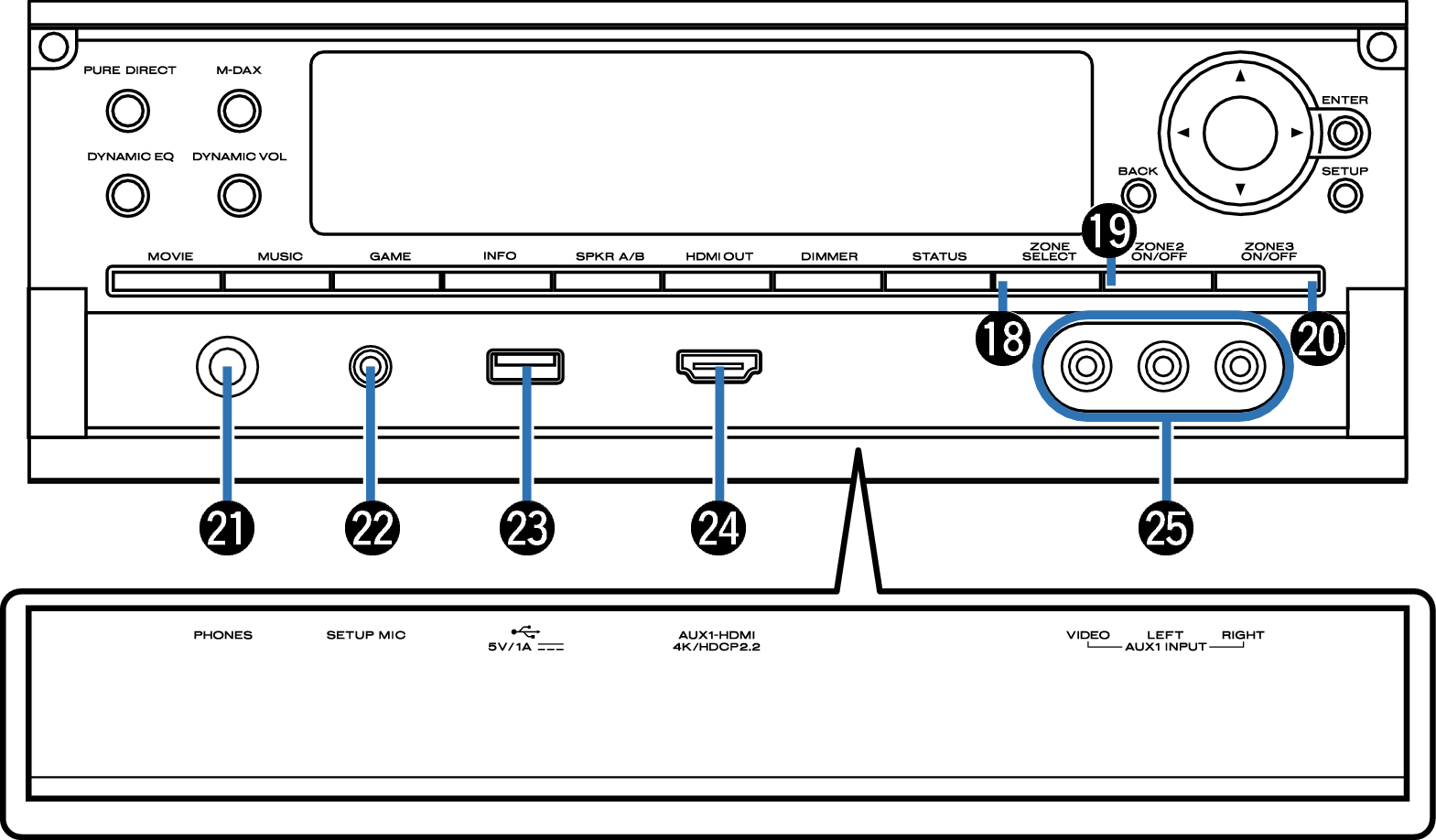

ZONE SELECT button
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. link, link
ZONE2 ON/OFF button
This turns the power of ZONE2 on/off. link
ZONE3 ON/OFF button
This turns the power of ZONE3 on/off. link
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.
To prevent hearing loss, do not raise the volume level excessively when using headphones.
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone. link
USB port ( )
This is used to connect USB storages (such as USB memory devices). link
This is used to connect HDMI output compatible devices such as video camcorders and game consoles. link
AUX1 INPUT connectors
Used to connect analog output compatible devices such as video camcorders and game consoles. link
