Connecting a pre-amplifier or power amplifier

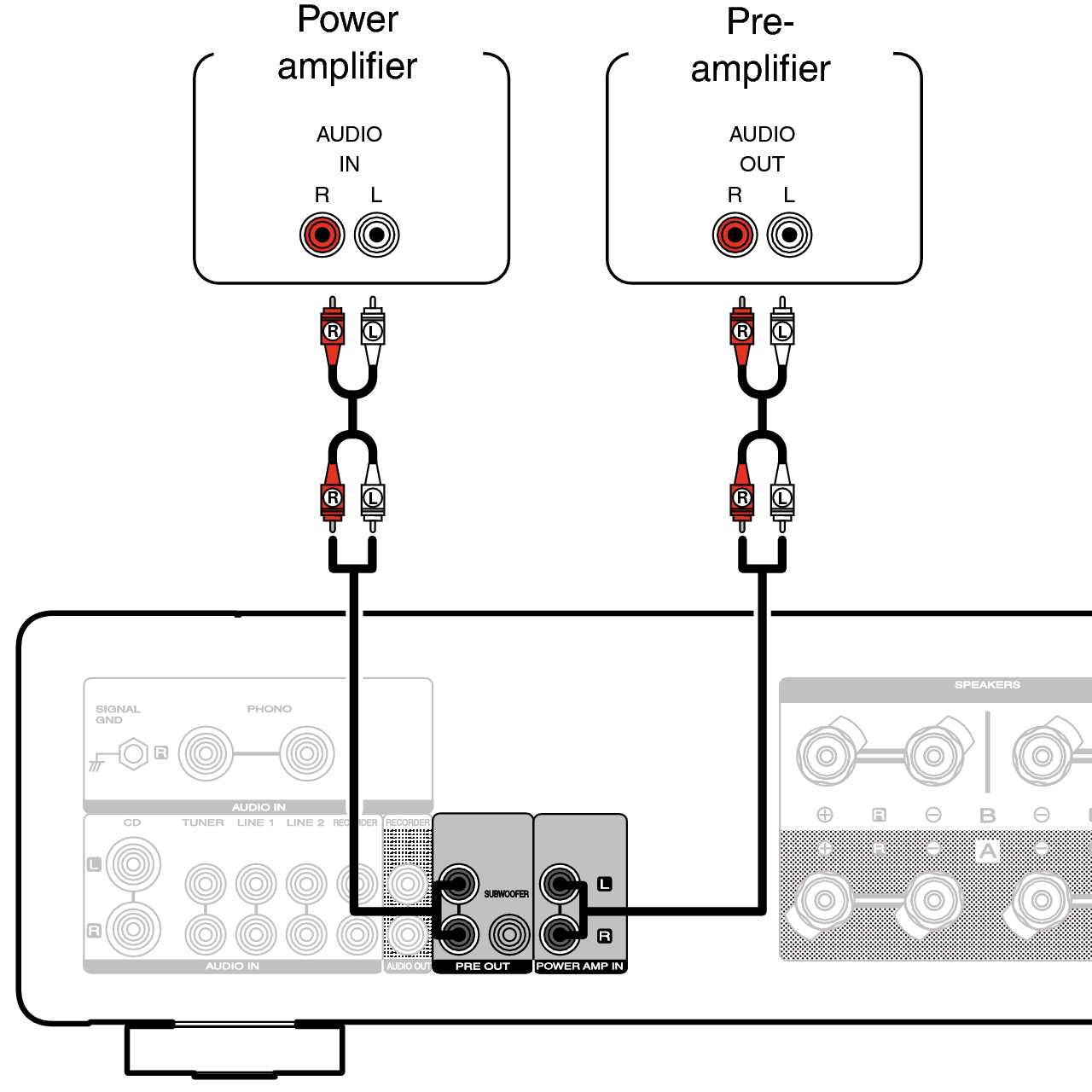

Connect a power amplifier to the unit to use it as a pre-amplifier, or connect a pre-amplifier to the unit to use it as a power amplifier.

Conne amplifier MODEL50

When connecting a pre-amplifier and using this unit as a power amplifier, switch the input source to “PWR AMP”. link

This unit does not output the audio signal from the PRE OUT connectors when the speaker output setting is off.

The volume of the audio signal from the PRE OUT connectors is linked to the speakers A/B volume.

NOTE

Never insert the short-circuiting pin plug into the PRE OUT connectors. Doing so could result in damage.
