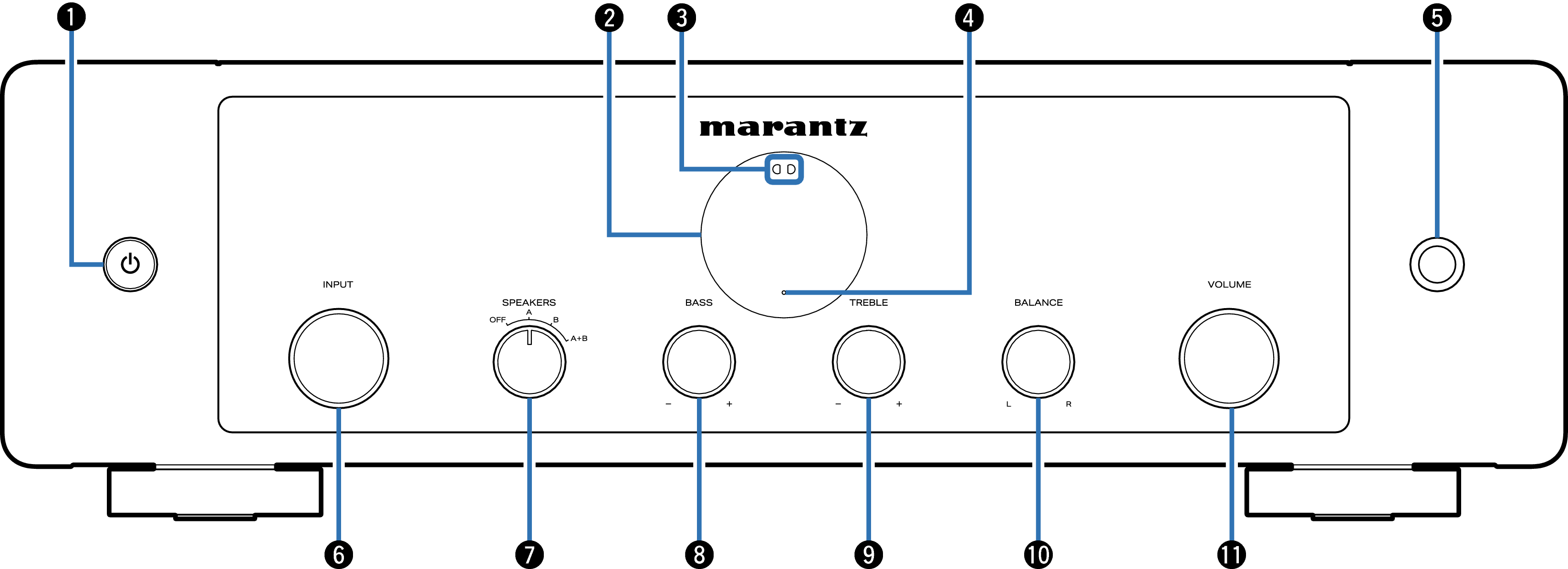

Front panel
Power
button
This turns the power on/off (standby). link
Display
This displays various pieces of information.
Remote control sensor
This receives signals from the remote control unit. link
Protection circuit indicator
This blinks when the protection circuit has operated. link
Headphones jack
Used to connect headphones.
Turn the SPEAKERS selector knob on the main unit to turn off speaker output when using headphones. link
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
INPUT selector knob
This selects the input source. link
SPEAKERS selector knob
This selects the speaker for audio output. link
BASS control knob
This setting adjusts the volume level for the bass. link
TREBLE control knob
This setting adjusts the volume level for the treble. link
BALANCE control knob
This adjusts the balance of the volume output from the left and right speakers. link
VOLUME knob
This adjust the volume level. link
,
and
can be adjusted when source direct mode is off. link
