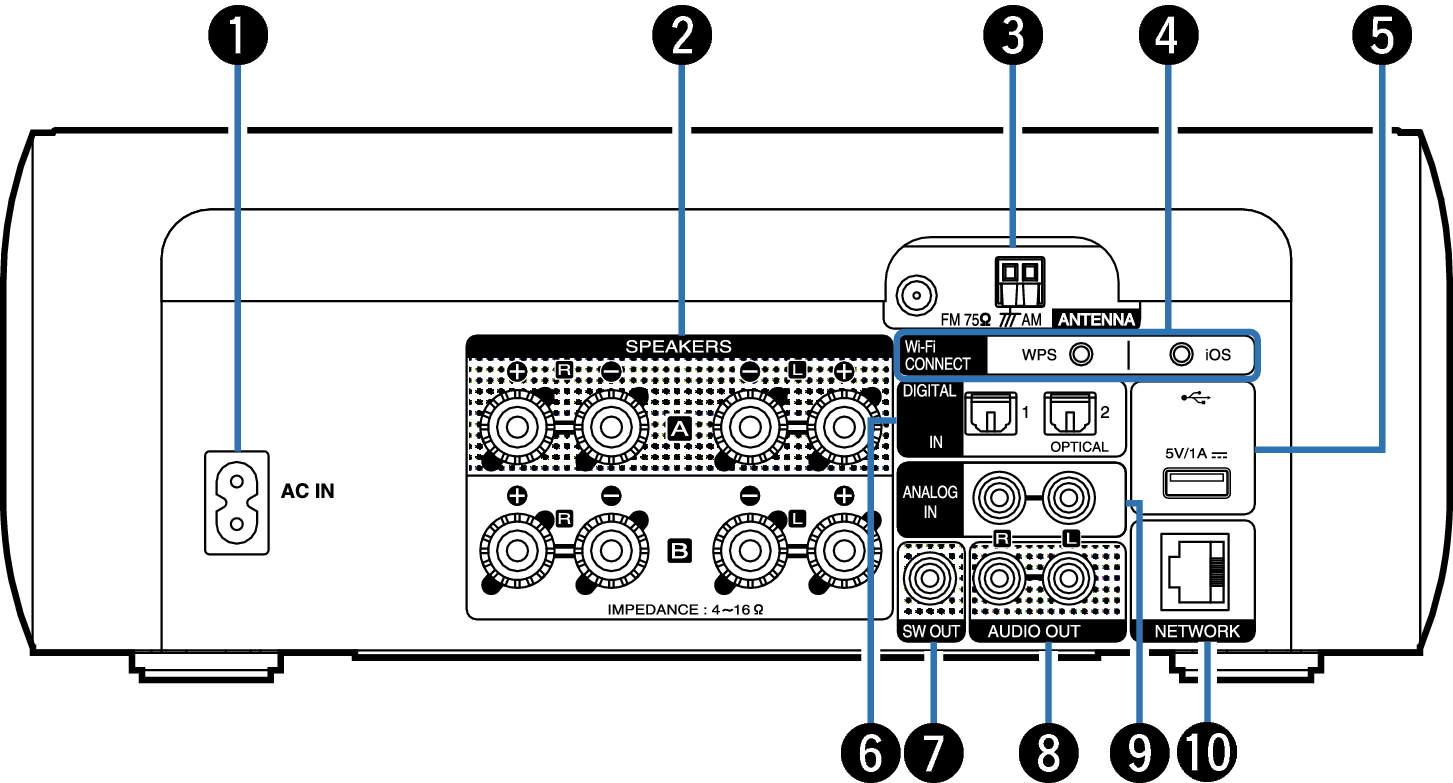

Rear panel
AC inlet (AC IN)
Used to connect the supplied power cord. link
Speaker terminals (SPEAKERS)
Used to connect speakers. (Speaker connectionlink, About the Bi-Amp connectionlink)
Antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
Wi-Fi CONNECT buttons (iOS/WPS)
Used to connect to the wireless LAN.
(See the separate “Quick Setup Guide”.)
USB port (
, Rear)
Used to connect iPod or USB memory devices. link
DIGITAL IN connectors
Used to connect devices equipped with digital audio connectors. link
SW OUT connector
Used to connect a subwoofer with a built-in amplifier. link
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors or an external pre-main amplifier. link
ANALOG IN connectors
Used to connect devices equipped with analog audio connectors. link
NETWORK connector
Used to connect this unit to the network. link
