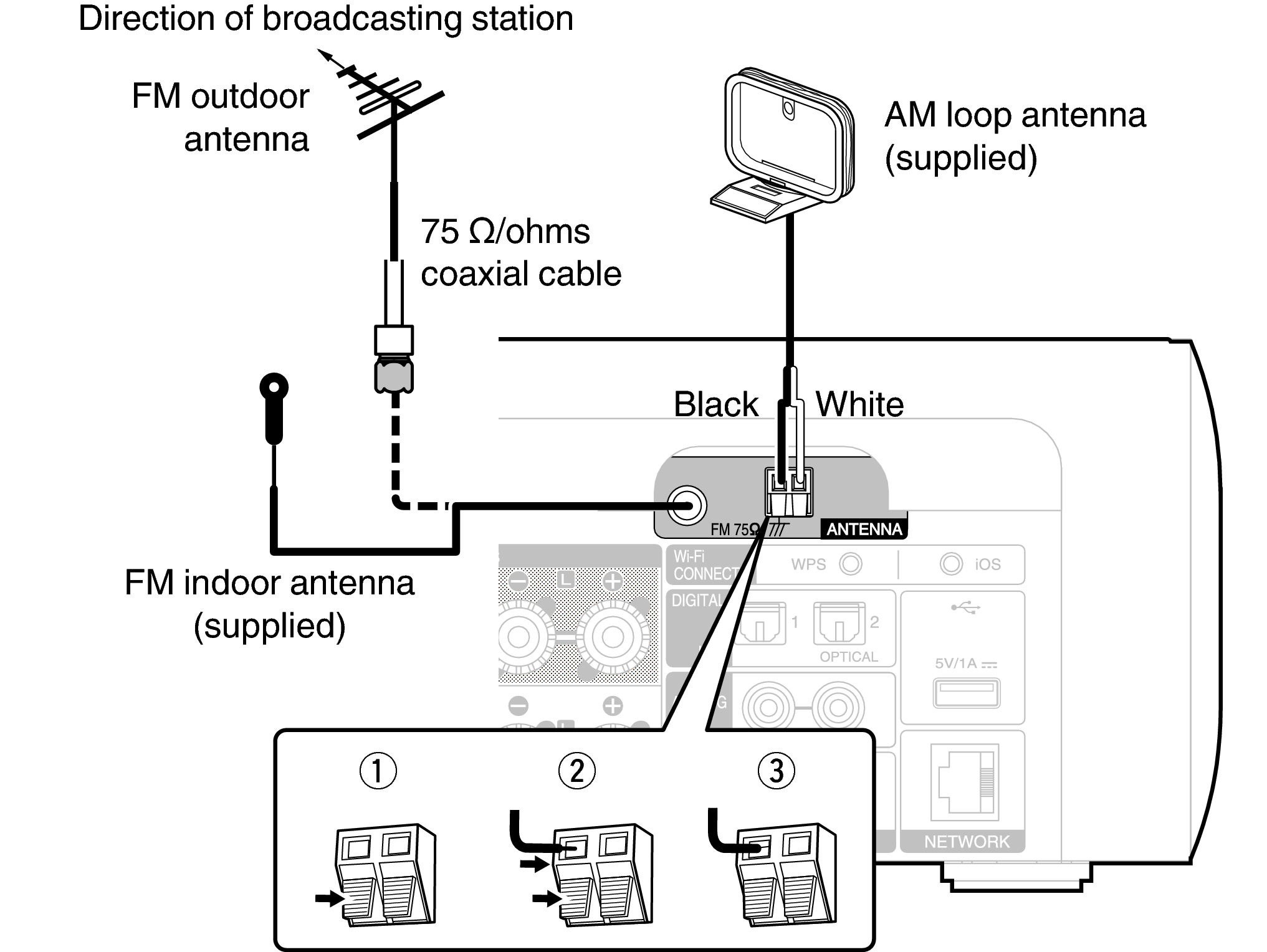

Connecting an FM/AM antenna

After connecting the antenna and receiving a broadcast signal, fix the antenna with tape in a position where the noise level becomes minimal. Listening to FM/AM broadcastslink

Conne ANT MCR611U
NOTE

Do not connect two FM antennas simultaneously.

If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.

Do not disconnect the AM loop antenna even when an AM outdoor antenna is connected.

Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

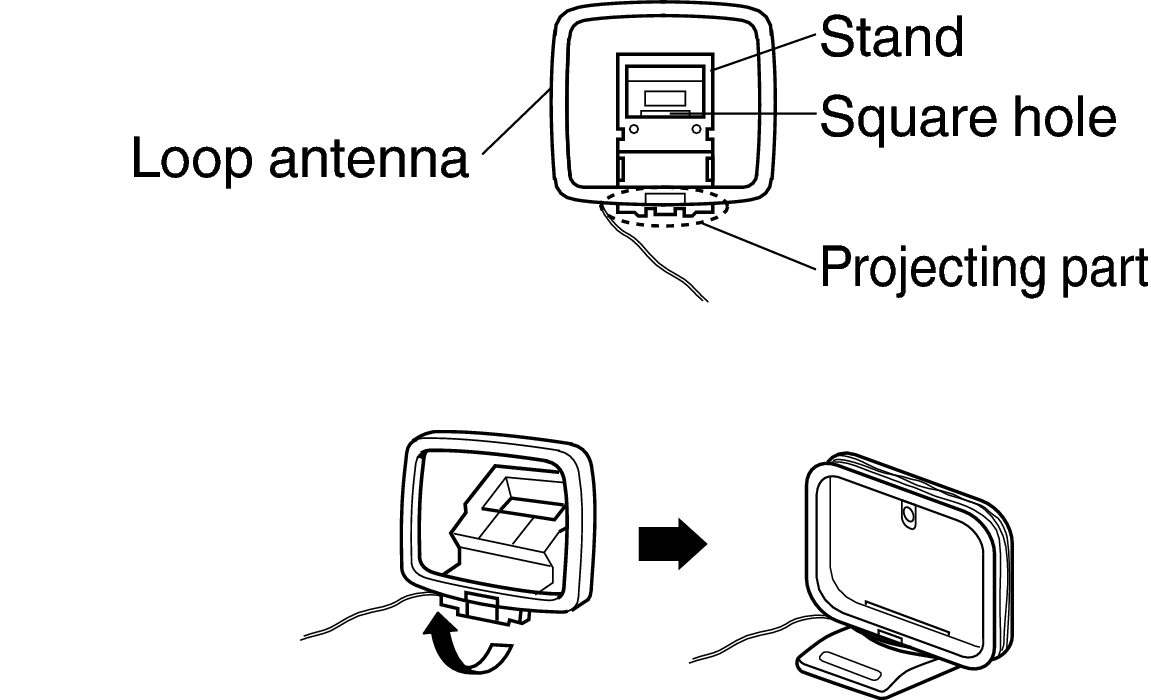

AM loop antenna assembly

Put the stand section through the bottom of the loop antenna from the rear and bend it forward.
Insert the projecting part into the square hole in the stand.
Conne AM antenna

Using the AM loop antenna

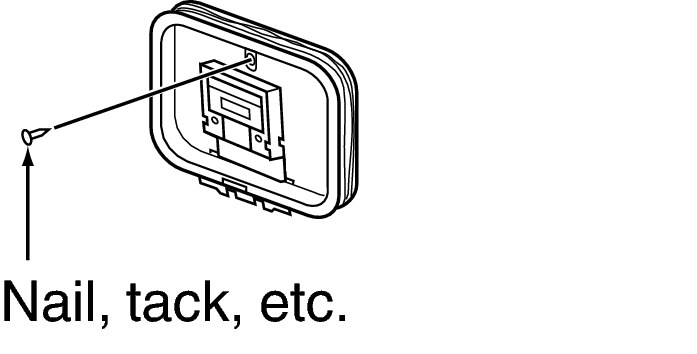

Suspending on a wall

Suspend directly on a wall without assembling.

Conne AM antenna1

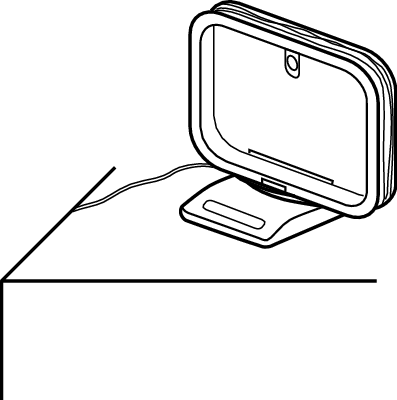

Standing alone

Use the procedure shown above to assemble.

When assembling, refer to “AM loop antenna assembly”.

Conne AM antenna2
