Menu map

For menu operations, see the following page.

By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.

Quick Setup

Setting items

Description

Page

Quick Setup

Performs the network settings using a Wizard style window.
For details on the operations, see the separate “Quick Setup Guide”.

General

Setting items

Description

Page

Alarm

Sets the timer playback.

Clock

Sets the current time.

Clock Mode

The clock is constantly displayed.

Volume Limit

Make a setting for maximum volume.

CD Auto Play

Set whether or not to automatically play a disc when the disc is inserted.

Speaker Configuration

Indicate speaker presence and select speaker size categories based on bass reproduction capability.



Bi-Amp

Sets the Bi-Amp mode.

Response

Set the output frequency characteristics.

Illumination

Changes/turns off the Front panel illumination color.

Audio Out

You can set whether to “Fixed” or “Variable” the analog audio output level.

Language

Sets the language for display the menu.

Auto-Standby

Sets the unit power to standby when the unit is not in use.

Usage Data

Selects whether or not to send anonymous usage data to Marantz.

Firmware

Set whether or not to check for firmware update, update the firmware, and display update and upgrade notifications.



Update

Update the firmware of this unit.

Notifications

Set the Update, Upgrade and Alerts notification on/off.

Add New Feature

Display new features that can be downloaded to this unit and perform an upgrade.

Reset

Resetting factory settings.

Network

Setting items

Description

Page

Network Information

Displays various information about the network.

Network Control

Performs the ON/OFF settings for the network function when in standby mode.

Friendly Name

Edits a name displayed on the Internet.

Pandora Display

Set whether or not to display Pandora item on the menu.

SiriusXM Display

Set whether or not to display SiriusXM item on the menu.

Wi-Fi

Enables/disables the Wi-Fi function.

Bluetooth

Enables/disables the Bluetooth function.

Settings

Performs the settings for a wired or wireless LAN.



Wired Setup

Performs the settings for a wired LAN.



DHCP (On) or DHCP (Off)

Performs the DHCP setting.

IP Address∗

Performs the IP address setting.

Subnet Mask∗

Performs the subnet mask setting.

Gateway∗

Performs the gateway setting.

Primary DNS∗

Performs the primary DNS setting.

Secondary DNS∗

Performs the Secondary DNS setting.

Proxy

Performs the proxy setting.

Test Connection

Performs the wired LAN connection.

Wi-Fi Setup Method

Performs the wireless LAN connection setting.



Auto-Scan

Selects and sets the wireless connections from the access point list.

Share Wi-Fi setting from an iOS device

Sets the wireless connection using an iOS device. (iOS version 7 or later)

WPS (Wi-Fi Protected Setup)

Sets the wireless connection using WPS (Wi-Fi Protected Setup).

Web Browser Setup

Sets the wireless connection using web browser.

Manual

Sets the wireless connection manually.

Displayed when the “DHCP” setting is “Off”. link

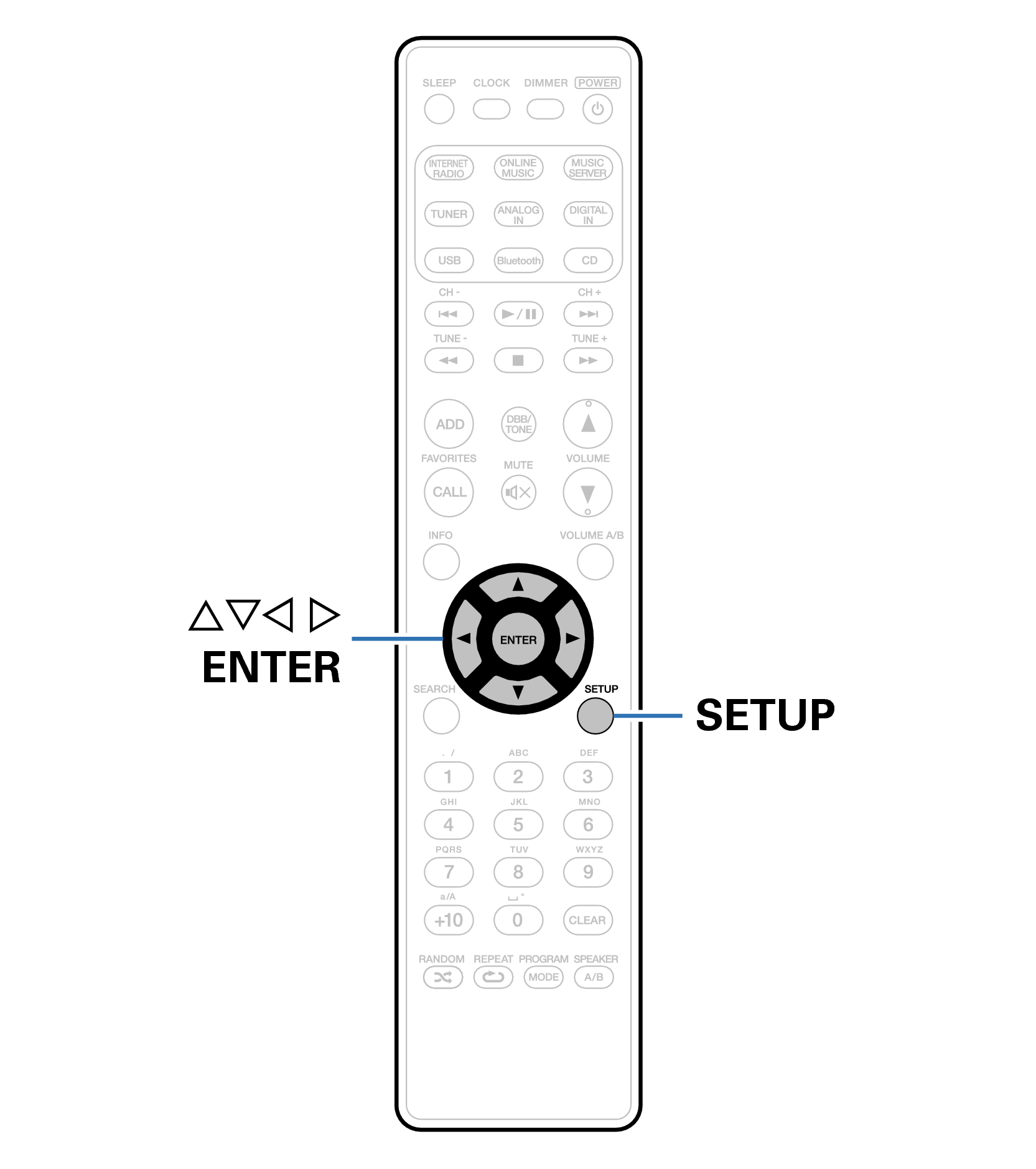

Remote control unit illustration

Ope Menu operation RC013CR
