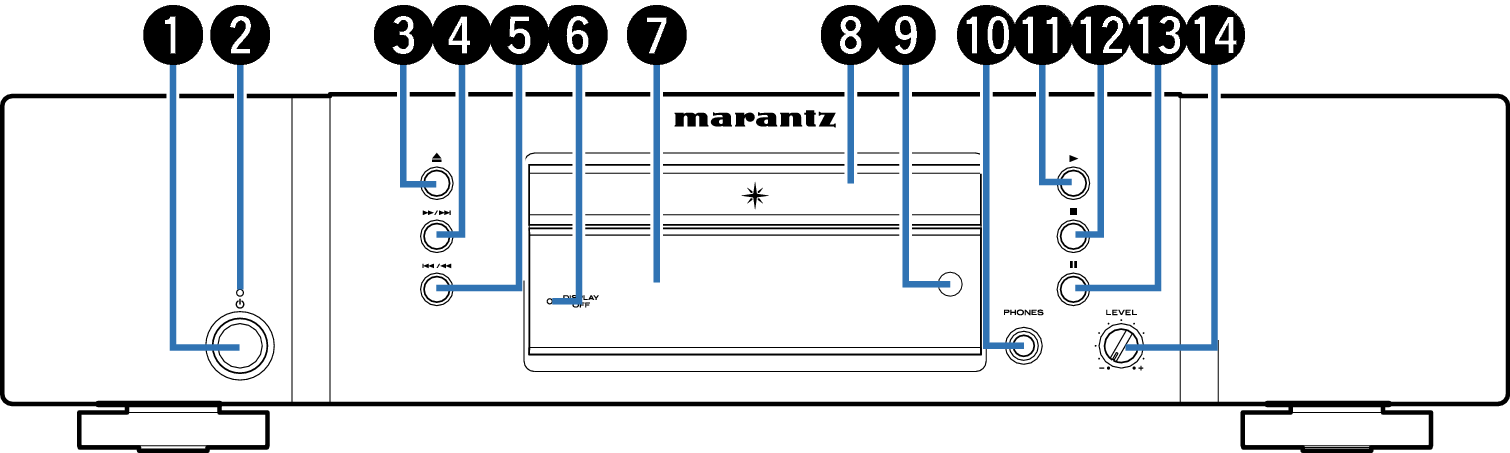

Front panel

Name Front CD5005_web

Power operation button ( Power Button )

This turns the power on/off (standby). link

Power indicator

This is lit as follows according to the power status:

Power on : Off

Standby : Red

Disc tray open/close button ( Triangle-Underline )

Opens and closes the disc tray. link

Fast-forward/Forward-skip button ( Forward / Skip-Right )

Plays the next track. Press and hold to fast-forward the track.
link, link

Fast-reverse/Reverse-skip button ( Skip-Left / Rewind )

Returns to the start of the currently playing track. Press and hold to fast-reverse the track. link, link

DISPLAY OFF indicator

Lights when the display is off. link

Display

This displays various pieces of information. link

Disc tray

Used to insert a disc. link

Remote control sensor

This receives signals from the remote control unit. link

Headphones jack (PHONES)

Used to connect headphones.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

Play button ( Triangle Right )

Playback starts. link, link

Stop button ( Square Black )

Stops playback. link, link

Pause button ( Pause )

Pauses playback. link, link

Headphone volume control knob (LEVEL)

Adjusts the headphone volume.
