Connecting 11.1-channel speakers

This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time.

Example connection when using two sets of ceiling speakers

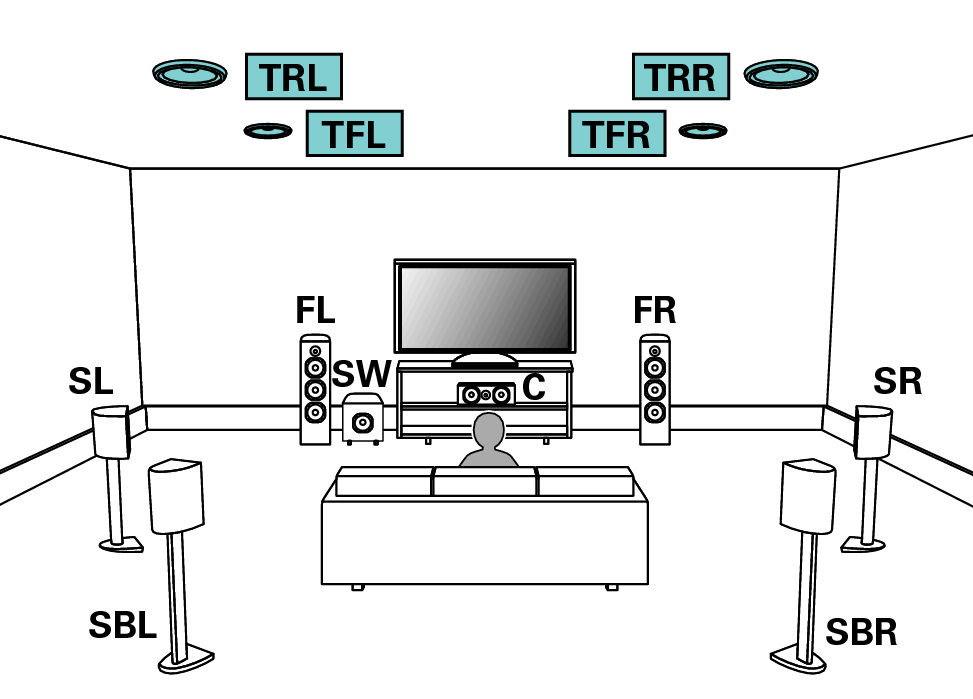

Pict SP Layout 11.1 TR TF

Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration. link

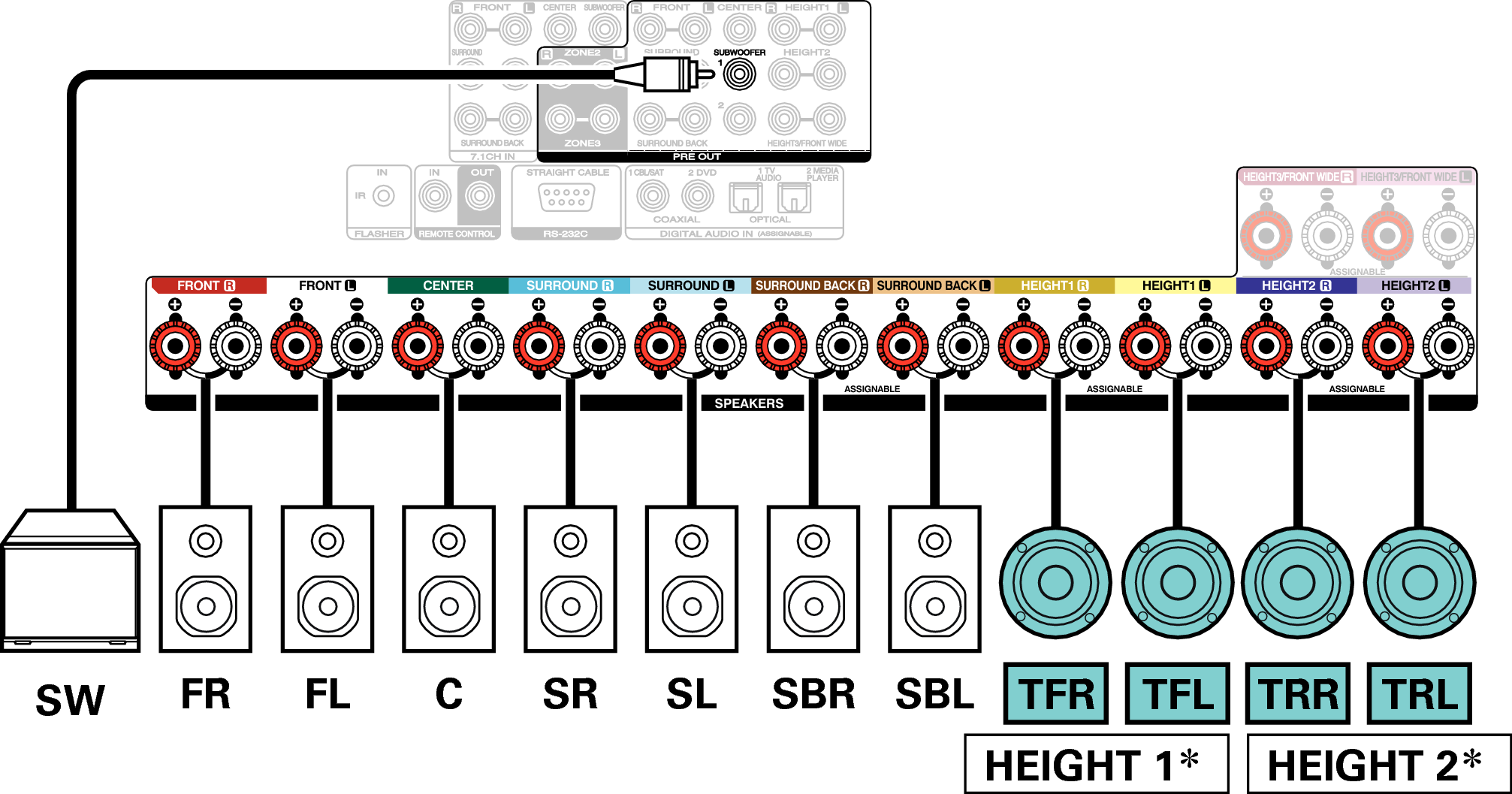

Conne SP 11.1 TR TF S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Example connection when using two sets of height speakers

Pict SP Layout 11.1 RH FH

Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration. link

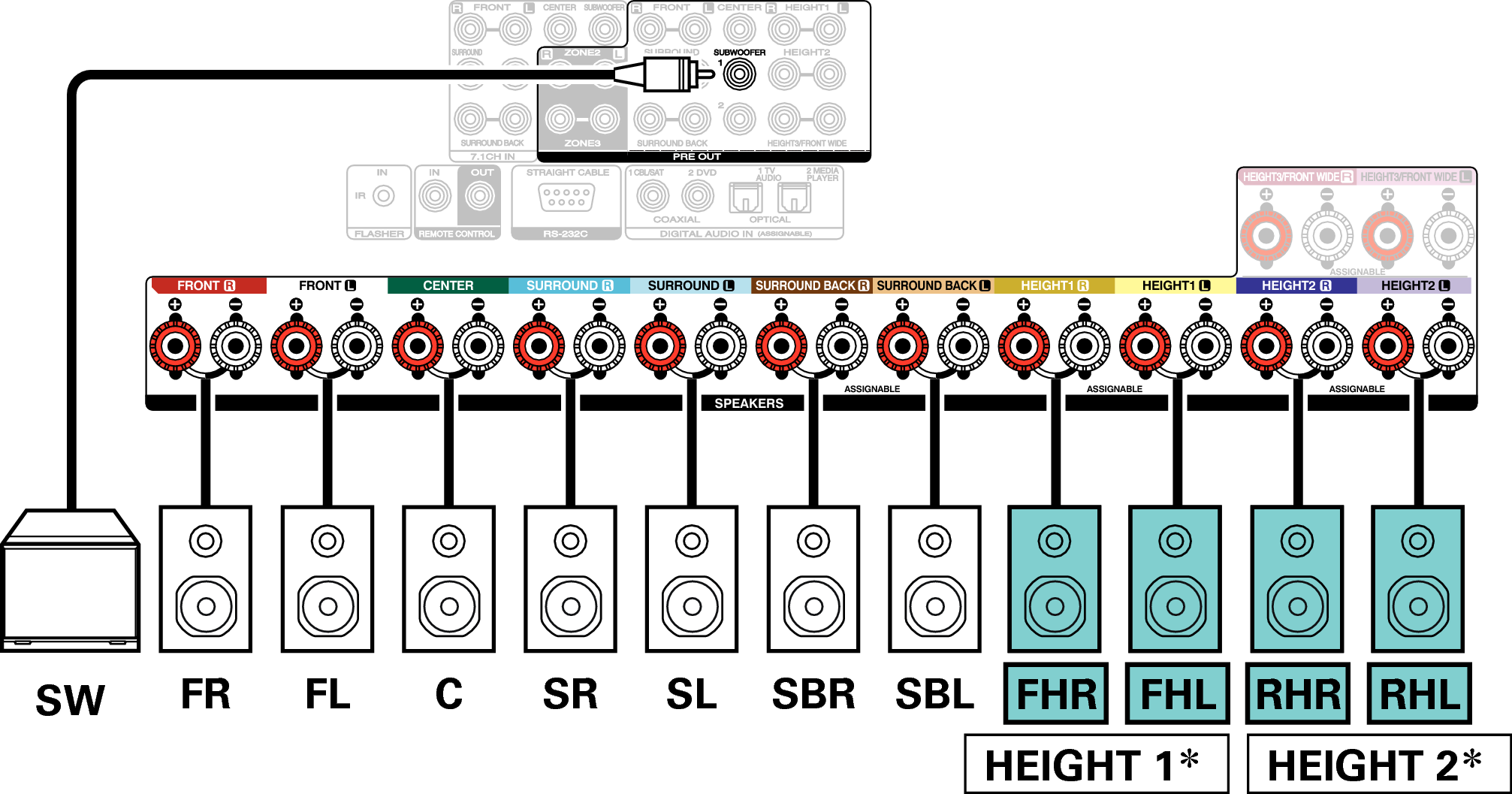

Conne SP 11.1 RH FH S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Example connection when using two sets of Dolby Atmos Enabled speakers

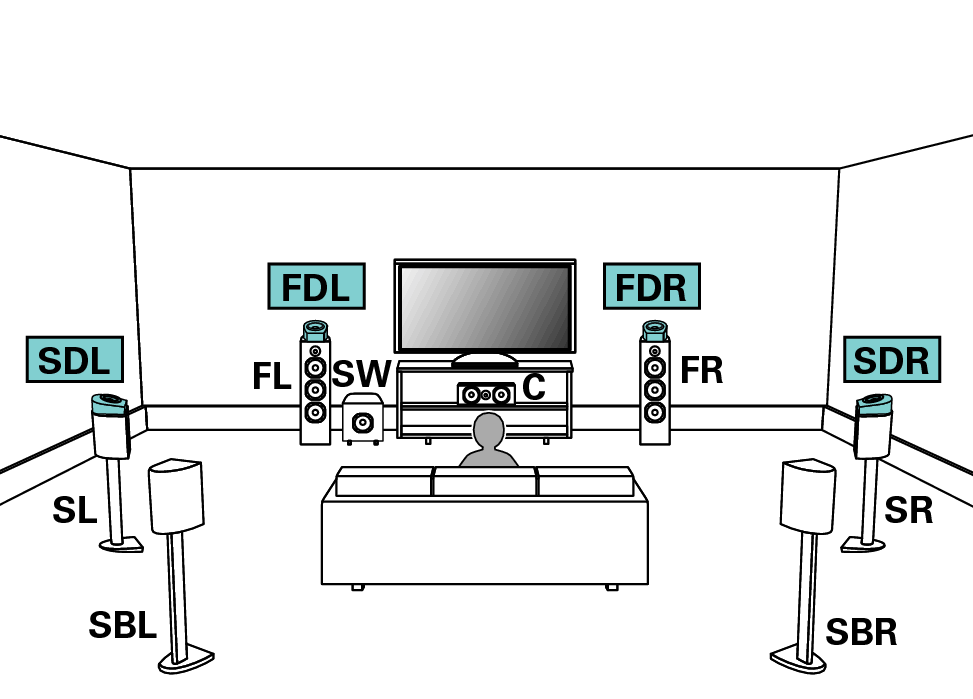

Pict SP Layout 11.1 SD FD

Set “Height” - “Dolby Sp” to “4ch” in the menu when connecting in this configuration. link

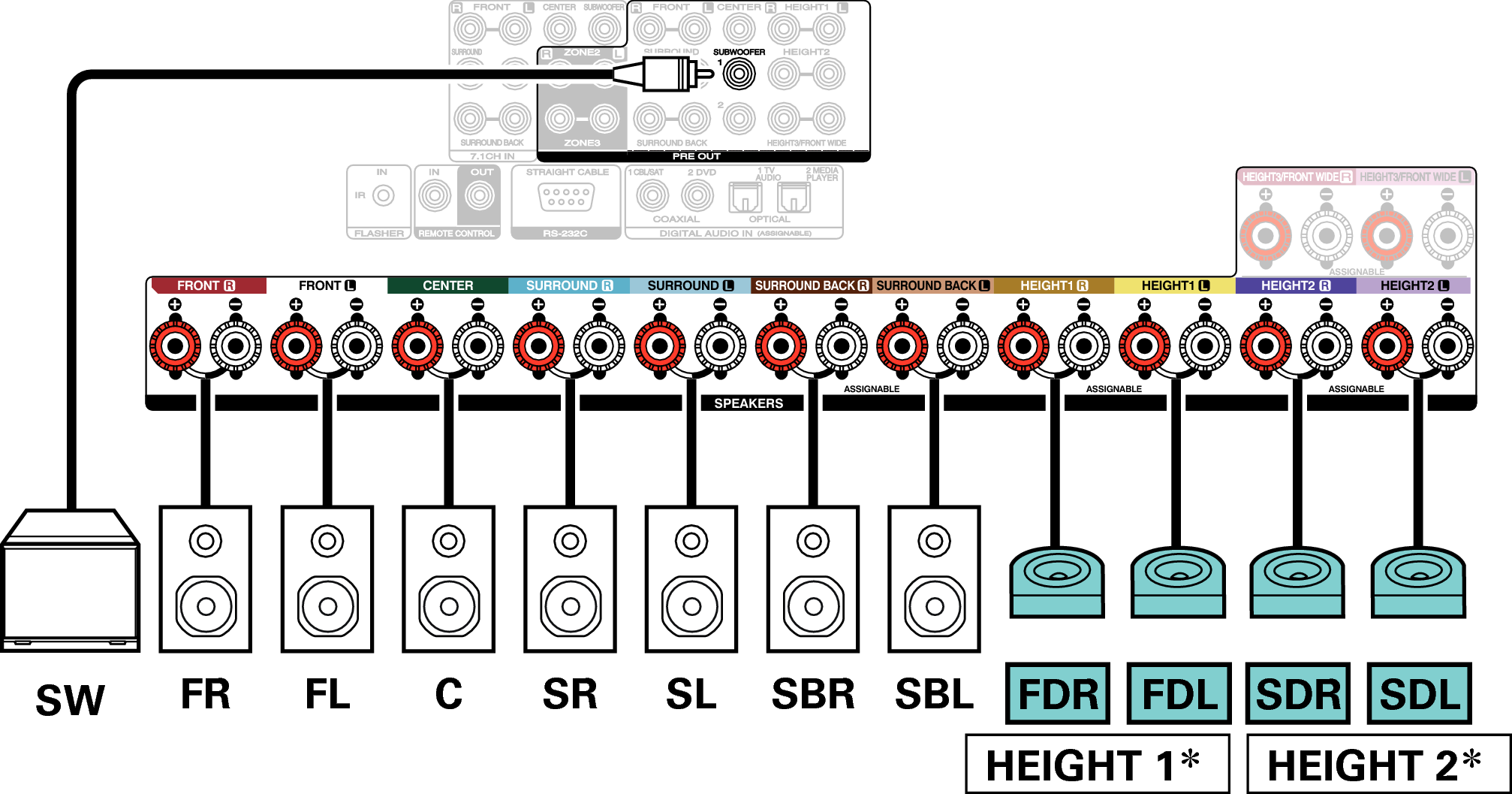

Conne SP 11.1 SD FD S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Example connection for the Auro-3D 11.1-channel system

This speaker configuration is optimized for Auro-3D playback.

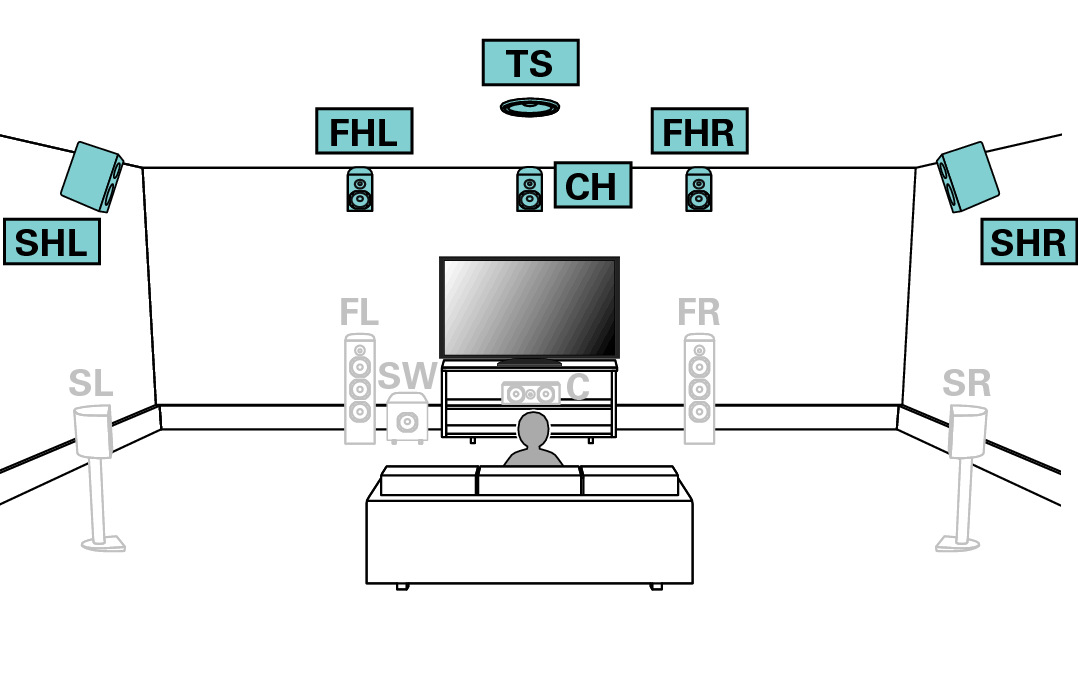

Pict SP Layout 11.1 Auro X67

Set “Height” - “Height Sp” to “6ch” in the menu when connecting in this configuration. link
Next, set “Height” - “Front Layout” to “Front Height & Center Height” and “Middle Layout” to “Surr. Height & Top Surround”. link

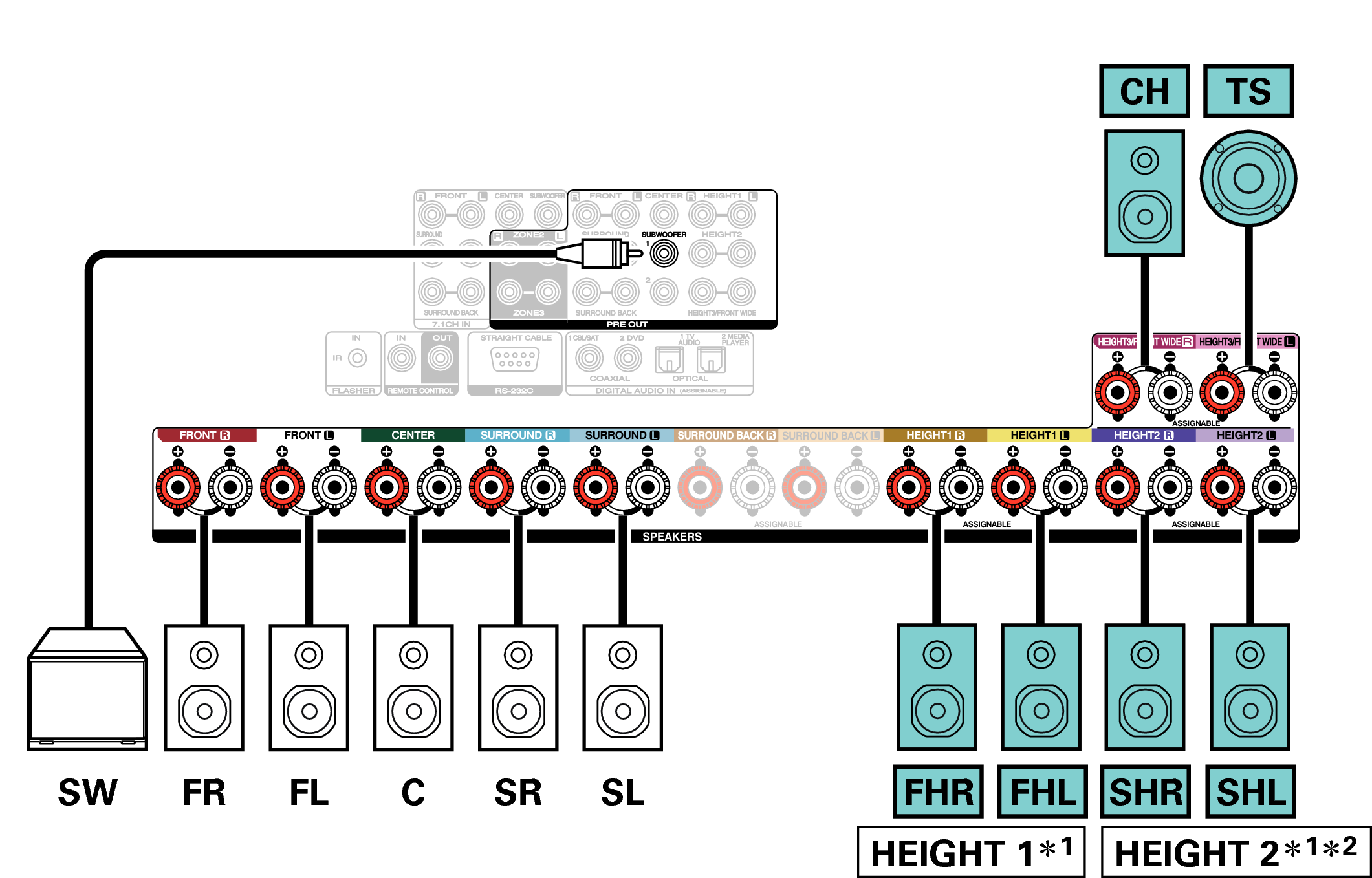

Conne SP 11.1 Auro S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
