Connecting 9.1-channel speakers

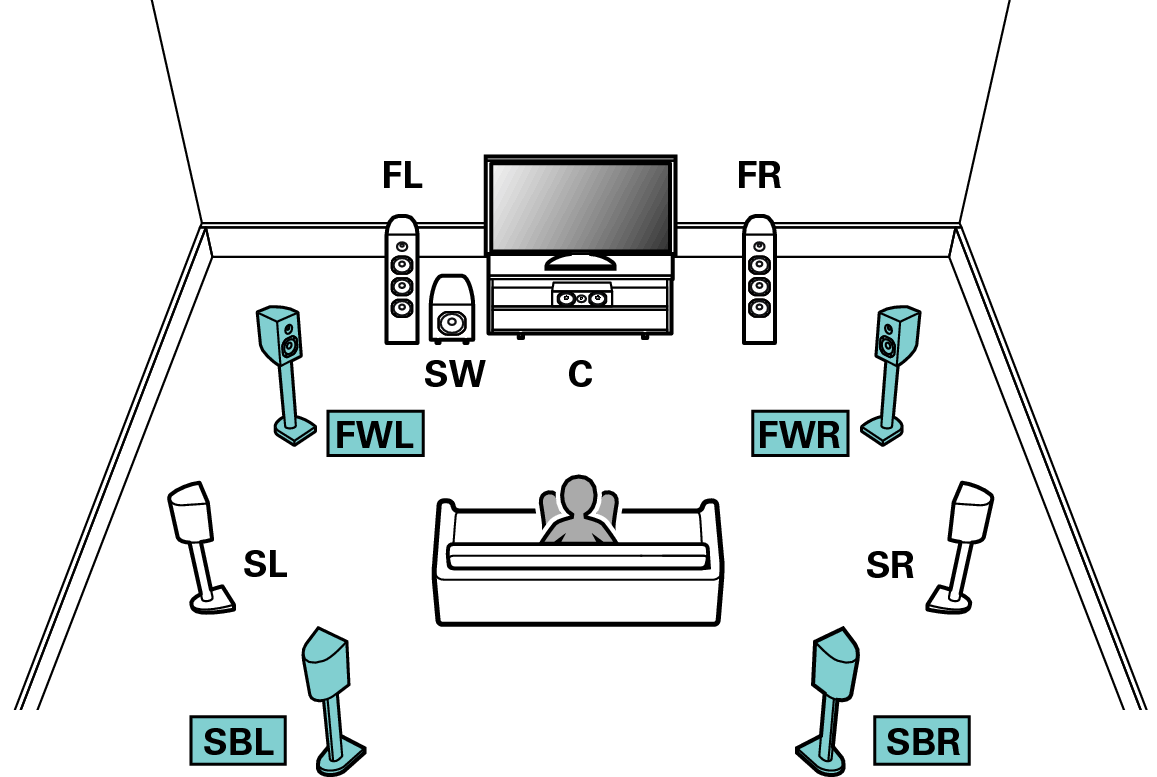

Example connection when using surround back and front wide speakers

Pict SP Layout 9.1 SB FW

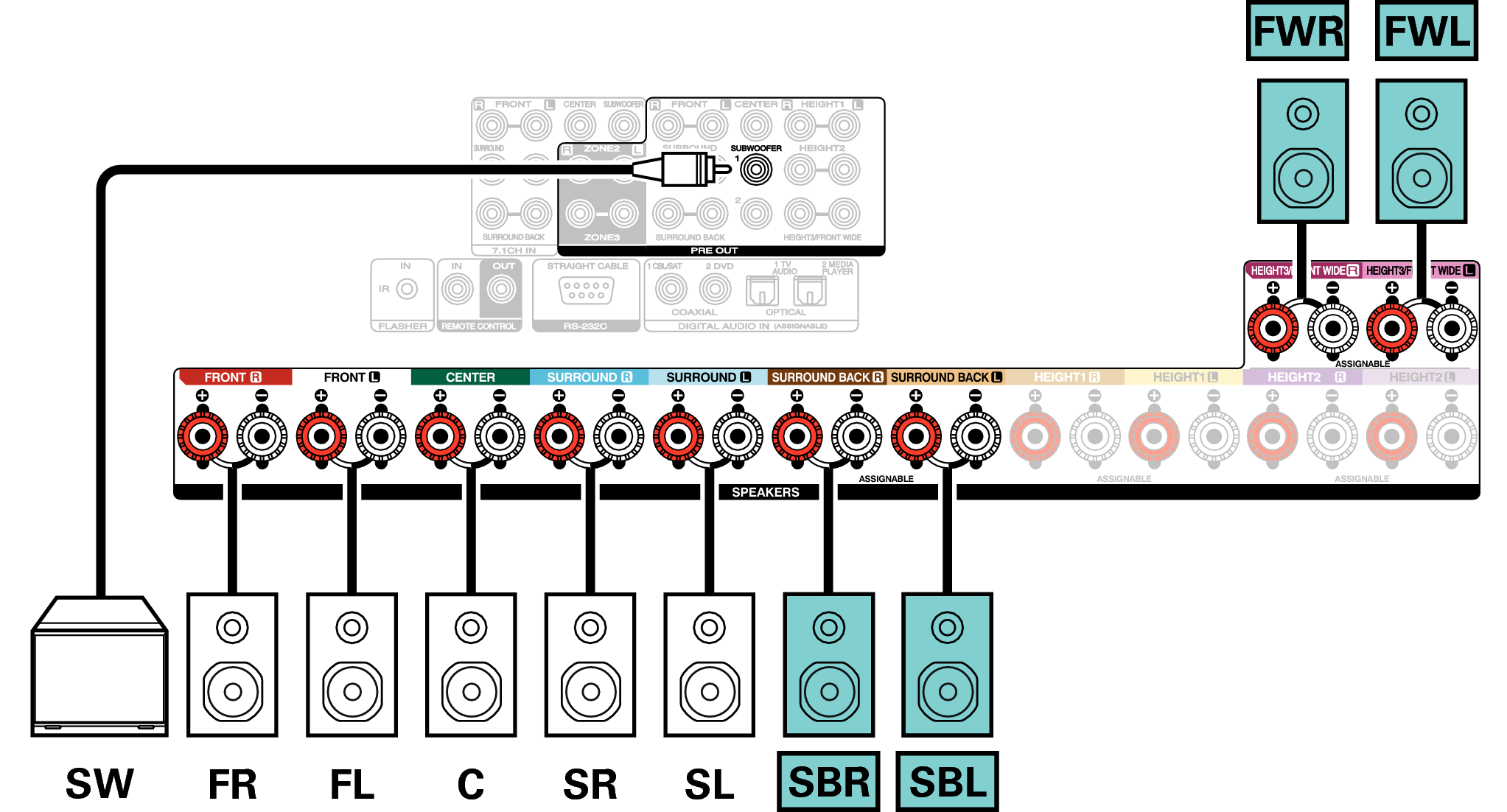

Conne SP 9.1 SB FW S85U

Set “Floor” to “5ch & SB & FW” in the menu when connecting in this configuration. link

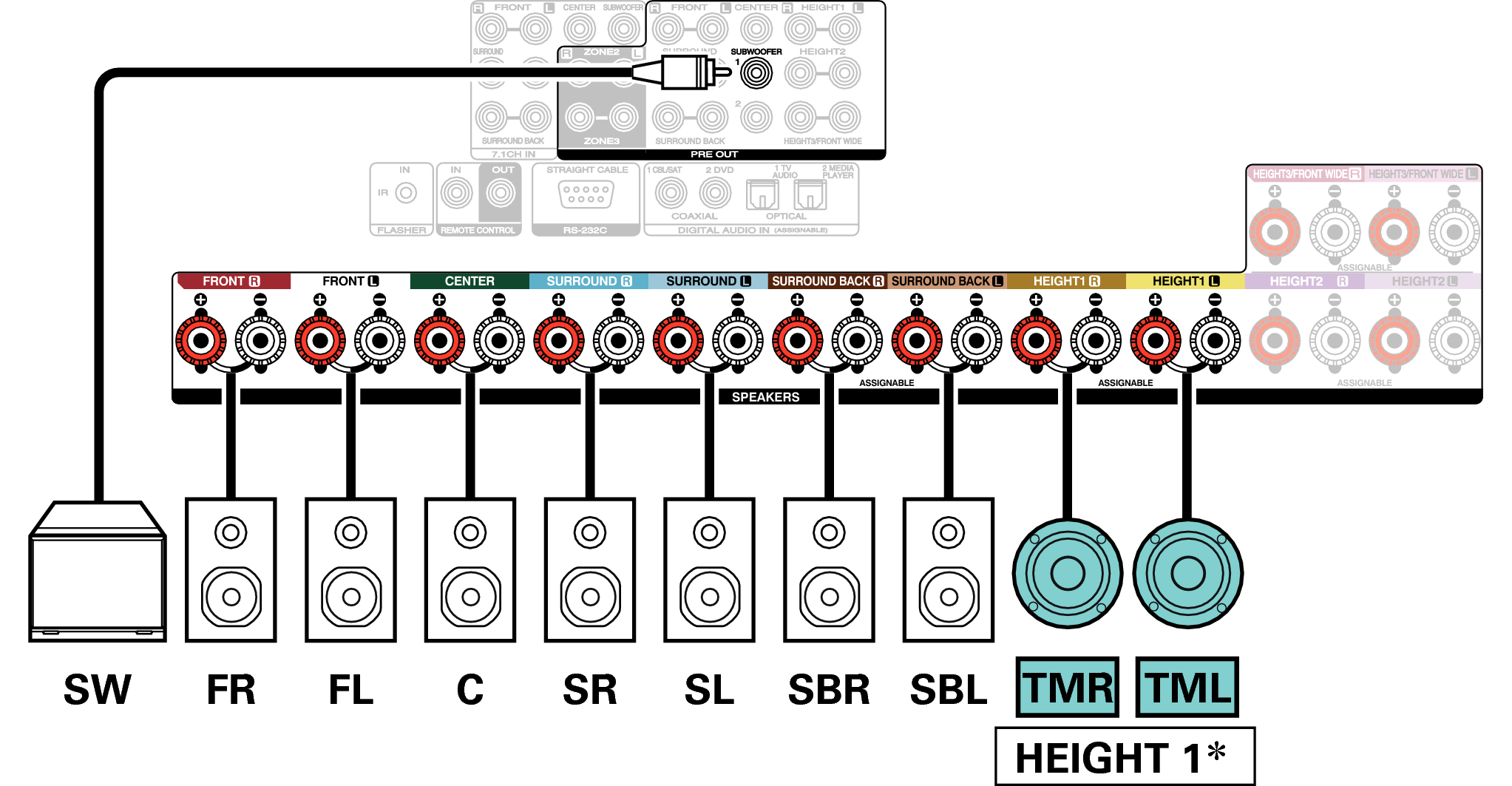

Example connection when using one set of ceiling speakers

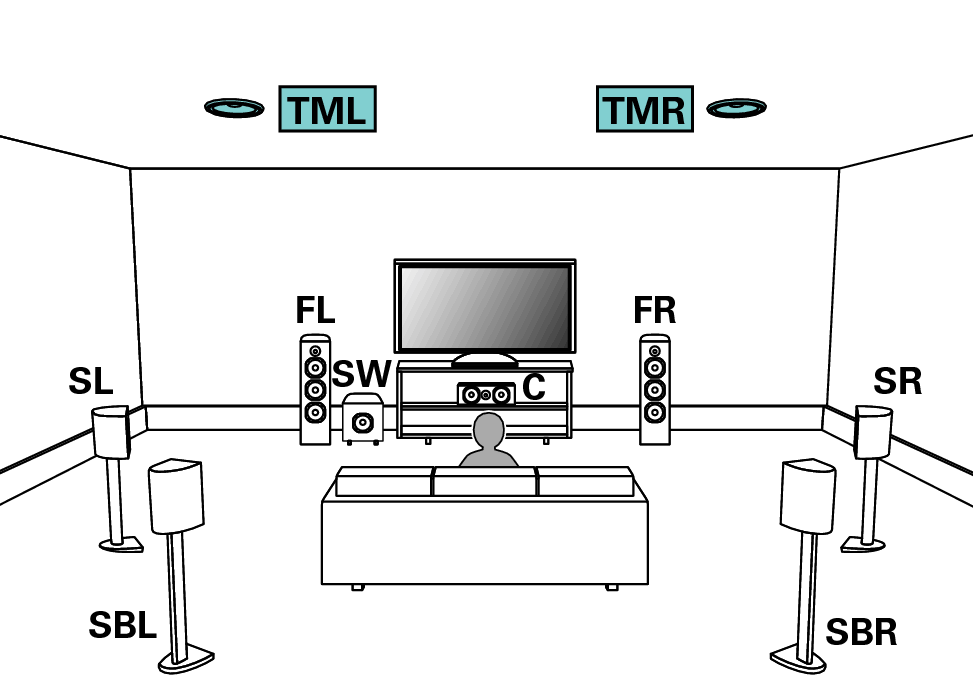

Pict SP Layout 9.1 TM

Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this configuration. link

Conne SP 9.1 TM S85U

The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under “Height” - “Layout” in the menu. link

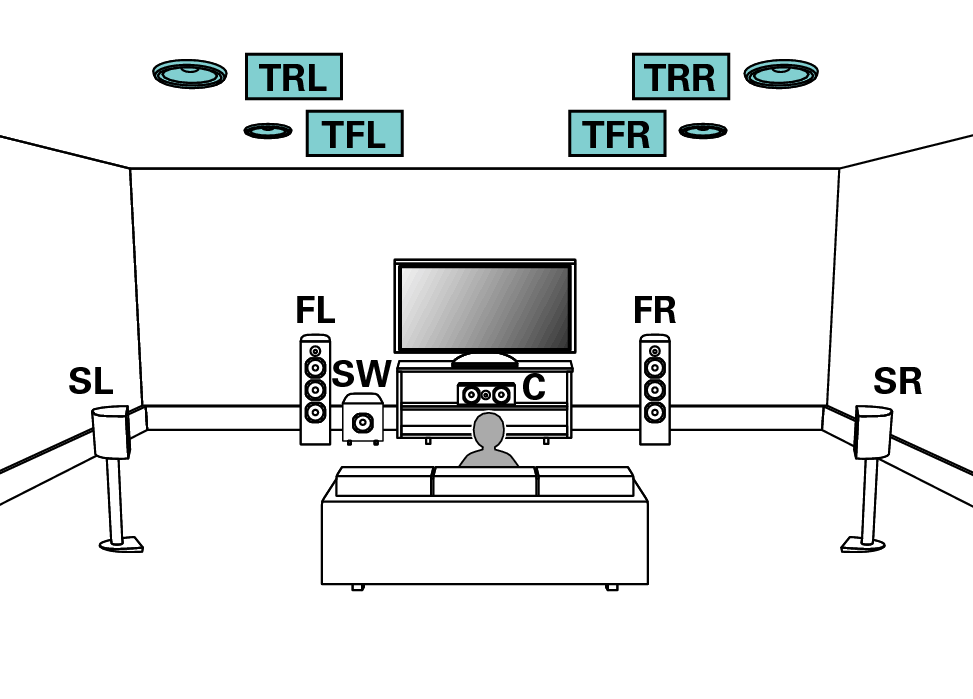

Example connection when using two sets of ceiling speakers

Pict SP Layout 9.1 TR TF

Set “Floor” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the menu when connecting in this configuration. link, link

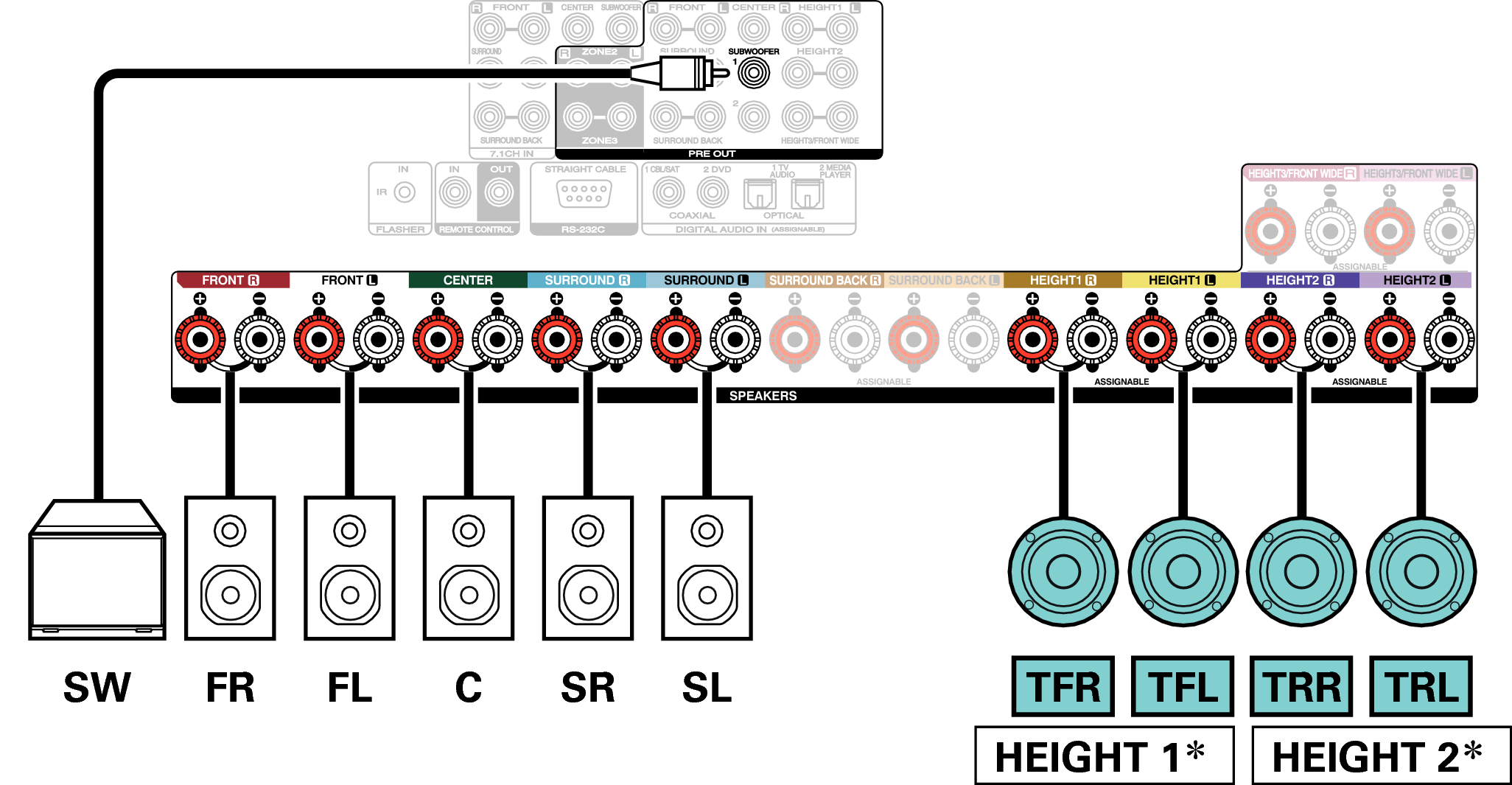

Conne SP 9.1 TR TF S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

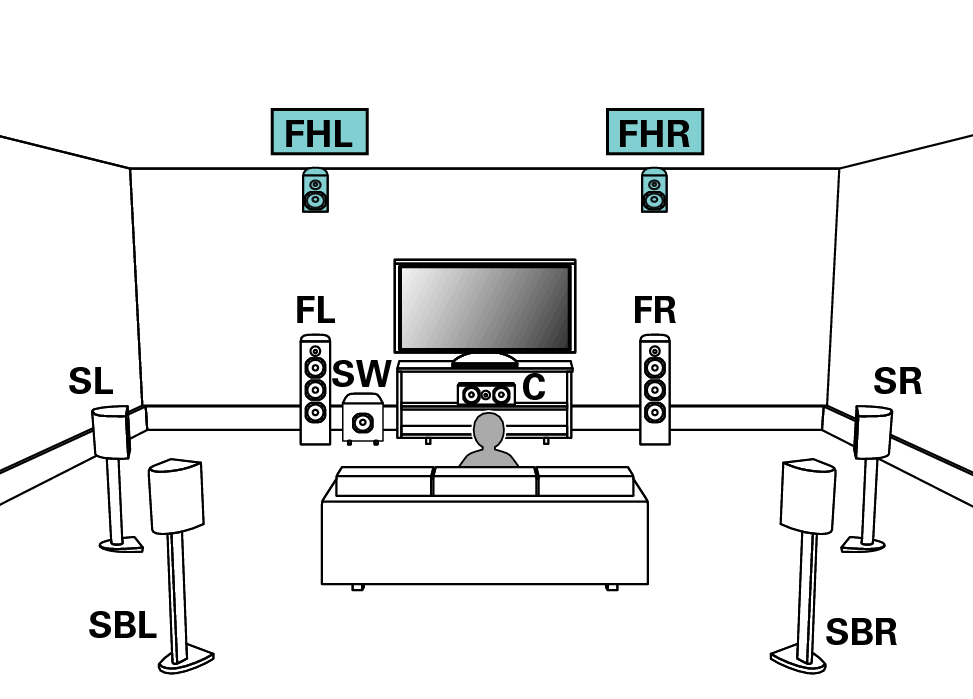

Example connection when using one set of height speakers

Pict SP Layout 9.1 FH

Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this configuration. link

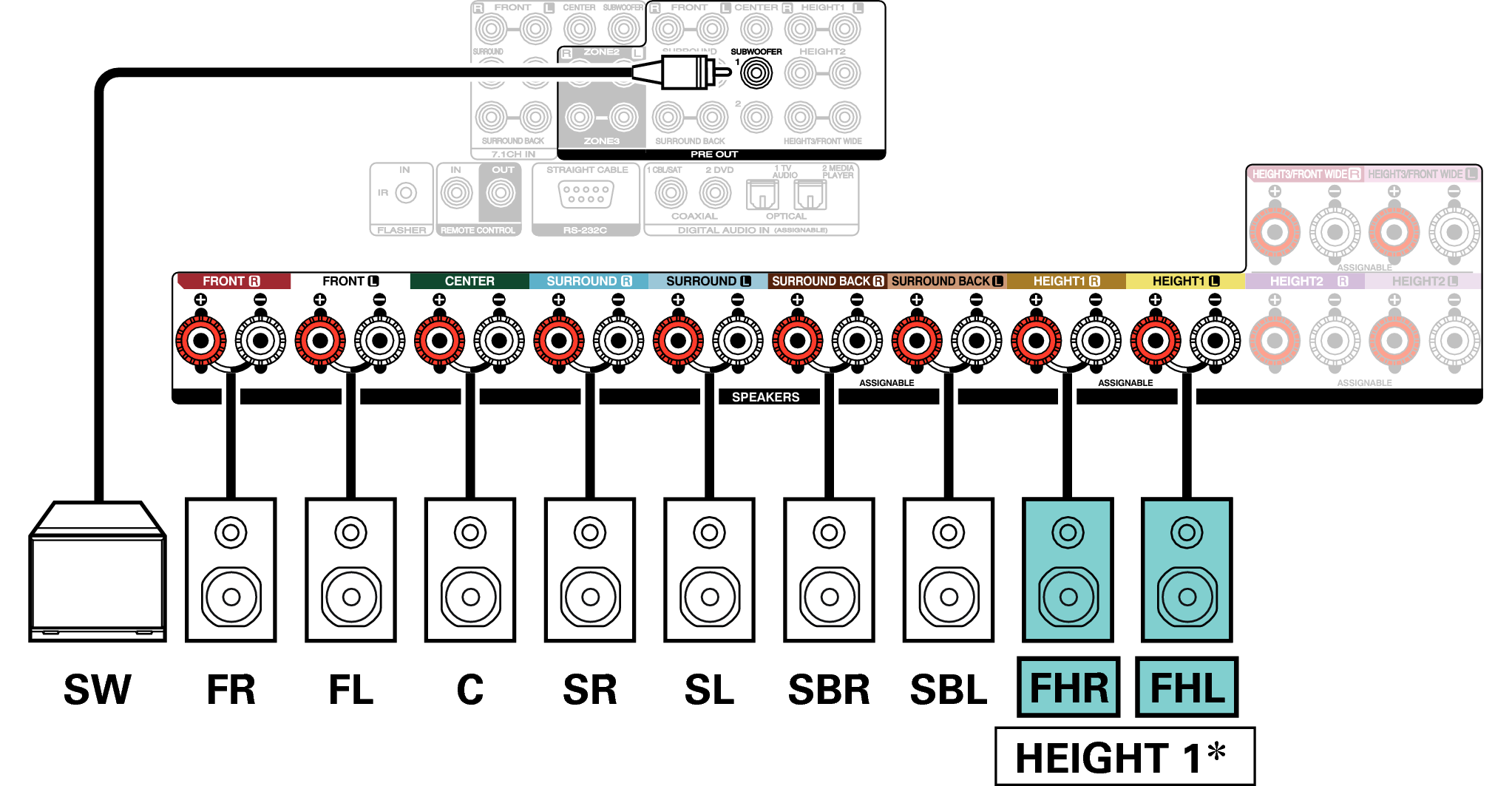

Conne SP 9.1 FH S85U

The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under “Height” - “Layout” in the menu. link

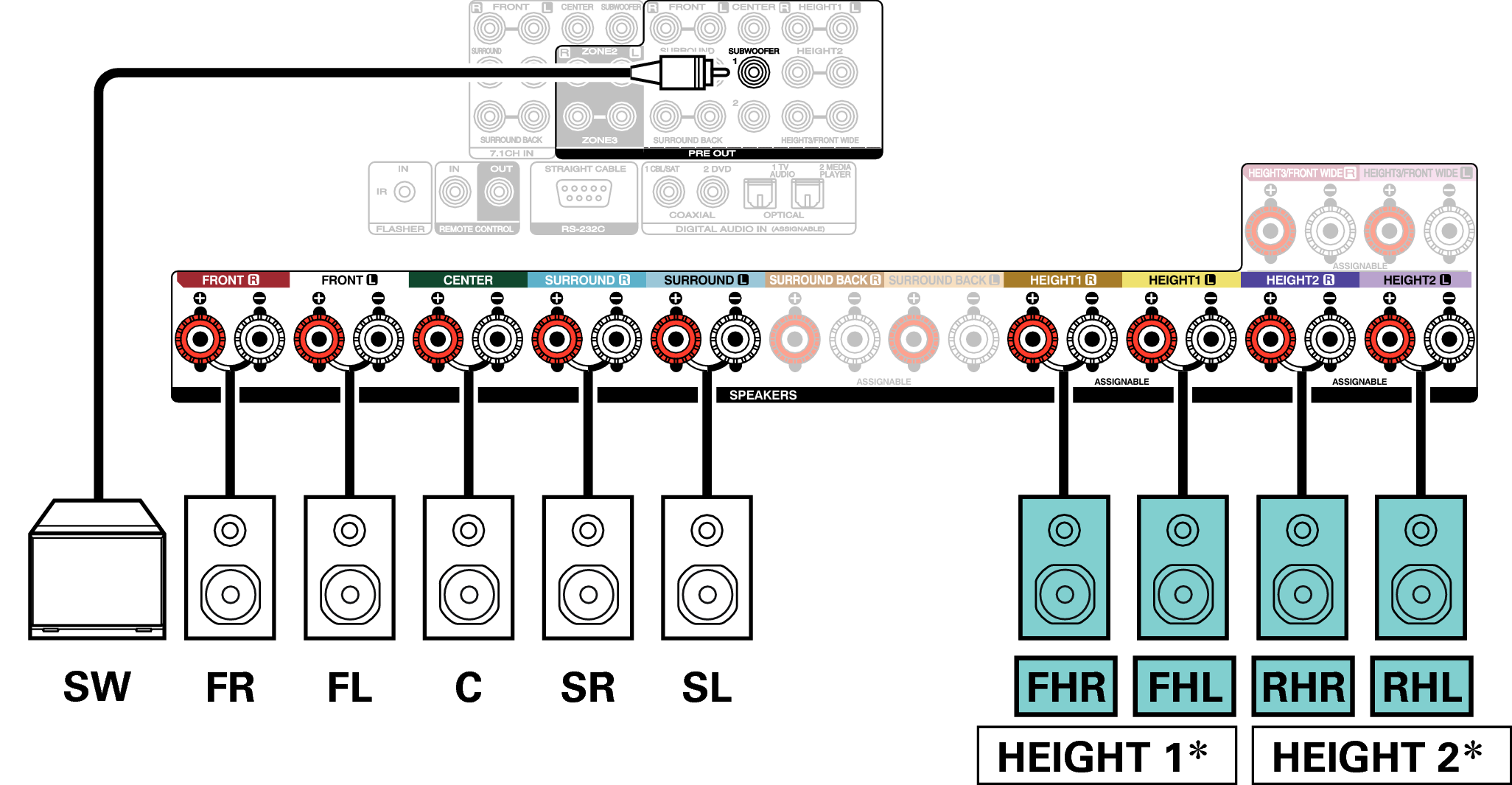

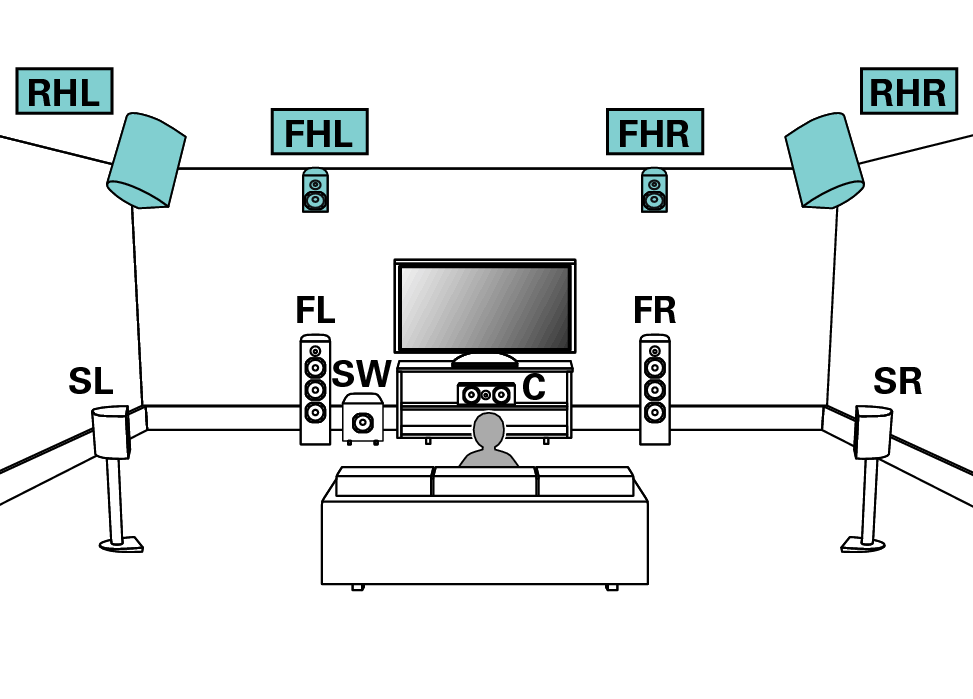

Example connection when using two sets of height speakers

Pict SP Layout 9.1 RH FH

Set “Floor” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the menu when connecting in this configuration. link, link

Conne SP 9.1 RH FH S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

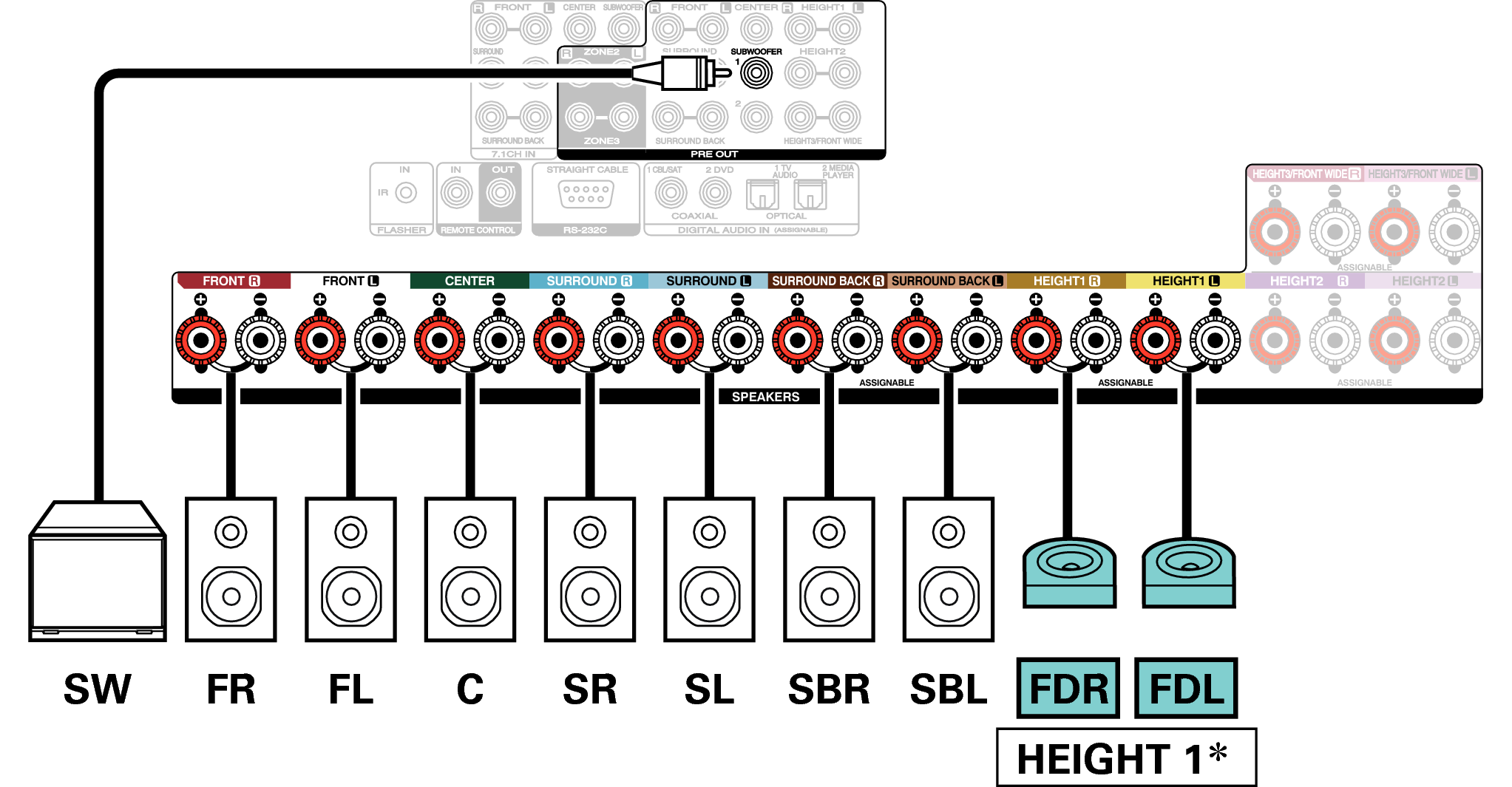

Example connection when using one set of Dolby Atmos Enabled speakers

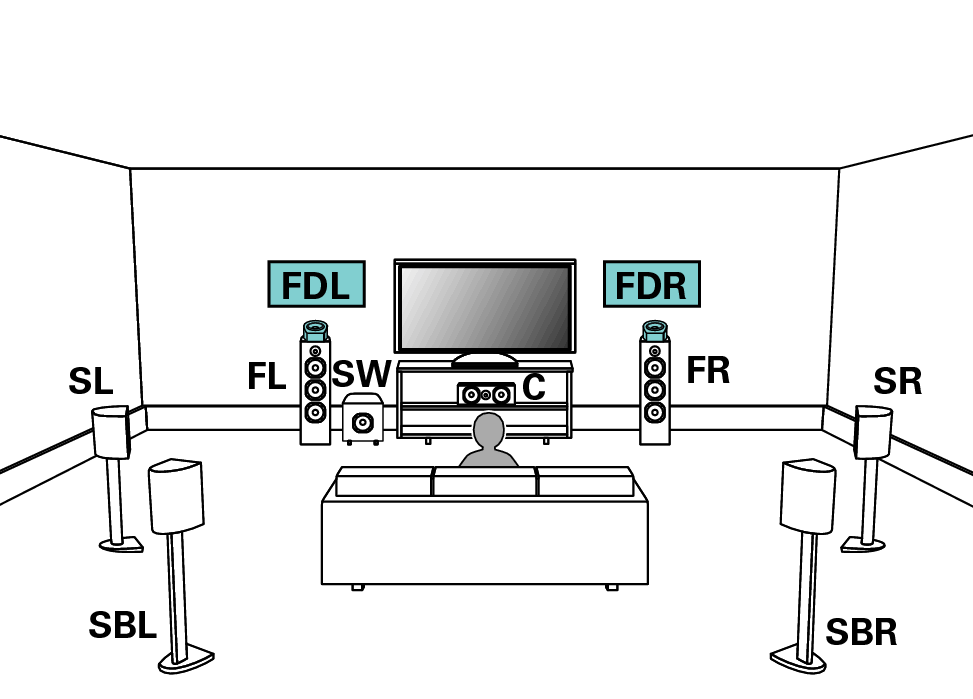

Pict SP Layout 9.1 FD

Set “Height” - “Dolby Sp” to “2ch” in the menu when connecting in this configuration. link

Conne SP 9.1 FD S85U

The surround Dolby or back Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under “Height” - “Layout” in the menu. link

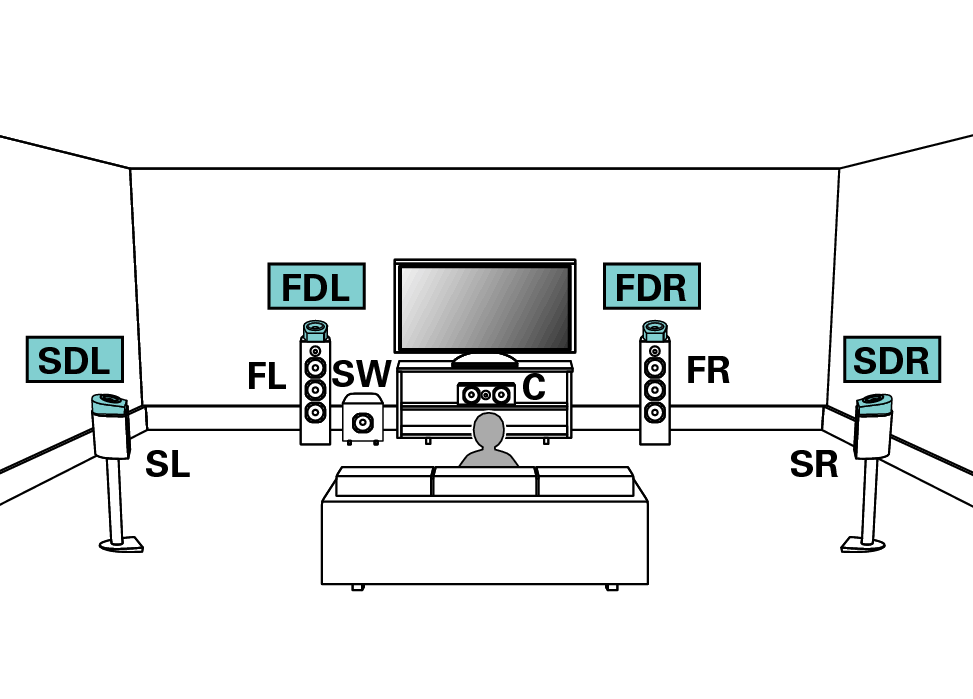

Example connection when using two sets of Dolby Atmos Enabled speakers

Pict SP Layout 9.1 SD FD

Set “Floor” to “5ch” or set “5ch & SB” and “Dolby Sp” to “4ch” in the menu when connecting in this configuration. link, link

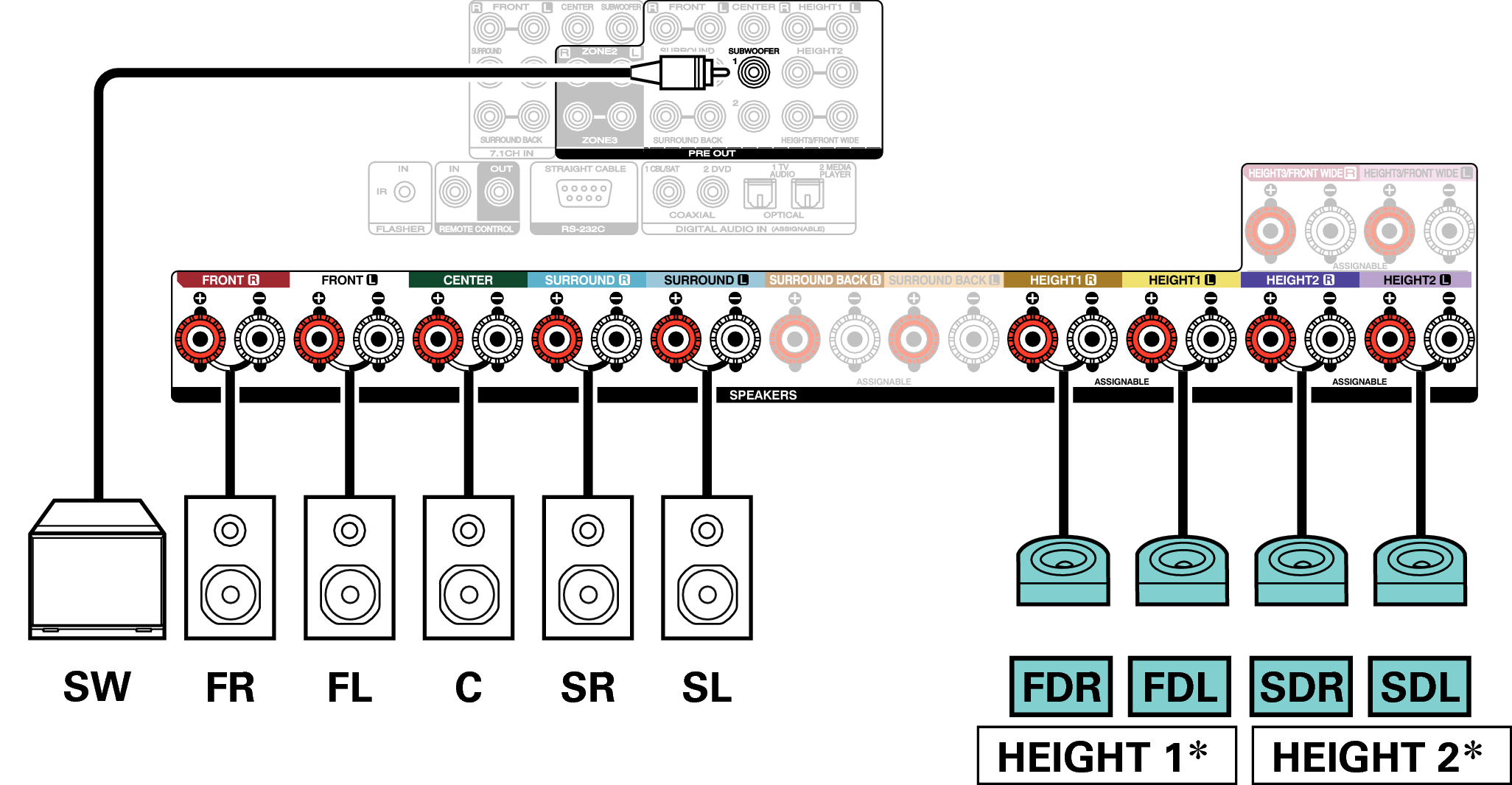

Conne SP 9.1 SD FD S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

Example connection for the Auro-3D 9.1-channel system

This speaker configuration is optimized for Auro-3D playback.

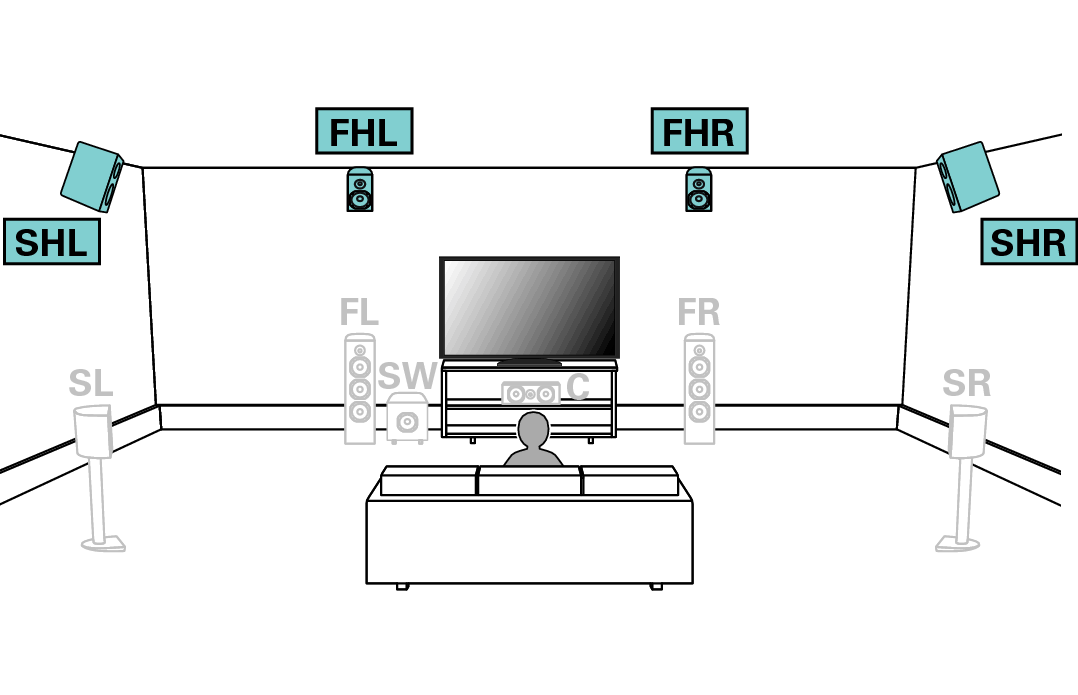

Pict SP Layout 9.1 Auro3D

Set “Floor” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the menu when connecting in this configuration. link, link
Next, set “Height” - “Front Layout” to “Front Height & Surr. Height”. link

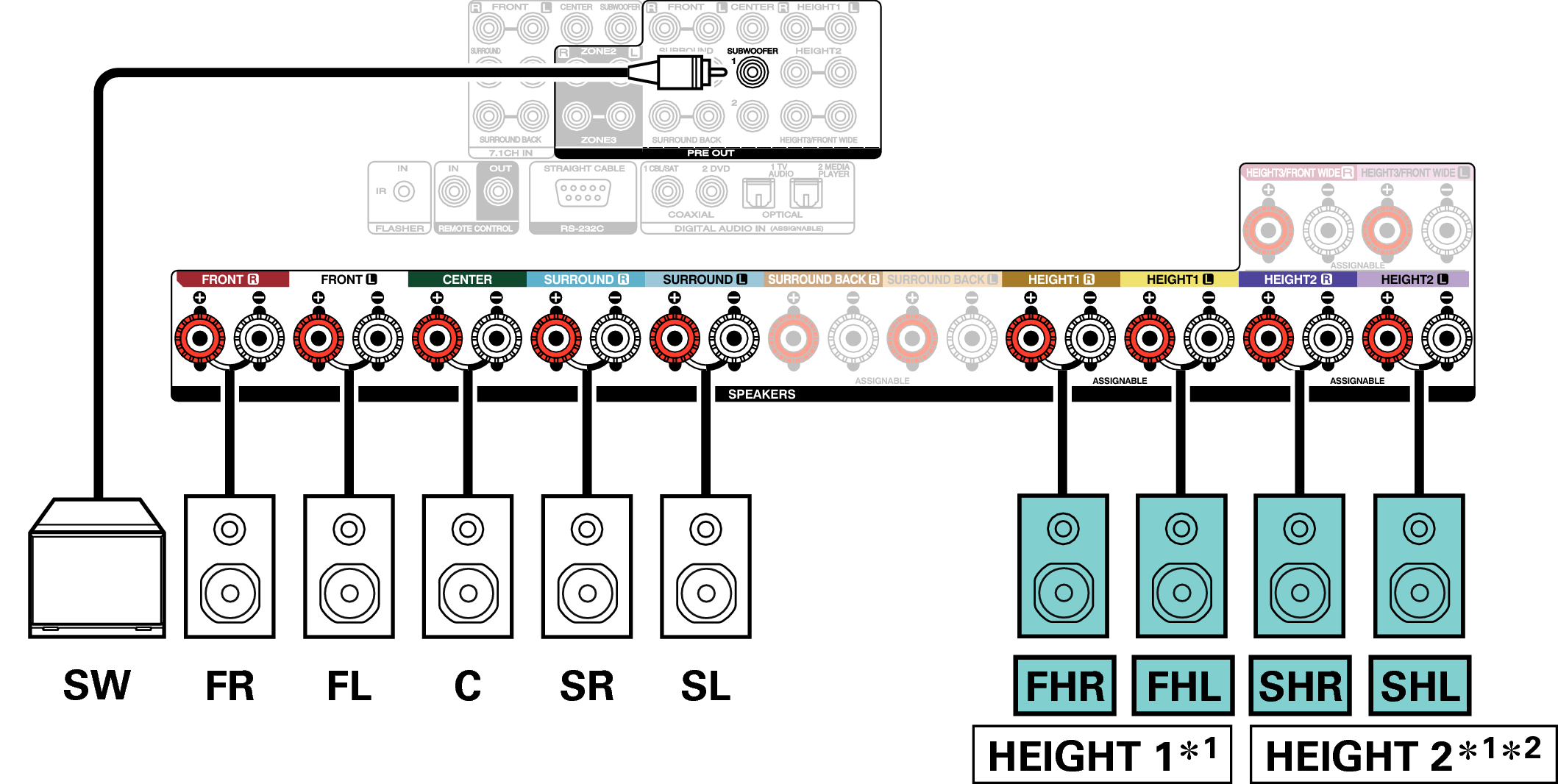

Conne SP 9.1 Auro S85U

You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. link

For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
