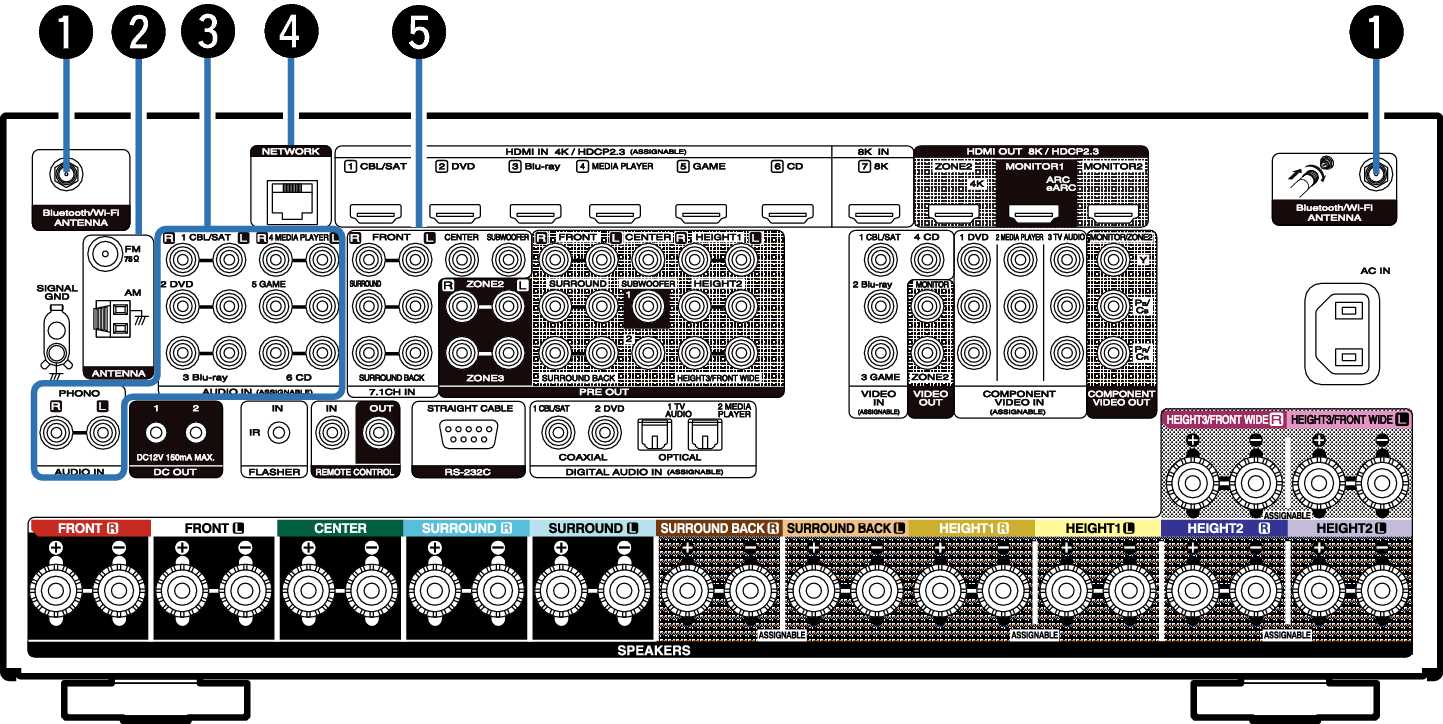

Rear panel

For details, see the next page.

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

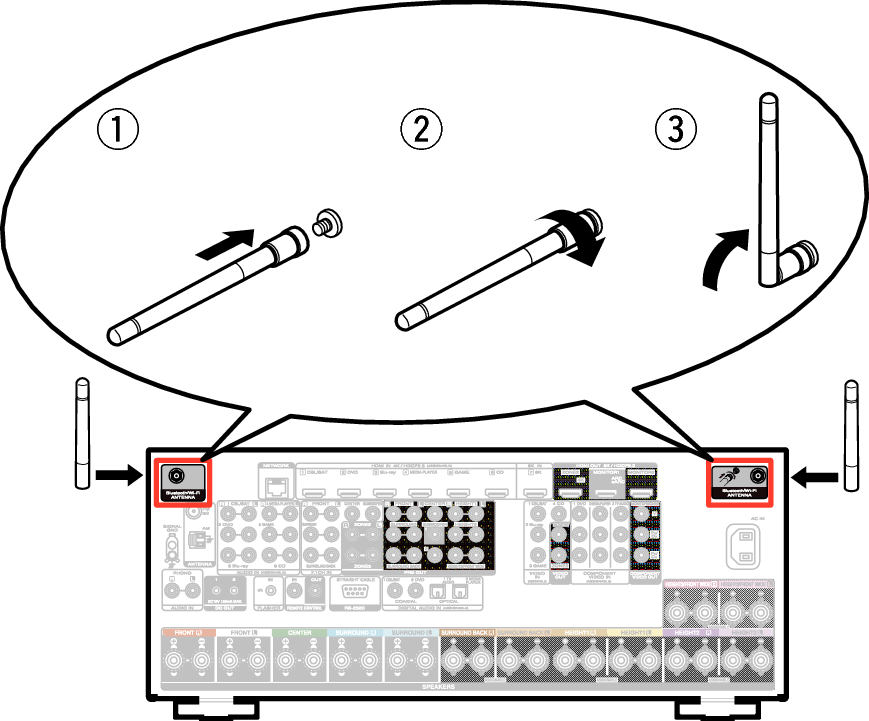

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.

Turn clockwise until the antennas is fully connected.

Rotate the antenna upwards for best reception.

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a DVD player or Blu-ray Disc playerlink

Connecting a turntablelink

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

7.1-channel input connectors (7.1CH IN)

Used to connect to a device that has multi-channel audio output connectors. link

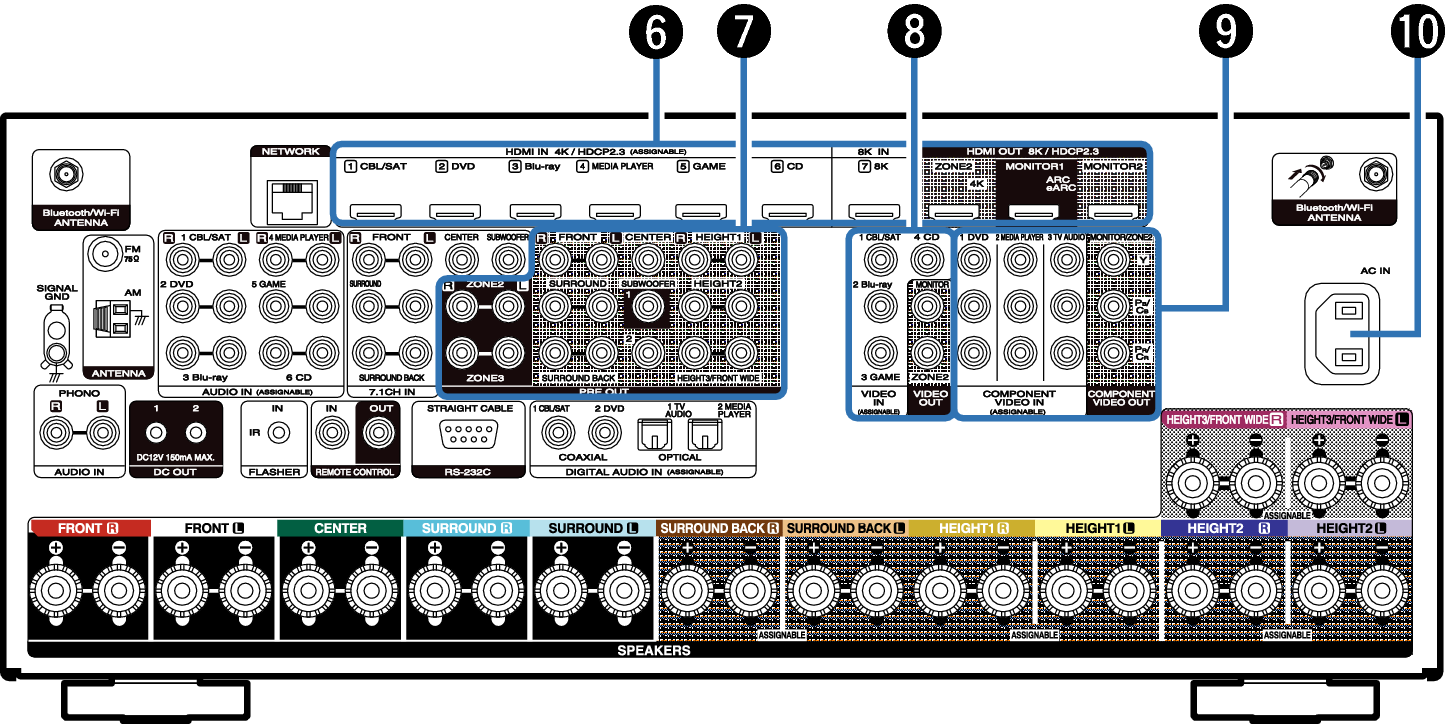

HDMI connectors

Used to connect devices equipped with HDMI connectors.

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)link

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)link

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a DVD player or Blu-ray Disc playerlink

Connecting a player device compatible with the 8Klink

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or an external power amplifier.

Connecting the subwooferlink

Example connection for the Auro-3D 11.1-channel systemlink

Connecting 13.1-channel speakerslink

Connecting an external power amplifierlink

Connecting ZONElink

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

Connection 3 : TV equipped without an HDMI connectorlink

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a DVD player or Blu-ray Disc playerlink

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

Connection 3 : TV equipped without an HDMI connectorlink

Connecting a DVD player or Blu-ray Disc playerlink

AC inlet (AC IN)

Used to connect the power cord. link

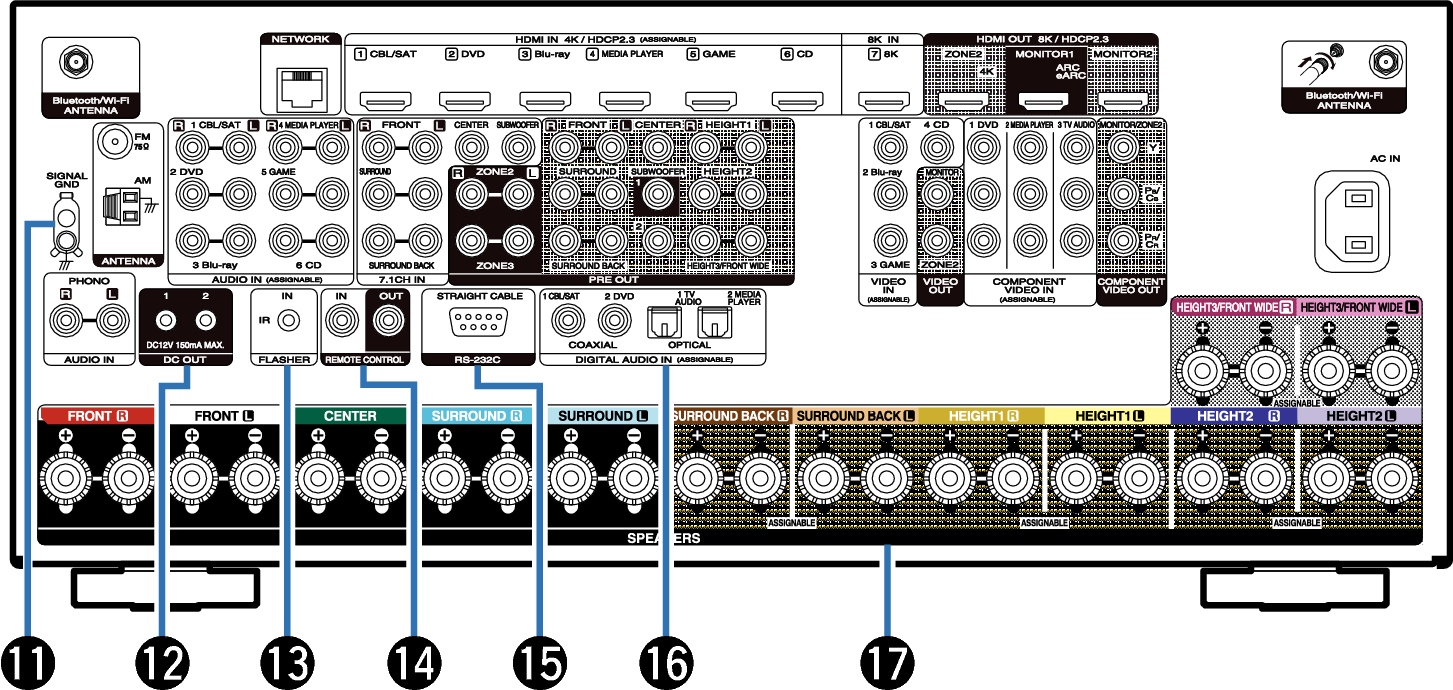

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

DC OUT jacks

Used to connect devices equipped with the trigger function. link

FLASHER IN jack

Used when using a control BOX or other such control devices to control this unit.

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link

RS-232C connector

Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.

Perform the operation below beforehand.

Turn on the power of this unit.

Turn off the power of this unit from the external controller.

Check that the unit is in the standby mode.
