Input Assign

By making connections as indicated by the input sources printed on the audio/video input connectors of this unit, you can just press one of the input source select buttons to easily play back audio or video from a connected device.

Please change the assignment of the HDMI input connector, digital audio input connector, analog audio input connector, component video input connector and video input connector when connecting an input source that differs from that printed to the audio/video input connectors of this unit.

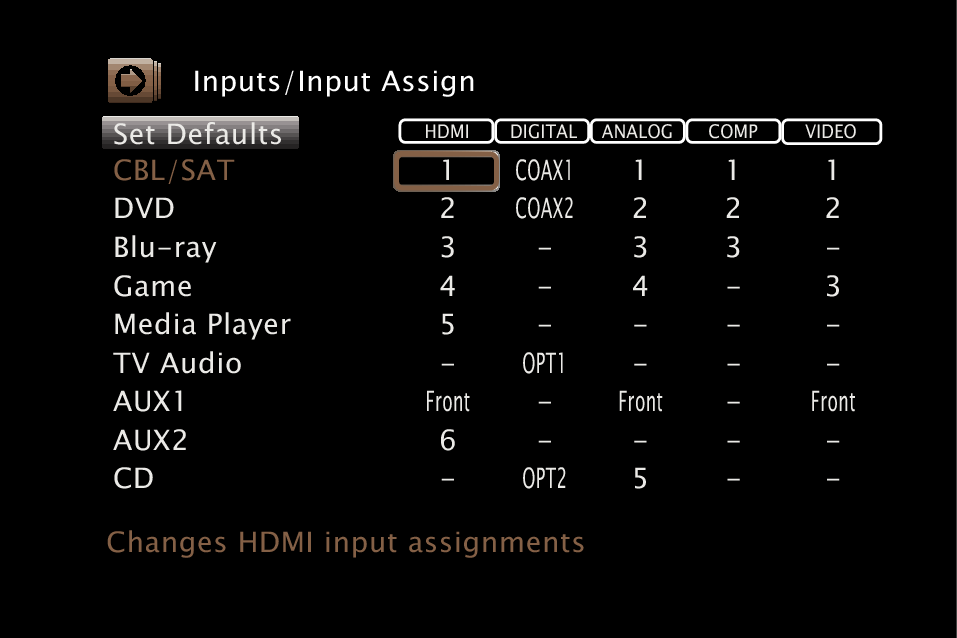

GUI InputAssign S7

By default, each item is set as follows.

Input source

Input connector

HDMI

DIGITAL

ANALOG

COMP

VIDEO

CBL/SAT

1

COAX1

1

1

1

DVD

2

COAX2

2

2

2

Blu-ray

3

3

3

Game

4

4

3

Media Player

5

TV Audio

OPT1

AUX1

Front

Front

Front

AUX2

6

CD

OPT2

5

TV set top box/satellite users please note

When using the digital audio output on a TV/satellite box:

To play the video signal assigned to “HDMI” combined with the audio signal assigned at “Input Assign” - “DIGITAL”, you will also need to select “Digital” in the “Input Mode”. link

HDMI

Set this to change the HDMI input connectors assigned to the input sources.

1 / 2 / 3 / 4 / 5 / 6 / 7 /
Front:

Assign an HDMI input connector to the selected input source.

– :

Do not assign an HDMI input connector to the selected input source.

When “HDMI Control” or “ARC” is set to “On” in the menu, “HDMI” cannot be assigned to “TV Audio”. (HDMI Controllink, ARClink)

DIGITAL

Set this to change the digital audio input connectors assigned to the input sources.

COAX1  (Coaxial) / COAX2 /
OPT1  (Optical) / OPT2:

Assign a digital audio input connector to the selected input source.

– :

Do not assign a digital audio input connector to the selected input source.

ANALOG

Set this to change the analog audio input connectors assigned to the input sources.

1 / 2 / 3 / 4 / 5 / Front:

Assign a analog audio input connector to the selected input source.

– :

Do not assign a analog audio input connector to the selected input source.

COMP (Component video)

Set this to change the component video input connectors assigned to the input sources.

1 / 2 / 3:

Assign the component video input connector to the selected input source.

– :

Do not assign a component video input connector to the selected input source.

VIDEO

Set this to change the composite video input connectors assigned to the input sources.

1 / 2 / 3 / Front:

Assign the video input connector to the selected input source.

– :

Do not assign a video input connector to the selected input source.

Set Defaults

The “Input Assign” settings are returned to the default settings.
