Speaker configuration and “Amp Assign” settings

This unit has a built-in 7-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. link

Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. link

Playback speaker and zone

“Amp Assign” settings

Connection page

MAIN ZONE

ZONE2

5.1-channel

2-channel (Pre-out)

Can be set in all “Amp Assign” modes.

7.1-channel (surround back)

2-channel (Pre-out)

Surround Back

7.1-channel (front height)

2-channel (Pre-out)

Front Height

7.1-channel (top front)

2-channel (Pre-out)

Top Front

7.1-channel (top middle)

2-channel (Pre-out)

Top Middle

7.1-channel (front Dolby Atmos Enabled speaker)

2-channel (Pre-out)

Front Dolby

7.1-channel (surround Dolby Atmos Enabled speaker)

2-channel (Pre-out)

Surround Dolby

5.1-channel (bi-amp connection for front speaker)

2-channel (Pre-out)

Bi-Amp

5.1-channel + front speaker of second unit

2-channel (Pre-out)

Front B

5.1-channel

2-channel (Speaker out)

ZONE2 (Default)

The sound mode that can be selected varies according to the speaker configuration. See “Relationship between sound modes and channel output” link for the sound modes that are supported.

Standard configuration and connection

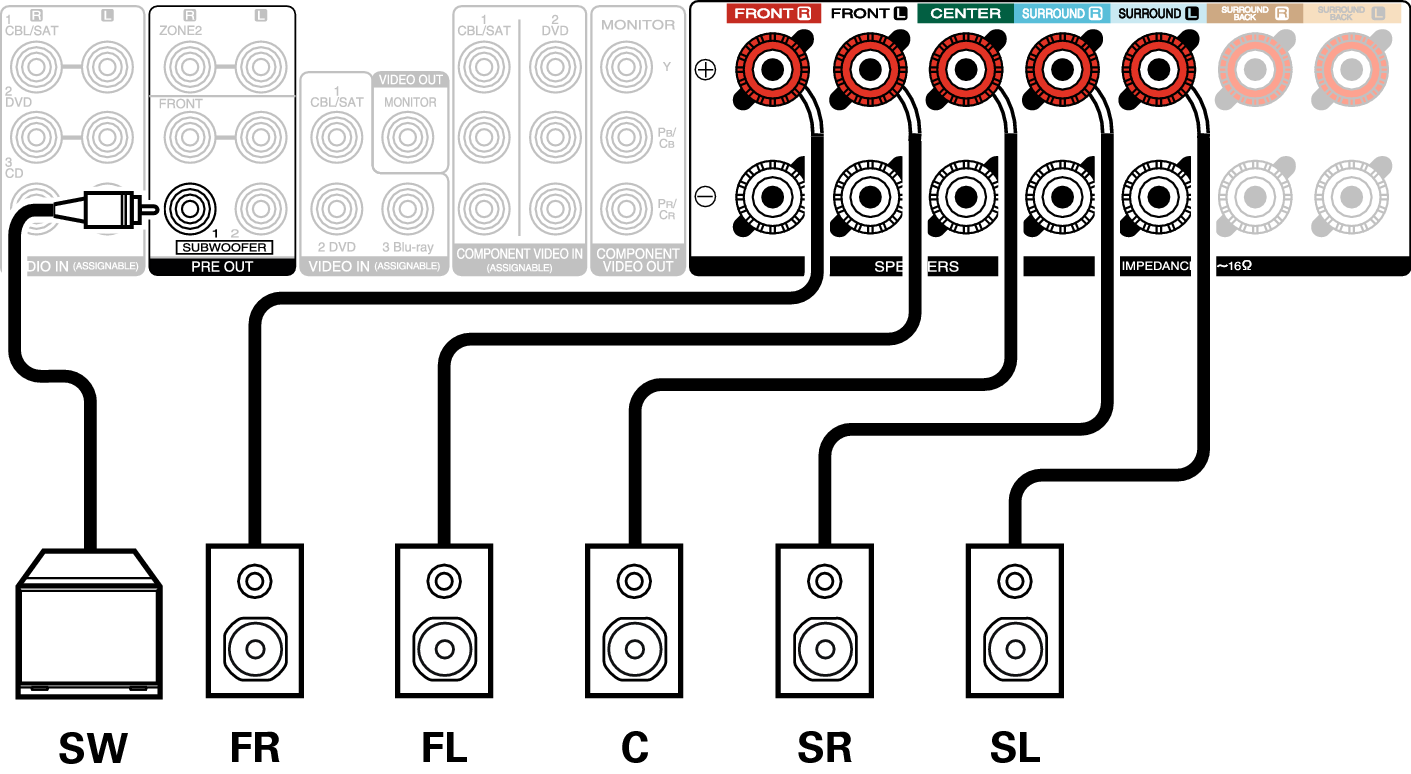

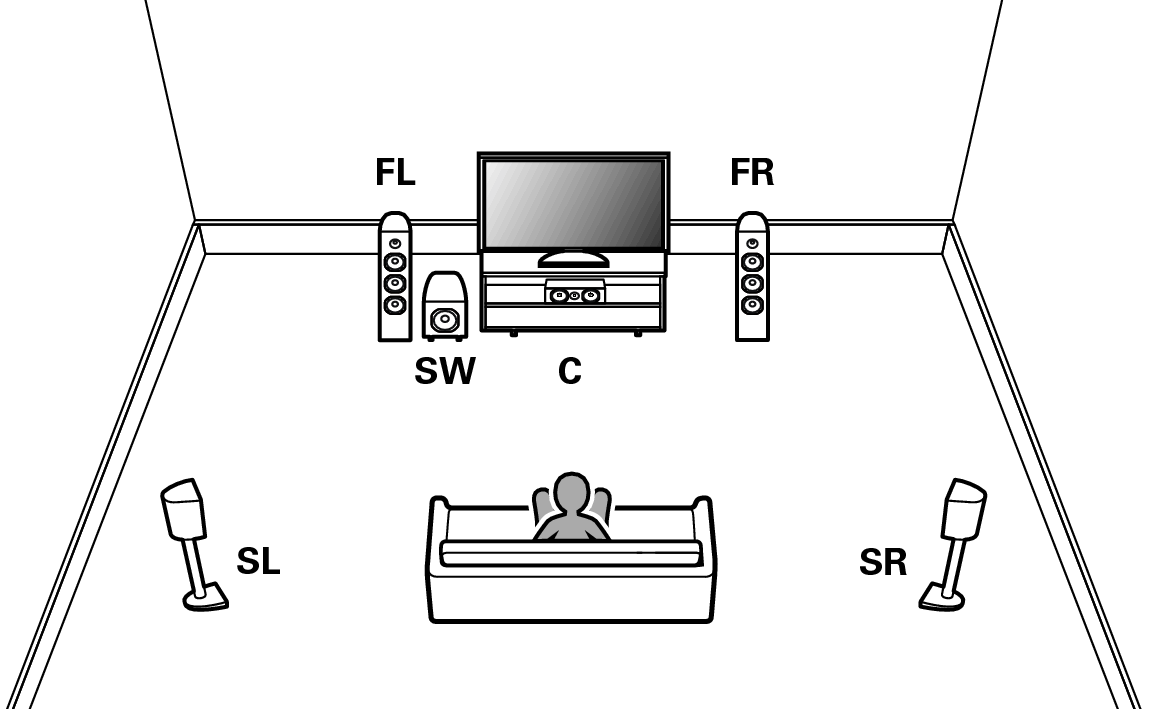

5.1-channel

This serves as a basic 5.1-channel surround system.

Pict AmpAssign 5.1
Conne SP 5.1 1606U

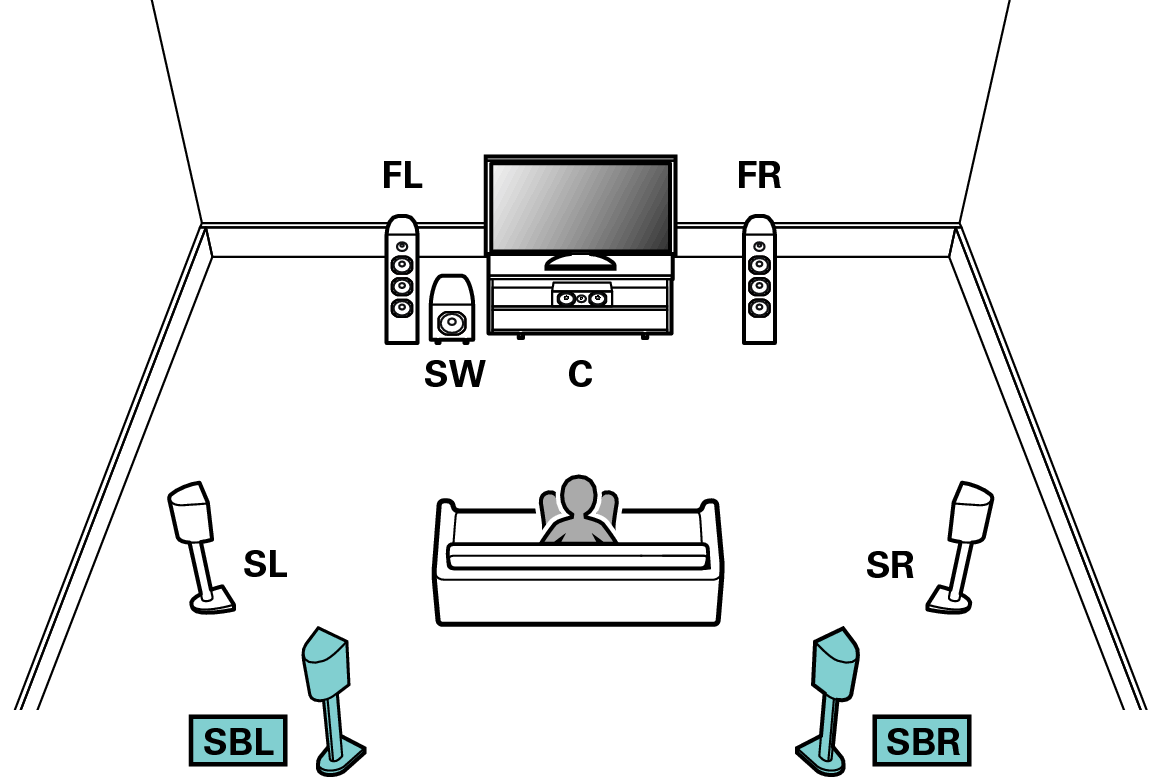

7.1-channel (surround back)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

Pict SurrBack SP Layout X2200
Conne SP 7.1 SB 1606U

When using a single surround back speaker, connect it to the SURROUND BACK L terminal.

7.1-channel (front height)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

Pict FrontHeight SP Layout X2200

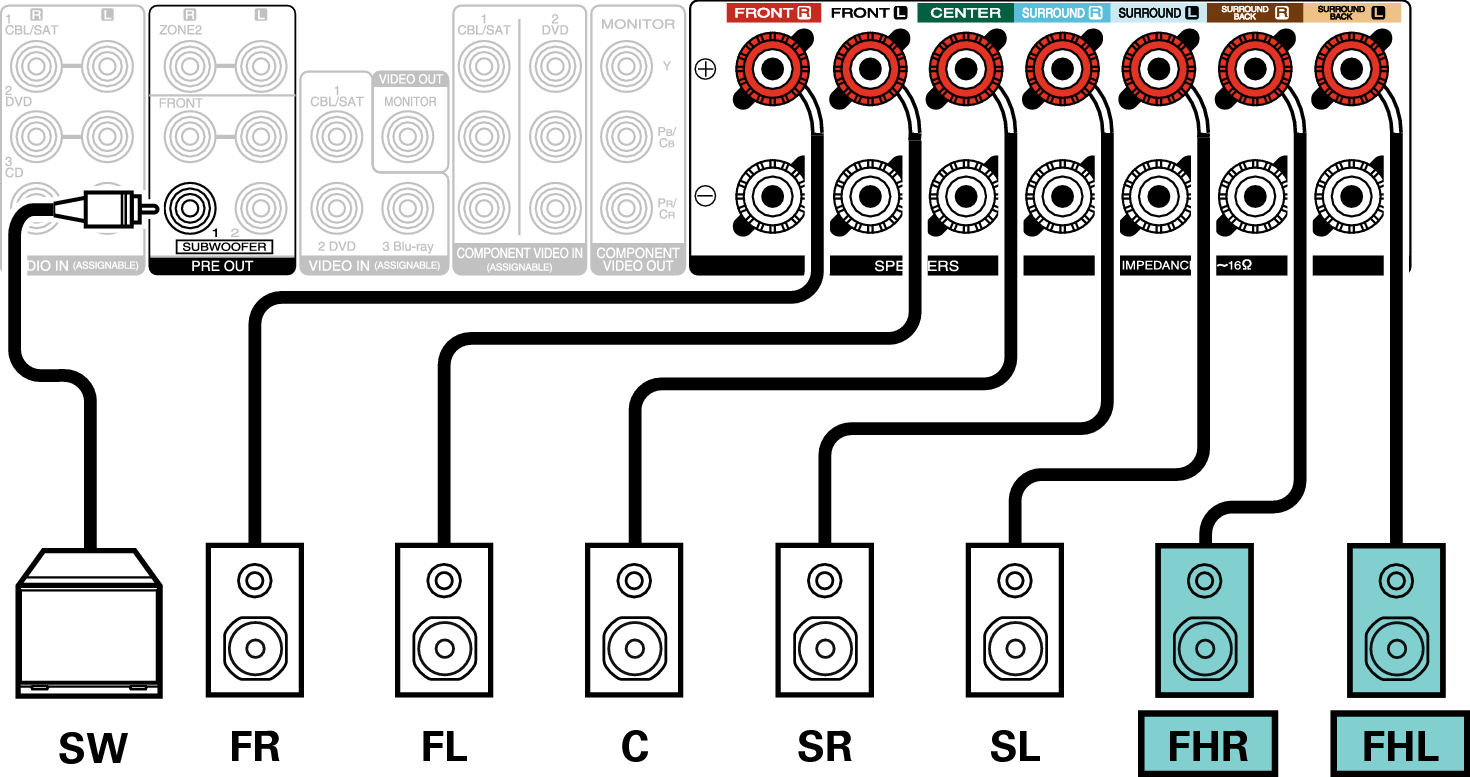

Conne SP 7.1 FH 1606U

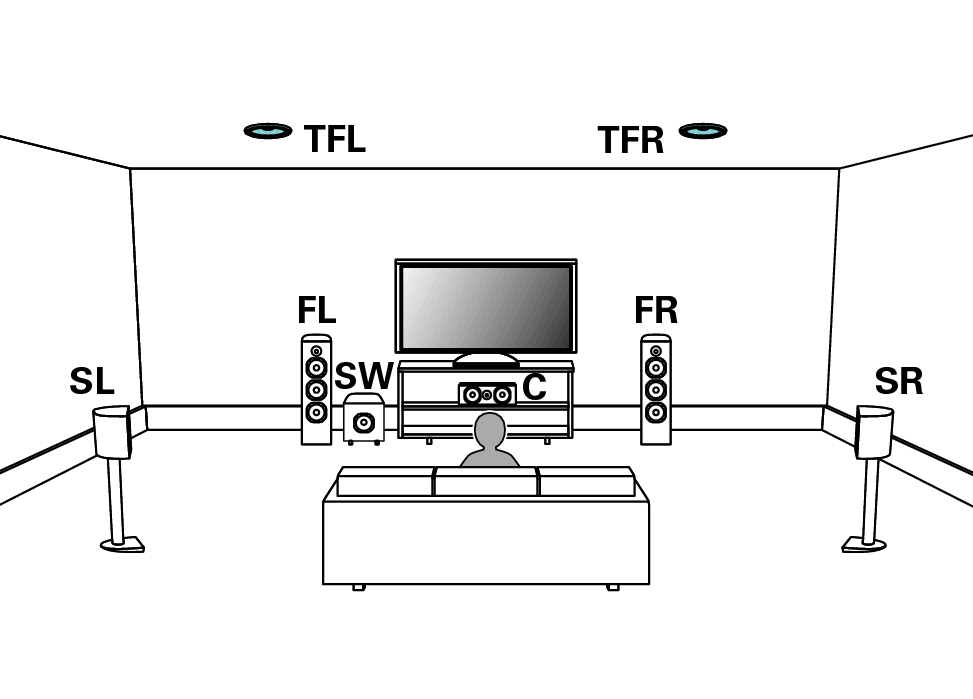

7.1-channel (top front)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top front speakers.

Pict TopFront SP Layout X2200
Conne SP 7.1 TF 1606U

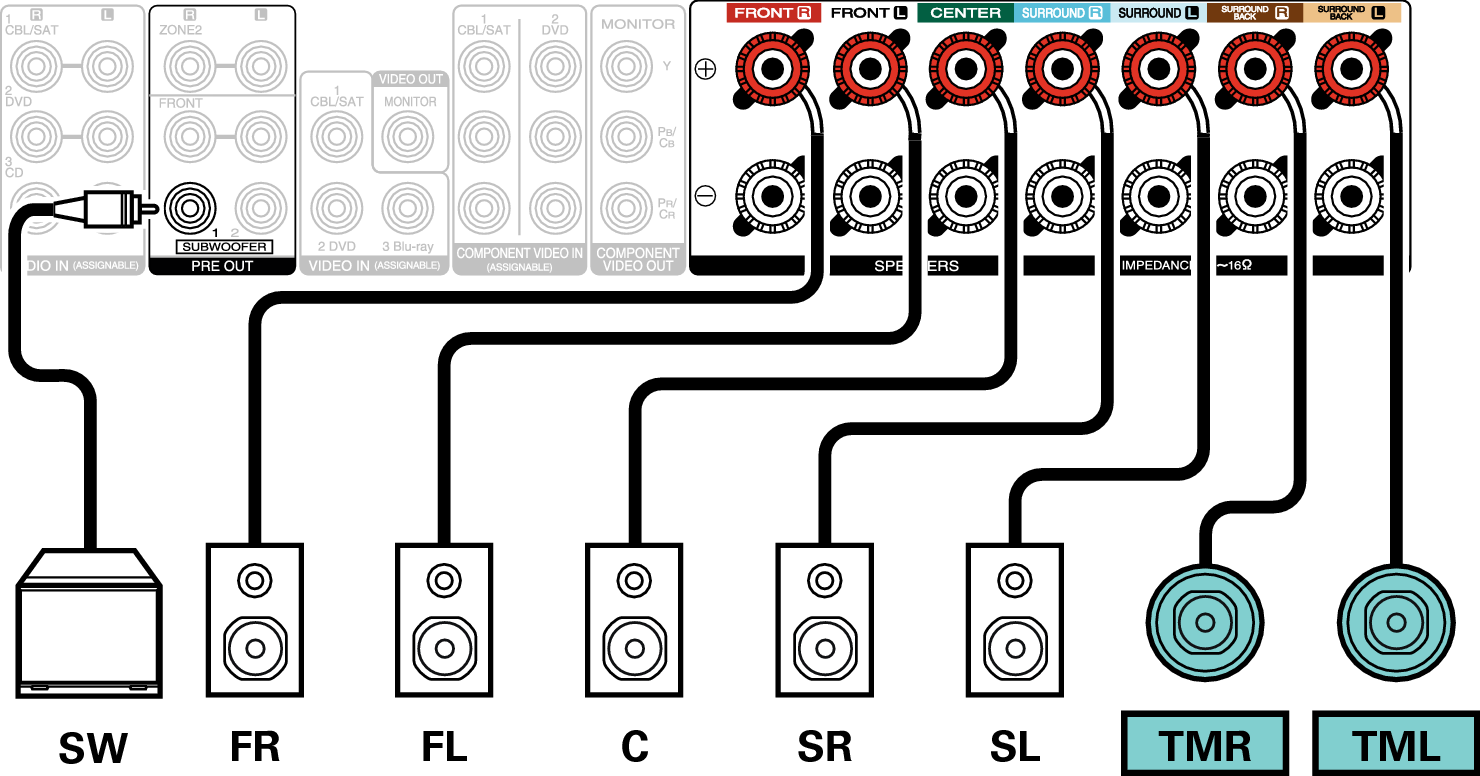

7.1-channel (top middle)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with top middle speakers.

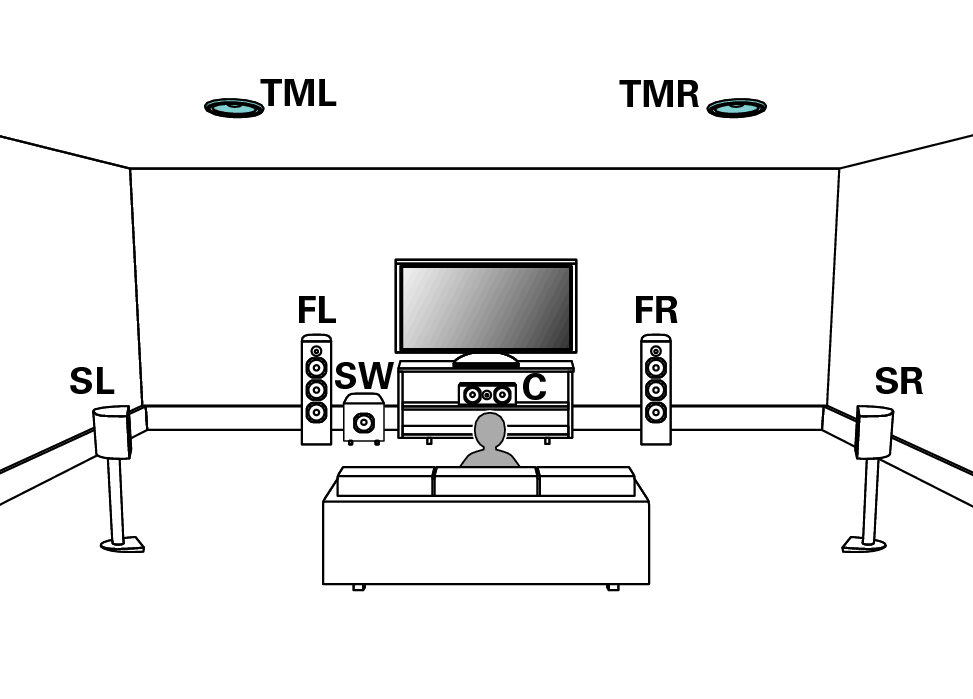

Pict TopMiddle SP Layout X2200
Conne SP 7.1 TM 1606U

7.1-channel (front Dolby Atmos Enabled)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby Atmos Enabled speakers.

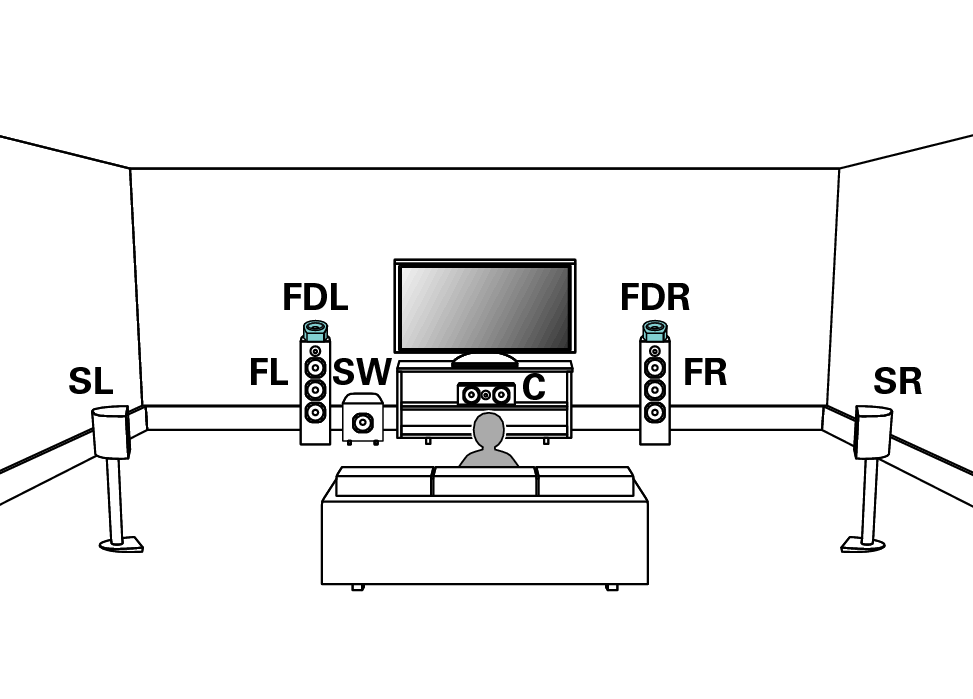

Pict FrontDolby SP Layout X2200
Conne SP 7.1 FD 1606U

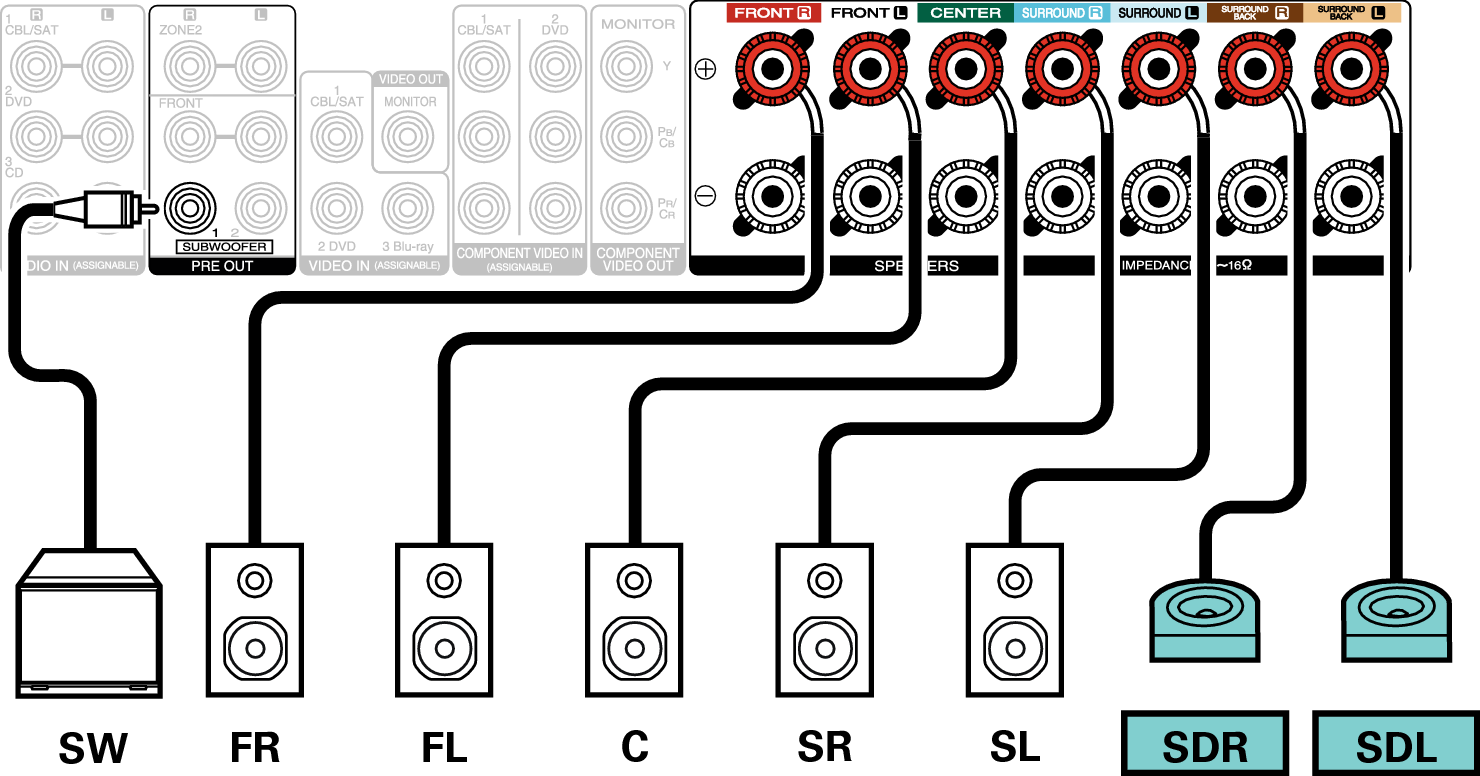

7.1-channel (surround Dolby Atmos Enabled)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround Dolby Atmos Enabled speakers.

Pict SurrDolby SP Layout X2200
Conne SP 7.1 SD 1606U

Applied configuration and connection

5.1-channel (bi-amp connection of front speaker)

This is a method of connecting separate amplifiers to the tweeter terminals and woofer terminals of bi-amp compatible speakers. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.

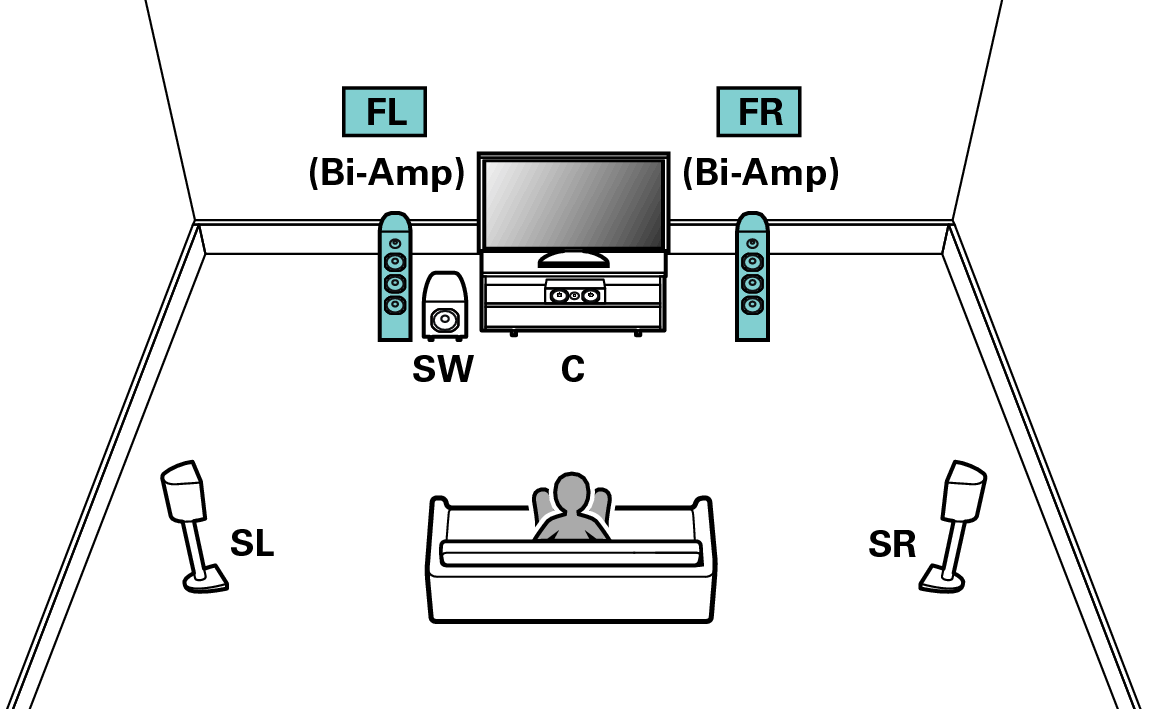

Pict AmpAssign 5.1 BiAmp
NOTE

When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter terminals.

Conne SP 5.1 BiAmp 1606U

5.1-channel + front speaker of second unit

This system enables switching playback between front speakers A and B as desired.

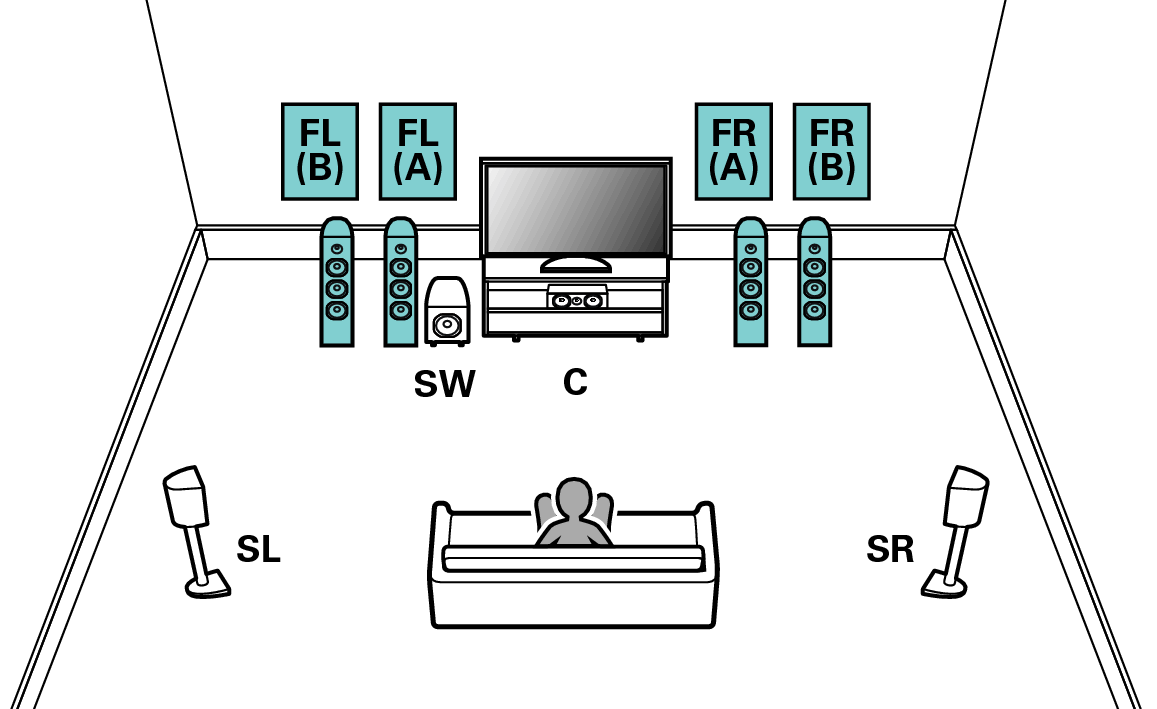

Pict AmpAssign 5.1 FB

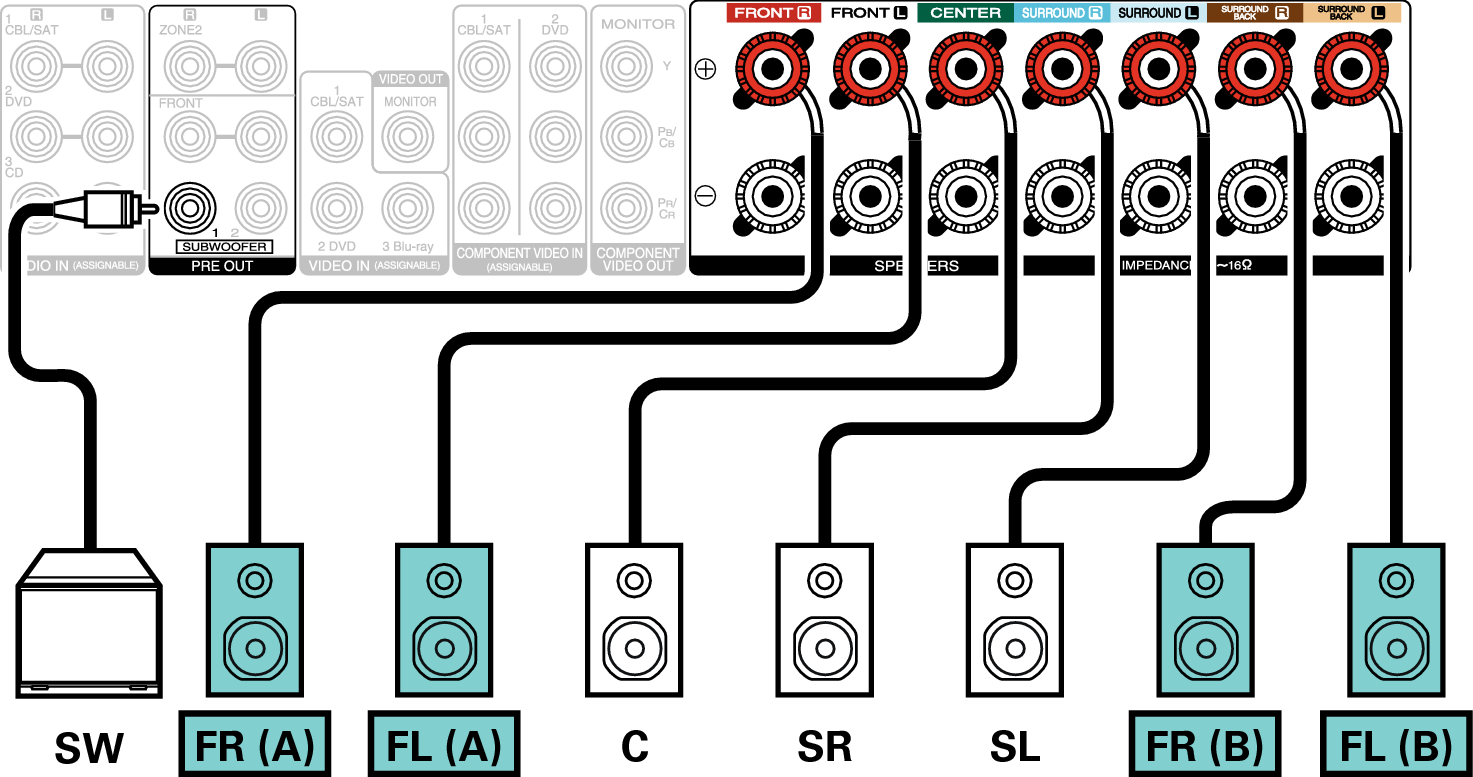

Conne SP 5.1 FB 1606U

5.1-channel (MAIN ZONE) + 2-channel (ZONE2)

This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.

MAIN ZONE

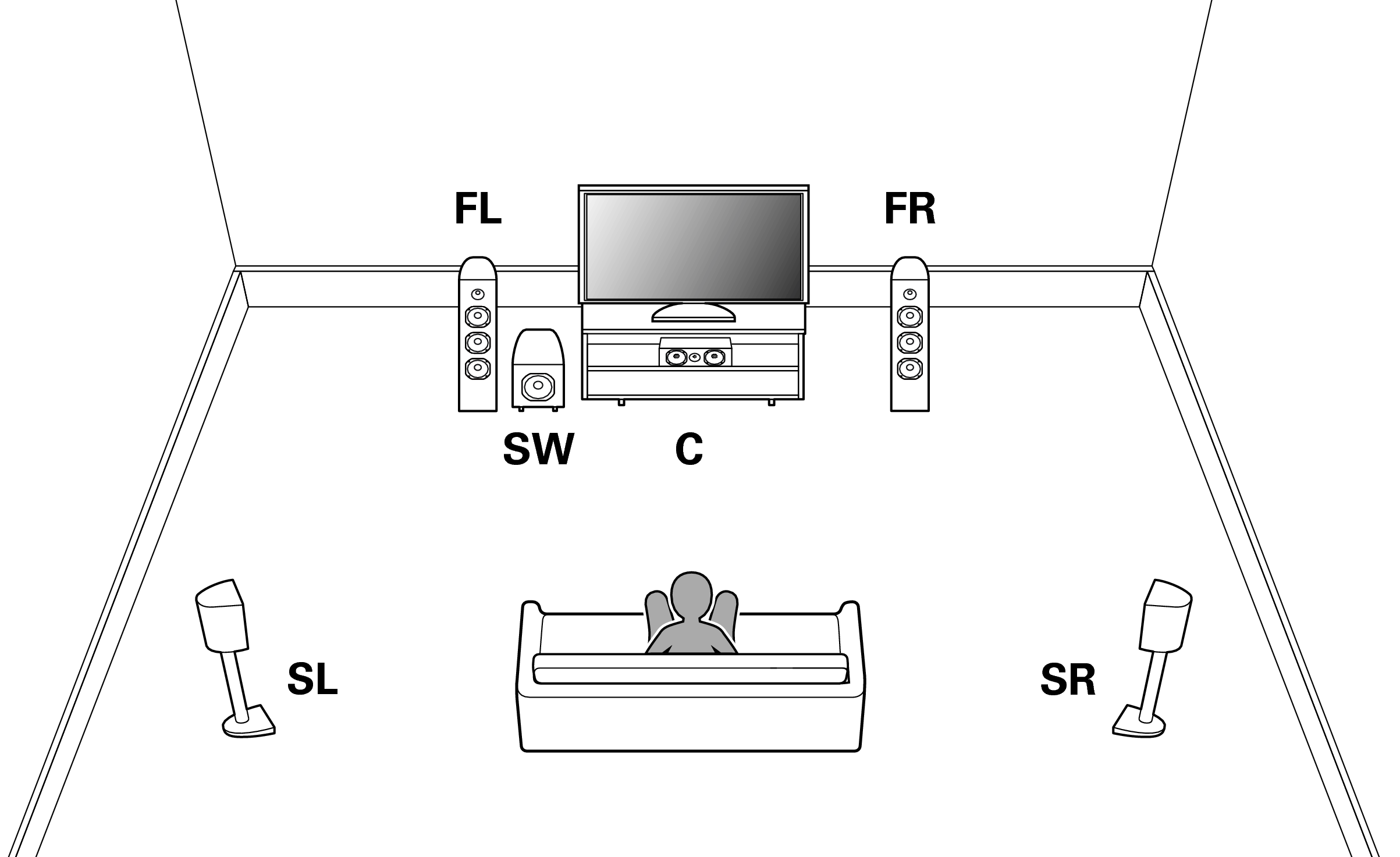

Pict AmpAssign 5.1 Main

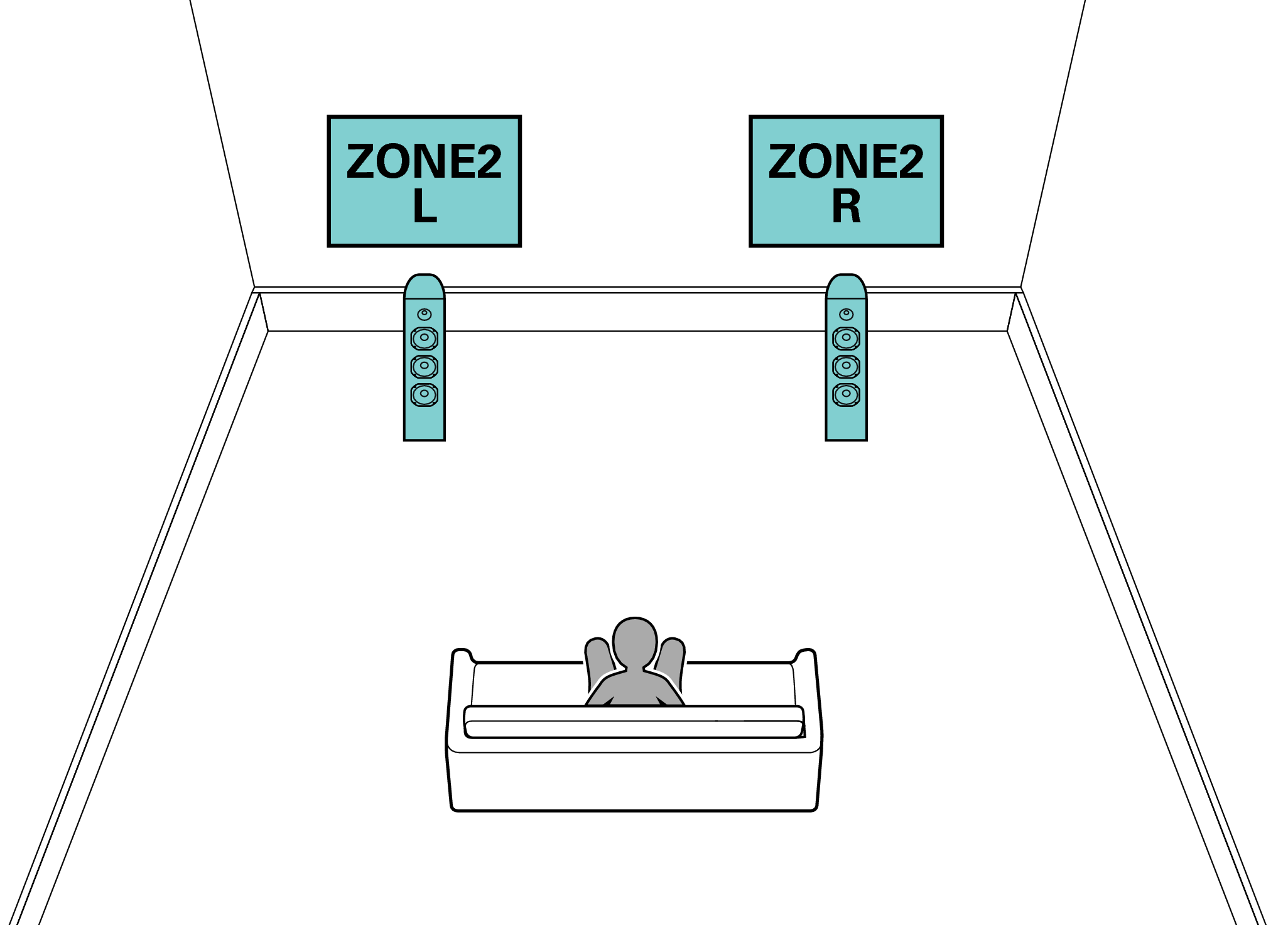

ZONE2

Pict AmpAssign ZONE2

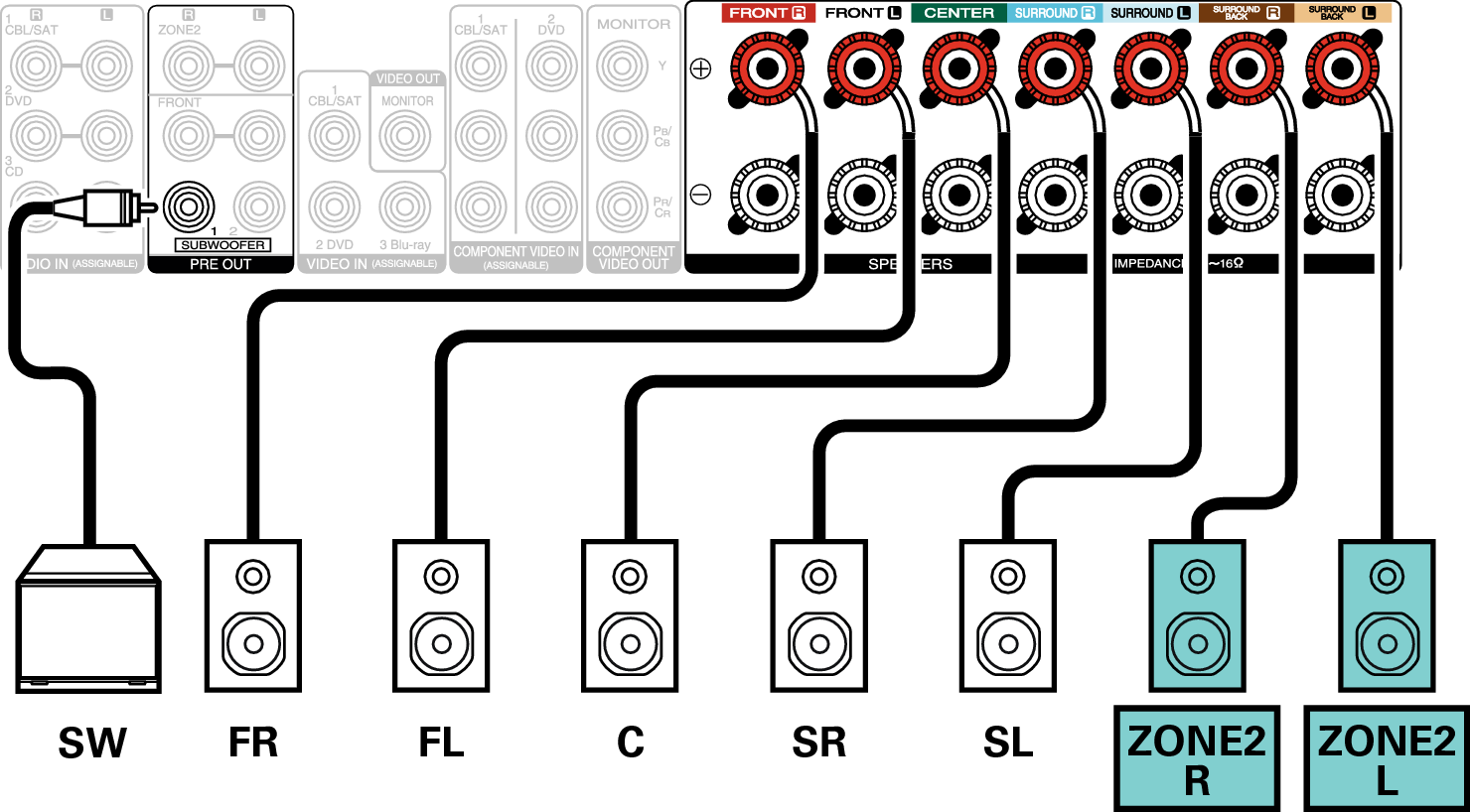

Conne SP 5.1 ZONE2 1606U
