Front panel

Name_Front_Web

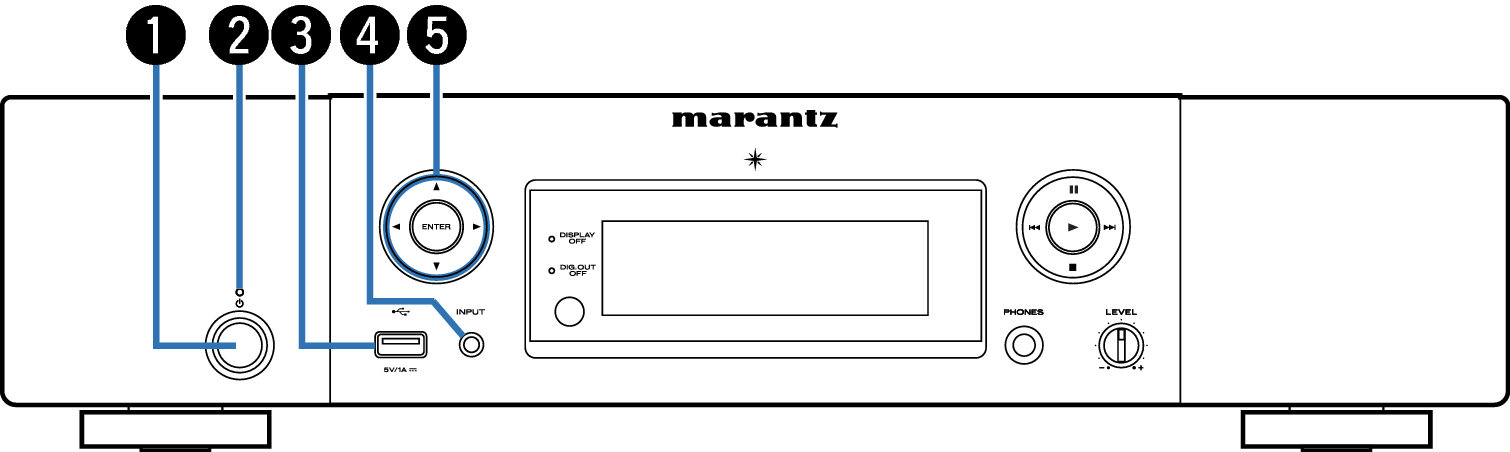

Power operation button ( Power Button )

This turns the power on/off (standby). link

Standby indicator

The standby indicator changes as shown below according to the status of the unit.

Power on : Off

Normal standby : Red

When “Network Control” is set to “On” : Orange

iPod charge standby : Orange

USB port

Used to connect iPod or USB memory devices. link

Input source select button (INPUT)

These select the input source. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

Name_Front_small_JP

ENTER button

This determines the selection.

Digital output off indicator (DIG. OUT OFF)

This indicator lights up when the digital output setting is set to off. link

DISPLAY OFF indicator

This indicator lights up when the display is off. link

Remote control sensor

This receives signals from the remote control unit.

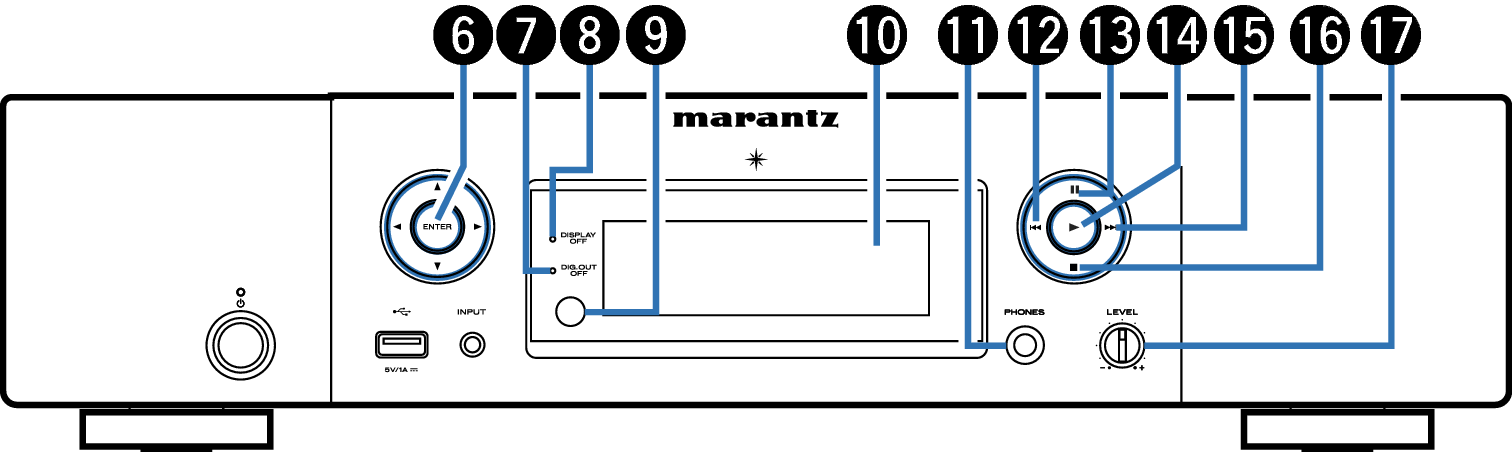

Display

Various information is displayed here.

Headphones jack (PHONES)

Used to connect headphones.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

Fast-reverse/Reverse-skip button ( Skip-Left )

Returns to the start of the currently playing track. Press and hold to fast-reverse the track. link

Pause button ( Pause )

Pauses playback. link

Play button ( Triangle Right )

Playback starts. link

Fast-forward/Forward-skip button ( Skip-Right )

Plays the next track. Press and hold to fast-forward the track. link

Stop button ( Square Black )

Stops playback. link

Headphone volume control knob (LEVEL)

Adjusts the headphone volume.
