Remote control unit

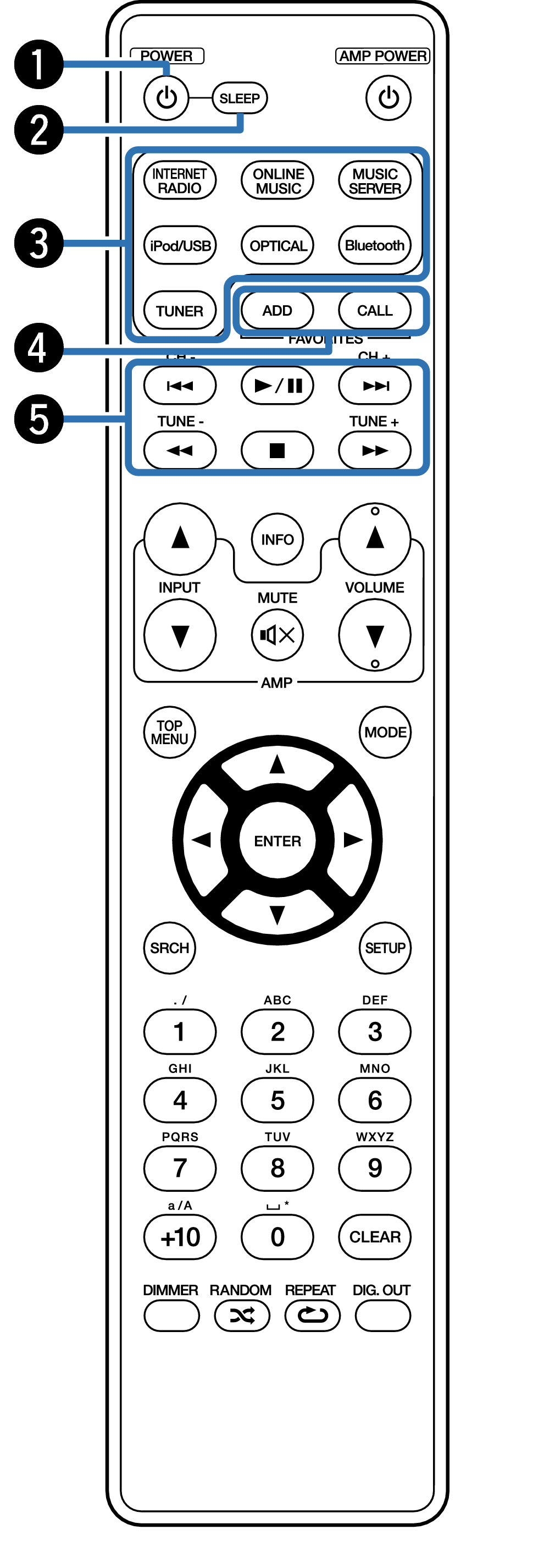

Name_RC001NA NA6005-1

Operating this unit

POWER button ( Power Button )

This turns the power on/off (standby). link

SLEEP button

This sets the sleep timer. link

Input source select buttons

These select the input source. link

FAVORITES ADD / CALL buttons

To add radio stations or files to the favorite list, press ADD button.

To call up a radio station or file registered in the favorite list, press CALL button. link

System buttons

These perform playback related operations.

Skip buttons ( Skip-Left , Skip-Right )

Play/pause button ( Triangle Right / Pause )

Fast-reverse / Fast-forward buttons ( Rewind , Forward )

Stop button ( Square Black )

Channel buttons (CH +, –)

These operate the Favorite function.

Tuning buttons (TUNE +, –)

These operate the tuner.

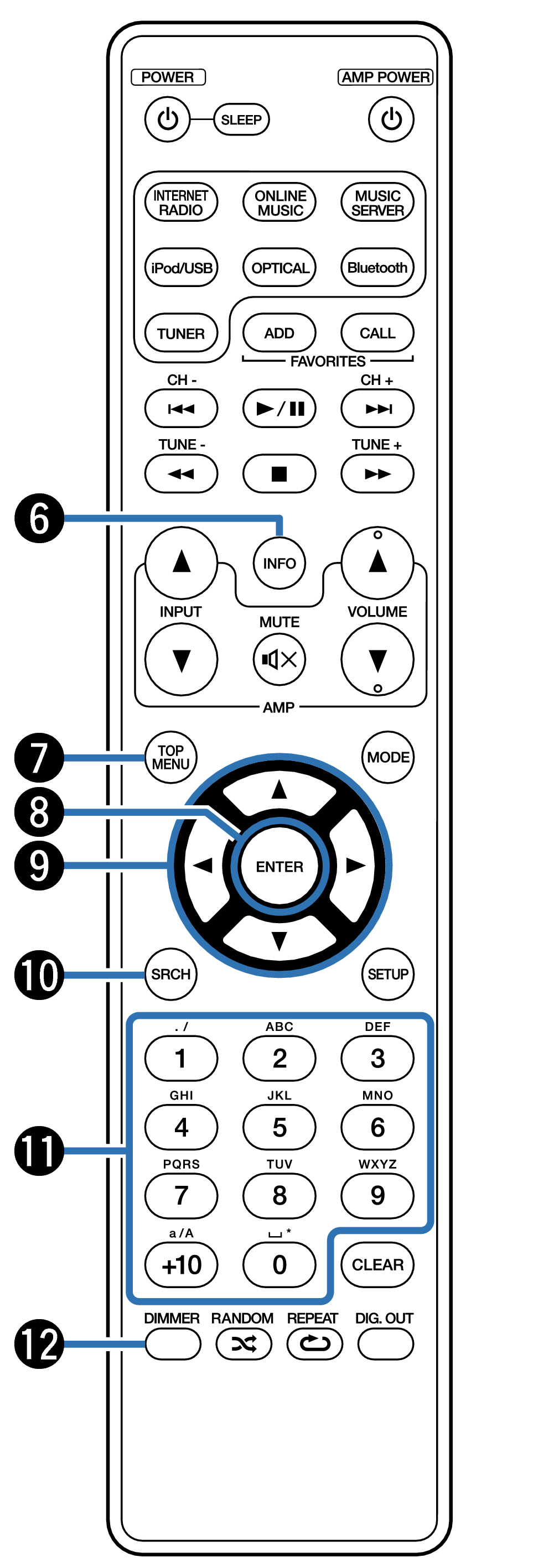

Name_RC001NA NA6005-2

Information button (INFO)

This switches display items such as the album name and title name in the playback screen. link

TOP MENU button

To back to the top of the menu.

ENTER button

This determines the selection. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items. link

Search button (SRCH)

This displays the search menu. link

Number buttons (0 – 9, +10)

These enter letters or numbers into the unit. link

DIMMER button

Adjust the display brightness of this unit. link

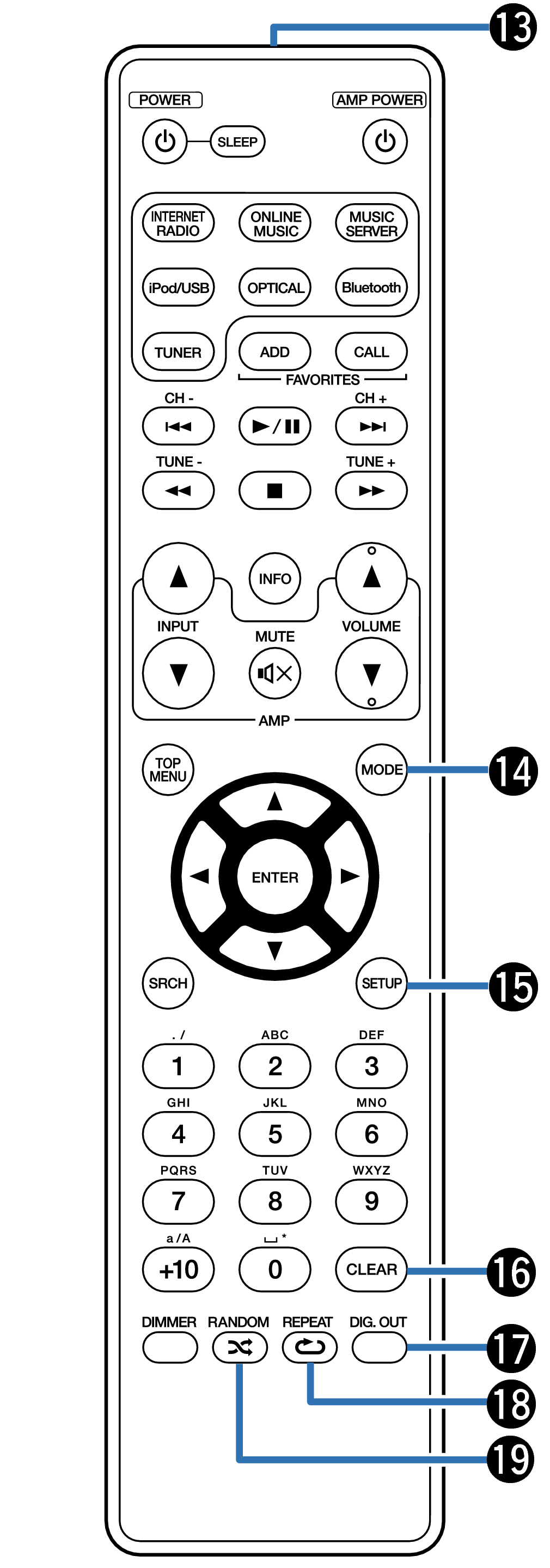

Name_RC001NA NA6005-3

Remote control signal transmitter

This transmits signals from the remote control unit.link

MODE button

This switches the playback mode. link

This switches the tuning mode. link

SETUP button

The setting menu is displayed on the display. link

CLEAR button

This cancels the settings. link

Digital audio output switch button (DIG. OUT)

This switches the digital audio output on/off.
link

REPEAT button ( Repeat )

Switches to the repeat playback. link

RANDOM button ( Icon RANDOM )

Switches the random playback. link

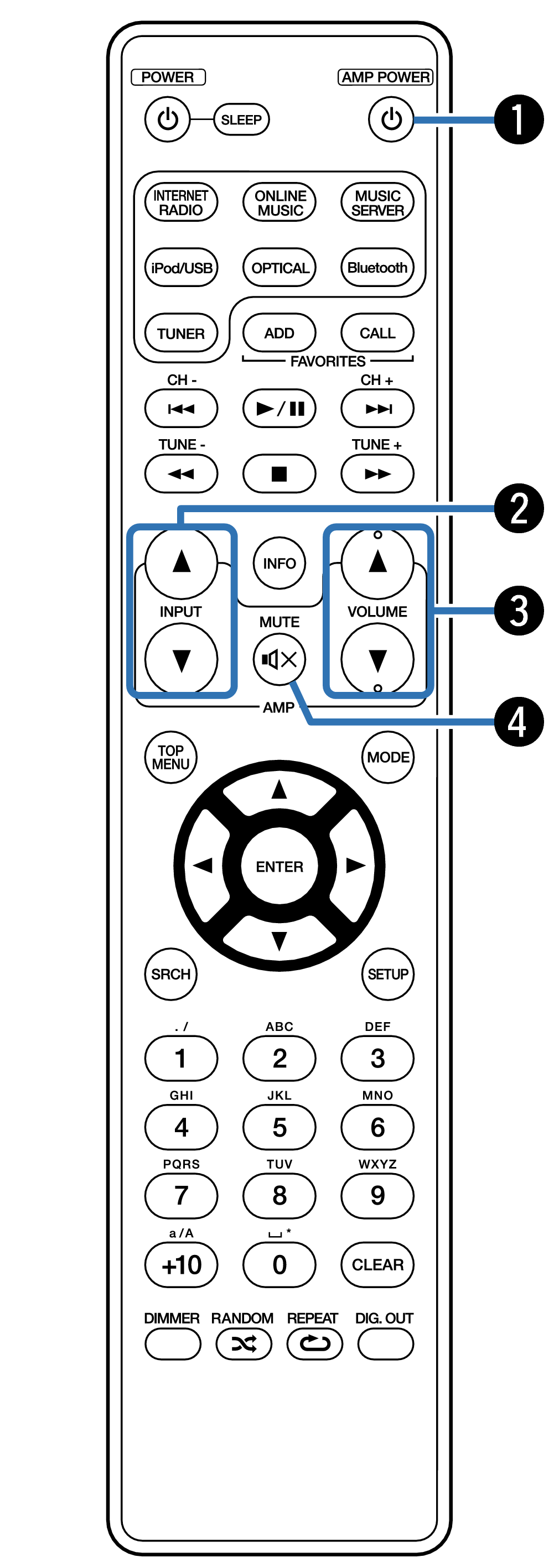

Name NA6005N 03

Amplifier operations

AMP POWER button ( Power Button )

This turns the power of the amp connected to this unit on or off.

Input source select buttons (INPUT kurosankaku Sankaku-Reverse )

This switches the input source of the amp connected to this unit. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

This adjusts the volume of the amp connected to this unit.

MUTE button ( Silent )

This mutes the sound of the amp connected to this unit.
