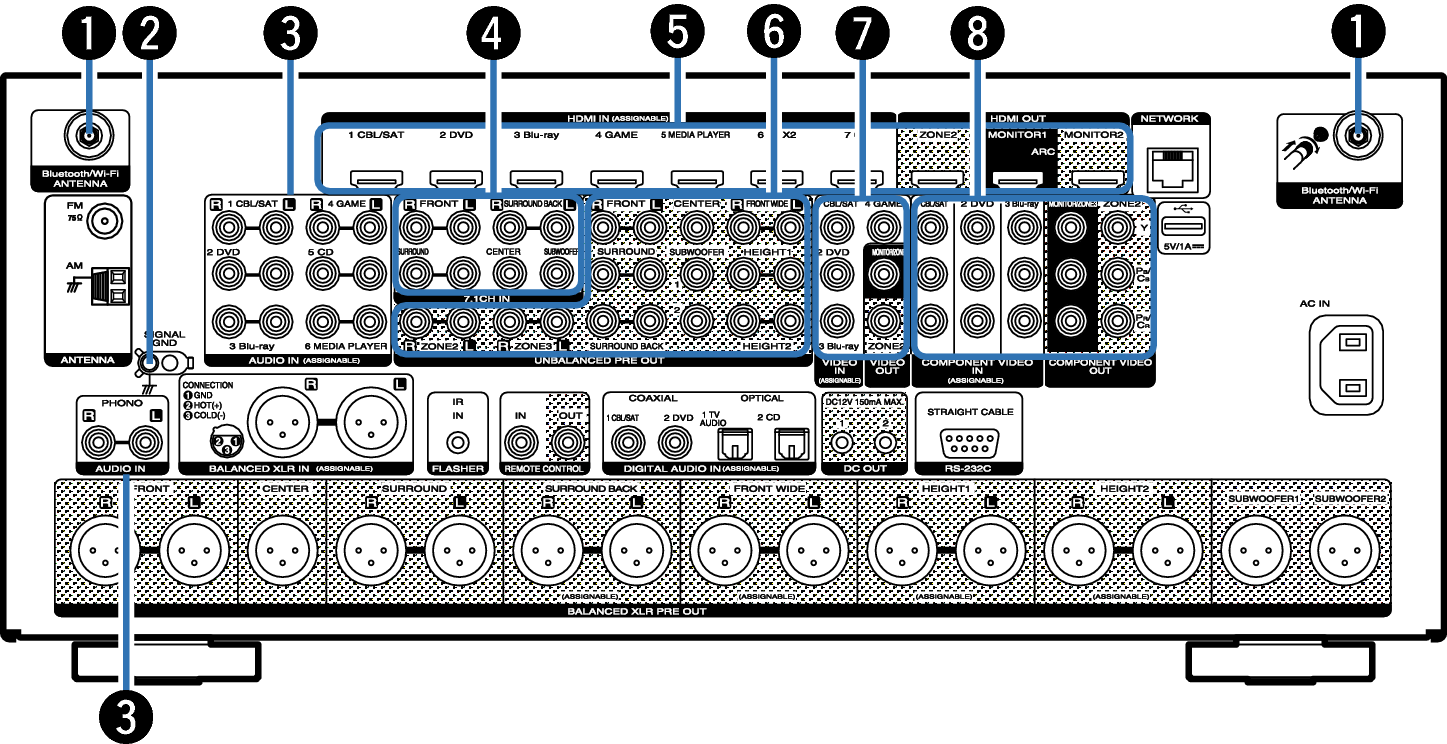

Rear panel
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

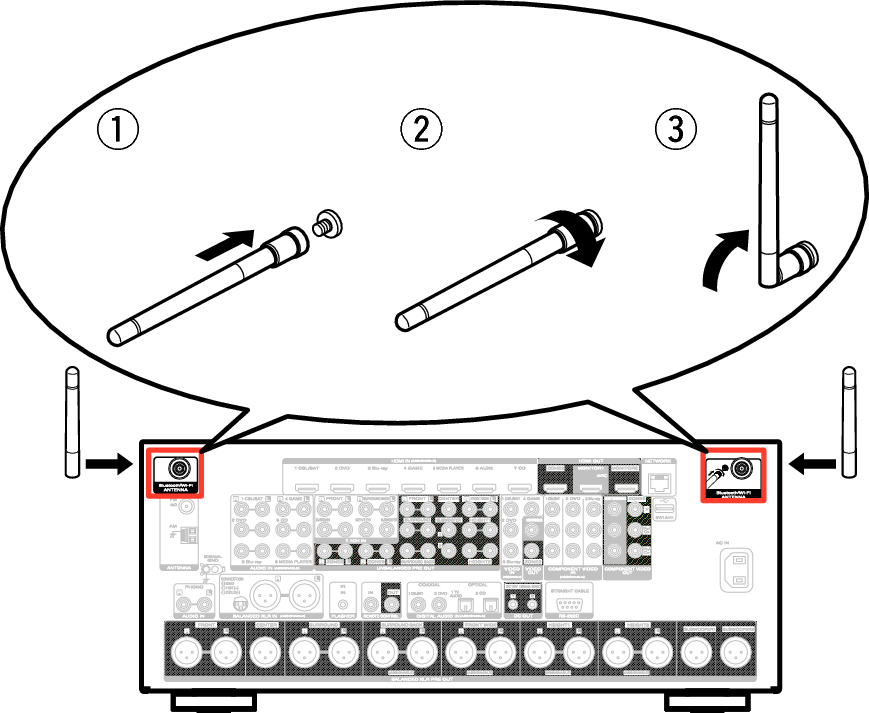

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
SIGNAL GND terminal
Used to connect a ground wire for the turntable. link
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors. link
7.1-channel input connectors (7.1CH IN)
Used to connect to a device that has multi-channel audio output connectors. link
HDMI connectors
Used to connect devices equipped with HDMI connectors. link
UNBALANCED RCA PRE OUT connectors
Used to connect a power amp with UNBALANCED RCA input connectors.link
Video connectors (VIDEO)
Used to connect devices equipped with video connectors. link
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors. link

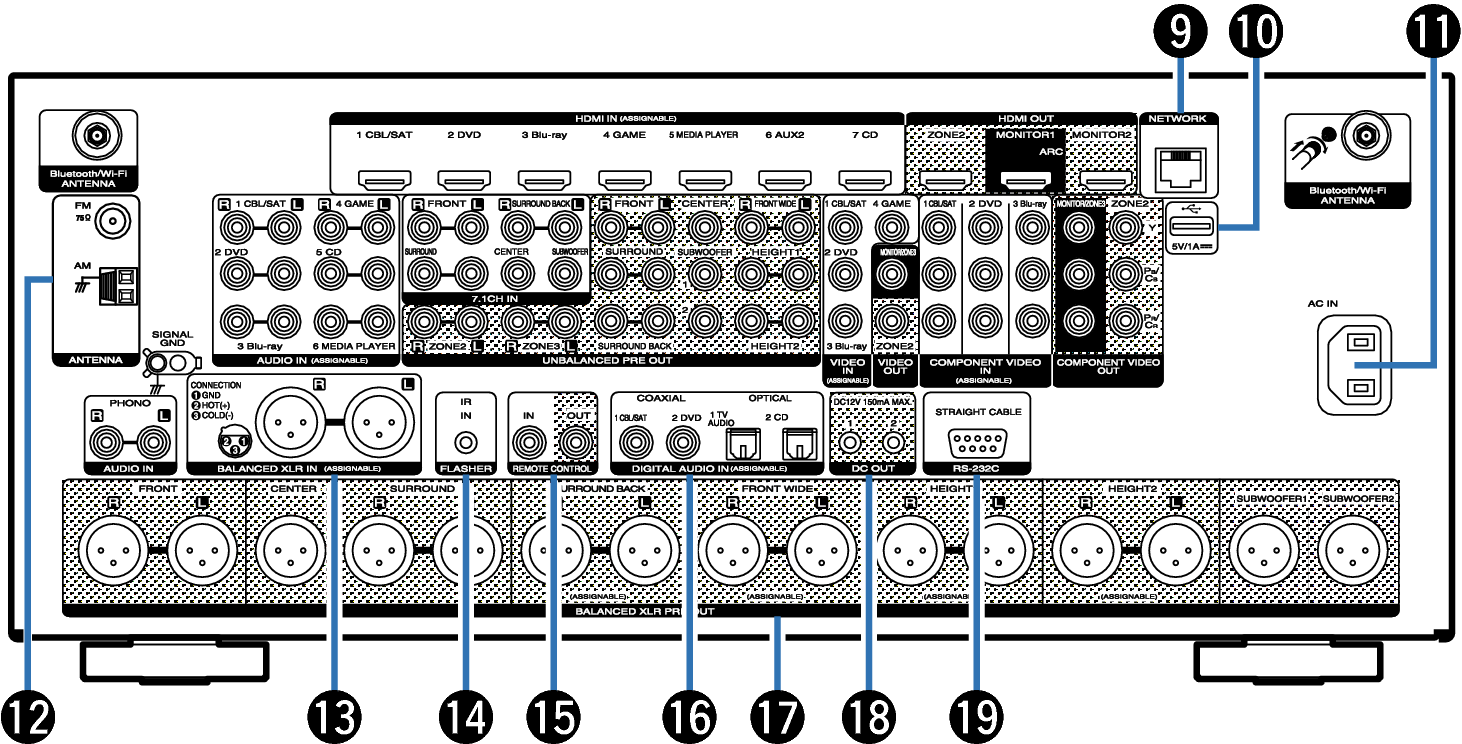

NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN network. link
USB port
This is used to connect USB storages (such as USB memory devices) and the USB cable supplied with iPod. link
AC inlet (AC IN)
Used to connect the power cord. link
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
BALANCED XLR IN terminals
Used to connect devices equipped with BALANCED XLR output terminals. link
FLASHER IN jack
Used when using a control BOX or other such control devices to control this unit.
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors. link
Balanced XLR OUT terminals
Used to connect a power amp with BALANCED XLR input terminals. link
DC OUT jack
Used to connect devices equipped with the trigger function. link
RS-232C connector
Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.
Perform the operation below beforehand.
Turn on the power of this unit.
Turn off the power of this unit from the external controller.
Check that the unit is in the standby mode.
NOTE
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
