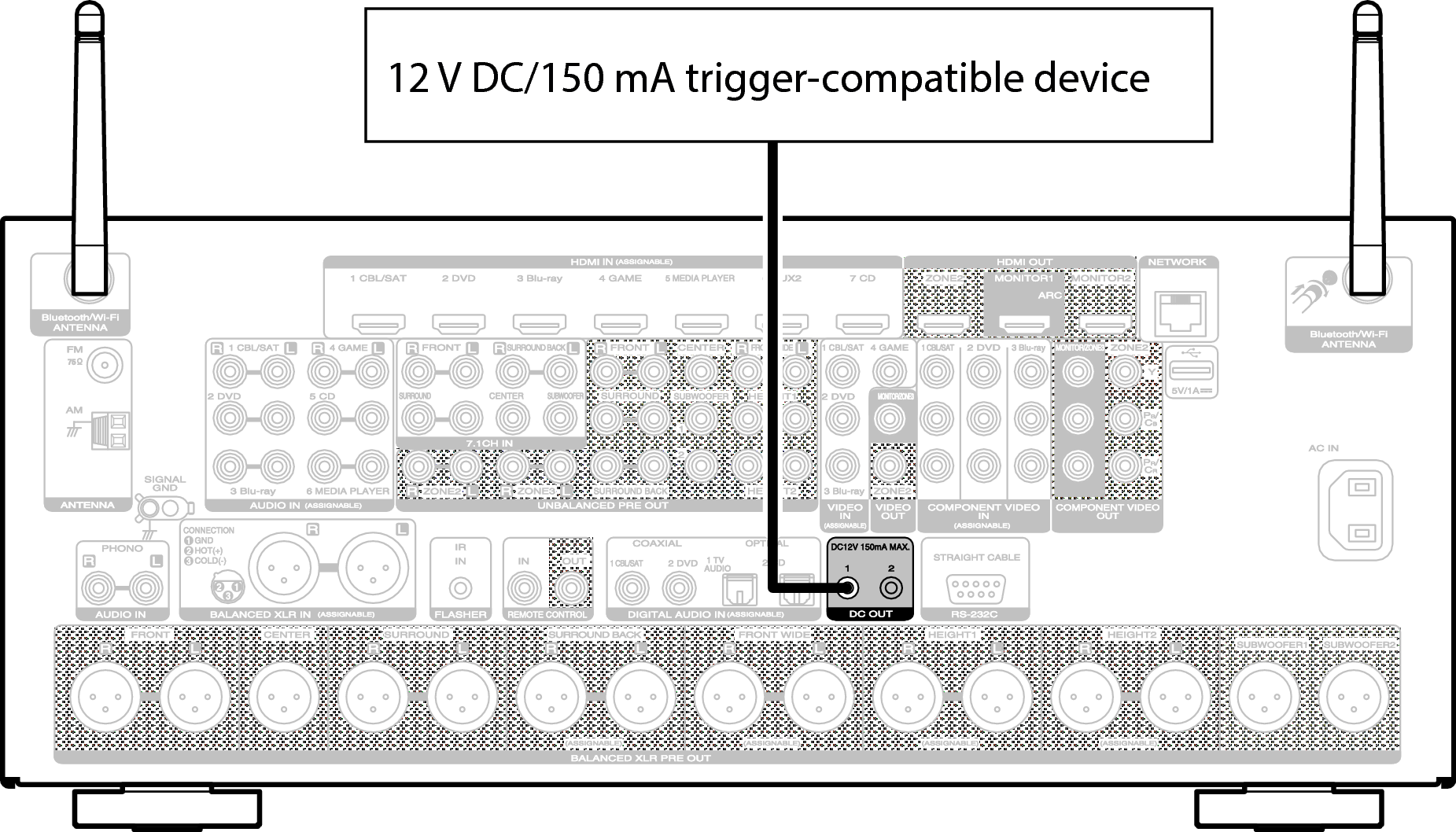

DC OUT jacks
When a device with DC IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit.
The DC OUT jack outputs a maximum 12 V DC /150 mA electrical signal.
NOTE
Use a monaural mini-plug cable for connecting the DC OUT jack. Do not use a stereo mini-plug cable.
If the permissible trigger input level for the connected device is larger than 12 V DC/150 mA, or has shorted, the DC OUT jack cannot be used. In this case, turn off the power to the unit, and disconnect DC OUT jack.
