Connecting 9.1-channel speakers

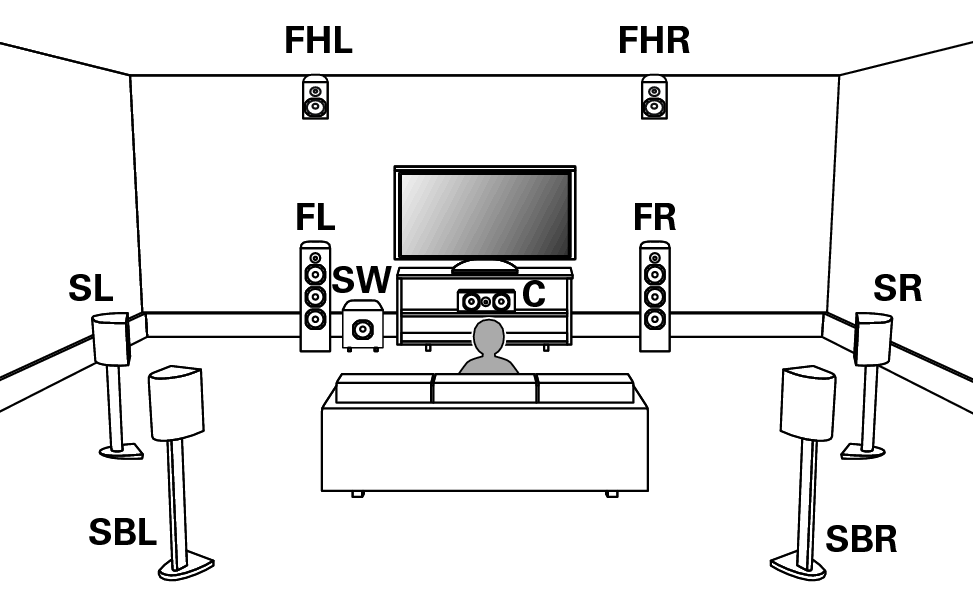

Example layout when using surround back and one set of height speakers

Pict SP Layout 9.1 FH1

For each speaker connection, refer to Connecting a power amplink.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 2 spkrs
Layout: Front Height Flower Mark
Subwoofers: 1 spkr

The front height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

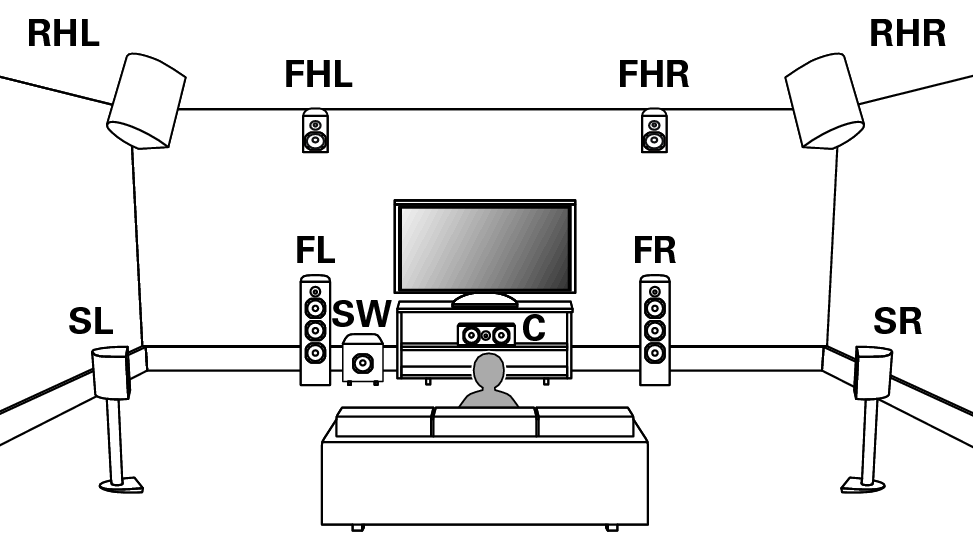

Example layout when using two sets of height speakers

Pict SP Layout 9.1 RH FH1

For each speaker connection, refer to Connecting a power amplink.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height Speakers: 4 spkrs
Front Layout: Front Height Flower Mark
Rear Layout: Rear Height Flower Mark
Subwoofers: 1 spkr

The front height speakers and rear height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

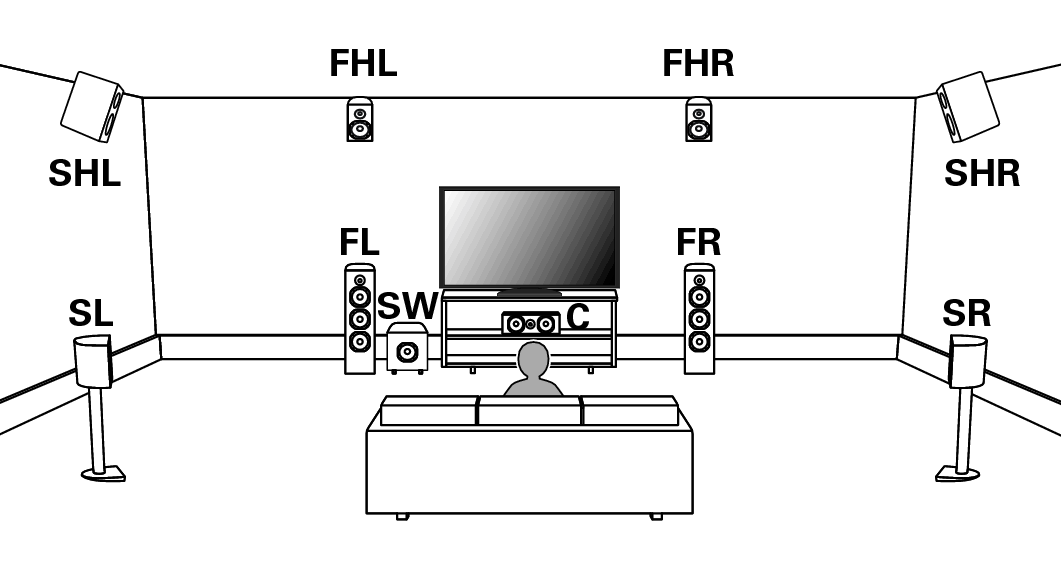

Example layout for AURO-3D 9.1 channel system

This speaker configuration is optimized for AURO-3D playback.

Pict SP Layout 9.1 Auro3D

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height Speakers: 4 spkrs
Front Layout: Front Height
Rear Layout: Surround Height
Subwoofers: 1 spkr

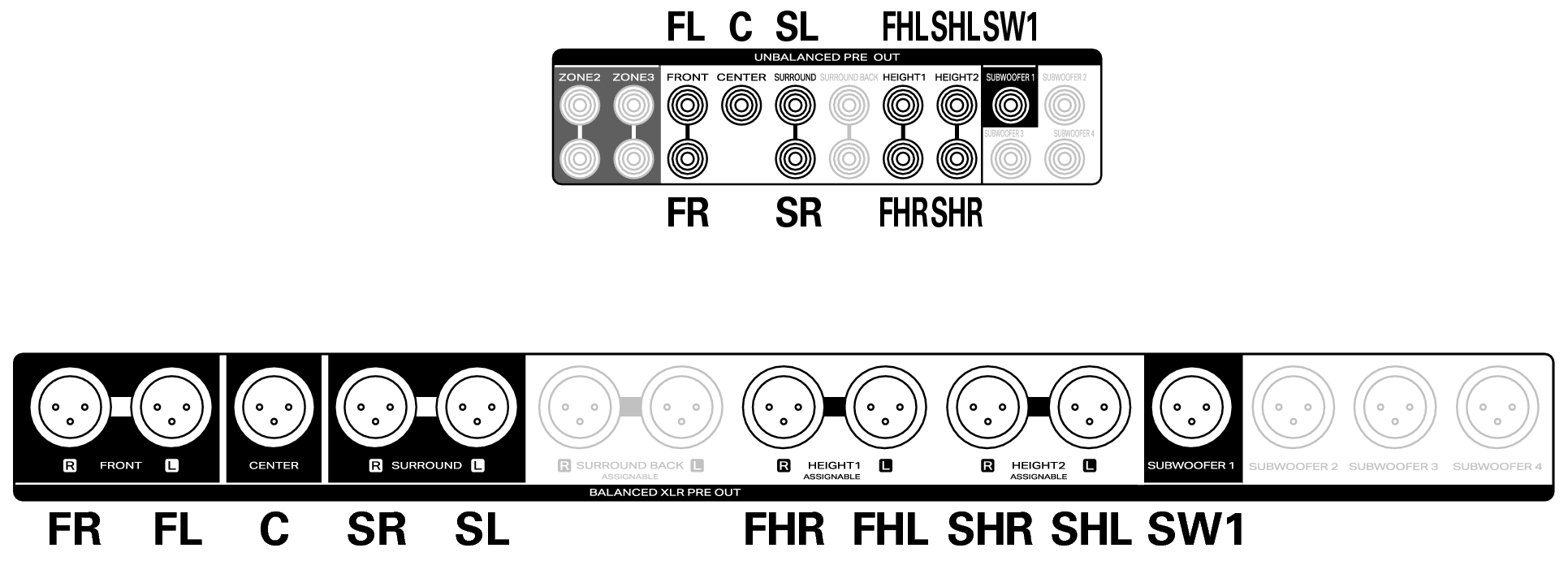

Conne SP 9.1_Auro AV30
